Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Bearings -> Single Row Ball -> Flanged -> Precision -> Extended Inner

There are 77 products in the sub-categories of Bearings - Single Row Ball - Flanged - Precision - Extended Inner. Scroll down or follow the link to Bearings - Single Row Ball - Flanged - Precision - Extended Inner in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Extended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • If the size you require is not available, you might consider using a standard bearing with shim washers.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Bearings - Single Row Ball - Flanged - Precision - Extended Inner category on the Small Parts & Bearings online store.
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Flange Diameter (DF) Flange Width (BF) Indicative
ID (d)
1.016
mm
+ 0.000 / - 0.007
(Equiv. 0.04 in.)
OD (D)
3.175
mm
+ 0.000 / - 0.007
(Equiv. 0.125 in.)
Width (B)
1.191
mm
+ 0.000 / - 0.040
(Equiv. 0.047 in.)
Inner Ring Width (Bn)
1.984
mm
Flange Diameter (DF)
4.343
mm
Flange Width (BF)
0.330
mm
Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: P6    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR09-MC3-JP6
Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d) OD (D) Width (B) Inner Ring Width (Bn) Indicative
ID (d)
1.016
mm
+ 0.000 / - 0.007
(Equiv. 0.04 in.)
OD (D)
3.175
mm
+ 0.000 / - 0.007
(Equiv. 0.125 in.)
Width (B)
1.191
mm
+ 0.000 / - 0.040
(Equiv. 0.047 in.)
Inner Ring Width (Bn)
1.984
mm
Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 4.343 mm    Flange Width (BF): 0.330 mm    Precision Grade: P6    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR09-MC3-JP6
Single Row Ball Bearings - 1.016x3.175x1.191 mm / 1.984 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.191
mm
+ 0.000 / - 0.005
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
1.588
mm
+ 0.000 / - 0.125
(Equiv. 0.063 in.)
Inner Ring Width (Bn)
2.381
mm
Flange Diameter (DF)
5.156
mm
Flange Width (BF)
0.330
mm
Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0-MC34-U3-AF12
Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.191
mm
+ 0.000 / - 0.005
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
1.588
mm
+ 0.000 / - 0.125
(Equiv. 0.063 in.)
Inner Ring Width (Bn)
2.381
mm
Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.156 mm    Flange Width (BF): 0.330 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0-MC34-U3-AF12
Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.191
mm
+ 0.000 / - 0.0075
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.156
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$102.77 AUD
$215.54 AUD $102.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.191
mm
+ 0.000 / - 0.0075
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.156 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$102.77 AUD
$215.54 AUD $102.77 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.191
mm
+ 0.000 / - 0.005
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.156
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.191
mm
+ 0.000 / - 0.005
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.156 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.191
mm
+ 0.000 / - 0.0075
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.156
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs)
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$5,379.86 AUD
$11,390.40 AUD $5,379.86 AUD
500 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.191
mm
+ 0.000 / - 0.0075
(Equiv. 0.047 in.)
OD (D)
3.967
mm
+ 0.000 / - 0.0075
(Equiv. 0.156 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.156 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR0A-ZZ-MC3-J3-G5 (500 Pcs)
Single Row Ball Bearings - 1.191x3.967x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$5,379.86 AUD
$11,390.40 AUD $5,379.86 AUD
500 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.397
mm
+ 0.000 / - 0.005
(Equiv. 0.055 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
1.984
mm
+ 0.000 / - 0.125
(Equiv. 0.078 in.)
Inner Ring Width (Bn)
2.779
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.584
mm
Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-MC34-U3-AF12
Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.397
mm
+ 0.000 / - 0.005
(Equiv. 0.055 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
1.984
mm
+ 0.000 / - 0.125
(Equiv. 0.078 in.)
Inner Ring Width (Bn)
2.779
mm
Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.584 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-MC34-U3-AF12
Single Row Ball Bearings - 1.397x4.763x1.984 mm / 2.779 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.397
mm
+ 0.000 / - 0.005
(Equiv. 0.055 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.397
mm
+ 0.000 / - 0.005
(Equiv. 0.055 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.397
mm

(Equiv. 0.055 in.)
OD (D)
4.763
mm

(Equiv. 0.188 in.)
Width (B)
2.779
mm

(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Economy    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZ-ECO
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$22.41 AUD
$45.39 AUD $22.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.397
mm

(Equiv. 0.055 in.)
OD (D)
4.763
mm

(Equiv. 0.188 in.)
Width (B)
2.779
mm

(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.787 mm    Precision Grade: Economy    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1B-ZZ-ECO
Single Row Ball Bearings - 1.397x4.763x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$22.41 AUD
$45.39 AUD $22.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.984
mm
+ 0.000 / - 0.005
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.584
mm
Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4-MC34-U3-AF12
Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.984
mm
+ 0.000 / - 0.005
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.584 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4-MC34-U3-AF12
Single Row Ball Bearings - 1.984x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
1.984
mm
+ 0.000 / - 0.0075
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC3
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$36.23 AUD
$74.51 AUD $36.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.984
mm
+ 0.000 / - 0.0075
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC3
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$36.23 AUD
$74.51 AUD $36.23 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
1.984
mm
+ 0.000 / - 0.005
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
1.984
mm
+ 0.000 / - 0.005
(Equiv. 0.078 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-4B-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Nov 28, 2025
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
1.588
mm
+ 0.000 / - 0.125
(Equiv. 0.063 in.)
Inner Ring Width (Bn)
2.381
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.457
mm
Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133-MC34-U3-AF12
Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
1.588
mm
+ 0.000 / - 0.125
(Equiv. 0.063 in.)
Inner Ring Width (Bn)
2.381
mm
Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.457 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133-MC34-U3-AF12
Single Row Ball Bearings - 2.381x4.763x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
2.381
mm
+ 0.000 / - 0.007
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.007
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.040
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: P6    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3-JP6
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
2.381
mm
+ 0.000 / - 0.007
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.007
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.040
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.787 mm    Precision Grade: P6    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3-JP6
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
2.381
mm
+ 0.000 / - 0.0075
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
5.944
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$20.50 AUD
$41.31 AUD $20.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
2.381
mm
+ 0.000 / - 0.0075
(Equiv. 0.094 in.)
OD (D)
4.763
mm
+ 0.000 / - 0.0075
(Equiv. 0.188 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 5.944 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR133A-ZZ-MC3
Single Row Ball Bearings - 2.381x4.763x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Fri, Dec 05, 2025
$20.50 AUD
$41.31 AUD $20.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.584
mm
Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5-MC34-U3-AF12
Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.584 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5-MC34-U3-AF12
Single Row Ball Bearings - 2.381x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
2.381
mm
+ 0.000 / - 0.005
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
2.381
mm
+ 0.000 / - 0.0075
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC3
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$45.59 AUD
$94.40 AUD $45.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
2.381
mm
+ 0.000 / - 0.0075
(Equiv. 0.094 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR1-5A-ZZS-MC3
Single Row Ball Bearings - 2.381x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$45.59 AUD
$94.40 AUD $45.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.584
mm
Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144-MC34-U3-AF12

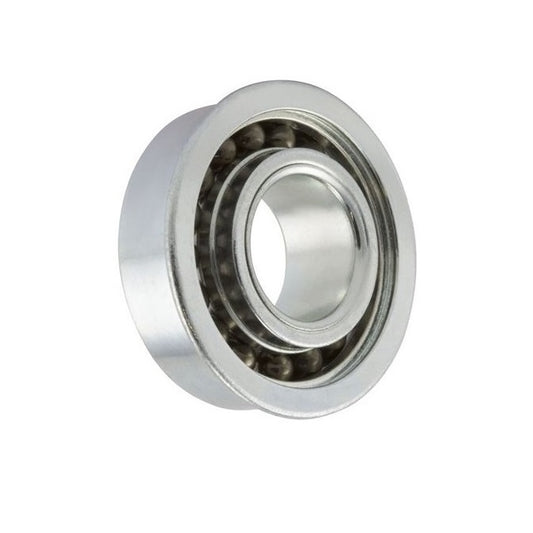

Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.381
mm
+ 0.000 / - 0.125
(Equiv. 0.094 in.)
Inner Ring Width (Bn)
3.175
mm
Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.584 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144-MC34-U3-AF12
Single Row Ball Bearings - 3.175x6.35x2.381 mm / 3.175 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
7.518
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC3
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 16, 2025
$19.41 AUD
$38.85 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.)
OD (D)
6.350
mm
+ 0.000 / - 0.0075
(Equiv. 0.25 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 7.518 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR144A-ZZS-MC3
Single Row Ball Bearings - 3.175x6.35x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Sun, Nov 16, 2025
$19.41 AUD
$38.85 AUD $19.41 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.584
mm
Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5-MC34-U3-AF12
Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
2.779
mm
+ 0.000 / - 0.125
(Equiv. 0.109 in.)
Inner Ring Width (Bn)
3.571
mm
Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.584 mm    Precision Grade: Abec 3    Closure Type: Open    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5-MC34-U3-AF12
Single Row Ball Bearings - 3.175x7.938x2.779 mm / 3.571 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.367 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity
ID (d)
3.175
mm
+ 0.000 / - 0.005
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.367 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 3    Closure Type: ZZS    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZS-MC34-U3-AF12
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Wed, Jul 19, 2028
ID (d)
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Flange Diameter (DF)
9.119
mm
Flange Width (BF)
0.787
mm
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZ-MC3
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$30.68 AUD
$62.88 AUD $30.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
ID (d)
3.175
mm
+ 0.000 / - 0.0075
(Equiv. 0.125 in.)
OD (D)
7.938
mm
+ 0.000 / - 0.0075
(Equiv. 0.313 in.)
Width (B)
3.571
mm
+ 0.000 / - 0.125
(Equiv. 0.141 in.)
Inner Ring Width (Bn)
4.366
mm
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm - Stainless Steel AISI 440C
Material: Stainless Steel AISI 440C    Flange Diameter (DF): 9.119 mm    Flange Width (BF): 0.787 mm    Precision Grade: Abec 1    Closure Type: ZZ    Bearing Type: Radial Flanged with Extended Inner
Part Number: SFWR2-5A-ZZ-MC3
Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025
$30.68 AUD
$62.88 AUD $30.68 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
