SFWR0-MC34-U3-AF12

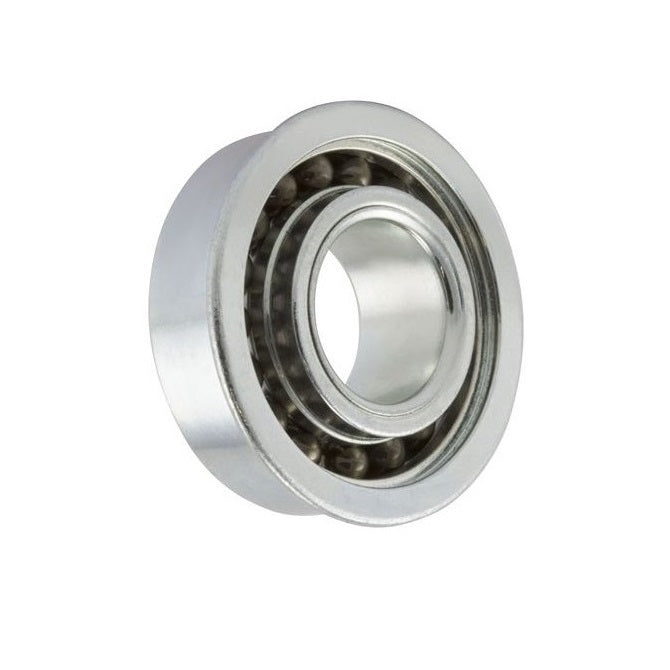

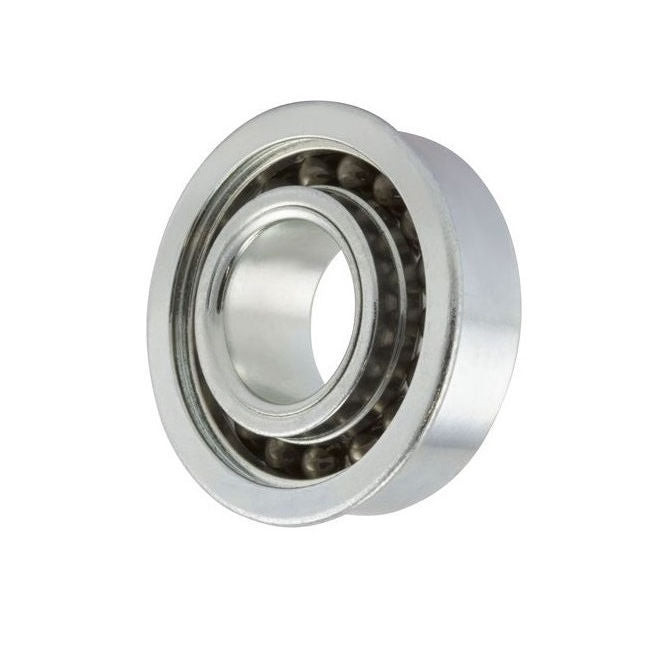

Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm Flanged - Stainless Steel AISI 440C Bearing

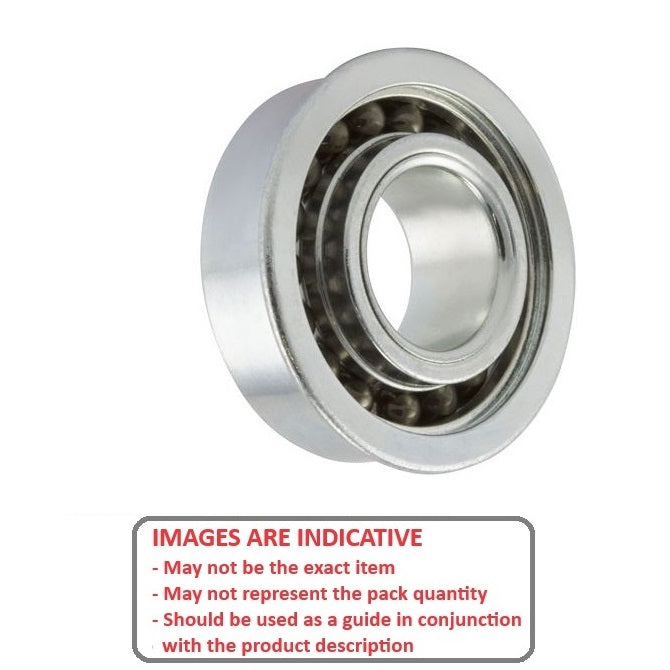

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 1.191x3.967x1.588 mm / 2.381 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

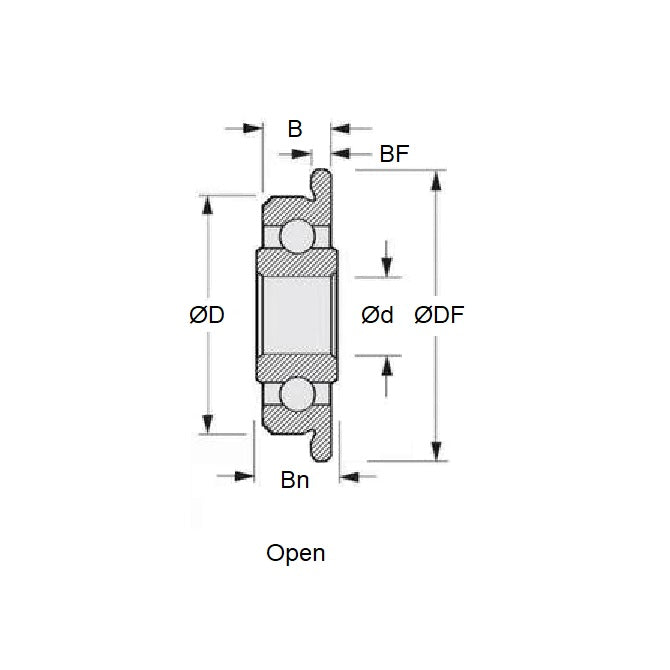

Product Details

ID (d): 1.191mm
+ 0.000 / - 0.005
(1.191mm is 0.047 in.)

Stainless Steel AISI 440C
  • ID (d): 1.191mm
    + 0.000 / - 0.005
    (1.191mm is 0.047 in.)
  • OD (D): 3.967mm
    + 0.000 / - 0.0075
    (3.967mm is 0.156 in.)
  • Width (B): 1.588mm
    + 0.000 / - 0.125
    (1.588mm is 0.063 in.)
  • Inner Ring Width (Bn): 2.381mm
  • Flange Diameter (DF): 5.156mm
  • Flange Width (BF): 0.330mm
  • Precision Grade: Abec 3
  • Closure Type: Open
  • Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • FWR0
  • A7Y55G1504
  • A7Y55-G1504
  • FWR0BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
