BLP-095-0508-TI-AC (Each)
Ball Lock Pins - 9.53x50.8 mm - Alloy Steel / Aluminium Handle No Shoulder Pin
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Couldn't load pickup availability
3/8x2 inch Pin - 9.53x50.8 mm - Alloy Steel / Aluminium Handle Ball Lock Pins - Steel Alloy with Aluminium Handle - Sold per Each:
Base Category: Pins - Ball Lock
Top Level Category: Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and Aluminium
Product Details
Deleted Item. Available while stocks last.
Nominal Diameter: 9.53mm
(9.53mm is 0.375 in.)
Steel Alloy with Aluminium Handle

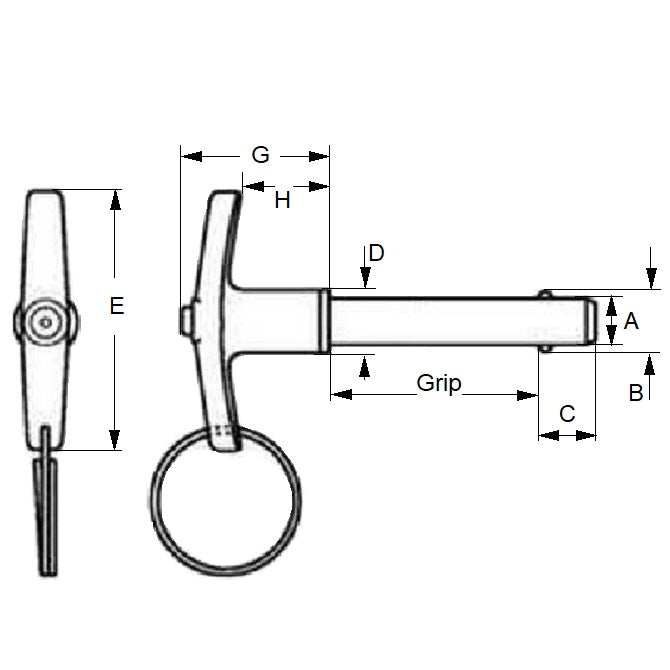

- Nominal Diameter: 9.53mm
(9.53mm is 0.375 in.)
- Grip Length (B): 50.80mm
(50.80mm is 2 in.)
- Pin Material Grade: Alloy Steel / Aluminium Handle
- Locking Ball to End (C): 9.27mm
- Open Ball Distance (B): 11.17mm
- Handle Width (E): 52.45mm
- Handle Height (G): 36.83mm
- Max. Diameter: 9.48mm
- Min. Diameter: 9.44mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- Reid Tool® BLT-080
- Reid Tool® BLT-080A
- BLT080A
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BLP0950508TIAC, BLP0950508
