Pins - Ball Lock Flanged Receptacles

Pins -> Ball Lock Flanged Receptacles

There are 2 products in the sub-categories of Pins - Ball Lock Flanged Receptacles. Browse the Pins - Ball Lock Flanged Receptacles products table.

Category Details

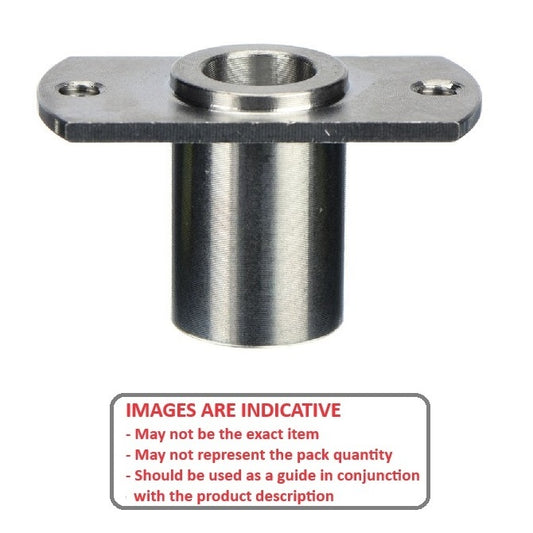

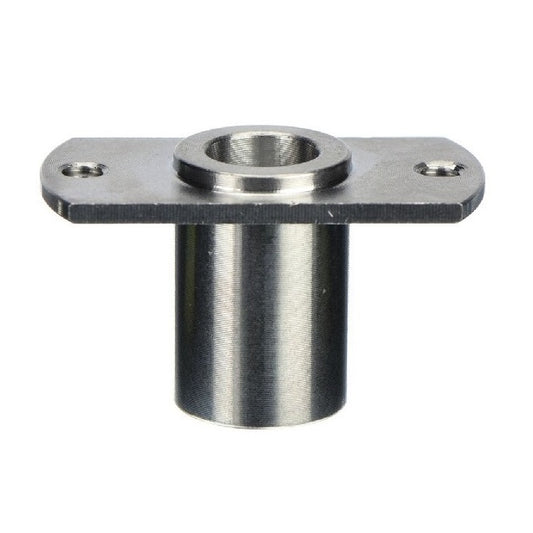

A selection of Ball Lock Flanged Receptacles Pins. Provide a permanent and proper mating hole for commercial and industrial type quick release ball lock pins.

  • An expanded range may be available on special order. Please enquire.
  • Designed to be used on materials or in applications where the positive lock detent pin does not have anything to lock against.
  • Pin does not protrude past the bottom of the receptacle so they are ideal for blind hole applications.
  • 303 Stainless Steel
  • Mounted with screws, rivets or bolts.
  • The quick release ball lock pins are inserted from the flanged end, and the ball extends into the wider opening at the top of the receptacle.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Pins - Ball Lock Flanged Receptacles category on the Small Parts & Bearings online store.
Suitable Pin Diameter Style Height (A) Tube Diameter (B) Flange Thickness (C) Bolt Hole Spacing (D) Indicative
Suitable Pin Diameter
6.35
mm

(Equiv. 0.25 in.)
Style
B

Height (A)
16.51
mm

(Equiv. 0.65 in.)
Tube Diameter (B)
9.53
mm
Flange Thickness (C)
1.52
mm
Bolt Hole Spacing (D)
25.40
mm
Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
Material: Steel    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 9.53 mm
Part Number: BLP-064-B-REC-S3
Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel Pin
1 Available Now | Further orders can be expected around Wed, Sep 17, 2025
$48.86 AUD
$58.64 AUD $48.86 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Suitable Pin Diameter Style Height (A) Tube Diameter (B) Indicative
Suitable Pin Diameter
6.35
mm

(Equiv. 0.25 in.)
Style
B

Height (A)
16.51
mm

(Equiv. 0.65 in.)
Tube Diameter (B)
9.53
mm
Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel
Material: Steel    Flange Thickness (C): 1.52 mm    Bolt Hole Spacing (D): 25.40 mm    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 9.53 mm
Part Number: BLP-064-B-REC-S3
Ball Lock Flanged Receptacles Pins - 6.35 mm B 16.51 mm - Steel Pin
1 Available Now | Further orders can be expected around Wed, Sep 17, 2025
$48.86 AUD
$58.64 AUD $48.86 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Suitable Pin Diameter
9.53
mm

(Equiv. 0.375 in.)
Style
B

Height (A)
23.19
mm

(Equiv. 0.913 in.)
Tube Diameter (B)
14.28
mm
Flange Thickness (C)
1.52
mm
Bolt Hole Spacing (D)
25.40
mm
Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
Material: Steel    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 14.28 mm
Part Number: BLP-095-B-REC-S3
Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel Pin
1 Available Now | Further orders can be expected around Wed, Sep 17, 2025
$51.14 AUD
$61.36 AUD $51.14 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
Suitable Pin Diameter
9.53
mm

(Equiv. 0.375 in.)
Style
B

Height (A)
23.19
mm

(Equiv. 0.913 in.)
Tube Diameter (B)
14.28
mm
Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel
Material: Steel    Flange Thickness (C): 1.52 mm    Bolt Hole Spacing (D): 25.40 mm    Flange Width (E): 15.88 mm    Thread Size (F): 11841    Grip Reduction Length (H): 14.28 mm
Part Number: BLP-095-B-REC-S3
Ball Lock Flanged Receptacles Pins - 9.53 mm B 23.19 mm - Steel Pin
1 Available Now | Further orders can be expected around Wed, Sep 17, 2025
$51.14 AUD
$61.36 AUD $51.14 AUD
Each
Quantity Required

1 Available Now. Backorder if more than 1.
