BLP-095-0508-TI-AC - Datasheet
MBA
Category Information

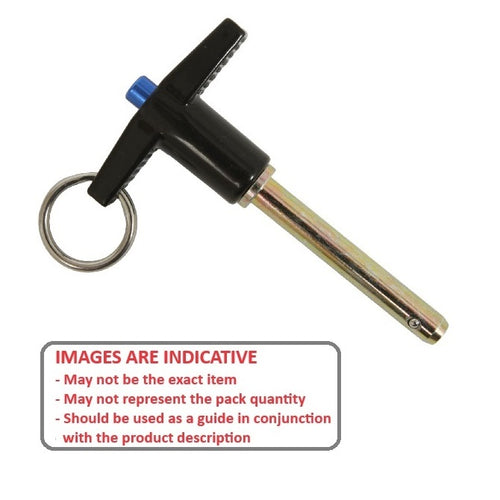

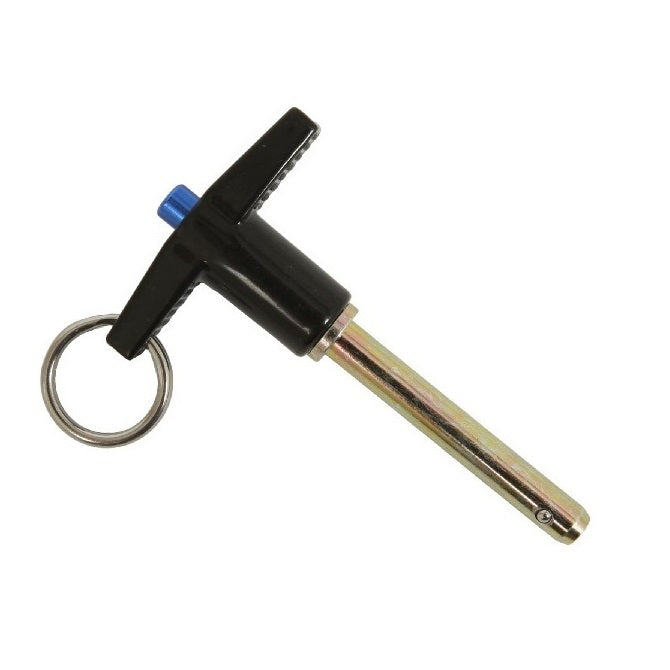

Pins - Ball Lock - No Shoulder - Tee Handle - Industrial - Steel and AluminiumSteel and Aluminium Industrial Tee Handle No Shoulder Ball Lock Pins. Quick release. Heat treated carbon and alloy steel. Aluminium tee handle.
- An expanded range may be available on special order. Please enquire.
- Positive lock detent pins.
- Aluminium handles.
- Carbon steel components
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

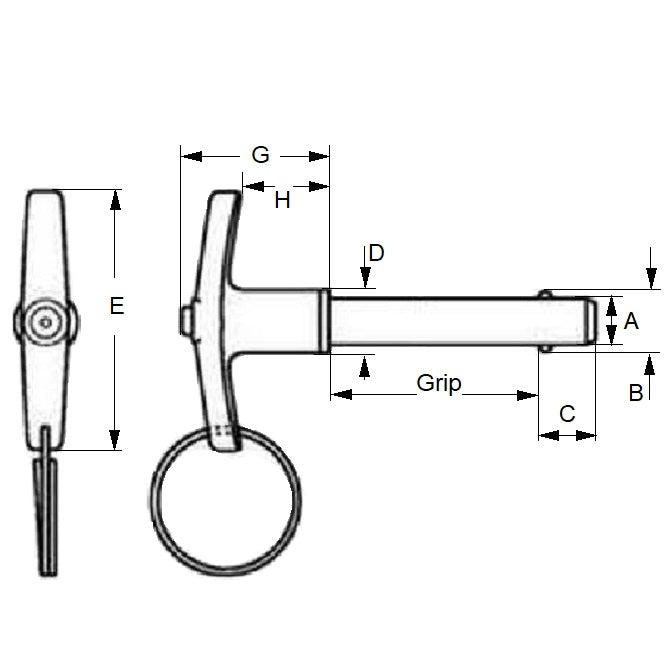

- Nominal Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Grip Length (B)
50.80
mm
(Equiv. 2 in.) - Pin Material Grade Alloy Steel / Aluminium Handle
- Locking Ball to End (C) 9.27 mm
- Open Ball Distance (B) 11.17 mm
- Handle Width (E) 52.45 mm
- Handle Height (G) 36.83 mm
- Max. Diameter 9.48 mm
- Min. Diameter 9.44 mm
- Material Steel Alloy with Aluminium Handle
Product Compliance and Data
Additional Resources
Cross References
- BLT-080A
- BLT080A
