SFWR1810-ZZS-MC3 (Each)

5/16x1/2x5/32 inch Bearing - 7.938x12.7x3.969 mm / 4.762 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

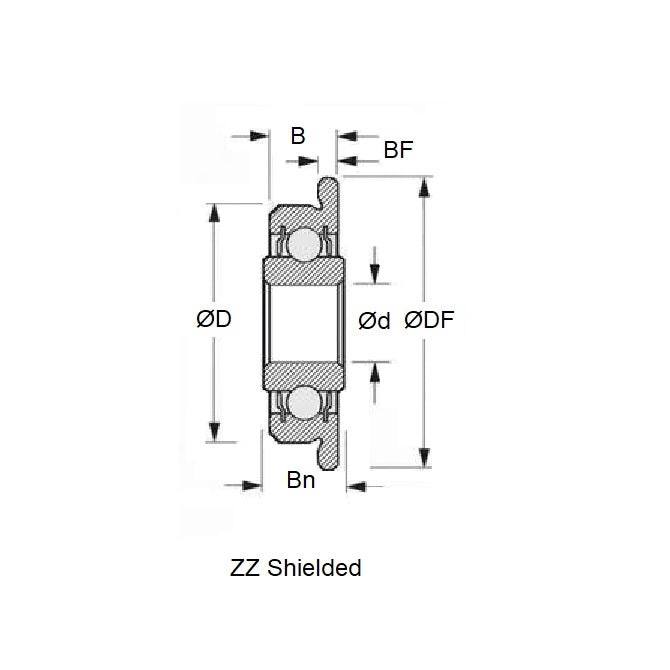

Product Details

ID (d): 7.938mm
_{+ 0.000 / - 0.0075
(7.938mm is 0.313 in.)}

Stainless Steel AISI 440C

• ID (d): 7.938mm
  _{+ 0.000 / - 0.0075
  (7.938mm is 0.313 in.)}

• O.D. (D): 12.700mm
  _{+ 0.000 / - 0.0075
  (12.700mm is 0.5 in.)}

• Width (B): 3.969mm
  _{+ 0.000 / - 0.125
  (3.969mm is 0.156 in.)}

• Inner Ring Width (Bn): 4.762mm
• Flange Diameter (DF): 13.894mm
• Flange Width (BF): 0.787mm
• Precision Grade: Abec 1
• Closure Type: ZZS
• Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• ALTPART
• 57155K338
• Reid Tool® DMB-61
• Stainless FWR1810ZZSMC3
• Stainless FWR1810-ZZS-MC3
• MPB S8516FCHHE
• MPB S8516FRHHE
• GRW SFE7938-2Z
• Shielded SFWR1810 / 4
• MPB SS8516FCHHE
• MPB SS8516FRHHE
• GRW SSFE7938-2Z
• NHBB® SSFR1810PPEE
• Shielded SSFWR1810 / 4
• NHBB® SSR1F-8516-ZZEE
• SS-R1F-8516-ZZEE
• SSFWR1810-ZZSMC3
• SSFE79382Z
• SSR1F8516ZZEE
• SSFWR1810ZZSMC3
• DDR1F-8516-ZZEE
• DD-R1F-8516-ZZEE
• DDR1F8516ZZEE
• DMB61
• FWR1810BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFWR1810ZZSMC3, FWR1810
