PLIT-050-100-100-44-KP-S3

Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger

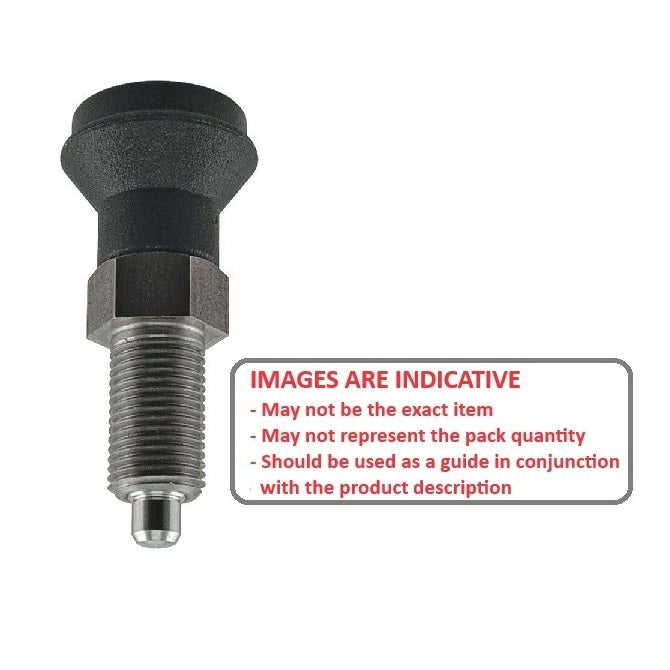

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale
Price:
$52.14 AUD
$62.56 AUD $52.14 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $46.93 AUD
Backorder now! Backorders for more than the stock quantity are expected before Oct 10, 2025

Base Category: Plungers - Indexing Pull Knob

Top Level Category: Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Product Details

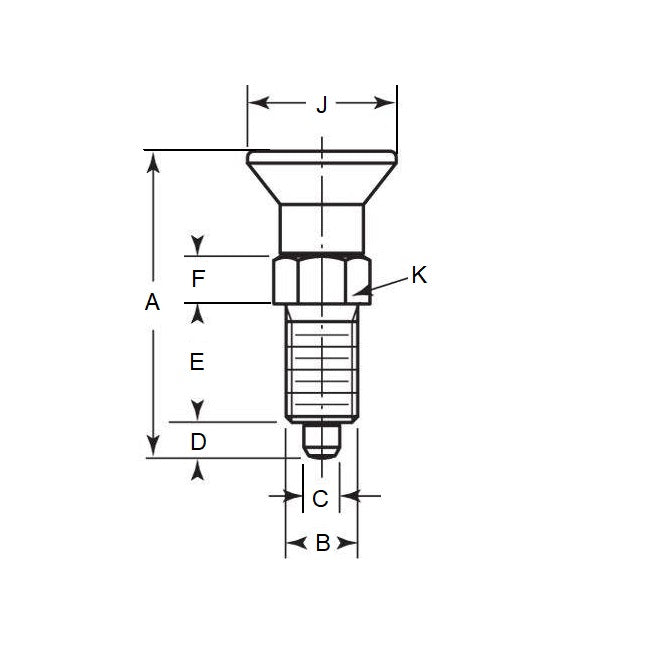

Thread (B): M10x1 (Extra Fine)

Stainless Steel 303 (Similar to A2, 304, 18-8)
  • Thread (B): M10x1 (Extra Fine)
  • Overall Length (A): 43.5mm
    (43.5mm is 1.713 in.)
  • Initial End Force: 0.5N
  • Final End Force: 1.2N
  • Tip Diameter (C): 5.0mm
  • Tip Length (D): 5.0mm
  • Nut Height (F): 7.0mm
  • Knob Diameter (J): 21.0mm
  • Hex Size (K): 13.0

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • KBP518
  • KBP-518

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
