PLIT-050-100-100-44-KP-S3 - Datasheet

MBA

Category Information

Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Standard Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Product Data

    • Thread (B) : M10x1 (Extra Fine)
    • Overall Length (A) 43.5 mm
      (Equiv. 1.713 in.)
    • Initial End Force 0.5 N
    • Final End Force 1.2 N
    • Tip Diameter (C) 5.0 mm
    • Tip Length (D) 5.0 mm
    • Nut Height (F) 7.0 mm
    • Knob Diameter (J) 21.0 mm
    • Hex Size (K) 13.0
    • Material Stainless Steel 303 (Similar to A2, 304, 18-8)
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • KBP-518
      • KBP518
      View full details

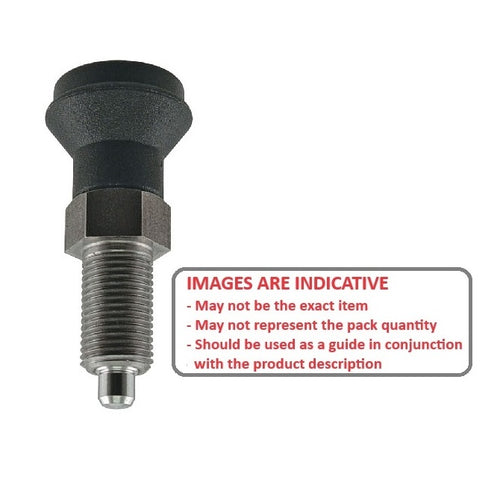

      PLIT-050-100-100-44-KP-S3DiagramPLIT-050-100-100-44-KP-S3Image
