Plungers - Indexing Pull Knob - Stainless and Plastic - Standard

Plungers -> Indexing Pull Knob -> Stainless and Plastic -> Standard

There are 16 products in the sub-categories of Plungers - Indexing Pull Knob - Stainless and Plastic - Standard. Browse the Plungers - Indexing Pull Knob - Stainless and Plastic - Standard products table.

Category Details

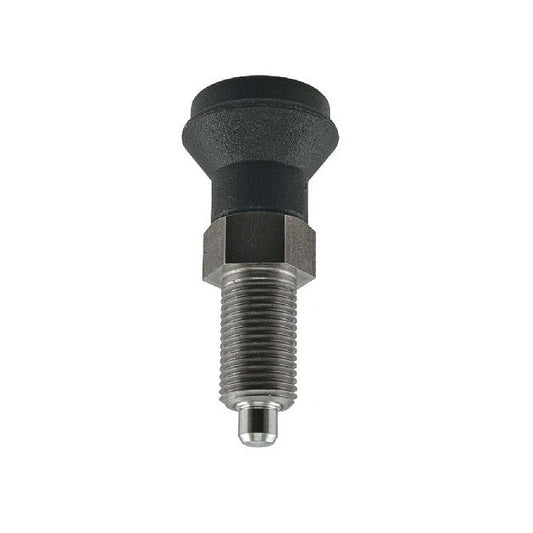

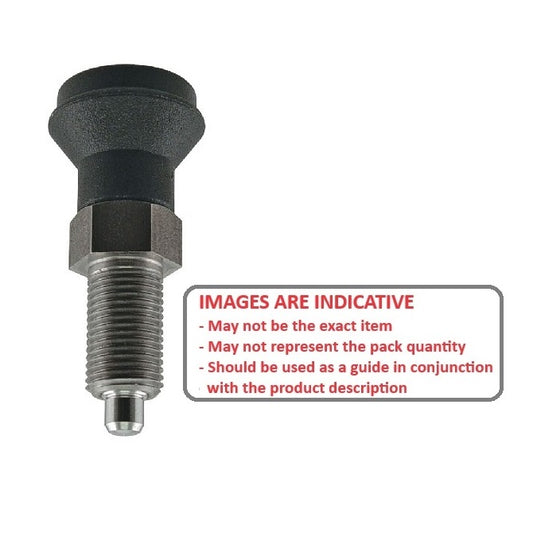

A selection of Standard Stainless and Plastic Indexing Pull Knob Plungers. With thermoplastic knob

    Miniature Bearings Australia - MBA Minibearings

    Additional resources:


    A more concise listing may be found in the Plungers - Indexing Pull Knob - Stainless and Plastic - Standard category on the Small Parts & Bearings online store.
    Thread (B) Overall Length (A) Initial End Force Final End Force Tip Diameter (C) Tip Length (D) Indicative
    Thread (B)
    M6 Fine (6x0.75mm)

    Overall Length (A)
    31.5
    mm

    (Equiv. 1.24 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.1
    N
    Tip Diameter (C)
    3.0
    mm
    Tip Length (D)
    3.5
    mm
    		Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 5.0 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0
    Part Number: PLIT-030-060-075-32-KP-S3
    Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $54.14 AUD
    $54.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B) Overall Length (A) Initial End Force Final End Force Indicative
    Thread (B)
    M6 Fine (6x0.75mm)

    Overall Length (A)
    31.5
    mm

    (Equiv. 1.24 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.1
    N
    		Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 3.0 mm    Tip Length (D): 3.5 mm    Nut Height (F): 5.0 mm    Knob Diameter (J): 14.0 mm    Hex Size (K): 8.0
    Part Number: PLIT-030-060-075-32-KP-S3
    Indexing Pull Knob Plungers - M6 Fine - 6x0.75mm - 31.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $54.14 AUD
    $54.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M8 Fine (8x1mm)

    Overall Length (A)
    38.5
    mm

    (Equiv. 1.516 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.2
    N
    Tip Diameter (C)
    4.0
    mm
    Tip Length (D)
    4.0
    mm
    		Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 6.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0
    Part Number: PLIT-040-080-100-39-KP-S3
    Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $40.05 AUD
    $48.05 AUD $40.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M8 Fine (8x1mm)

    Overall Length (A)
    38.5
    mm

    (Equiv. 1.516 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.2
    N
    		Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 4.0 mm    Tip Length (D): 4.0 mm    Nut Height (F): 6.0 mm    Knob Diameter (J): 18.0 mm    Hex Size (K): 10.0
    Part Number: PLIT-040-080-100-39-KP-S3
    Indexing Pull Knob Plungers - M8 Fine - 8x1mm - 38.5 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $40.05 AUD
    $48.05 AUD $40.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    3/8-24 UNF (9.53mm)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    Tip Diameter (C)
    5.0
    mm
    Tip Length (D)
    5.0
    mm
    		Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-095F-43-KP-S3
    Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $45.23 AUD
    $54.27 AUD $45.23 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    3/8-24 UNF (9.53mm)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    		Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-095F-43-KP-S3
    Indexing Pull Knob Plungers - 3/8-24 UNF - 9.53mm - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $45.23 AUD
    $54.27 AUD $45.23 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    Tip Diameter (C)
    5.0
    mm
    Tip Length (D)
    5.0
    mm
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-100-100-44-KP-S3
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $52.14 AUD
    $62.56 AUD $52.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    43.5
    mm

    (Equiv. 1.713 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-100-100-44-KP-S3
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 43.5 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $52.14 AUD
    $62.56 AUD $52.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    47.0
    mm

    (Equiv. 1.85 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    Tip Diameter (C)
    5.0
    mm
    Tip Length (D)
    5.0
    mm
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-100-100-47-KP-S3
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $45.95 AUD
    $55.15 AUD $45.95 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M10x1 (Extra Fine)

    Overall Length (A)
    47.0
    mm

    (Equiv. 1.85 in.)
    Initial End Force
    0.5
    N
    Final End Force
    1.2
    N
    		Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 5.0 mm    Tip Length (D): 5.0 mm    Nut Height (F): 7.0 mm    Knob Diameter (J): 21.0 mm    Hex Size (K): 13.0
    Part Number: PLIT-050-100-100-47-KP-S3
    Indexing Pull Knob Plungers - M10x1 - Extra Fine - 47 mm - 0.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $45.95 AUD
    $55.15 AUD $45.95 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    51.7
    mm

    (Equiv. 2.035 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    Tip Diameter (C)
    6.0
    mm
    Tip Length (D)
    6.0
    mm
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-120-150-52-KP-S3
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $53.59 AUD
    $64.31 AUD $53.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    51.7
    mm

    (Equiv. 2.035 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-120-150-52-KP-S3
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 51.7 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $53.59 AUD
    $64.31 AUD $53.59 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    56.0
    mm

    (Equiv. 2.205 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    Tip Diameter (C)
    6.0
    mm
    Tip Length (D)
    6.0
    mm
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-120-150-56-KP-S3
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $54.50 AUD
    $65.40 AUD $54.50 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M12x1.5 (Fine)

    Overall Length (A)
    56.0
    mm

    (Equiv. 2.205 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    		Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-120-150-56-KP-S3
    Indexing Pull Knob Plungers - M12x1.5 - Fine - 56 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $54.50 AUD
    $65.40 AUD $54.50 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    1/2-13 UNC (12.7mm)

    Overall Length (A)
    51.6
    mm

    (Equiv. 2.031 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    Tip Diameter (C)
    6.0
    mm
    Tip Length (D)
    6.0
    mm
    		Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.6 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-127C-52-KP-S3
    Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.6 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $53.77 AUD
    $64.53 AUD $53.77 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    1/2-13 UNC (12.7mm)

    Overall Length (A)
    51.6
    mm

    (Equiv. 2.031 in.)
    Initial End Force
    0.6
    N
    Final End Force
    1.4
    N
    		Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.6 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 6.0 mm    Tip Length (D): 6.0 mm    Nut Height (F): 8.0 mm    Knob Diameter (J): 25.0 mm    Hex Size (K): 14.0
    Part Number: PLIT-060-127C-52-KP-S3
    Indexing Pull Knob Plungers - 1/2-13 UNC - 12.7mm - 51.6 mm - 0.6 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $53.77 AUD
    $64.53 AUD $53.77 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    5/8-11 UNC (15.88mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    Tip Diameter (C)
    8.0
    mm
    Tip Length (D)
    8.0
    mm
    		Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-158C-68-KP-S3
    Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $72.41 AUD
    $86.89 AUD $72.41 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    5/8-11 UNC (15.88mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    		Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-158C-68-KP-S3
    Indexing Pull Knob Plungers - 5/8-11 UNC - 15.88mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $72.41 AUD
    $86.89 AUD $72.41 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    Tip Diameter (C)
    8.0
    mm
    Tip Length (D)
    8.0
    mm
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-160-150-68-KP-S3
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $72.77 AUD
    $87.33 AUD $72.77 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    68.0
    mm

    (Equiv. 2.677 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-160-150-68-KP-S3
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 68 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $72.77 AUD
    $87.33 AUD $72.77 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    Tip Diameter (C)
    8.0
    mm
    Tip Length (D)
    8.0
    mm
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-160-150-74-KP-S3
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $70.32 AUD
    $84.38 AUD $70.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M16 Extra Fine (16x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.6
    N
    		Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 8.0 mm    Tip Length (D): 8.0 mm    Nut Height (F): 10.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 19.0
    Part Number: PLIT-080-160-150-74-KP-S3
    Indexing Pull Knob Plungers - M16 Extra Fine - 16x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $70.32 AUD
    $84.38 AUD $70.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    3/4-10 UNC (19.05mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    4.1
    N
    Tip Diameter (C)
    10.0
    mm
    Tip Length (D)
    10.0
    mm
    		Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-191C-74-KP-S3
    Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $76.32 AUD
    $91.58 AUD $76.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    3/4-10 UNC (19.05mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    4.1
    N
    		Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-191C-74-KP-S3
    Indexing Pull Knob Plungers - 3/4-10 UNC - 19.05mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $76.32 AUD
    $91.58 AUD $76.32 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.5
    N
    Tip Diameter (C)
    10.0
    mm
    Tip Length (D)
    10.0
    mm
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-200-150-74-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $77.05 AUD
    $92.45 AUD $77.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    74.0
    mm

    (Equiv. 2.913 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.5
    N
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-200-150-74-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 74 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $77.05 AUD
    $92.45 AUD $77.05 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    78.0
    mm

    (Equiv. 3.071 in.)
    Initial End Force
    1.5
    N
    Final End Force
    4.0
    N
    Tip Diameter (C)
    12.0
    mm
    Tip Length (D)
    12.0
    mm
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 14.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-120-200-150-78-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $109.23 AUD
    $131.07 AUD $109.23 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    78.0
    mm

    (Equiv. 3.071 in.)
    Initial End Force
    1.5
    N
    Final End Force
    4.0
    N
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 12.0 mm    Tip Length (D): 12.0 mm    Nut Height (F): 14.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-120-200-150-78-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 78 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $109.23 AUD
    $131.07 AUD $109.23 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    80.0
    mm

    (Equiv. 3.15 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.5
    N
    Tip Diameter (C)
    10.0
    mm
    Tip Length (D)
    10.0
    mm
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-200-150-80-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $78.14 AUD
    $93.76 AUD $78.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M20 Extra Fine (20x1.5mm)

    Overall Length (A)
    80.0
    mm

    (Equiv. 3.15 in.)
    Initial End Force
    1.5
    N
    Final End Force
    3.5
    N
    		Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 10.0 mm    Tip Length (D): 10.0 mm    Nut Height (F): 12.0 mm    Knob Diameter (J): 33.0 mm    Hex Size (K): 22.0
    Part Number: PLIT-100-200-150-80-KP-S3
    Indexing Pull Knob Plungers - M20 Extra Fine - 20x1.5mm - 80 mm - 1.5 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $78.14 AUD
    $93.76 AUD $78.14 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M24 Fine (24x2mm)

    Overall Length (A)
    96.0
    mm

    (Equiv. 3.78 in.)
    Initial End Force
    2.0
    N
    Final End Force
    4.7
    N
    Tip Diameter (C)
    16.0
    mm
    Tip Length (D)
    16.0
    mm
    		Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Nut Height (F): 18.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0
    Part Number: PLIT-160-240-200-96-KP-S3
    Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $157.50 AUD
    $189.00 AUD $157.50 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
    Thread (B)
    M24 Fine (24x2mm)

    Overall Length (A)
    96.0
    mm

    (Equiv. 3.78 in.)
    Initial End Force
    2.0
    N
    Final End Force
    4.7
    N
    		Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8
    Material: Stainless Steel 303 (Similar to A2, 304, 18-8)    Tip Diameter (C): 16.0 mm    Tip Length (D): 16.0 mm    Nut Height (F): 18.0 mm    Knob Diameter (J): 40.0 mm    Hex Size (K): 27.0
    Part Number: PLIT-160-240-200-96-KP-S3
    Indexing Pull Knob Plungers - M24 Fine - 24x2mm - 96 mm - 2 N Stainless and Plastic - Stainless Steel 303 Similar to A2, 304, 18-8 Plunger
    Out of Stock | Backorder Now | Orders can be expected around Fri, Sep 19, 2025
    $157.50 AUD
    $189.00 AUD $157.50 AUD
    Each
    Quantity Required

    Backorder: Out of Stock.
