RRN-225 (PK-4)

Name: Internal Retaining Rings - 57.15x1.99x60.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring (Sold Per PK-4) - - RRN-225
Brand: MBA
SKU: RRN225
Price: 9.68 AUD
Availability: BackOrder

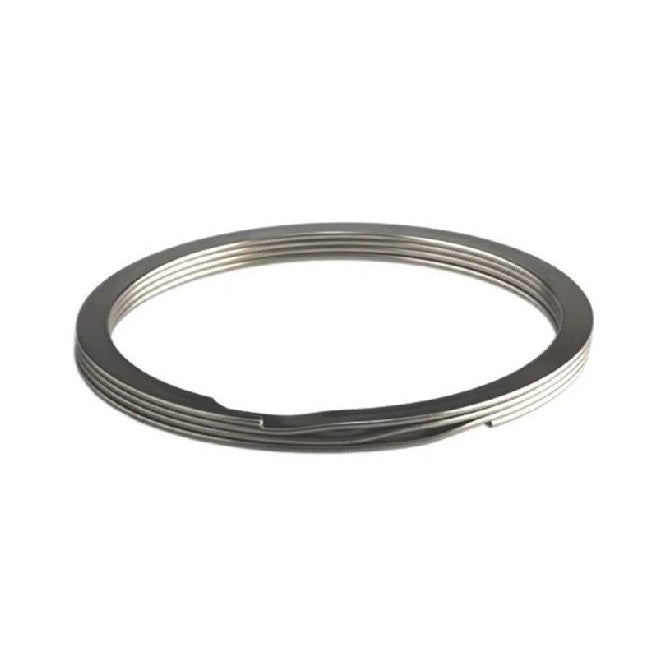

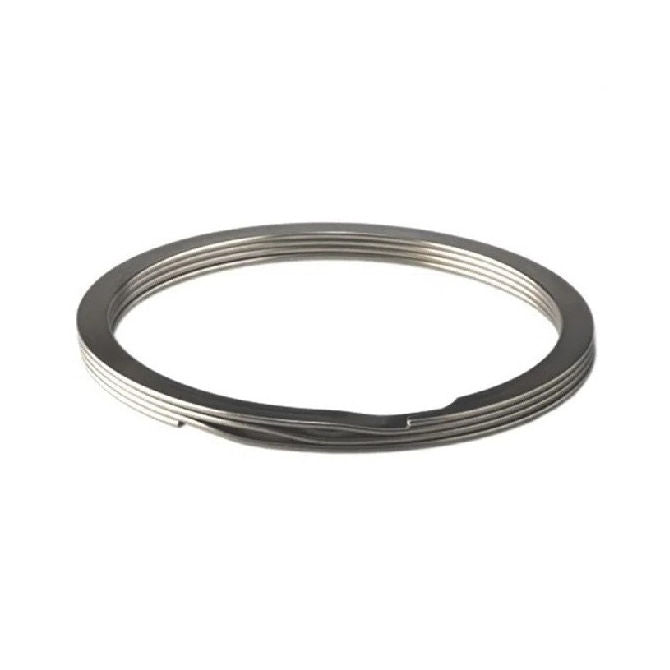

Internal Retaining Rings - 57.15x1.99x60.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring

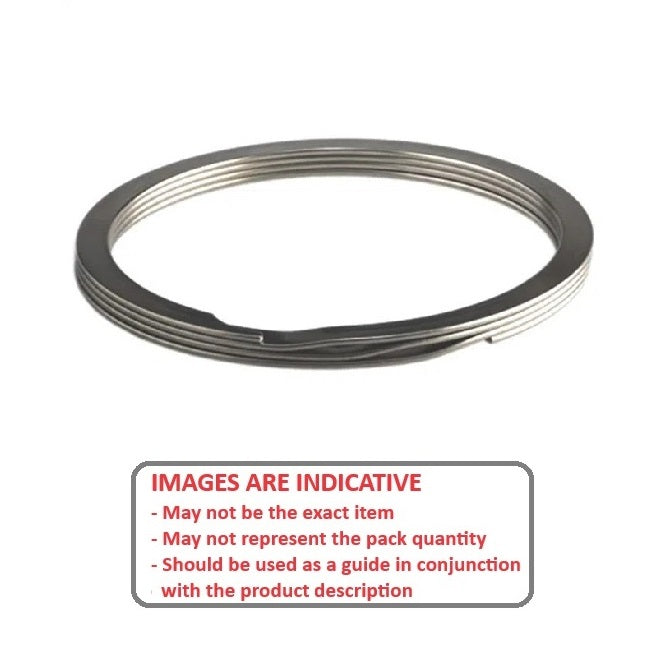

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$9.68 AUD

~~$11.62 AUD~~ $9.68 AUD

Priced, Stocked and Sold Per 4 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (200 pcs)
for $8.71 AUD per 4

Backorder now! Backorders are expected before Jun 06, 2026

Quantity

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel

Product Details

Additional stock available from USA subject to Prior Sale = 1920

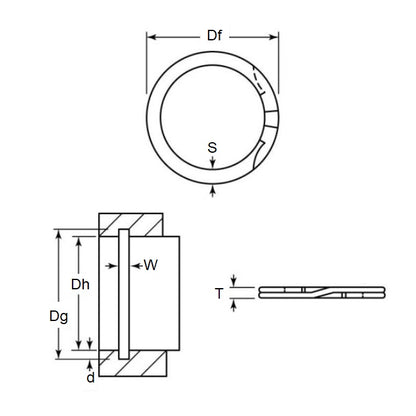

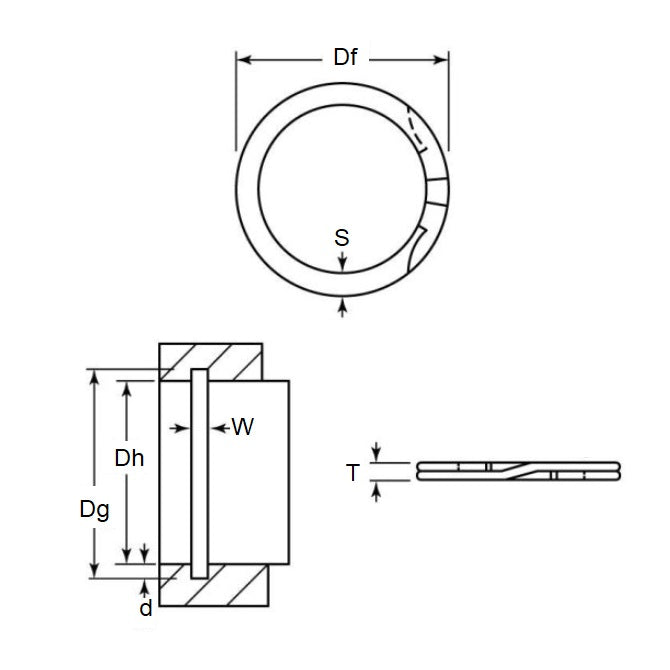

Housing Bore (B): 57.15mm
_{(57.15mm is 2.25 in.)}

Carbon Spring Steel

Housing Bore (B): 57.15mm
_{(57.15mm is 2.25 in.)}
Clip Thickness (T): 1.99mm
_{+/- 0.08}
_{(1.99mm is 0.078 in.)}
Groove Dia. (Dg): 60.51mm
_{(60.51mm is 2.382 in.)}
Approx. Loose Circlip OD (Dr): 60.98mm
_{+ 0.64 / - 0.00}
Radial Wall (S) Approx.: 4.27mm
_{+/- 0.13}
Groove Width (W): 2.25mm
_{+/- 0.15}
Approx. Loose Clip ID: 52.44
_{+/- 0.06}
Groove Depth (d): 1.68

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
91985A271
Associated Spring® AHI-225
Huyett® RRN-225
Smalley® WHM-225
WHM225
AHI225

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
