S684A-ZZ-MC3 (Each)

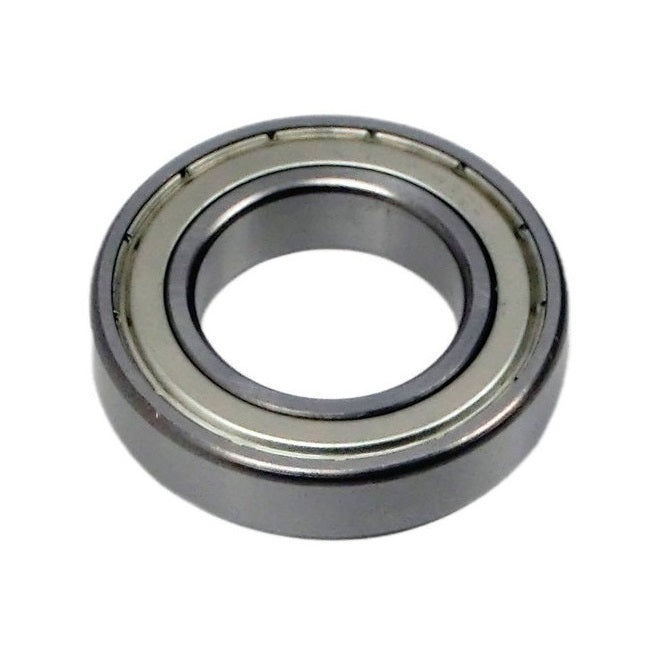

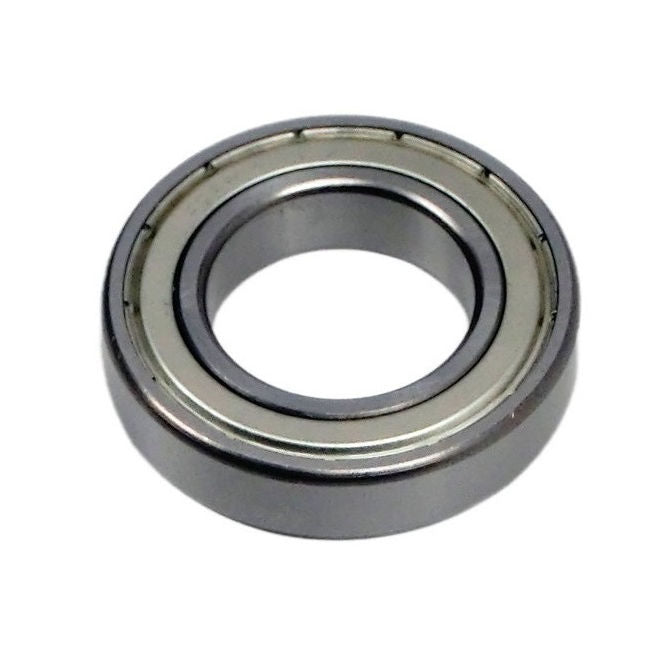

Single Row Ball Bearings - 4x9x4 mm Unflanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Single Row Ball Bearings - 4x9x4 mm - Stainless Steel AISI 440C
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting
Price:
$3.77 AUD
$3.77 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 190 available now

Order 50 or more
for $3.39 AUD Each
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before May 19, 2026

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

Product Details


Double shielded standard stainless steel bearing

ID (d): 4.000mm
+ 0.000 / - 0.0075
(4.000mm is 0.157 in.)

Stainless Steel AISI 440C
  • ID (d): 4.000mm
    + 0.000 / - 0.0075
    (4.000mm is 0.157 in.)
  • O.D. (D): 9.000mm
    + 0.000 / - 0.0075
    (9.000mm is 0.354 in.)
  • Width (B): 4.000mm
    + 0.000 / - 0.125
    (4.000mm is 0.157 in.)
  • Precision Grade: Abec 1
  • Closure Type: ZZ
  • Bearing Type: Radial

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

  • SHIMANO® 1329
  • SS684AZZMC3 684A
  • Stainless 684AZZMC3
  • Stainless 684A-ZZ-MC3
  • Similar Part 684H
  • SSISO 684ZZ
  • SSISO 684-ZZ
  • SHIMANO® BNT1329
  • SHIMANO® RD11706
  • SHIMANO® RD8278
  • Shielded Width A S684/4
  • GRW S684-2Z
  • Shielded S684A / 4
  • Origin® SS4-9-ZZ
  • Shielded Width A SS684/4
  • GRW SS684-2Z
  • Shielded SS684A / 4
  • MPB SSUL40CHH
  • MPB SUL40CHH
  • SHIMANO® TGT1641
  • SHIMANO® TGT2858
  • RMB® ULZ409X
  • ADR W618-4-2Z
  • Similar Part W618-4-2Z
  • Similar Part W638-4
  • ADR W638-4-ZZ
  • SS-L940-ZZ
  • SSL940ZZ
  • SSL940-ZZ
  • DDL940ZZ
  • DD-L940-ZZ
  • DDL940-ZZ
  • S684A-ZZMC3
  • S6842Z
  • S684-ZZ
  • S684SS
  • SS49ZZ
  • SS684A-ZZMC3
  • SS684-ZZ
  • SS6842Z
  • SS684SS
  • W61842Z
  • W6384
  • W6384ZZ
  • 684HZZ
  • 684A-Z-MC3
  • 684H-ZZ
  • 684AZMC3
  • 684ABASIC

Used for

  • Fishing Reel Parts
  • RC Helicopter Parts
  • Shimano® - Chronarch 100SF - Handle - Back End Bearing
  • Align® - Trex 600 CF - Replacement Bearing
  • Century® - Ninja Pro® 30/46 All - Replacement Bearing
  • Century® - Pro Master Upgrade - Replacement Bearing
  • Hirobo® - Seadu 30 Evolution - Replacement Bearing
  • Hirobo® - Seadu 50 Evolution - Replacement Bearing
  • Mikado® - Logo 10 - Replacement Bearing
  • Mikado® - Logo 10 3D Version - Replacement Bearing
  • Mikado® - Logo 14 - Replacement Bearing
  • Mikado® - Logo 14 Carbon - Replacement Bearing
  • Mikado® - Logo 20 - Replacement Bearing
    We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
