S684A-ZZ-MC3 - Datasheet
MBA
Category Information

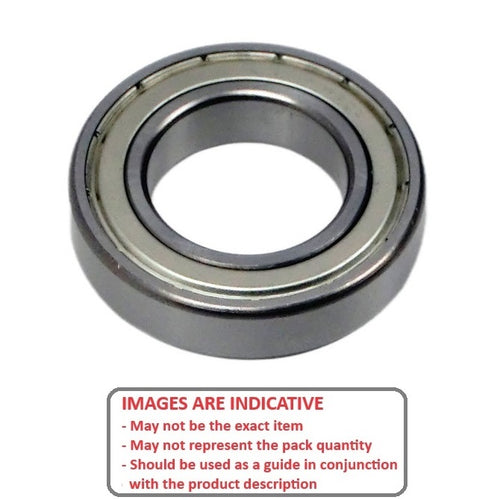

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

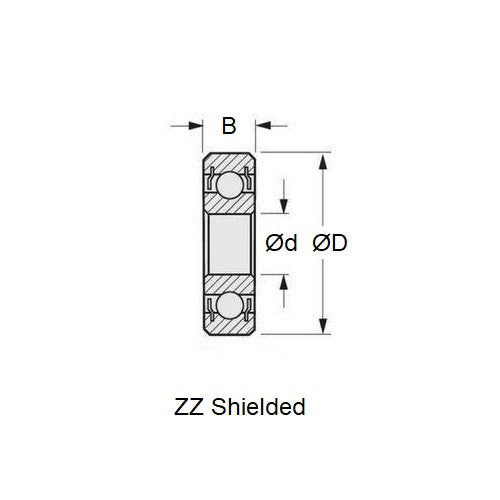

- ID (d)
:
4.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.157 in.) - OD (D)
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 684A
- Limiting Speed 53000
- Cage Type Standard
- Static Load Rating KGf 23
- Dynamic Load Rating KGf 65
- Radii 0.10 mm
- Inner Shoulder (UI) 5.20mm
- Outer Shoulder (UO) 8.10 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Fishing Reel Parts
- RC Helicopter Parts
- Shimano - Chronarch 100SF - Handle - Back End Bearing
- Align - Trex 600 CF - Bearing
- Century - Ninja Pro 30/46 All - Bearing
- Century - Pro Master Upgrade - Bearing
- Hirobo - Sceadu 30 Evolution - Bearing
- Hirobo - Sceadu 50 Evolution - Bearing
- Mikado - Logo 10 - Bearing
- Mikado - Logo 10 3D Version - Bearing
- Mikado - Logo 14 - Bearing
- Mikado - Logo 14 Carbon - Bearing
- Mikado - Logo 20 - Bearing
Cross References
- SHIMANO 1329
- Stainless 684AZZMC3
- Stainless 684A-ZZ-MC3
- Similar Part 684H
- SHIMANO BNT1329
- SHIMANO RD11706
- SHIMANO RD8278
- Shielded Width A S684/4
- GRW S684-2Z
- Shielded S684A / 4
- Origin SS4-9-ZZ
- MPB SUL40CHH
- SHIMANO TGT1641
- SHIMANO TGT2858
- ADR W618-4-2Z
- Similar Part W618-4-2Z
- Similar Part W638-4
- ADR W638-4-ZZ
- W61842Z
- W6384ZZ
- SS-L940-ZZ
- SSL940-ZZ
- SSL940ZZ
- SS49ZZ
- DD-L940-ZZ
- DDL940ZZ
- DDL940-ZZ
- 684HZZ
- 684H-ZZ
- ULZ409X
- S684A-ZZMC3
- S684SS
- S6842Z
- S684-ZZ
- S684AZZMC3
- 684A Basic Size Ref
