SFWR166-ZZ-MC3 (100 Pcs)

Name: 1058436 | SFWR166-ZZ-MC3 (100 Pcs) --- Single Row Ball Bearings - 4.763x9.525x3.175 mm / 3.969 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SFWR166ZZMC3
Price: 591.14 AUD
Availability: BackOrder

Single Row Ball Bearings - 4.763x9.525x3.175 mm / 3.969 mm Flanged - Stainless Steel AISI 440C Bearing

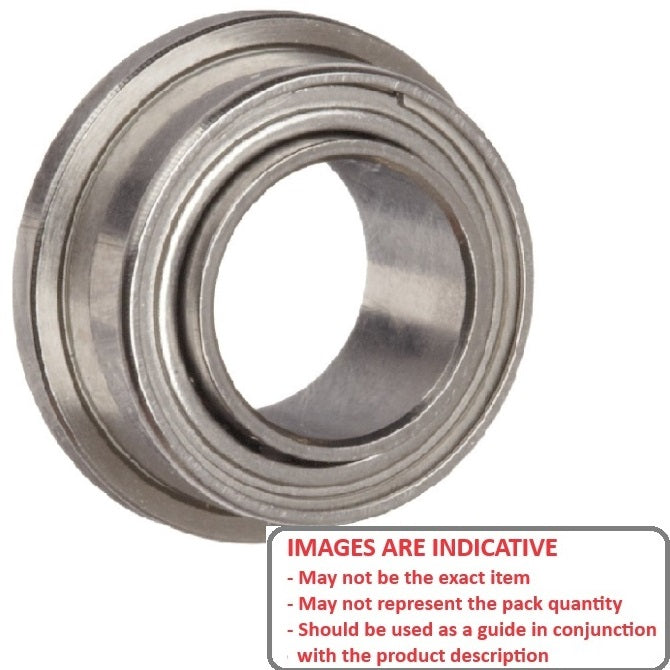

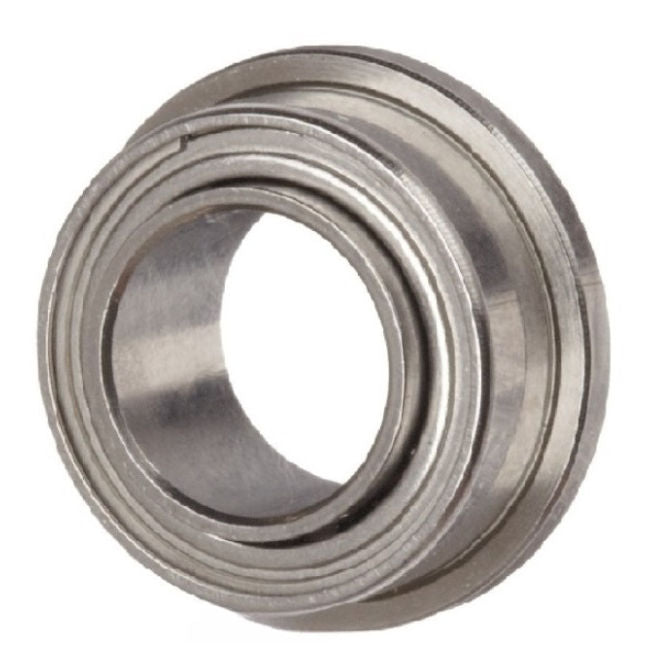

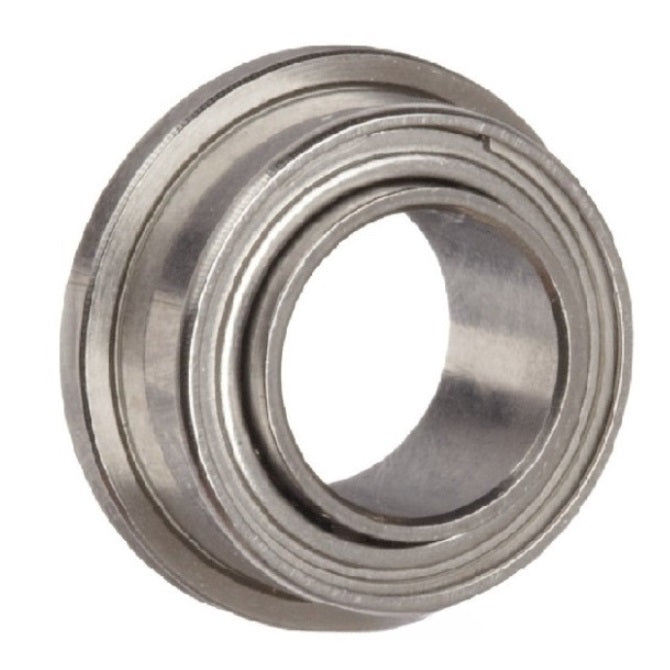

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$591.14 AUD

~~$1,250.28 AUD~~ $591.14 AUD

per 100
Backorder
Order 50 or more pack (5000 pcs) for $532.03 AUD per 100

Product Details

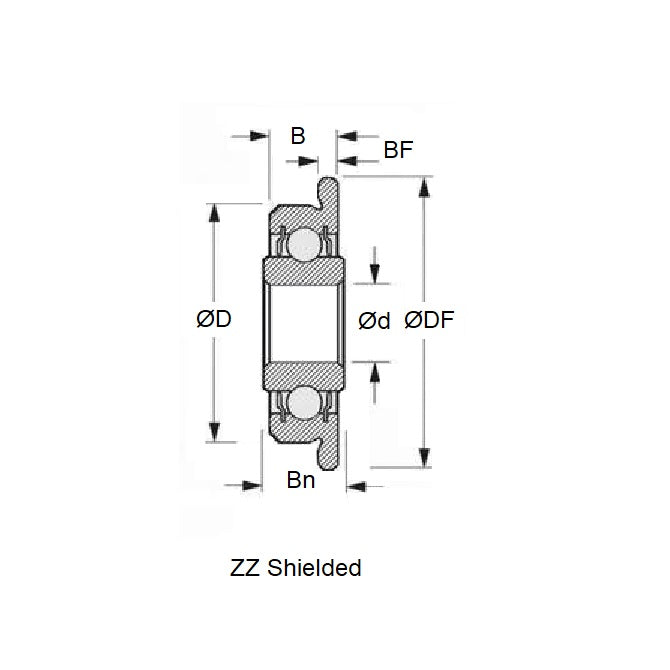

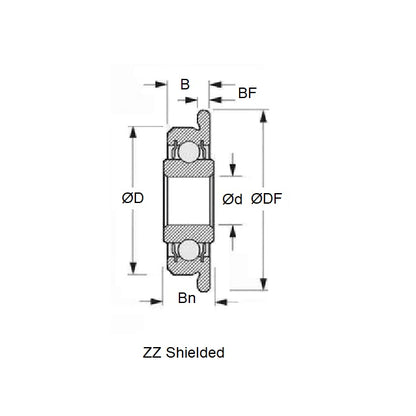

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}

Stainless Steel AISI 440C

ID (d): 4.763mm
_{+ 0.000 / - 0.0075}
_{(4.763mm is 0.188 in.)}
OD (D): 9.525mm
_{+ 0.000 / - 0.0075}
_{(9.525mm is 0.375 in.)}
Width (B): 3.175mm
_{+ 0.000 / - 0.125}
_{(3.175mm is 0.125 in.)}
Inner Ring Width (Bn): 3.969mm
Flange Diameter (DF): 10.719mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 1
Closure Type: ZZ
Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: JP

Product Compliance and Data

Similar to

ALTPART
57155K335
MPB 6316FCHHE
MPB 6632FCHHE
GRW FE4763B-2Z
Similar Part FLX3-16
ADR FLX3-16-ZZ
NHBB FR166PPEE
Similar Part FRW166
Similar Part RFE1624
FAG RFE1624-ZZ
MPB S6316FCHHE
MPB S6632FCHHE
GRW SFE4763B-2Z
ISO SFRW166ZZ
ISO SFRW166-ZZ
Shielded SFWR166 / 3
NHBB SSFR166PPEE
ADR WFLX3-16-ZZ
RFE1624ZZ
R1F-6632-ZZEE
R1F6632ZZEE
FRW166SS
WFLX316ZZ
SSR1F6632ZZEE
SS-R1F-6632-ZZEE
SSR1F-6632-ZZEE
SFWR166ZZMC3
SFE4763B2Z
SFRW166SS
SFWR166-ZZMC3
DMB58
DDR1F6632ZZEE
DD-R1F-6632-ZZEE
DMB-58
DDR1F-6632-ZZEE
ULKUZ6012X
FWR166BASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
