SFR166-ZS-MC5-GR7-KB-J260 (PK-30)

Name: Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing (Sold Per PK-30) - - SFR166-ZS-MC5-GR7-KB-J260
Brand: Myonic
SKU: SFR166ZSMC5GR7KBJ260
Price: 3075.59 AUD
Availability: BackOrder

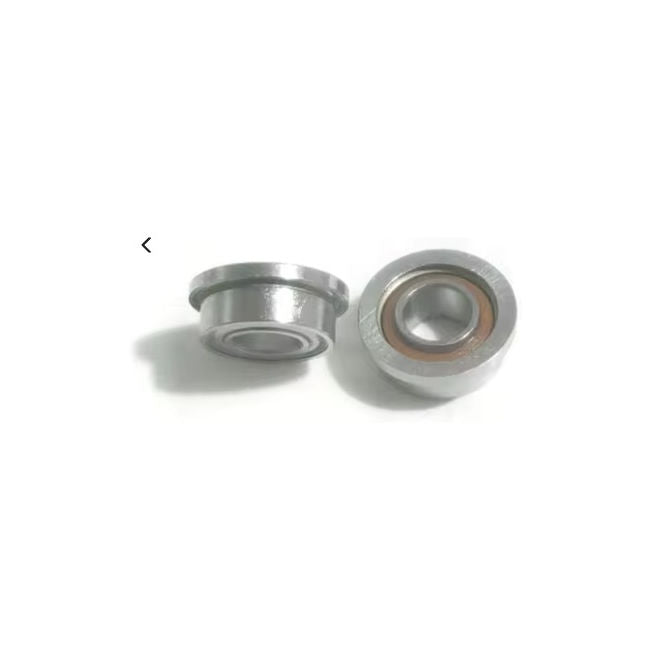

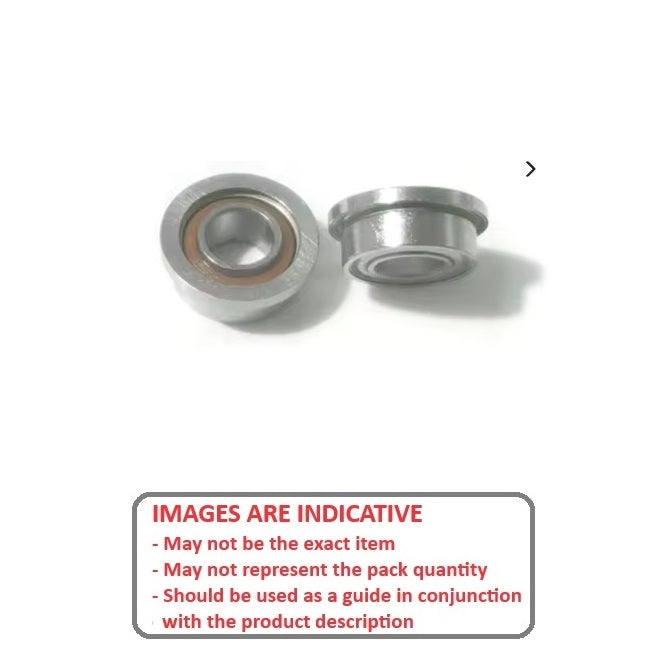

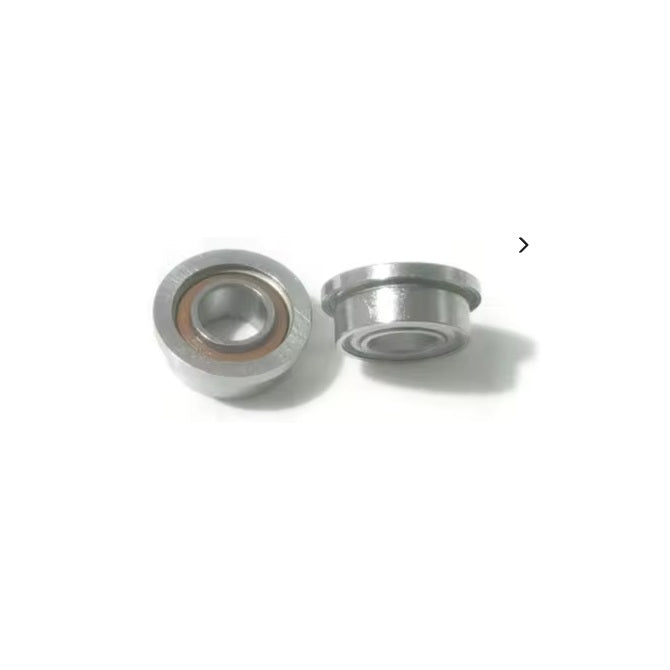

Single Row Ball Bearings - 4.763x9.525x3.175 mm Flanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Myonic

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$3,075.59 AUD

Priced, Stocked and Sold Per 30 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more packs of 30 (1500 pcs)
for $2,768.03 AUD per 30 pack

Product Details

Single shielded flanged Abec 7 precision stainless steel bearing with high speed phenolic retainer

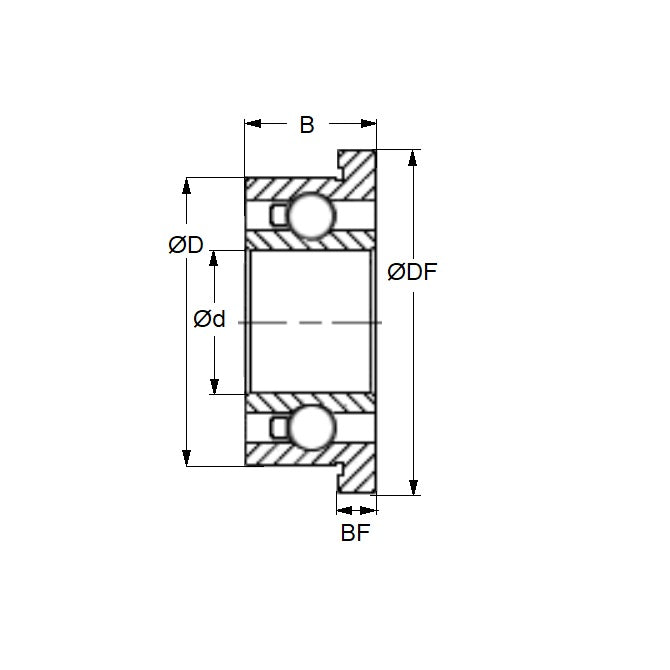

ID (d): 4.763mm
_{+ 0.000 / - 0.004}
_{(4.763mm is 0.188 in.)}

Stainless Steel AISI 440C

ID (d): 4.763mm
_{+ 0.000 / - 0.004}
_{(4.763mm is 0.188 in.)}
O.D. (D): 9.525mm
_{+ 0.000 / - 0.005}
_{(9.525mm is 0.375 in.)}
Width (B): 3.175mm
_{+ 0.000 / - 0.040}
_{(3.175mm is 0.125 in.)}
Flange Diameter (DF): 10.719mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Lubricant: Special Lubrication

Brand: Myonic
Country of Origin: DE

Product Compliance and Data

Similar to

AERITALIA® 0.345.104
EDO-AIRE S30005-001
EDO-AIRE S30005-005
EDO-AIRE S30005-005N
ELEC GYRO SFR166STAX34K7
EDO-AIRE SS30005-001
EDO-AIRE SS30005-005
EDO-AIRE SS30005-005N
ELEC GYRO SSFR166STAX34K7
NHBB® SSR1F-6632-ZZSD509KG
RMB® ULK6012X.1C-238XX-A7P-13-20-J260
RMB® ULKZ6012X.1C-238BB-A7P-13-20-J260-G48
RMB® ULKZ6012X.1c-238HG-A7P-13/20-J260
RMB® ULKZ6012X.1C-238SX-A7P-13-20-J260-CagevacimprL23
RMB® ULKZ6012X.1cSpecialConfig.
SSR1F6632ZZSD509KG
SSFR166STA5
SSFR166STA5V-11F62B
SSFR166KBZSMC5GR7J260
SSFR166STA5V11F62B
SFR166ZSMC5GR7KBJ260
ULKZ6012X1C238BBA7P1320J260G48
ULKZ6012X1c238HGA7P13/20J260
ULKZ6012X1C238SXA7P1320J260CagevacimprL23
ULK6012X1C238XXA7P1320J260
SS30005005N
SS30005001
FR166BASIC

Used for

Dental Handpiece Parts

Dynasurge® - Hi-Torq Surgical Handpiece - Bearing for Cap End

Dynasurge® - Hi-Torq Surgical Handpiece - Bearing for Chuck End
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
FR166
