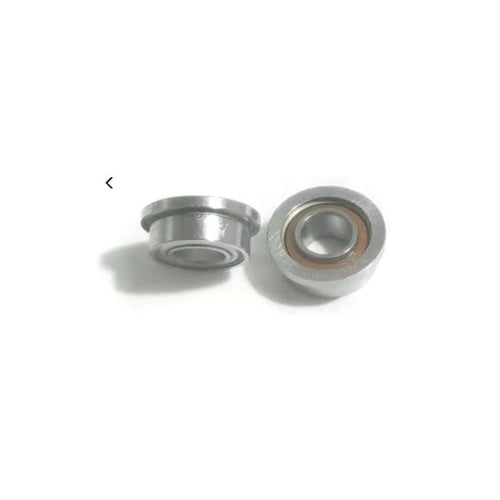

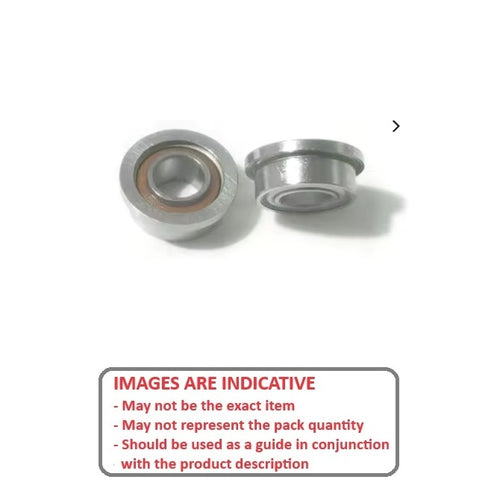

SFR166-ZS-MC5-GR7-KB-J260 - Datasheet
Myonic
Category Information
Bearings - Single Row Ball - Flanged - High Precision - StandardStandard High Precision Flanged Single Row Ball Bearings. Stainless Steel Bearings with Flanges - Abec 5 and Abec 7.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Single row radial ball bearings with flanges.
- High precision bearings are not recommended for skates or fishing reels.
- High precision bearings are used in accurately balanced application such as spindles, gyros and medical equipment.
- If your application is not of a precision nature, standard bearings may be more suitable (and less expensive).

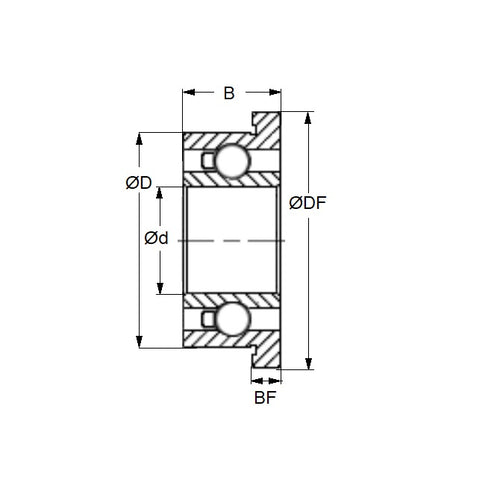

Product Data
- ID (d)
:
4.763
mm
+ 0.000 / - 0.004
(Equiv. 0.188 in.) - OD (D)
9.525
mm
+ 0.000 / - 0.005
(Equiv. 0.375 in.) - Width (B)
3.175
mm
+ 0.000 / - 0.040
(Equiv. 0.125 in.) - Flange Diameter (DF) 10.719 mm
- Flange Width (BF) 0.787 mm
- Precision Grade Abec 7
- Closure Type ZZS
- Bearing Type Radial Flanged
- Lubricant Special Lubrication
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Special Vac Impregnated cage
- Basic Part FR166
- Limiting Speed 97500
- Cage Type Phenolic Paper Base
- Static Load Rating KGf 28
- Dynamic Load Rating KGf 72
- Radii 0.13 mm
- Inner Shoulder (UI) 5.95mm
- Outer Shoulder (UO) 8.35 mm
- Number of Balls 8
- Clearance MC5 (13 to 20)
- Precision Grade Abec 7
- Closure Type ZS
- Max Temperature 140 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- Dynasurge - Hi-Torq Surgical Handpiece - Cap End Bearing
Cross References
- AERITALIA 0.345.104
- EDO-AIRE S30005-001
- EDO-AIRE S30005-005
- EDO-AIRE S30005-005N
- ELEC GYRO SFR166STAX34K7
- NHBB SSR1F-6632-ZZSD509KG
- S30005005N
- S30005001
- SSR1F6632ZZSD509KG
- SFR166KBZSMC5GR7J260
- SFR166STA5
- SFR166STA5V11F62B
- SFR166STA5V-11F62B
- ULKZ6012X.1c-238HG-A7P-13/20-J260
- ULKZ6012X.1C-238SX-A7P-13-20-J260-CagevacimprL23
- ULK6012X1C238XXA7P1320J260
- ULKZ6012X1C238SXA7P1320J260CagevacimprL23
- ULKZ6012X1c238HGA7P13/20J260
- ULKZ6012X1C238BBA7P1320J260G48
- ULK6012X.1C-238XX-A7P-13-20-J260
- ULKZ6012X.1cSpecialConfig.
- ULKZ6012X.1C-238BB-A7P-13-20-J260-G48
- FR166 Basic Size Ref
