S623-CSN-ZZS-T9H-AF12 (200 Pcs)

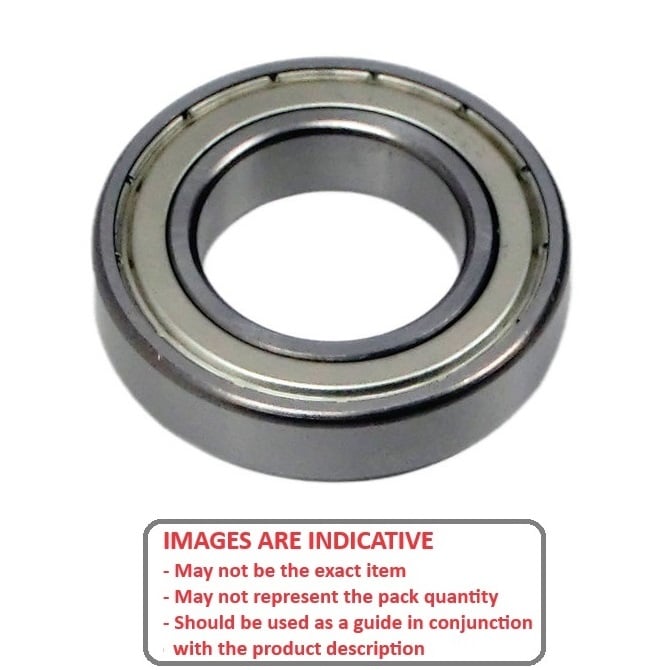

Single Row Ball Bearings - 3x10x4 mm Unflanged - Stainless Steel AISI 440C - High Speed Polyamide Cage Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Ceramic Bearings PDF Download
Order 50 or more for $880.89 AUD
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid
Product Details
High speed polyamide cage. Ceramic balls.
ID (d): 3.000mm
+ 0.000 / - 0.0075
(3.000mm is 0.118 in.)
Stainless Steel AISI 440C - High Speed Polyamide Cage
- ID (d): 3.000mm
+ 0.000 / - 0.0075
(3.000mm is 0.118 in.)
- OD (D): 10.000mm
+ 0.000 / - 0.0075
(10.000mm is 0.394 in.)
- Width (B): 4.000mm
+ 0.000 / - 0.125
(4.000mm is 0.157 in.)
- Precision Grade: Abec 1
- Closure Type: ZZS
- Bearing Type: Radial
Brand: MBA
Country of Origin: TW
Product Compliance and Data
Similar to
- W.H. 01577000
- Abu Garcia 3x10x3 Bush (May be able to use 3x10x4 Bearing)
- Shielded S623 / 4
- Shielded SS623 / 4
- S623CSNT9HZZSAF12
- SS623CSNT9HZZSAF12
- 623BASIC
Used for
- Dental Handpiece Parts
- Fishing Reel Parts
- RC Helicopter Parts
- Gamborini - MKT - MKQ - MKS - Rear Armature Bearing
- Muss - Micromat-Athlet Type H240B Motor - Bearing 3-10-4mm
- W.H. - Straight Handpiece 6000 RPM - Cap End Bearing
- Abu Garcia - 6500C - 6500C3 - Spool Bearing 3-10-4mm Check Size
- Abu Garcia - 7000 - Spool Bearing 3-10-4mm
- Shimano - Bantam 10X - Spool Bearing 3-10-4mm Right Side
- Shimano - Bass One - Spool Bearing 3-10-4mm Outside
- Shimano - Calais CL200 / CL200-5 - Spool Bearing 3-10-4mm Both Sides
- Shimano - Calcutta 50-100-150-200-250-251-400-600 - Bearing 3-10-4mm
- Shimano - Chronarch 100SF - Spool Bearing 3-10-4mm
- Shimano - Curado 200 - Bearing 3-10-4mm
- Align - Trex 600 CF - Bearing 3-10-4mm
- Bergen Machine - Intrepid 60 - Bearing 3-10-4mm
- Bergen Machine - Intrepid Gas - Bearing 3-10-4mm
- Century - Hawk II - Bearing 3-10-4mm
- Century - Hawk II Upgrade Kit - Bearing 3-10-4mm
- Century - Hawk Sport All - Bearing 3-10-4mm
- Century - Hawk Sport Upgrade Only - Bearing 3-10-4mm
- JR - Ergo 30/46 Complete Kit - Bearing 3-10-4mm
- JR - Ergo 30/46 Upgrade Kit - Bearing 3-10-4mm
- Mikado - Logo 10 - Bearing 3-10-4mm
- Mikado - Logo 10 3D Version - Bearing 3-10-4mm
- Mikado - Logo 20 - Bearing 3-10-4mm
- Miniature Aircraft - X-Cell 30-40 Upgrade Kit - Bearing 3-10-4mm
- Miniature Aircraft - X-Cell30-40 Upgrade Kit New - Bearing 3-10-4mm
- Schluter - Millenium 60 Upgrade Kit - Bearing 3-10-4mm
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
