S623-CSN-ZZS-T9H-AF12 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC

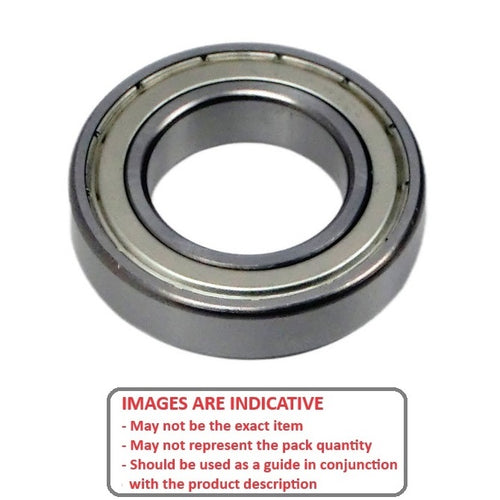

Product Data

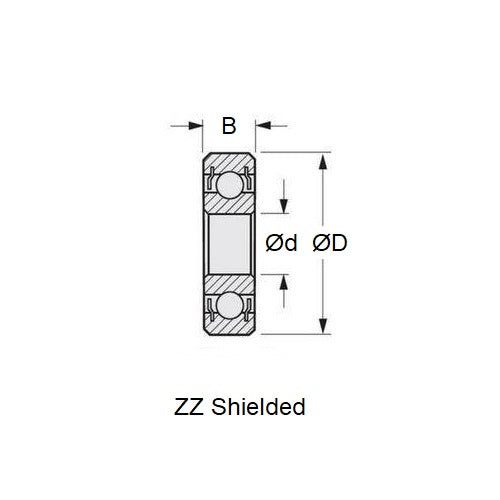

High speed polyamide cage. Ceramic balls.
- ID (d)
:
3.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.118 in.) - OD (D)
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 623
- Limiting Speed 96000
- Cage Type Polyamide
- Static Load Rating KGf 17.6
- Dynamic Load Rating KGf 51.2
- Radii 0.15 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.98 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- Fishing Reel Parts
- RC Helicopter Parts
- Gamborini - MKT - MKQ - MKS - Rear Armature Bearing
- Muss - Micromat-Athlet Type H240B Motor - Bearing 3-10-4mm
- W.H. - Straight Handpiece 6000 RPM - Cap End Bearing
- Abu Garcia - 6500C - 6500C3 - Spool Bearing 3-10-4mm Check Size
- Abu Garcia - 7000 - Spool Bearing 3-10-4mm
- Shimano - Bantam 10X - Spool Bearing 3-10-4mm Right Side
- Shimano - Bass One - Spool Bearing 3-10-4mm Outside
- Shimano - Calais CL200 / CL200-5 - Spool Bearing 3-10-4mm Both Sides
- Shimano - Calcutta 50-100-150-200-250-251-400-600 - Bearing 3-10-4mm
- Shimano - Chronarch 100SF - Spool Bearing 3-10-4mm
- Shimano - Curado 200 - Bearing 3-10-4mm
- Align - Trex 600 CF - Bearing 3-10-4mm
- Bergen Machine - Intrepid 60 - Bearing 3-10-4mm
- Bergen Machine - Intrepid Gas - Bearing 3-10-4mm
- Century - Hawk II - Bearing 3-10-4mm
- Century - Hawk II Upgrade Kit - Bearing 3-10-4mm
- Century - Hawk Sport All - Bearing 3-10-4mm
- Century - Hawk Sport Upgrade Only - Bearing 3-10-4mm
- JR - Ergo 30/46 Complete Kit - Bearing 3-10-4mm
- JR - Ergo 30/46 Upgrade Kit - Bearing 3-10-4mm
- Mikado - Logo 10 - Bearing 3-10-4mm
- Mikado - Logo 10 3D Version - Bearing 3-10-4mm
- Mikado - Logo 20 - Bearing 3-10-4mm
- Miniature Aircraft - X-Cell 30-40 Upgrade Kit - Bearing 3-10-4mm
- Miniature Aircraft - X-Cell30-40 Upgrade Kit New - Bearing 3-10-4mm
- Schluter - Millenium 60 Upgrade Kit - Bearing 3-10-4mm
Cross References
- W.H. 01577000
- Abu Garcia 3x10x3 Bush (May be able to use 3x10x4 Bearing)
- Shielded S623 / 4
- S623CSNT9HZZSAF12
- 623 Basic Size Ref
