W0160-D-032-020-C

Disc Spring Washers - 31.5x16x2 mm Standard - Carbon Steel Washer

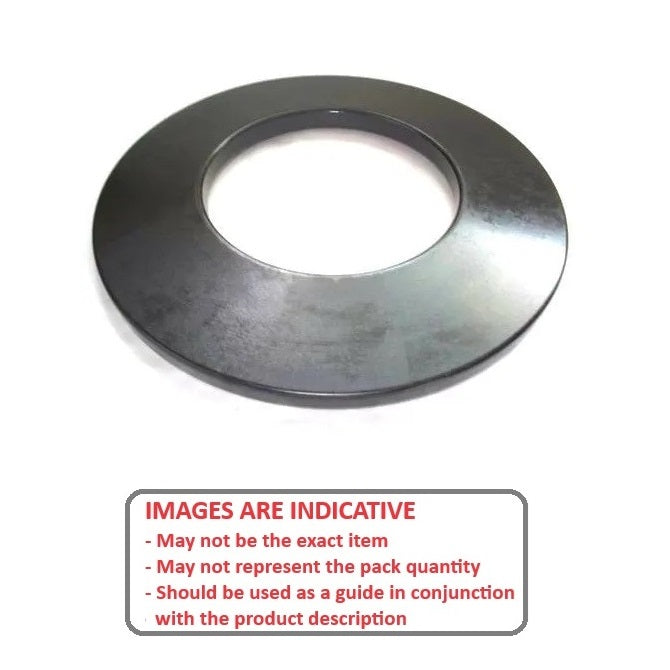

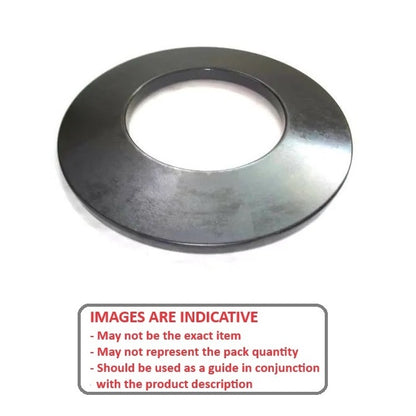

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Disc Spring Washers - 31.5x16x2 mm - Carbon Steel
1 3

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Disc Spring Washers PDF
Screws
Price:
$5.86 AUD
$5.86 AUD
Each
Excludes GST and overseas Taxes & Duties
 Qty: 9 available now
Order 50 or more for $5.27 AUD
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 21, 2025

Base Category: Washers - Disc Spring

Top Level Category: Washers - Disc Spring - Standard - Carbon Steel

Product Details

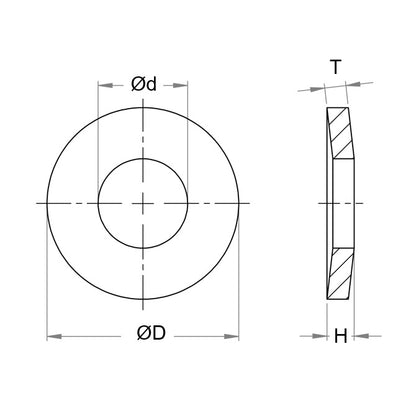

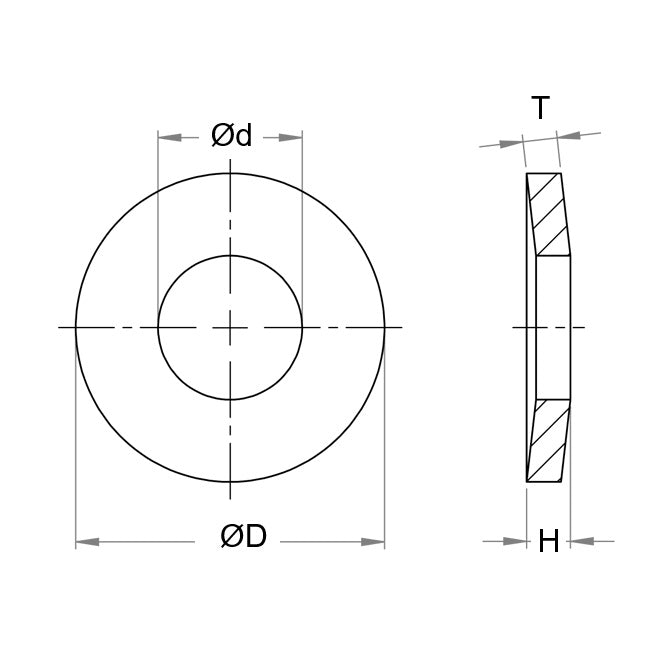

Nominal Outside Diameter (A): 31.50mm
(31.50mm is 1.24 in.)

Carbon Steel
  • Nominal Outside Diameter (A): 31.50mm
    (31.50mm is 1.24 in.)
  • Nominal Inside Diameter (B): 16.00mm
    + 0.30 / - 0.00
    (16.00mm is 0.63 in.)
  • Stock Thickness (C): 2.00mm
    (2.00mm is 0.079 in.)
  • Loaded Height (L1): 2.19mm
  • Load at L1: 617.0kg
  • Free Height (E): 2.75mm
  • Actual ID (Ref): 16.3mm
  • Inside Height (D): 0.75mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • ALTPART
  • 96445K295
  • WASCA DS311620
  • BDA-115
  • BDA115
  • S4305

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
