Collection: Washers - Disc Spring - Standard - Carbon Steel

Washers -> Disc Spring -> Standard -> Carbon Steel

There are 259 products in the sub-categories of Washers - Disc Spring - Standard - Carbon Steel. Scroll down or follow the link to Washers - Disc Spring - Standard - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.

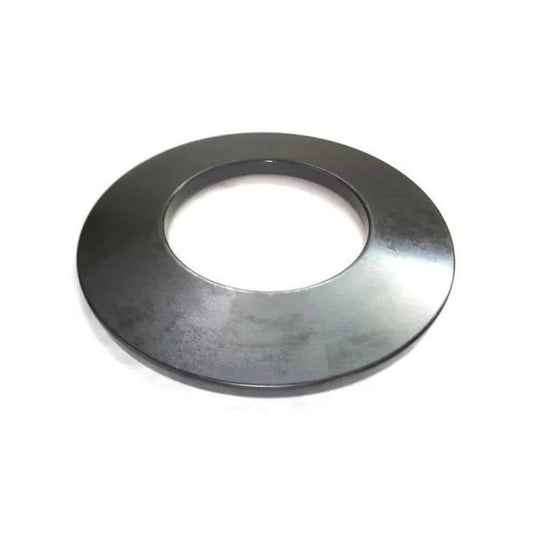

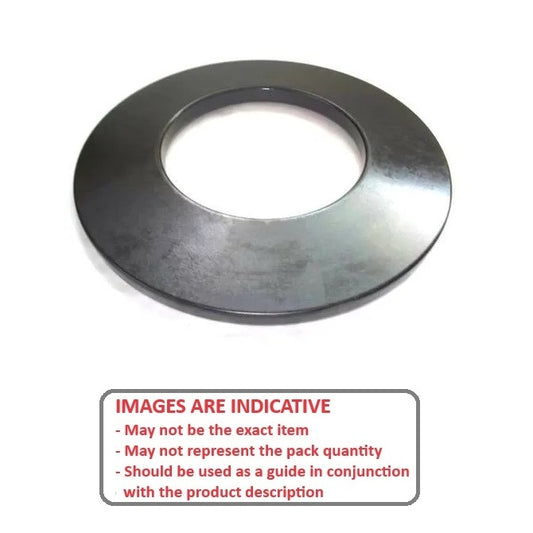

Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
Manufactured under strict quality control to conform to DIN 2093.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Washers - Disc Spring - Standard - Carbon Steel category on the Small Parts & Bearings online store.

Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Loaded Height (L1)	Load at L1
Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg	Loaded Height (L1) 0.30 mm	Load at L1 6.8 kg
Material: Carbon Spring Steel AISI C1095 Free Height (E): 0.38 mm Actual ID (Ref): 2.4 mm Inside Height (D): 0.13 mm
Part Number: W0024-D-005-003-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Nominal Outside Diameter (A)	Nominal Inside Diameter (B)	Stock Thickness (C)	Load to flatten	Indicative Image
Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 4.76 mm _{+ 0.01 / + 0.07} (Equiv. 0.187 in.)	Nominal Inside Diameter (B) 2.38 mm _{+ 0.10 / - 0.00} (Equiv. 0.094 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)	Load to flatten 12.41 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.30 mm Load at L1: 6.8 kg Free Height (E): 0.38 mm Actual ID (Ref): 2.4 mm Inside Height (D): 0.13 mm
Part Number: W0024-D-005-003-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0024-D-005-003-C (Each) --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer W0024-D-005-003-C (Each) --- Disc Spring Washers - 4.76x2.38x0.25 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg	Loaded Height (L1) 0.43 mm	Load at L1 11.7 kg
Material: Carbon Spring Steel AISI C1095 Free Height (E): 0.51 mm Actual ID (Ref): 3.4 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 6.35 mm _{+ 0.01 / + 0.07} (Equiv. 0.25 in.)	Nominal Inside Diameter (B) 3.20 mm _{+ 0.10 / - 0.00} (Equiv. 0.126 in.)	Stock Thickness (C) 0.34 mm (Equiv. 0.013 in.)	Load to flatten 21.43 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.43 mm Load at L1: 11.7 kg Free Height (E): 0.51 mm Actual ID (Ref): 3.4 mm Inside Height (D): 0.17 mm
Part Number: W0032-D-006-003-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0032-D-006-003-C (Each) --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer W0032-D-006-003-C (Each) --- Disc Spring Washers - 6.35x3.2x0.34 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $2.32 AUD Regular price Sale price $2.32 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 10.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 10.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-008-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0030-D-008-003-C (PK-50) --- Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-008-003-C (PK-50) --- Disc Spring Washers - 8x3x0.3 mm Standard - Carbon Steel Washer Regular price $32.23 AUD Regular price ~~$38.67 AUD~~ Sale price $32.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 19.0 kg
Material: Carbon Steel Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 19.0 kg Free Height (E): 0.60 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0030-D-008-004-C (PK-50) --- Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer W0030-D-008-004-C (PK-50) --- Disc Spring Washers - 8x3x0.4 mm Standard - Carbon Steel Washer Regular price $42.95 AUD Regular price Sale price $42.95 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.55 mm	Load at L1 36.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.55 mm Load at L1: 36.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.20 mm
Part Number: W0030-D-008-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0030-D-008-005-C (PK-50) --- Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Sale W0030-D-008-005-C (PK-50) --- Disc Spring Washers - 8x3x0.5 mm Standard - Carbon Steel Washer Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.20 mm (Equiv. 0.008 in.)		Loaded Height (L1) 0.26 mm	Load at L1 4.0 kg
Material: Carbon Steel Free Height (E): 0.45 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-002-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.20 mm (Equiv. 0.008 in.)
Material: Carbon Steel Loaded Height (L1): 0.26 mm Load at L1: 4.0 kg Free Height (E): 0.45 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-008-002-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-008-002-C (PK-50) --- Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Sale W0040-D-008-002-C (PK-50) --- Disc Spring Washers - 8x4x0.2 mm Standard - Carbon Steel Washer Regular price $32.14 AUD Regular price ~~$38.56 AUD~~ Sale price $32.14 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.36 mm	Load at L1 12.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-008-003-C (PK-10) 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.36 mm Load at L1: 12.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-008-003-C (PK-10) 3 units (30 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 3 units (30 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Sale W0040-D-008-003-C (PK-10) --- Disc Spring Washers - 8x4x0.3 mm Standard - Carbon Steel Washer Regular price $3.19 AUD Regular price ~~$9.49 AUD~~ Sale price $3.19 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 3 Available Now Sale
Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.45 mm	Load at L1 21.0 kg
Material: Carbon Steel Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 8.00 mm (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.45 mm Load at L1: 21.0 kg Free Height (E): 0.60 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.20 mm
Part Number: W0040-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-008-004-C (PK-50) --- Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-008-004-C (PK-50) --- Disc Spring Washers - 8x4x0.4 mm Standard - Carbon Steel Washer Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.300 mm (Equiv. 0.012 in.)			Load at L1 119.00 kg
Material: Carbon Spring Steel 50CrVA Free Height (E): 0.55 mm Inside Height (D): 0.25 mm
Part Number: W0042-D-008-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.300 mm (Equiv. 0.012 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 119.00 kg Free Height (E): 0.55 mm Inside Height (D): 0.25 mm
Part Number: W0042-D-008-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0042-D-008-003-C (PK-50) --- Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer W0042-D-008-003-C (PK-50) --- Disc Spring Washers - 8x4.2x0.3 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)			Load at L1 210.00 kg
Material: Carbon Spring Steel 50CrVA Free Height (E): 0.60 mm Inside Height (D): 0.20 mm
Part Number: W0042-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 8.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.315 in.)	Nominal Inside Diameter (B) 4.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.165 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 210.00 kg Free Height (E): 0.60 mm Inside Height (D): 0.20 mm
Part Number: W0042-D-008-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0042-D-008-004-C (PK-50) --- Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer W0042-D-008-004-C (PK-50) --- Disc Spring Washers - 8x4.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm (Equiv. 0.02 in.)	Load to flatten 49.11 kg	Loaded Height (L1) 0.64 mm	Load at L1 26.8 kg
Material: Carbon Spring Steel AISI C1095 Free Height (E): 0.76 mm Actual ID (Ref): 5.0 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer
Nominal Outside Diameter (A) 9.53 mm _{+ 0.01 / + 0.07} (Equiv. 0.375 in.)	Nominal Inside Diameter (B) 4.76 mm _{+ 0.20 / - 0.00} (Equiv. 0.187 in.)	Stock Thickness (C) 0.51 mm (Equiv. 0.02 in.)	Load to flatten 49.11 kg
Material: Carbon Spring Steel AISI C1095 Loaded Height (L1): 0.64 mm Load at L1: 26.8 kg Free Height (E): 0.76 mm Actual ID (Ref): 5.0 mm Inside Height (D): 0.25 mm
Part Number: W0048-D-010-005-C (Each) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Feb 05, 2026 Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0048-D-010-005-C (Each) --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer W0048-D-010-005-C (Each) --- Disc Spring Washers - 9.53x4.76x0.51 mm Standard - Carbon Spring Steel AISI C1095 Washer Regular price $1.95 AUD Regular price Sale price $1.95 AUD Unit price per Each Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)		Loaded Height (L1) 0.39 mm	Load at L1 10.0 kg
Material: Carbon Steel Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0030-D-010-003-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.30 mm (Equiv. 0.012 in.)
Material: Carbon Steel Loaded Height (L1): 0.39 mm Load at L1: 10.0 kg Free Height (E): 0.65 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.35 mm Deleted Item. Available while stocks last.
Part Number: W0030-D-010-003-C (PK-10) 10 units (100 pcs) Available Now \| Item Discontinued - Up to 10 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 10 units (100 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Sale W0030-D-010-003-C (PK-10) --- Disc Spring Washers - 10x3x0.3 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 10 Available Now Sale
Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 18.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.30 mm
Part Number: W0030-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 18.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.30 mm
Part Number: W0030-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0030-D-010-004-C (PK-50) --- Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Sale W0030-D-010-004-C (PK-50) --- Disc Spring Washers - 10x3x0.4 mm Standard - Carbon Steel Washer Regular price $32.50 AUD Regular price ~~$39.00 AUD~~ Sale price $32.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 0.75 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-010-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 3.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.118 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 28.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 3.2 mm Inside Height (D): 0.25 mm
Part Number: W0030-D-010-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0030-D-010-005-C (PK-50) --- Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Sale W0030-D-010-005-C (PK-50) --- Disc Spring Washers - 10x3x0.5 mm Standard - Carbon Steel Washer Regular price $32.68 AUD Regular price ~~$39.22 AUD~~ Sale price $32.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 19.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-004-C (PK-10) 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 19.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.30 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-004-C (PK-10) 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-010-004-C (PK-10) --- Disc Spring Washers - 10x4x0.4 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.54 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 2 Available Now Sale
Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 29.0 kg
Material: Carbon Steel Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-005-C (PK-10) 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 29 units (290 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 29.0 kg Free Height (E): 0.75 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0040-D-010-005-C (PK-10) 29 units (290 pcs) Available Now \| Item Discontinued - Up to 29 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties Quantity Required 29 units (290 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Sale W0040-D-010-005-C (PK-10) --- Disc Spring Washers - 10x4x0.5 mm Standard - Carbon Steel Washer Regular price $3.26 AUD Regular price ~~$9.59 AUD~~ Sale price $3.26 AUD Unit price per Priced, Stocked and Sold Per 10 Units Excludes GST and overseas Taxes & Duties 29 Available Now Sale
Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)		Loaded Height (L1) 0.66 mm	Load at L1 50.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.60 mm (Equiv. 0.024 in.)
Material: Carbon Steel Loaded Height (L1): 0.66 mm Load at L1: 50.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.25 mm
Part Number: W0040-D-010-006-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-010-006-C (PK-50) --- Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer W0040-D-010-006-C (PK-50) --- Disc Spring Washers - 10x4x0.6 mm Standard - Carbon Steel Washer Regular price $48.23 AUD Regular price Sale price $48.23 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 10x5x0.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)		Loaded Height (L1) 0.33 mm	Load at L1 6.0 kg
Material: Carbon Steel Free Height (E): 0.55 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x5x0.25 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.25 mm (Equiv. 0.01 in.)
Material: Carbon Steel Loaded Height (L1): 0.33 mm Load at L1: 6.0 kg Free Height (E): 0.55 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-003-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0050-D-010-003-C (PK-50) --- Disc Spring Washers - 10x5x0.25 mm Standard - Carbon Steel Washer W0050-D-010-003-C (PK-50) --- Disc Spring Washers - 10x5x0.25 mm Standard - Carbon Steel Washer Regular price $42.86 AUD Regular price Sale price $42.86 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 10x5x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.48 mm	Load at L1 21.0 kg
Material: Carbon Steel Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x5x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.48 mm Load at L1: 21.0 kg Free Height (E): 0.70 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.30 mm
Part Number: W0050-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0050-D-010-004-C (PK-50) --- Disc Spring Washers - 10x5x0.4 mm Standard - Carbon Steel Washer Sale W0050-D-010-004-C (PK-50) --- Disc Spring Washers - 10x5x0.4 mm Standard - Carbon Steel Washer Regular price $32.32 AUD Regular price ~~$38.78 AUD~~ Sale price $32.32 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.56 mm	Load at L1 33.0 kg
Material: Carbon Steel Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0050-D-010-005-C (PK-5) 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 10.00 mm (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.197 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.56 mm Load at L1: 33.0 kg Load at 0.75 Height: 36.4 Kg Free Height (E): 0.75 mm Actual ID (Ref): 5.2 mm Inside Height (D): 0.25 mm Deleted Item. Available while stocks last.
Part Number: W0050-D-010-005-C (PK-5) 5 units (25 pcs) Available Now \| Item Discontinued - Up to 5 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties Quantity Required 5 units (25 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Sale W0050-D-010-005-C (PK-5) --- Disc Spring Washers - 10x5x0.5 mm Standard - Carbon Steel Washer Regular price $2.00 AUD Regular price ~~$3.80 AUD~~ Sale price $2.00 AUD Unit price per Priced, Stocked and Sold Per 5 Units Excludes GST and overseas Taxes & Duties 5 Available Now Sale
Disc Spring Washers - 10x5.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 10.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.205 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)			Load at L1 213.00 kg
Material: Carbon Spring Steel 50CrVA Free Height (E): 0.70 mm Inside Height (D): 0.30 mm
Part Number: W0052-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x5.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 10.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.205 in.)	Stock Thickness (C) 0.400 mm (Equiv. 0.016 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 213.00 kg Free Height (E): 0.70 mm Inside Height (D): 0.30 mm
Part Number: W0052-D-010-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0052-D-010-004-C (PK-50) --- Disc Spring Washers - 10x5.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer W0052-D-010-004-C (PK-50) --- Disc Spring Washers - 10x5.2x0.4 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $82.50 AUD Regular price Sale price $82.50 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 10x5.2x0.5 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 10.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.205 in.)	Stock Thickness (C) 0.500 mm (Equiv. 0.02 in.)			Load at L1 323.00 kg
Material: Carbon Spring Steel 50CrVA Free Height (E): 0.75 mm Inside Height (D): 0.25 mm
Part Number: W0052-D-010-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 10x5.2x0.5 mm Standard - Carbon Spring Steel 50CrVA Washer
Nominal Outside Diameter (A) 10.00 mm _{+ 0.00 / - 0.15} (Equiv. 0.394 in.)	Nominal Inside Diameter (B) 5.20 mm _{+ 0.15 / - 0.00} (Equiv. 0.205 in.)	Stock Thickness (C) 0.500 mm (Equiv. 0.02 in.)
Material: Carbon Spring Steel 50CrVA Load at L1: 323.00 kg Free Height (E): 0.75 mm Inside Height (D): 0.25 mm
Part Number: W0052-D-010-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Tue, Feb 03, 2026 Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0052-D-010-005-C (PK-50) --- Disc Spring Washers - 10x5.2x0.5 mm Standard - Carbon Spring Steel 50CrVA Washer W0052-D-010-005-C (PK-50) --- Disc Spring Washers - 10x5.2x0.5 mm Standard - Carbon Spring Steel 50CrVA Washer Regular price $87.68 AUD Regular price Sale price $87.68 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now
Disc Spring Washers - 12x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)		Loaded Height (L1) 0.50 mm	Load at L1 18.0 kg
Material: Carbon Steel Free Height (E): 0.80 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.59 AUD Regular price ~~$39.11 AUD~~ Sale price $32.59 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 12x4x0.4 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.40 mm (Equiv. 0.016 in.)
Material: Carbon Steel Loaded Height (L1): 0.50 mm Load at L1: 18.0 kg Free Height (E): 0.80 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.40 mm
Part Number: W0040-D-012-004-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.59 AUD Regular price ~~$39.11 AUD~~ Sale price $32.59 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-012-004-C (PK-50) --- Disc Spring Washers - 12x4x0.4 mm Standard - Carbon Steel Washer Sale W0040-D-012-004-C (PK-50) --- Disc Spring Washers - 12x4x0.4 mm Standard - Carbon Steel Washer Regular price $32.59 AUD Regular price ~~$39.11 AUD~~ Sale price $32.59 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale
Disc Spring Washers - 12x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)		Loaded Height (L1) 0.59 mm	Load at L1 28.0 kg
Material: Carbon Steel Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.35 mm
Part Number: W0040-D-012-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
Disc Spring Washers - 12x4x0.5 mm Standard - Carbon Steel Washer
Nominal Outside Diameter (A) 12.00 mm (Equiv. 0.472 in.)	Nominal Inside Diameter (B) 4.00 mm _{+ 0.20 / - 0.00} (Equiv. 0.157 in.)	Stock Thickness (C) 0.50 mm (Equiv. 0.02 in.)
Material: Carbon Steel Loaded Height (L1): 0.59 mm Load at L1: 28.0 kg Free Height (E): 0.85 mm Actual ID (Ref): 4.2 mm Inside Height (D): 0.35 mm
Part Number: W0040-D-012-005-C (PK-50) Out of Stock \| Backorder Now \| Orders can be expected around Thu, Mar 12, 2026 Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Quantity Required Backorder: Out of Stock.
W0040-D-012-005-C (PK-50) --- Disc Spring Washers - 12x4x0.5 mm Standard - Carbon Steel Washer Sale W0040-D-012-005-C (PK-50) --- Disc Spring Washers - 12x4x0.5 mm Standard - Carbon Steel Washer Regular price $32.77 AUD Regular price ~~$39.33 AUD~~ Sale price $32.77 AUD Unit price per Priced, Stocked and Sold Per 50 Units Excludes GST and overseas Taxes & Duties Out of stock! Backorder Now Sale

Country/region

Miniature Bearings Australia

Collection: Washers - Disc Spring - Standard - Carbon Steel

Category Details

Filter

Filter

Subscribe to our emails
