CCE-00318-C (140 Pcs)

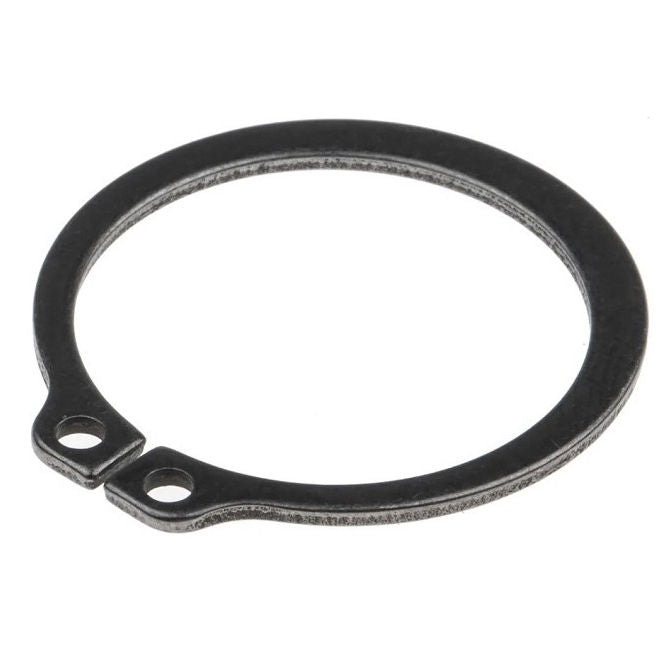

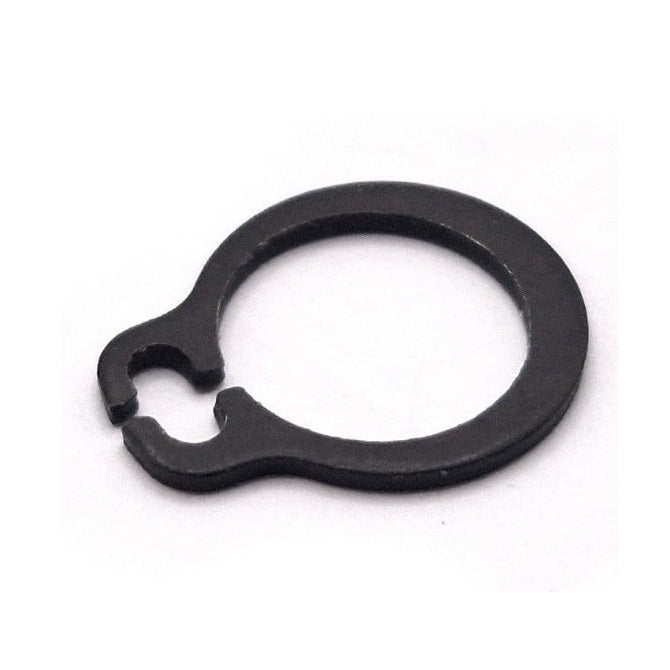

External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip

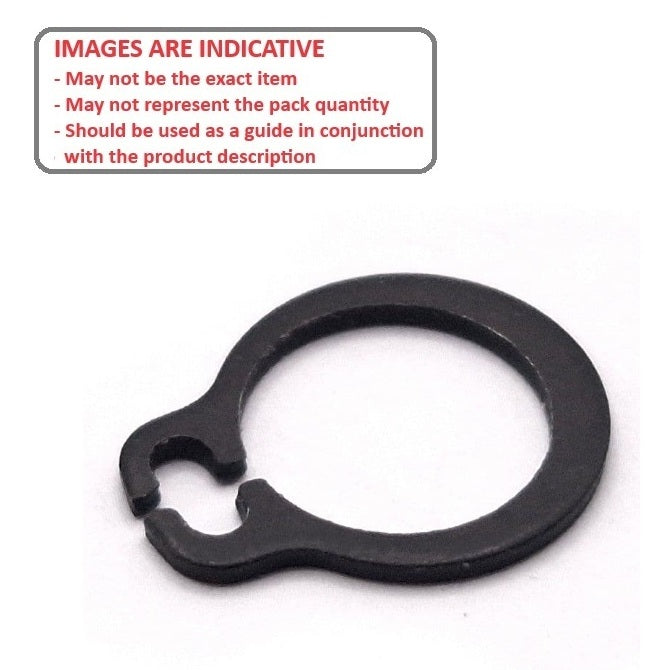

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 3.18x0.25x2.97 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Anderton and Seeger Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$20.00 AUD
$38.00 AUD $20.00 AUD
per 140
Qty: 1 pack (140 pcs) available now
Only 1 pack may be ordered online. If you need a large quantity, please contact us.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Circlips - Standard - Carbon Steel

Product Details

Shaft Diameter (Ds): 3.18mm
(3.18mm is 0.125 in.)

Carbon Steel
  • Clip Thickness (T): 0.25mm
    +/- 0.038
    (0.25mm is 0.01 in.)
  • Groove Dia. (Dg): 2.97mm
    +/- 0.025
    (2.97mm is 0.117 in.)
  • Approx. Loose Circlip ID (A): 2.80mm
  • Groove Width (W): 0.30mm
  • Clearance on Shaft (C1): 5.59mm
  • Clearance in Groove (C1): 5.44mm
  • Min. Extension (n): 0.36
  • Standard: MIL-16624

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • ALTPART
  • 97633A110

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
