CCE-00318-C - Datasheet
MBA
Category Information

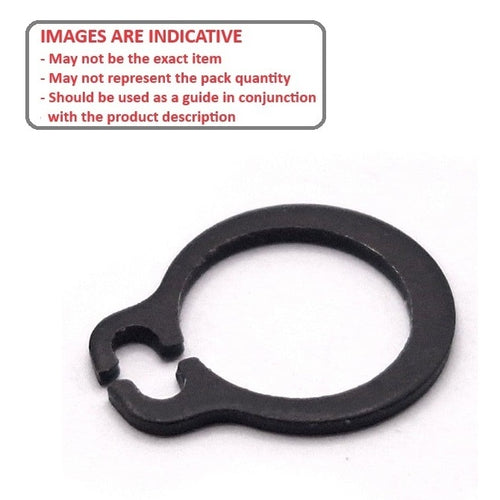

Retaining Rings - External - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Shaft Diameter (Ds)
:
3.18
mm
(Equiv. 0.125 in.) - Clip Thickness (T)
0.25
mm
+/- 0.038
(Equiv. 0.01 in.) - Groove Dia. (Dg)
2.97
mm
+/- 0.025
(Equiv. 0.117 in.) - Approx. Loose Circlip ID (A) 2.80 mm
- Groove Width (W) 0.30 mm
- Clearance on Shaft (C1) 5.59 mm
- Clearance in Groove (C1) 5.44 mm
- Min. Extension (n) 0.36
- Standard MIL-16624
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 97633A110
