Collection: Retaining Rings - External - Circlips - Standard - Carbon Steel

Retaining Rings -> External -> Circlips -> Standard -> Carbon Steel

There are 380 products in the sub-categories of Retaining Rings - External - Circlips - Standard - Carbon Steel. Scroll down or follow the link to Retaining Rings - External - Circlips - Standard - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

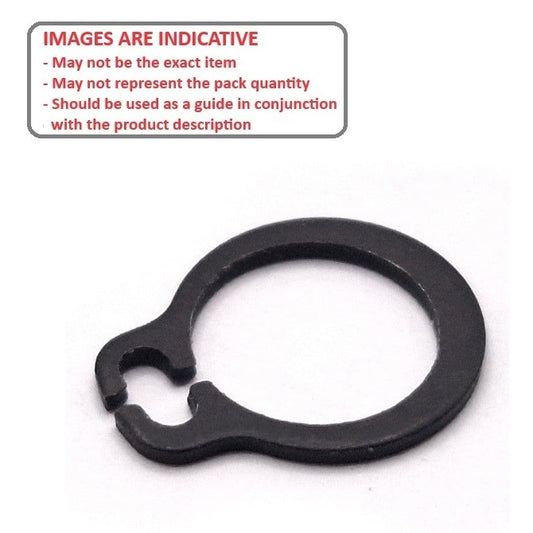

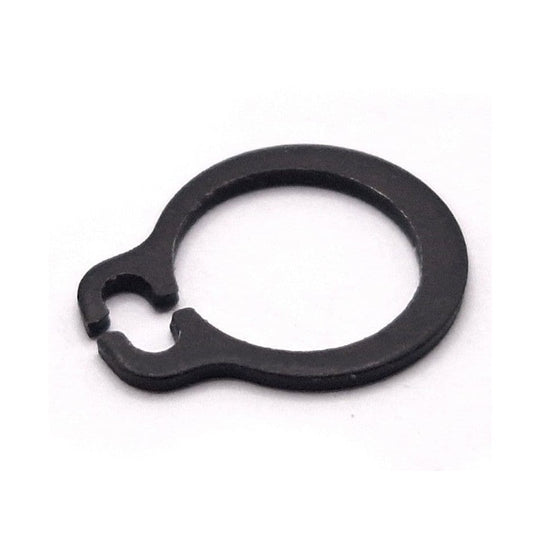

A selection of Carbon Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Plain carbon steel

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Standard - Carbon Steel category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 3.00 mm (Equiv. 0.118 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 2.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.11 in.)	Approx. Loose Circlip ID (A) 2.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Wed, Nov 12, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 3.00 mm (Equiv. 0.118 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 2.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.11 in.)	Approx. Loose Circlip ID (A) 2.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 7.00 mm Clearance in Groove (C1): 6.60 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00300-C (100 Pcs) External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Wed, Nov 12, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip CCE-00300-C (100 Pcs) --- External Retaining Rings - 3x0.4x2.8 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm		Groove Width (W) 0.30 mm
Material: Carbon Steel Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip 1 pack (140 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140 Quantity Required 1 pack (140 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.18 mm (Equiv. 0.125 in.)	Clip Thickness (T) 0.25 mm _{+/- 0.038} (Equiv. 0.01 in.)	Groove Dia. (Dg) 2.97 mm _{+/- 0.025} (Equiv. 0.117 in.)	Approx. Loose Circlip ID (A) 2.80 mm
Material: Carbon Steel Groove Width (W): 0.30 mm Clearance on Shaft (C1): 5.59 mm Clearance in Groove (C1): 5.44 mm Min. Extension (n): 0.36 Standard: MIL-16624
Part Number: CCE-00318-C (140 Pcs) External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip 1 pack (140 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 140 Quantity Required 1 pack (140 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip Sale CCE-00318-C (140 Pcs) --- External Retaining Rings - 3.18x0.25x2.97 mm Circlips - Carbon Steel Circlip Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm		Groove Width (W) 0.30 mm
Material: Carbon Spring Steel Self Finish Standard: MIL-16624
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 3.97 mm (Equiv. 0.156 in.)	Clip Thickness (T) 0.30 mm _{+/- 0.038} (Equiv. 0.012 in.)	Groove Dia. (Dg) 3.71 mm _{+/- 0.025} (Equiv. 0.146 in.)	Approx. Loose Circlip ID (A) 3.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.30 mm Standard: MIL-16624
Part Number: CCE-00397-C External Retaining Rings - 3.97x0.3x3.71 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip 42 units (4200 pcs) Available Now \| Further orders can be expected around Mon, Dec 15, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 42 units (4200 pcs) Available Now. Backorder if more than 42.
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-C (100 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip 42 units (4200 pcs) Available Now \| Further orders can be expected around Mon, Dec 15, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 42 units (4200 pcs) Available Now. Backorder if more than 42.
CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip CCE-00400-C (100 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 42 Available Now
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm		Groove Width (W) 0.46 mm
Material: Carbon Steel Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 23, 2025 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 4.78 mm (Equiv. 0.188 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.038} (Equiv. 0.015 in.)	Groove Dia. (Dg) 4.45 mm _{+/- 0.051} (Equiv. 0.175 in.)	Approx. Loose Circlip ID (A) 4.27 mm
Material: Carbon Steel Groove Width (W): 0.46 mm Clearance on Shaft (C1): 7.62 mm Clearance in Groove (C1): 7.26 mm Min. Lug Diameter (h): 0.58 mm Min. Extension (n): 0.56
Part Number: CCE-00478-C (100 Pcs) External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Tue, Sep 23, 2025 Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Sale CCE-00478-C (100 Pcs) --- External Retaining Rings - 4.78x0.38x4.45 mm Circlips - Carbon Steel Circlip Regular price $39.77 AUD Regular price ~~$47.73 AUD~~ Sale price $39.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Carbon Steel Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm
Material: Carbon Steel Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-C (100 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip 33 units (3300 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per Per 100 Quantity Required 33 units (3300 pcs) Available Now. Backorder if more than 33.
CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip CCE-00500-C (100 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Carbon Steel Circlip Regular price $5.95 AUD Regular price Sale price $5.95 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm		Groove Width (W) 0.50 mm
Material: Carbon Spring Steel Self Finish Standard: MIL-16624
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.01 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 4.78 mm _{+/- 0.051} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.60 mm
Material: Carbon Spring Steel Self Finish Groove Width (W): 0.50 mm Standard: MIL-16624
Part Number: CCE-00501-C External Retaining Rings - 5.01x0.4x4.78 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us \| Item Discontinued - Please contact us if you need a large quantity Quantity Required Contact Us. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Standard: MIL-16624
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.56 mm (Equiv. 0.219 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.21 mm _{+/- 0.051} (Equiv. 0.205 in.)	Approx. Loose Circlip ID (A) 5.00 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.64 mm Clearance in Groove (C1): 8.23 mm Min. Lug Diameter (h): 0.61 mm Min. Extension (n): 0.60 Standard: MIL-16624
Part Number: CCE-00556-C (50 Pcs) External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip 1 pack (50 pcs) Available Now \| Item Discontinued - Up to 1 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 50 Quantity Required 1 pack (50 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip Sale CCE-00556-C (50 Pcs) --- External Retaining Rings - 5.56x0.4x5.21 mm Circlips - Carbon Steel Circlip Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 1 Available Now Sale
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm		Groove Width (W) 0.50 mm
Material: Carbon Steel Standard: MIL-16624
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 5.95 mm (Equiv. 0.234 in.)	Clip Thickness (T) 0.40 mm _{+/- 0.038} (Equiv. 0.016 in.)	Groove Dia. (Dg) 5.60 mm _{+/- 0.051} (Equiv. 0.22 in.)	Approx. Loose Circlip ID (A) 5.50 mm
Material: Carbon Steel Groove Width (W): 0.50 mm Standard: MIL-16624
Part Number: CCE-00595-C (100 Pcs) External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip 3 units (300 pcs) Available Now \| Item Discontinued - Up to 3 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per Per 100 Quantity Required 3 units (300 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip Sale CCE-00595-C (100 Pcs) --- External Retaining Rings - 5.95x0.4x5.6 mm Circlips - Carbon Steel Circlip Regular price $20.00 AUD Regular price ~~$38.00 AUD~~ Sale price $20.00 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 100 Quantity Required 18 units (1800 pcs) Available Now. Backorder if more than 18.
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm
Material: Carbon Steel Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-C (100 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip 18 units (1800 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 100 Quantity Required 18 units (1800 pcs) Available Now. Backorder if more than 18.
CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip CCE-00600-C (100 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Carbon Steel Circlip Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Circlip 18 units (360 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 20 Quantity Required 18 units (360 pcs) Available Now. Backorder if more than 18.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 10.92 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-C (20 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Circlip 18 units (360 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per Per 20 Quantity Required 18 units (360 pcs) Available Now. Backorder if more than 18.
CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Circlip CCE-00635-C (20 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Carbon Steel Circlip Regular price $4.77 AUD Regular price Sale price $4.77 AUD Unit price per 18 Available Now
Shaft Diameter (Ds) 7.00 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm Circlips - Carbon Steel Circlip 9 units (450 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.86 AUD Regular price ~~$5.34 AUD~~ Sale price $2.86 AUD Unit price per Per 50 Quantity Required 9 units (450 pcs) Available Now. Backorder if more than 9.
Shaft Diameter (Ds) 7.00 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-C (50 Pcs) External Retaining Rings - 7x0.8x6.7 mm Circlips - Carbon Steel Circlip 9 units (450 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.86 AUD Regular price ~~$5.34 AUD~~ Sale price $2.86 AUD Unit price per Per 50 Quantity Required 9 units (450 pcs) Available Now. Backorder if more than 9.
CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Carbon Steel Circlip Sale CCE-00700-C (50 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Carbon Steel Circlip Regular price $2.86 AUD Regular price ~~$5.34 AUD~~ Sale price $2.86 AUD Unit price per 9 Available Now Sale
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-C (500 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 12, 2025 Regular price $149.68 AUD Regular price ~~$179.62 AUD~~ Sale price $149.68 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-C (500 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Circlip Out of Stock \| Backorder Now \| Orders can be expected around Wed, Nov 12, 2025 Regular price $149.68 AUD Regular price ~~$179.62 AUD~~ Sale price $149.68 AUD Unit price per Per 500 Quantity Required Backorder: Out of Stock.
CCE-00701-C (500 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Circlip Sale CCE-00701-C (500 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Carbon Steel Circlip Regular price $149.68 AUD Regular price ~~$179.62 AUD~~ Sale price $149.68 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Circlip 29 units (580 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.59 AUD Regular price ~~$4.75 AUD~~ Sale price $2.59 AUD Unit price per Per 20 Quantity Required 29 units (580 pcs) Available Now. Backorder if more than 29.
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-C (20 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Circlip 29 units (580 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.59 AUD Regular price ~~$4.75 AUD~~ Sale price $2.59 AUD Unit price per Per 20 Quantity Required 29 units (580 pcs) Available Now. Backorder if more than 29.
CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Circlip Sale CCE-00714-C (20 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Carbon Steel Circlip Regular price $2.59 AUD Regular price ~~$4.75 AUD~~ Sale price $2.59 AUD Unit price per 29 Available Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Circlip 31 units (620 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.59 AUD Regular price ~~$4.86 AUD~~ Sale price $2.59 AUD Unit price per Per 20 Quantity Required 31 units (620 pcs) Available Now. Backorder if more than 31.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-C (20 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Circlip 31 units (620 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.59 AUD Regular price ~~$4.86 AUD~~ Sale price $2.59 AUD Unit price per Per 20 Quantity Required 31 units (620 pcs) Available Now. Backorder if more than 31.
CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Circlip Sale CCE-00794-C (20 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Carbon Steel Circlip Regular price $2.59 AUD Regular price ~~$4.86 AUD~~ Sale price $2.59 AUD Unit price per 31 Available Now Sale
Shaft Diameter (Ds) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm		Groove Width (W) 0.90 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8x0.8x7.6 mm Circlips - Carbon Steel Circlip 33 units (1650 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 50 Quantity Required 33 units (1650 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm
Material: Carbon Steel Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-C (50 Pcs) External Retaining Rings - 8x0.8x7.6 mm Circlips - Carbon Steel Circlip 33 units (1650 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Per 50 Quantity Required 33 units (1650 pcs) Available Now. Backorder if more than 33.
CCE-00800-C (50 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Carbon Steel Circlip CCE-00800-C (50 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Carbon Steel Circlip Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-C (20 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Carbon Steel Circlip CCE-00874-C (20 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Carbon Steel Circlip Regular price $4.95 AUD Regular price Sale price $4.95 AUD Unit price per 22 Available Now
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Carbon Steel Circlip 47 units (940 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20 Quantity Required 47 units (940 pcs) Available Now. Backorder if more than 47.
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-C (20 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Carbon Steel Circlip 47 units (940 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20 Quantity Required 47 units (940 pcs) Available Now. Backorder if more than 47.
CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Carbon Steel Circlip CCE-00899-C (20 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Carbon Steel Circlip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 47 Available Now
Shaft Diameter (Ds) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm Circlips - Carbon Steel Circlip 2 units (100 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $3.68 AUD Regular price ~~$6.94 AUD~~ Sale price $3.68 AUD Unit price per Per 50 Quantity Required 2 units (100 pcs) Available Now. Backorder if more than 2.
Shaft Diameter (Ds) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-C (50 Pcs) External Retaining Rings - 9x1x8.6 mm Circlips - Carbon Steel Circlip 2 units (100 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $3.68 AUD Regular price ~~$6.94 AUD~~ Sale price $3.68 AUD Unit price per Per 50 Quantity Required 2 units (100 pcs) Available Now. Backorder if more than 2.
CCE-00900-C (50 Pcs) --- External Retaining Rings - 9x1x8.6 mm Circlips - Carbon Steel Circlip Sale CCE-00900-C (50 Pcs) --- External Retaining Rings - 9x1x8.6 mm Circlips - Carbon Steel Circlip Regular price $3.68 AUD Regular price ~~$6.94 AUD~~ Sale price $3.68 AUD Unit price per 2 Available Now Sale
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-C (20 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Carbon Steel Circlip 22 units (440 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 20 Quantity Required 22 units (440 pcs) Available Now. Backorder if more than 22.
CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Carbon Steel Circlip CCE-00953-C (20 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Carbon Steel Circlip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 22 Available Now
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Carbon Steel Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Circlip 78 units (3900 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 50 Quantity Required 78 units (3900 pcs) Available Now. Backorder if more than 78.
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-C (50 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Circlip 78 units (3900 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per Per 50 Quantity Required 78 units (3900 pcs) Available Now. Backorder if more than 78.
CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Circlip CCE-01000-C (50 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Carbon Steel Circlip Regular price $7.41 AUD Regular price Sale price $7.41 AUD Unit price per 78 Available Now
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-C (20 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Carbon Steel Circlip 3 units (60 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 3 units (60 pcs) Available Now. Backorder if more than 3.
CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Carbon Steel Circlip Sale CCE-01001-C (20 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Carbon Steel Circlip Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per 3 Available Now Sale
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+/- 0.051} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Carbon Steel Standard: MIL-3217
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Carbon Steel Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.68 AUD Regular price ~~$4.99 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+/- 0.051} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm
Material: Carbon Steel Groove Width (W): 1.00 mm Standard: MIL-3217
Part Number: CCE-01001H-C (10 Pcs) External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Carbon Steel Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.68 AUD Regular price ~~$4.99 AUD~~ Sale price $2.68 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Carbon Steel Circlip Sale CCE-01001H-C (10 Pcs) --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Carbon Steel Circlip Regular price $2.68 AUD Regular price ~~$4.99 AUD~~ Sale price $2.68 AUD Unit price per 39 Available Now Sale
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 0.74 mm
Material: Carbon Steel Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Circlip 4 units (80 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 4 units (80 pcs) Available Now. Backorder if more than 4.
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Carbon Steel Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-C (20 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Circlip 4 units (80 pcs) Available Now \| Further orders can be expected around Fri, Sep 12, 2025 Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per Per 20 Quantity Required 4 units (80 pcs) Available Now. Backorder if more than 4.
CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Circlip Sale CCE-01032-C (20 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Carbon Steel Circlip Regular price $2.95 AUD Regular price ~~$5.50 AUD~~ Sale price $2.95 AUD Unit price per 4 Available Now Sale
