SFWR2-5A-ZZ-MC3 (Each)

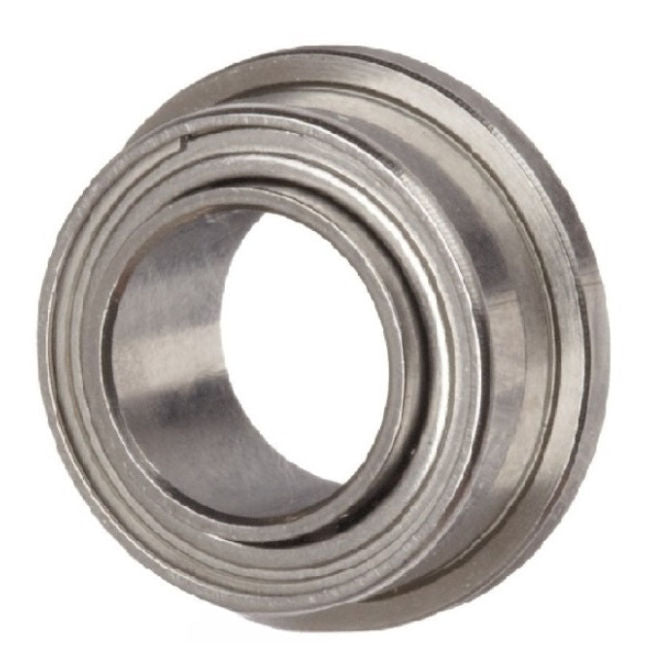

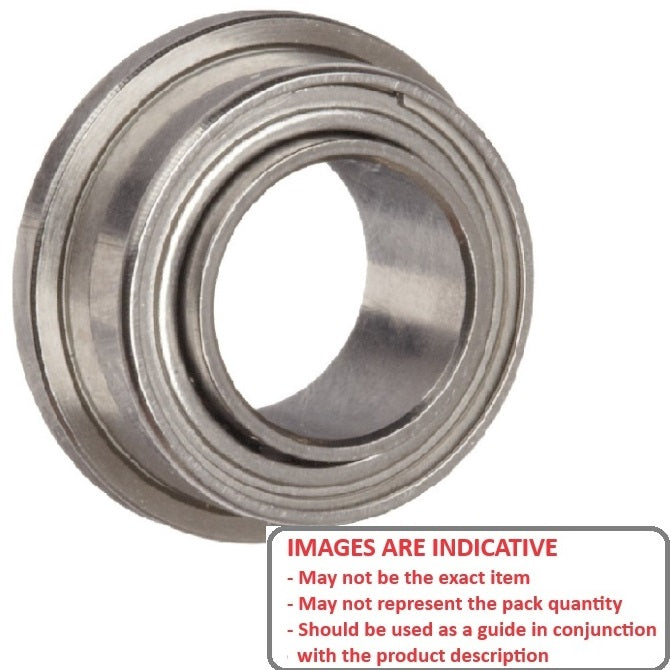

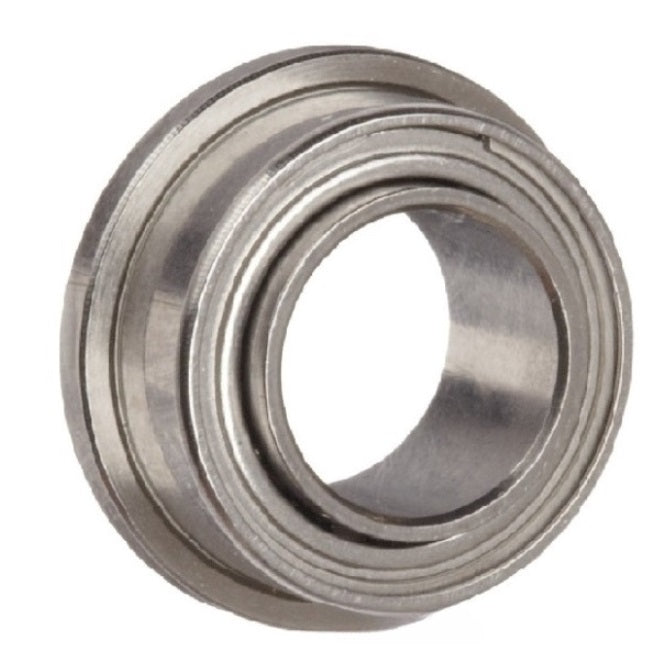

Single Row Ball Bearings - 3.175x7.938x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more
for $25.41 AUD Each
1/8x5/16 inch Bearing - 3.175x7.938x3.571 mm / 4.366 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per Each:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner
Product Details

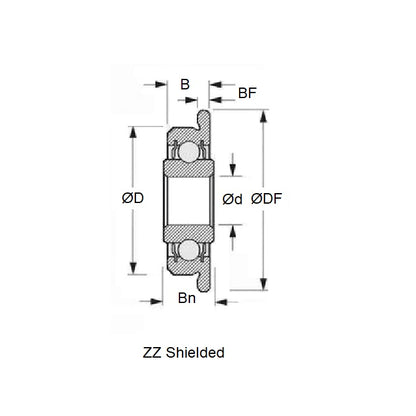

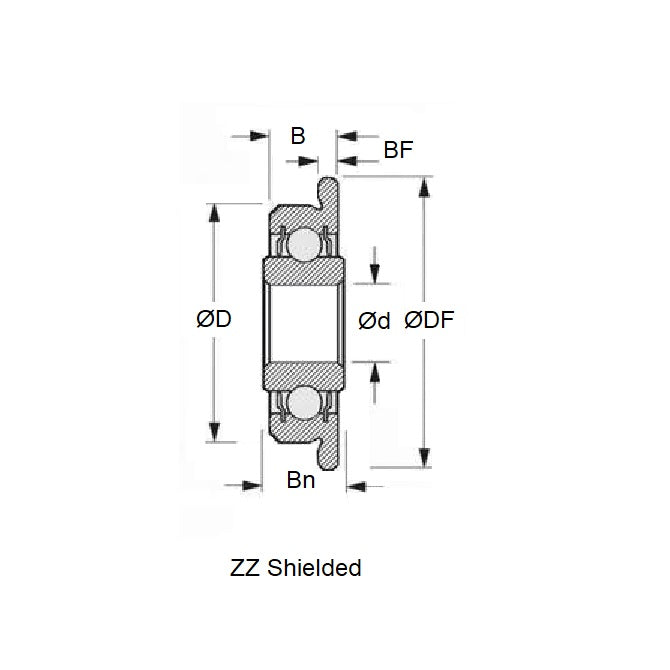

ID (d): 3.175mm+ 0.000 / - 0.0075
(3.175mm is 0.125 in.)
Stainless Steel AISI 440C
- ID (d): 3.175mm
+ 0.000 / - 0.0075
(3.175mm is 0.125 in.)
- O.D. (D): 7.938mm
+ 0.000 / - 0.0075
(7.938mm is 0.313 in.)
- Width (B): 3.571mm
+ 0.000 / - 0.125
(3.571mm is 0.141 in.)
- Inner Ring Width (Bn): 4.366mm
- Flange Diameter (DF): 9.119mm
- Flange Width (BF): 0.787mm
- Precision Grade: Abec 1
- Closure Type: ZZ
- Bearing Type: Radial Flanged with Extended Inner
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 57155K331
- Reid Tool® DMB-53
- Stainless Alternative FWR25AZZMC3
- Stainless Alternative FWR2-5A-ZZ-MC3
- MPB S518FCHHE
- GRW SFE1-8A-2Z
- ISO SFRW25ZZ
- ISO SFRW2-5-ZZ
- Shielded SFWR2 / 4
- MPB SS518FCHHE
- GRW SSFE1-8A-2Z
- NHBB® SSFR2-5PPEE
- ISO SSFRW25ZZ
- ISO SSFRW2-5-ZZ
- Shielded SSFWR2 / 4
- ADR WFLX1-8-ZZ
- SSFR25PPEE
- SSR1F518ZZEE
- SSFWR25AZZMC3
- SSFWR2-5A-ZZMC3
- SS-R1F-518-ZZEE
- SSR1F-518-ZZEE
- SSFE18A2Z
- DD-R1F-518-ZZEE
- DDR1F-518-ZZEE
- DDR1F518ZZEE
- FWR2-5A-Z-MC3
- FWR25AZMC3
- WFLX18ZZ
- DMB53
- FWR2-5ABASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFWR25AZZMC3, FWR25A
