W0032-T-007-007-L-S4 (100 Pcs)

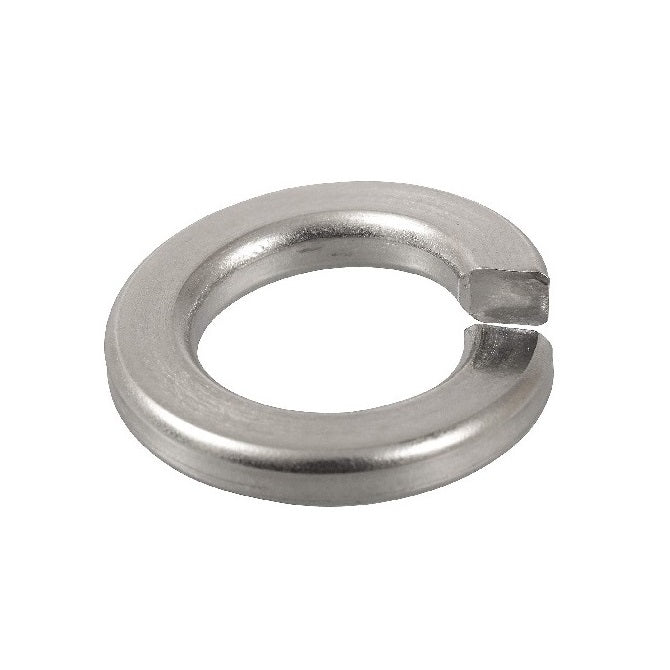

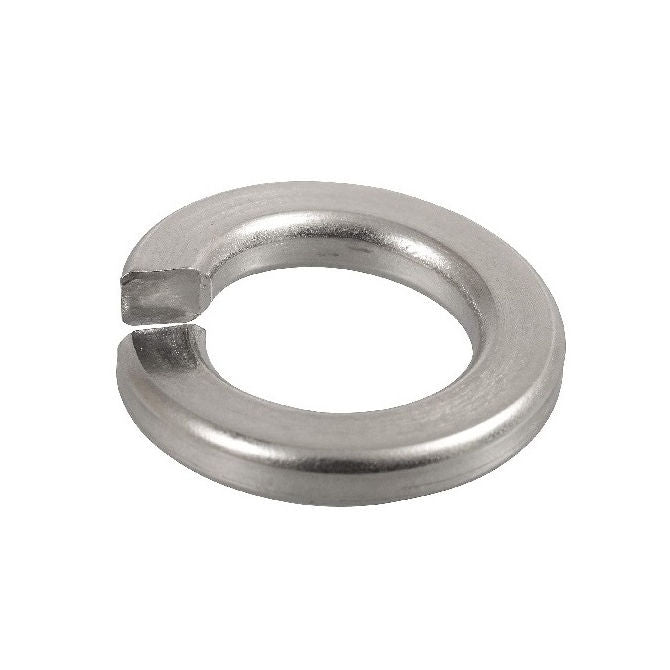

Lock Washers - 3.18x6.7x0.7 mm Split - Stainless Steel 304 Similar to A2, 18-8 HRB80 Washer

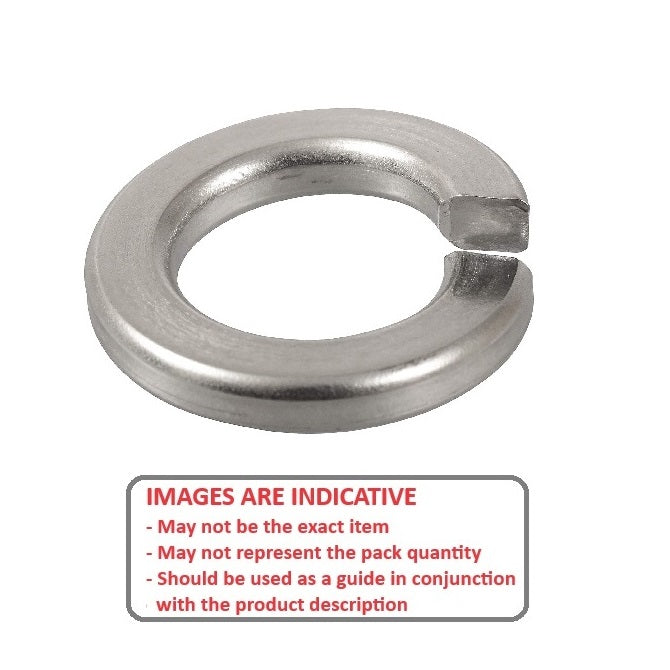

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Lock Washers - 3.175x6.7x0.7 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
1 4

TW

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Screws
Price:
$3.86 AUD
$3.86 AUD
per 100
Backorder
Order 50 or more pack (5000 pcs) for $3.47 AUD per 100
Backorder now! Backorders for more than the stock quantity are expected before Sep 11, 2025

Base Category: Washers - Lock

Top Level Category: Washers - Lock - Split - Stainless Steel

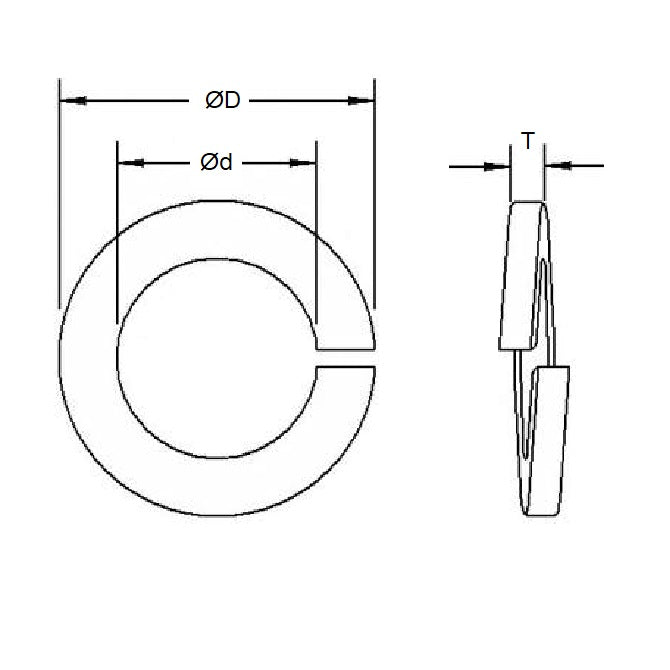

Product Details

Nominal Inside Diameter: 3.18mm
+ 0.3 / - 0.0
(3.18mm is 0.125 in.)

Stainless Steel 304 (Similar to A2, 18-8) HRB80
  • Outside Diameter: 6.7mm
    (6.7mm is 0.264 in.)
  • Thickness: 0.70mm
    (0.70mm is 0.028 in.)
  • Info: 304 Stainless
  • Info: DIN 127 B
  • Actual ID (Ref): 3.6mm

Brand: TW
Country of Origin: TW

Product Compliance and Data

Similar to

  • Brighton Best 836033

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
