W0032-T-007-007-L-S4 - Datasheet
TW
Category Information

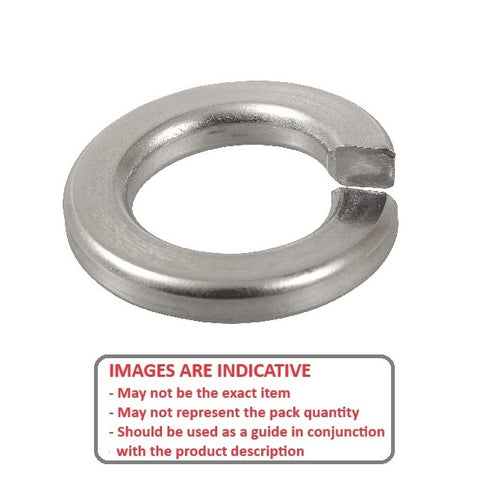

Washers - Lock - Split - Stainless SteelStainless Steel Split Lock Washers. Split type. 304 stainless steel selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data

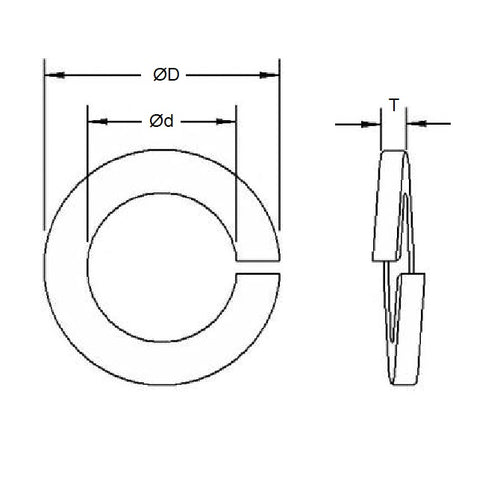

- Nominal Inside Diameter
:
3.18
mm
+ 0.3 / - 0.0
(Equiv. 0.125 in.) - Outside Diameter
6.7
mm
(Equiv. 0.264 in.) - Thickness
0.70
mm
(Equiv. 0.028 in.) - Info 304 Stainless
- Info DIN 127 B
- Actual ID (Ref) 3.6 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best 836033
