RS-106 (5 Pcs)

Name: RS-106 (5 Pack) - External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Brand: MBA
SKU: RS106
Price: 2.23 AUD
Availability: InStock

External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring

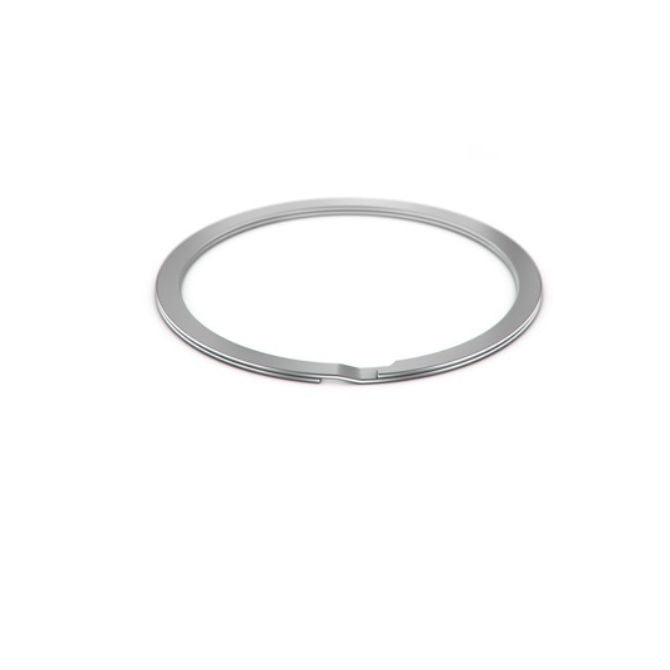

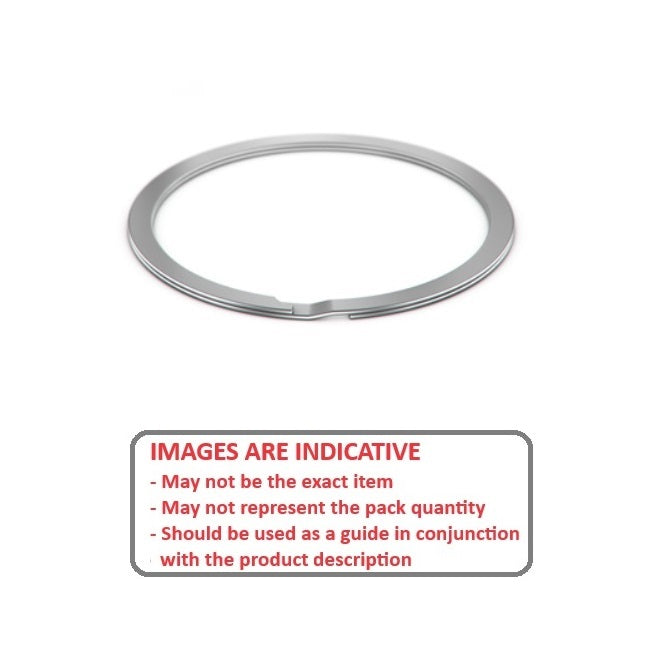

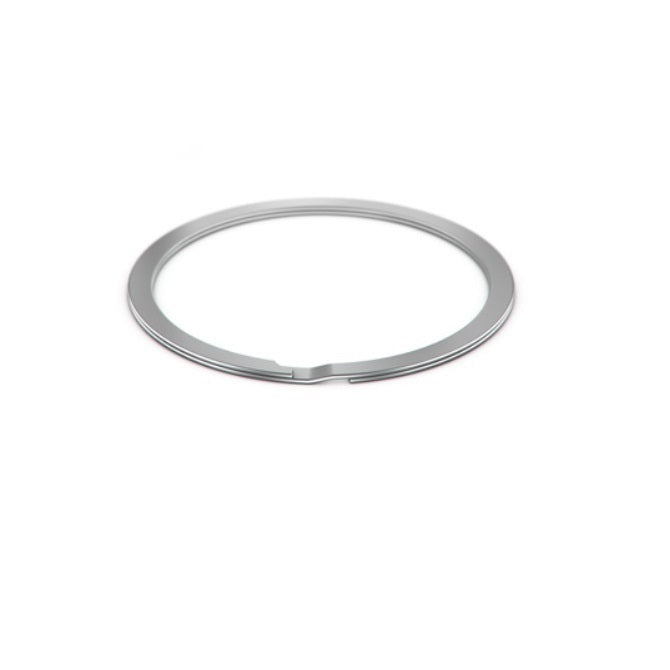

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Additional resources:
Spiral Rings and Snap Rings PDF

Price:

$2.23 AUD

5 Per Sell Unit

Excludes GST and overseas Taxes & Duties

Qty: 92 available now
Order 50 or more for $2.01 AUD

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Nov 14, 2025

Quantity

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Product Details

Additional stock available from USA subject to Prior Sale = 1329

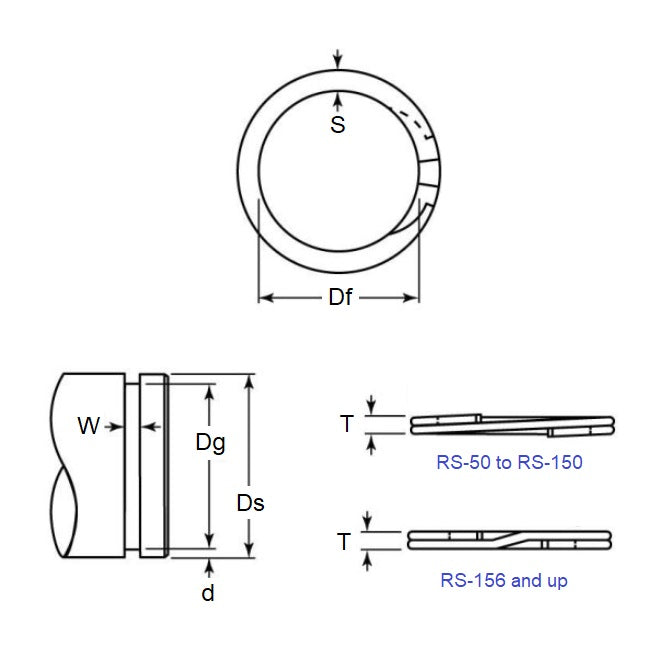

Shaft Diameter (Ds): 26.97mm
_{(26.97mm is 1.062 in.)}

Carbon Spring Steel

Shaft Diameter (Ds): 26.97mm
_{(26.97mm is 1.062 in.)}
Clip Thickness (T): 0.94mm
_{+/- 0.05}
_{(0.94mm is 0.037 in.)}
Groove Dia. (Dg): 25.91mm
_{(25.91mm is 1.02 in.)}
Approx. Loose Circlip ID (A): 25.35mm
_{+ 0.00 / - 0.38}
Radial Wall (S) Approx.: 1.91mm
_{+/- 0.11}
Groove Width (W): 1.11mm
_{+/- 0.10}
Approx. Loose Clip OD: 29.17
_{+/- 0.03}
Groove Depth (d): 0.53

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Smalley WS-106
WS106

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
