Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 26.97 mm
    (Equiv. 1.062 in.)
  • Clip Thickness (T) 0.94 mm +/- 0.05
    (Equiv. 0.037 in.)
  • Groove Dia. (Dg) 25.91 mm
    (Equiv. 1.02 in.)
  • Approx. Loose Circlip ID (A) 25.35 mm + 0.00 / - 0.38
  • Radial Wall (S) min/max 1.91 mm +/- 0.11
  • Groove Width (W) 1.11 mm +/- 0.10
  • Approx. Loose Clip OD 29.17 +/- 0.03
  • Groove Depth (d) 0.53
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Smalley WS-106
  • WS106
View full details

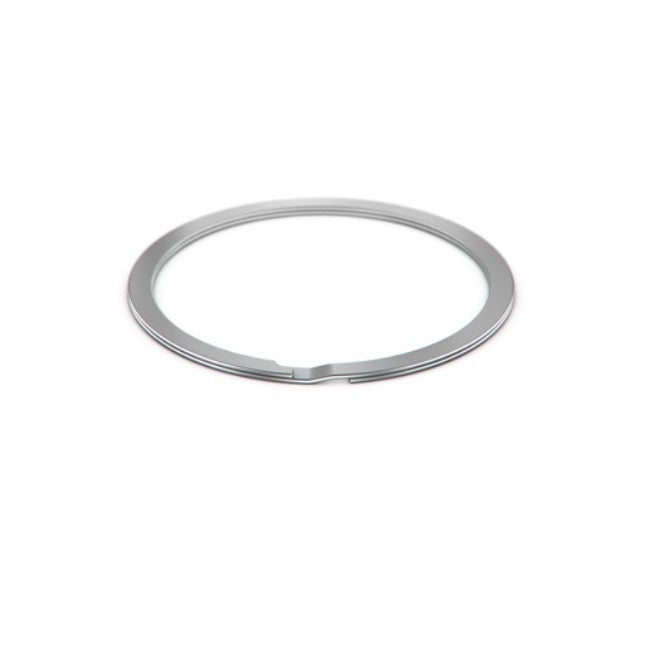

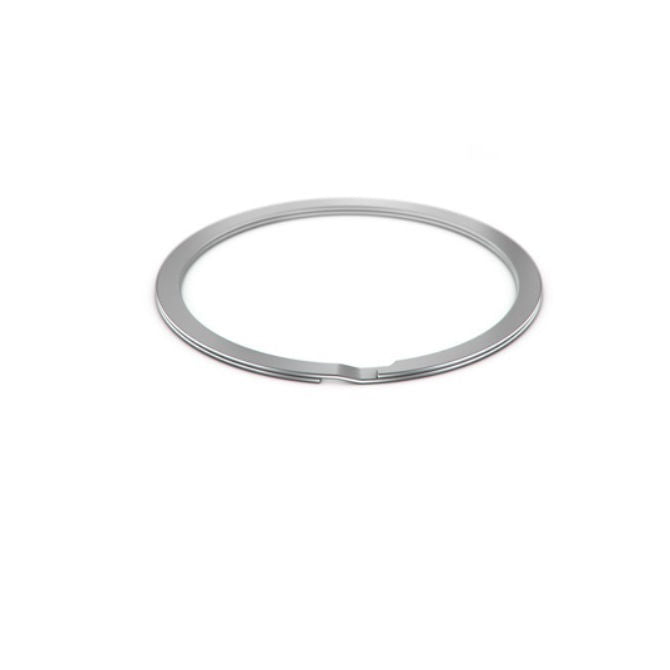

RS-106DiagramRS-106Image
