Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Retaining Rings -> External -> Spiral Rings -> Medium Duty -> Carbon Steel

There are 51 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel. Scroll down or follow the link to Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel in the products table to see all these items combined into a handy table with filters.

Category Details

A selection of Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel category on the Small Parts & Bearings online store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05

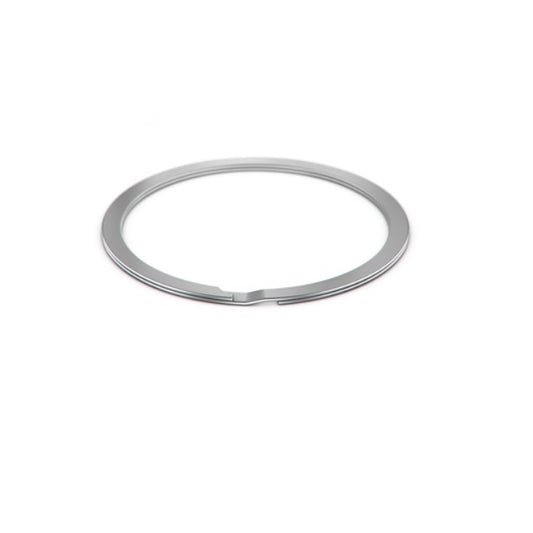

External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Part Number: RS-050 (5 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
24 units (120 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$10.59 AUD
$10.59 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

24 units (120 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
External Retaining Rings - 12.7x0.64x12.04 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Part Number: RS-050 (5 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring
24 units (120 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$10.59 AUD
$10.59 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

24 units (120 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds)
13.49
mm

(Equiv. 0.531 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.83
mm

(Equiv. 0.505 in.)
Approx. Loose Circlip ID (A)
12.68
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 14.96 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 22474
Part Number: RS-053 (19 Pcs)
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$13.14 AUD
$15.76 AUD $13.14 AUD
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
13.49
mm

(Equiv. 0.531 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.83
mm

(Equiv. 0.505 in.)
Approx. Loose Circlip ID (A)
12.68
mm
+ 0.00 / - 0.33
External Retaining Rings - 13.49x0.64x12.83 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip OD: 14.96 +/- 0.04   Groove Depth (d): 0.33
Additional stock available from USA subject to Prior Sale = 22474
Part Number: RS-053 (19 Pcs)
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$13.14 AUD
$15.76 AUD $13.14 AUD
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.40
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.06

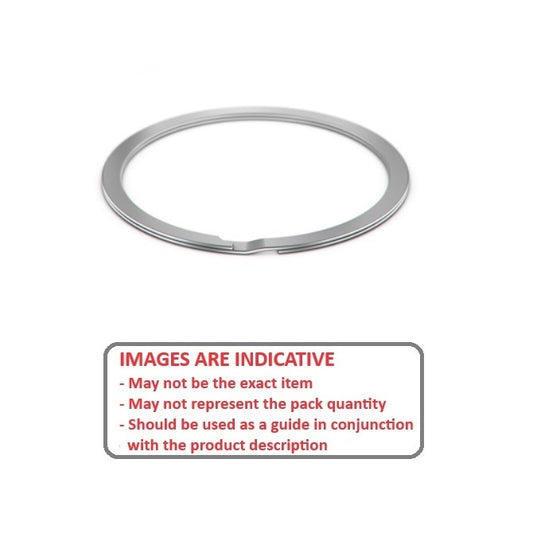

External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Deleted Item. Available while stocks last.
Part Number: RS-062 (2 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
90 units (180 pcs) Available Now | Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

90 units (180 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
External Retaining Rings - 15.88x0.64x15.1 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.40 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.06   Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Deleted Item. Available while stocks last.
Part Number: RS-062 (2 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
90 units (180 pcs) Available Now | Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity
$6.00 AUD
$11.40 AUD $6.00 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

90 units (180 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
17.27
mm

(Equiv. 0.68 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.67
mm

(Equiv. 0.656 in.)
Approx. Loose Circlip ID (A)
16.23
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.40
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.07
External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 19.03 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 125
Part Number: RS-068 (5 Pcs)
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$34.41 AUD
$34.41 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
17.27
mm

(Equiv. 0.68 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
16.67
mm

(Equiv. 0.656 in.)
Approx. Loose Circlip ID (A)
16.23
mm
+ 0.00 / - 0.33
External Retaining Rings - 17.27x0.64x16.67 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.40 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.07   Approx. Loose Clip OD: 19.03 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 125
Part Number: RS-068 (5 Pcs)
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$34.41 AUD
$34.41 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 13888
Part Number: RS-075 (10 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring
43 units (430 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$7.59 AUD
$7.59 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

43 units (430 pcs) Available Now. Backorder if more than 43.
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
External Retaining Rings - 19.05x0.79x18.27 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Additional stock available from USA subject to Prior Sale = 13888
Part Number: RS-075 (10 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring
43 units (430 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$7.59 AUD
$7.59 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

43 units (430 pcs) Available Now. Backorder if more than 43.
Shaft Diameter (Ds)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
19.84
mm

(Equiv. 0.781 in.)
Approx. Loose Circlip ID (A)
19.40
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 20.64x0.79x19.84 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 22.7 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-081 (5 Pcs)
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$28.14 AUD
$28.14 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
20.64
mm

(Equiv. 0.813 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
19.84
mm

(Equiv. 0.781 in.)
Approx. Loose Circlip ID (A)
19.40
mm
+ 0.00 / - 0.33
External Retaining Rings - 20.64x0.79x19.84 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 22.7 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-081 (5 Pcs)
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$28.14 AUD
$28.14 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
21.29
mm

(Equiv. 0.838 in.)
Approx. Loose Circlip ID (A)
20.90
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 22.23x0.79x21.29 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 24.2 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 75
Part Number: RS-087 (100 Pcs)
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Dec 07, 2025
$423.68 AUD
$508.42 AUD $423.68 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
22.23
mm

(Equiv. 0.875 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
21.29
mm

(Equiv. 0.838 in.)
Approx. Loose Circlip ID (A)
20.90
mm
+ 0.00 / - 0.33
External Retaining Rings - 22.23x0.79x21.29 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 24.2 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 75
Part Number: RS-087 (100 Pcs)
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Dec 07, 2025
$423.68 AUD
$508.42 AUD $423.68 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
23.01
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.08
mm

(Equiv. 0.869 in.)
Approx. Loose Circlip ID (A)
21.63
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 23.01x0.79x22.08 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 24.93 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 590
Part Number: RS-090 (7 Pcs)
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$10.41 AUD
$12.49 AUD $10.41 AUD
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
23.01
mm

(Equiv. 0.906 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
22.08
mm

(Equiv. 0.869 in.)
Approx. Loose Circlip ID (A)
21.63
mm
+ 0.00 / - 0.33
External Retaining Rings - 23.01x0.79x22.08 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 24.93 +/- 0.04   Groove Depth (d): 0.48
Additional stock available from USA subject to Prior Sale = 590
Part Number: RS-090 (7 Pcs)
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$10.41 AUD
$12.49 AUD $10.41 AUD
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
23.88
mm
+ 0.00 / - 0.33
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
External Retaining Rings - 25.4x0.94x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 16242
Part Number: RS-100 (50 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$124.77 AUD
$149.73 AUD $124.77 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
23.88
mm
+ 0.00 / - 0.33
External Retaining Rings - 25.4x0.94x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip OD: 27.7 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 16242
Part Number: RS-100 (50 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$124.77 AUD
$149.73 AUD $124.77 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
26.97
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
25.91
mm

(Equiv. 1.02 in.)
Approx. Loose Circlip ID (A)
25.35
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.17 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 1329
Part Number: RS-106 (5 Pcs)
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring
92 units (460 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$2.23 AUD
$2.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

92 units (460 pcs) Available Now. Backorder if more than 92.
Shaft Diameter (Ds)
26.97
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
25.91
mm

(Equiv. 1.02 in.)
Approx. Loose Circlip ID (A)
25.35
mm
+ 0.00 / - 0.38
External Retaining Rings - 26.97x0.94x25.91 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip OD: 29.17 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 1329
Part Number: RS-106 (5 Pcs)
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring
92 units (460 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$2.23 AUD
$2.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

92 units (460 pcs) Available Now. Backorder if more than 92.
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 7972
Part Number: RS-112 (5 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$14.05 AUD
$14.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
External Retaining Rings - 28.58x0.94x27.51 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 7972
Part Number: RS-112 (5 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$14.05 AUD
$14.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
29.36
mm

(Equiv. 1.156 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.30
mm

(Equiv. 1.114 in.)
Approx. Loose Circlip ID (A)
27.60
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.42 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 4303
Part Number: RS-115 (100 Pcs)
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$13.86 AUD
$16.64 AUD $13.86 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
29.36
mm

(Equiv. 1.156 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
28.30
mm

(Equiv. 1.114 in.)
Approx. Loose Circlip ID (A)
27.60
mm
+ 0.00 / - 0.38
External Retaining Rings - 29.36x0.94x28.3 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip OD: 31.42 +/- 0.03   Groove Depth (d): 0.53
Additional stock available from USA subject to Prior Sale = 4303
Part Number: RS-115 (100 Pcs)
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$13.86 AUD
$16.64 AUD $13.86 AUD
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 11522
Part Number: RS-125 (5 Pcs)
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
56 units (280 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.41 AUD
$6.41 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

56 units (280 pcs) Available Now. Backorder if more than 56.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
External Retaining Rings - 31.75x1.09x30.53 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 11522
Part Number: RS-125 (5 Pcs)
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring
56 units (280 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.41 AUD
$6.41 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

56 units (280 pcs) Available Now. Backorder if more than 56.
Shaft Diameter (Ds)
33.32
mm

(Equiv. 1.312 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.11
mm

(Equiv. 1.264 in.)
Approx. Loose Circlip ID (A)
31.32
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.11
External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 36.14 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 1797
Part Number: RS-131 (34 Pcs)
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$8.41 AUD
$10.09 AUD $8.41 AUD
34 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
33.32
mm

(Equiv. 1.312 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
32.11
mm

(Equiv. 1.264 in.)
Approx. Loose Circlip ID (A)
31.32
mm
+ 0.00 / - 0.38
External Retaining Rings - 33.32x1.09x32.11 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.11   Approx. Loose Clip OD: 36.14 +/- 0.05   Groove Depth (d): 0.61
Additional stock available from USA subject to Prior Sale = 1797
Part Number: RS-131 (34 Pcs)
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$8.41 AUD
$10.09 AUD $8.41 AUD
34 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
33.61
mm

(Equiv. 1.323 in.)
Approx. Loose Circlip ID (A)
32.83
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.11
External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 37.65 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 6722
Part Number: RS-137
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring
10 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Shaft Diameter (Ds)
34.93
mm

(Equiv. 1.375 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
33.61
mm

(Equiv. 1.323 in.)
Approx. Loose Circlip ID (A)
32.83
mm
+ 0.00 / - 0.38
External Retaining Rings - 34.93x1.09x33.61 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.11   Approx. Loose Clip OD: 37.65 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 6722
Part Number: RS-137
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring
10 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

10 Available Now. Backorder if more than 10.
Shaft Diameter (Ds)
36.50
mm

(Equiv. 1.437 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
35.18
mm

(Equiv. 1.385 in.)
Approx. Loose Circlip ID (A)
34.31
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 39.13 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 1774
Part Number: RS-143 (5 Pcs)
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$8.23 AUD
$9.87 AUD $8.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
36.50
mm

(Equiv. 1.437 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
35.18
mm

(Equiv. 1.385 in.)
Approx. Loose Circlip ID (A)
34.31
mm
+ 0.00 / - 0.38
External Retaining Rings - 36.5x1.09x35.18 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip OD: 39.13 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 1774
Part Number: RS-143 (5 Pcs)
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$8.23 AUD
$9.87 AUD $8.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
38.10
mm

(Equiv. 1.5 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.78
mm

(Equiv. 1.448 in.)
Approx. Loose Circlip ID (A)
35.81
mm
+ 0.00 / - 0.38
Radial Wall (S) Approx.
2.41
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
External Retaining Rings - 38.1x1.09x36.78 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 40.63 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 8949
Part Number: RS-150 (5 Pcs)
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
24 units (120 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.23 AUD
$6.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

24 units (120 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds)
38.10
mm

(Equiv. 1.5 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
36.78
mm

(Equiv. 1.448 in.)
Approx. Loose Circlip ID (A)
35.81
mm
+ 0.00 / - 0.38
External Retaining Rings - 38.1x1.09x36.78 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.41 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip OD: 40.63 +/- 0.05   Groove Depth (d): 0.66
Additional stock available from USA subject to Prior Sale = 8949
Part Number: RS-150 (5 Pcs)
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
24 units (120 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.23 AUD
$6.23 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

24 units (120 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
2.74
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 16924
Part Number: RS-162
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$6.86 AUD
$8.24 AUD $6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
External Retaining Rings - 41.28x1.25x39.78 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.74 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 16924
Part Number: RS-162
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$6.86 AUD
$8.24 AUD $6.86 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 4091
Part Number: RS-168 (36 Pcs)
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$15.50 AUD
$15.50 AUD
36 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
External Retaining Rings - 42.85x1.25x41.35 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 4091
Part Number: RS-168 (36 Pcs)
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$15.50 AUD
$15.50 AUD
36 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.95
mm

(Equiv. 1.691 in.)
Approx. Loose Circlip ID (A)
41.78
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 47.78 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 263
Part Number: RS-175
External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring
16 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

16 Available Now. Backorder if more than 16.
Shaft Diameter (Ds)
44.45
mm

(Equiv. 1.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
42.95
mm

(Equiv. 1.691 in.)
Approx. Loose Circlip ID (A)
41.78
mm
+ 0.00 / - 0.51
External Retaining Rings - 44.45x1.25x42.95 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 47.78 +/- 0.05   Groove Depth (d): 0.76
Additional stock available from USA subject to Prior Sale = 263
Part Number: RS-175
External Retaining Rings - 44.45x1.25x42.95 mm Spiral Rings - Carbon Spring Steel Spiral Ring
16 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$6.59 AUD
$6.59 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

16 Available Now. Backorder if more than 16.
Shaft Diameter (Ds)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
45.93
mm

(Equiv. 1.808 in.)
Approx. Loose Circlip ID (A)
44.77
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 51.27 +/- 0.05   Groove Depth (d): 0.86
Part Number: RS-187 (5 Pcs)
External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$19.05 AUD
$19.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
47.63
mm

(Equiv. 1.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
45.93
mm

(Equiv. 1.808 in.)
Approx. Loose Circlip ID (A)
44.77
mm
+ 0.00 / - 0.51
External Retaining Rings - 47.63x1.25x45.93 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 51.27 +/- 0.05   Groove Depth (d): 0.86
Part Number: RS-187 (5 Pcs)
External Retaining Rings - 47.63x1.25x45.93 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$19.05 AUD
$19.05 AUD
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
49.00
mm

(Equiv. 1.929 in.)
Approx. Loose Circlip ID (A)
47.75
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 50.8x1.25x49 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 54.25 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 3550
Part Number: RS-200 (2 Pcs)
External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring
86 units (172 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$8.59 AUD
$8.59 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

86 units (172 pcs) Available Now. Backorder if more than 86.
Shaft Diameter (Ds)
50.80
mm

(Equiv. 2 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
49.00
mm

(Equiv. 1.929 in.)
Approx. Loose Circlip ID (A)
47.75
mm
+ 0.00 / - 0.51
External Retaining Rings - 50.8x1.25x49 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 54.25 +/- 0.05   Groove Depth (d): 0.89
Additional stock available from USA subject to Prior Sale = 3550
Part Number: RS-200 (2 Pcs)
External Retaining Rings - 50.8x1.25x49 mm Spiral Rings - Carbon Spring Steel Spiral Ring
86 units (172 pcs) Available Now | Further orders can be expected around Thu, Nov 13, 2025
$8.59 AUD
$8.59 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

86 units (172 pcs) Available Now. Backorder if more than 86.
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206 (2 Pcs)
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$11.68 AUD
$14.02 AUD $11.68 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
External Retaining Rings - 52.37x1.25x50.6 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206 (2 Pcs)
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Carbon Spring Steel Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 13, 2025
$11.68 AUD
$14.02 AUD $11.68 AUD
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.10
mm

(Equiv. 2.051 in.)
Approx. Loose Circlip ID (A)
50.74
mm
+ 0.00 / - 0.51
Radial Wall (S) Approx.
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 57.24 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1176
Part Number: RS-212
External Retaining Rings - 53.98x1.25x52.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
19 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$5.14 AUD
$5.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

19 Available Now. Backorder if more than 19.
Shaft Diameter (Ds)
53.98
mm

(Equiv. 2.125 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
52.10
mm

(Equiv. 2.051 in.)
Approx. Loose Circlip ID (A)
50.74
mm
+ 0.00 / - 0.51
External Retaining Rings - 53.98x1.25x52.1 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 57.24 +/- 0.05   Groove Depth (d): 0.94
Additional stock available from USA subject to Prior Sale = 1176
Part Number: RS-212
External Retaining Rings - 53.98x1.25x52.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring
19 Available Now | Further orders can be expected around Thu, Nov 13, 2025
$5.14 AUD
$5.14 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

19 Available Now. Backorder if more than 19.
