W0120-D-023-013-C (50 Pcs)

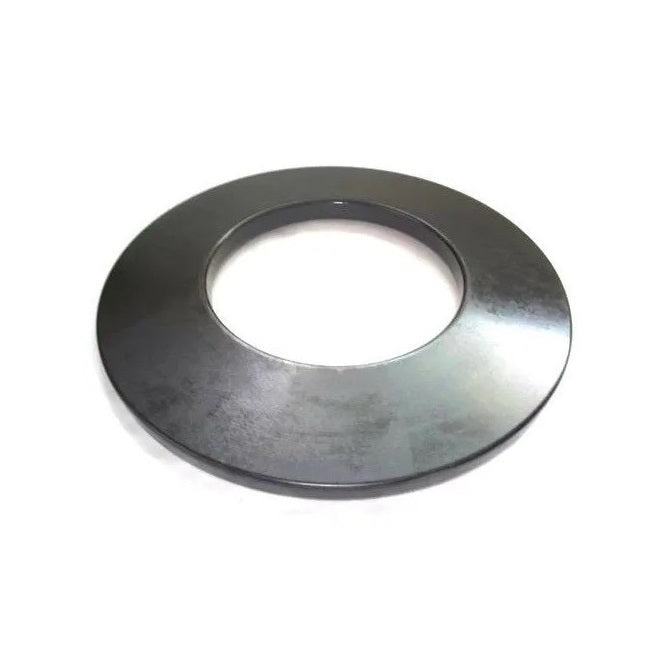

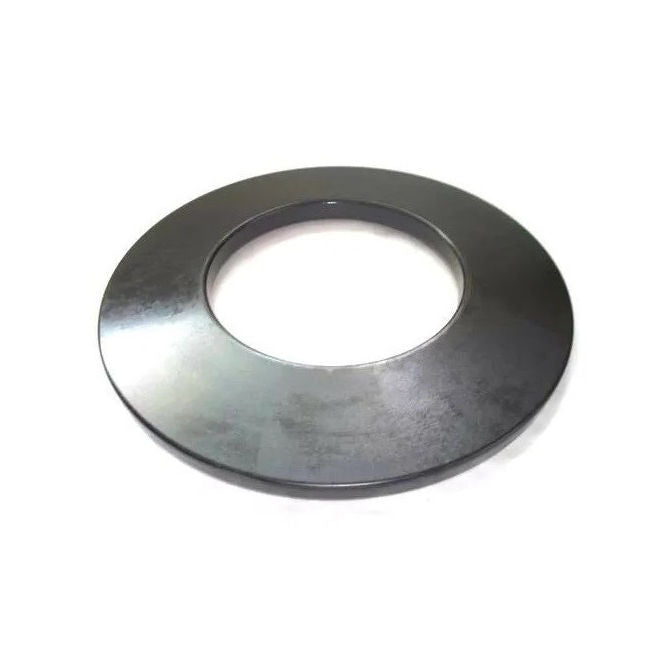

Disc Spring Washers - 23x12x1.25 mm Standard - Carbon Steel Washer

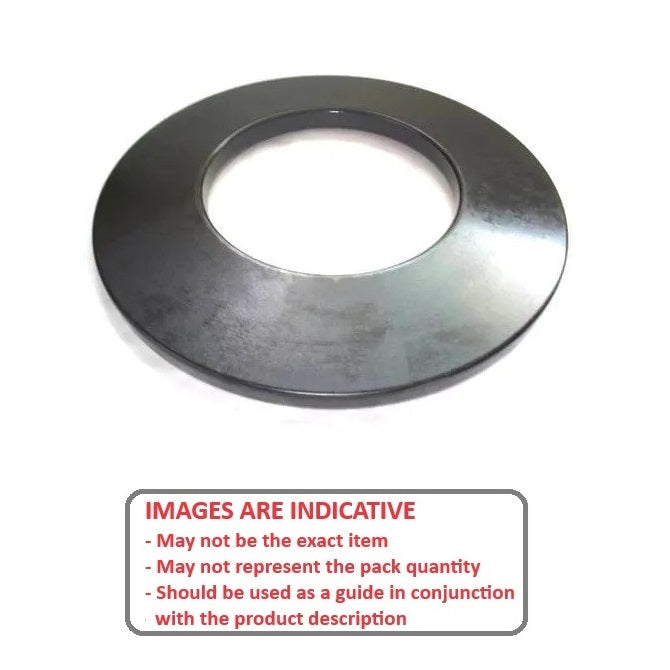

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Disc Spring Washers - 23x12x1.25 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Disc Spring Washers PDF
Screws
Price:
$55.86 AUD
$67.04 AUD $55.86 AUD
Excludes GST and overseas Taxes & Duties
 per 50
Backorder
Order 50 or more pack (2500 pcs) for $50.27 AUD per 50
Backorder now! Backorders for more than the stock quantity are expected before Nov 27, 2025

Base Category: Washers - Disc Spring

Top Level Category: Washers - Disc Spring - Standard - Carbon Steel

Product Details

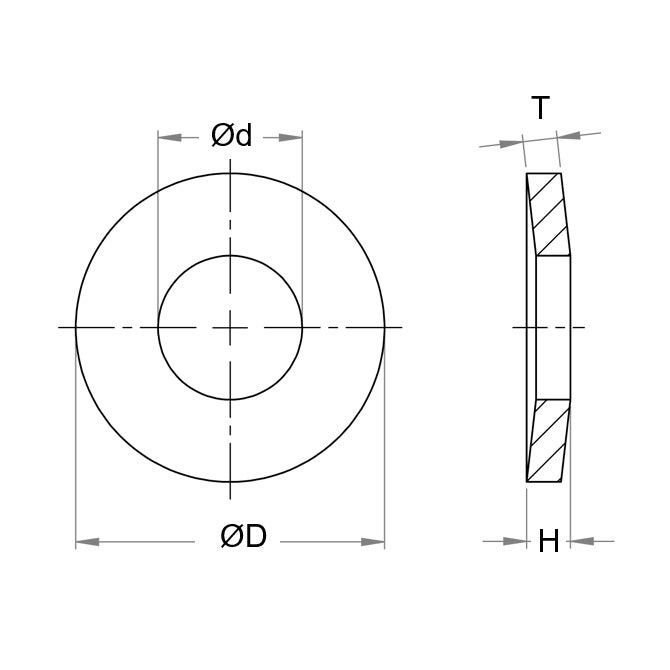

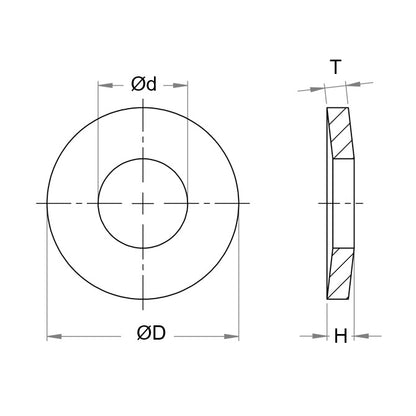

Nominal Outside Diameter (A): 23.00mm
(23.00mm is 0.906 in.)

Carbon Steel
  • Nominal Outside Diameter (A): 23.00mm
    (23.00mm is 0.906 in.)
  • Nominal Inside Diameter (B): 12.00mm
    + 0.20 / - 0.00
    (12.00mm is 0.472 in.)
  • Stock Thickness (C): 1.25mm
    (1.25mm is 0.049 in.)
  • Loaded Height (L1): 1.40mm
  • Load at L1: 233.0kg
  • Free Height (E): 1.85mm
  • Actual ID (Ref): 12.2mm
  • Inside Height (D): 0.60mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • WASCA DS231212
  • S4281

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
