W0820-D-160-060-C (Each)

Disc Spring Washers - 160x80x6 mm Standard - Carbon Steel Washer

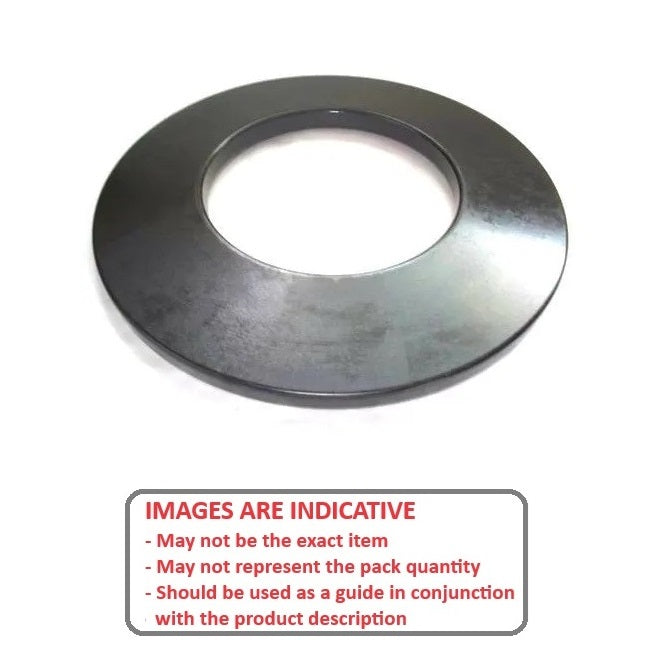

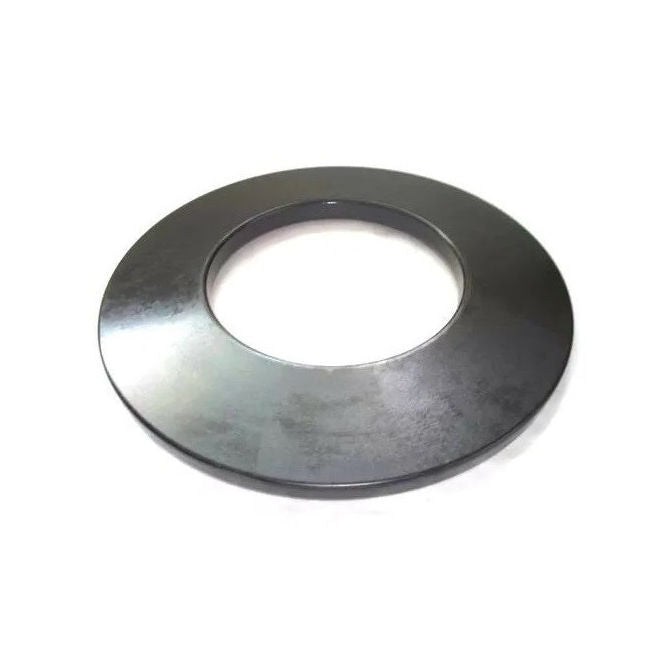

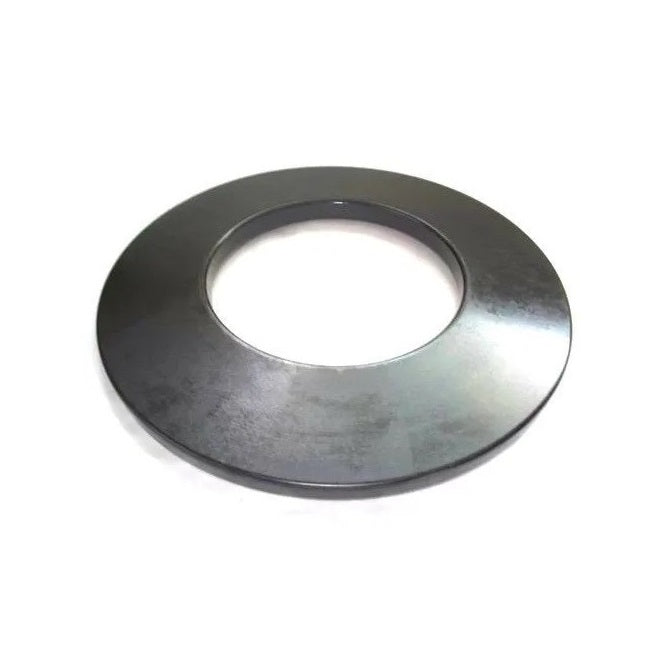

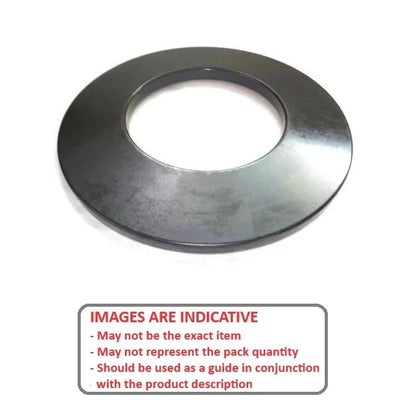

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Disc Spring Washers - 160x80x6 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Disc Spring Washers PDF
Screws
Price:
$93.14 AUD
$111.76 AUD $93.14 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $83.83 AUD Each
Backorder now! Backorders are expected before Jul 20, 2026

Base Category: Washers - Disc Spring

Top Level Category: Washers - Disc Spring - Standard - Carbon Steel

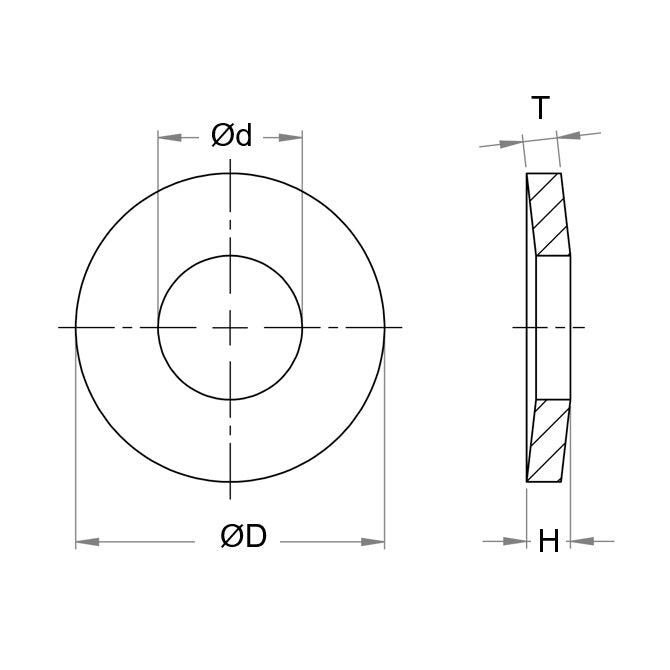

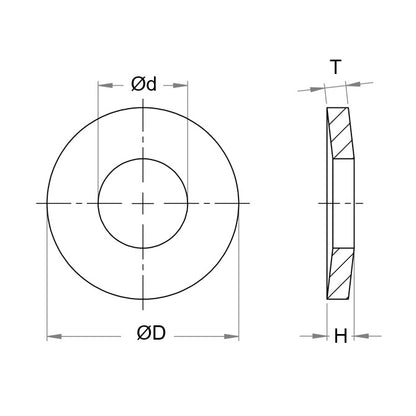

Product Details

Nominal Outside Diameter (A): 160.00mm
(160.00mm is 6.299 in.)

Carbon Steel
  • Nominal Outside Diameter (A): 160.00mm
    (160.00mm is 6.299 in.)
  • Nominal Inside Diameter (B): 80.00mm
    + 2.00 / - 0.00
    (80.00mm is 3.15 in.)
  • Stock Thickness (C): 6.00mm
    (6.00mm is 0.236 in.)
  • Loaded Height (L1): 7.13mm
  • Load at L1: 4099.0kg
  • Free Height (E): 10.50mm
  • Actual ID (Ref): 82.0mm
  • Inside Height (D): 4.50mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • WASCA DS1608260
  • S4412

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
