W0710-D-150-080-C (Each)

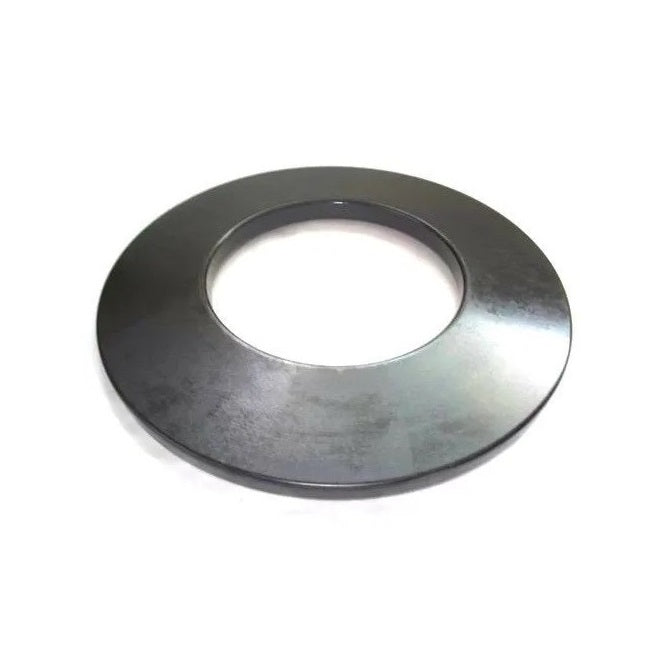

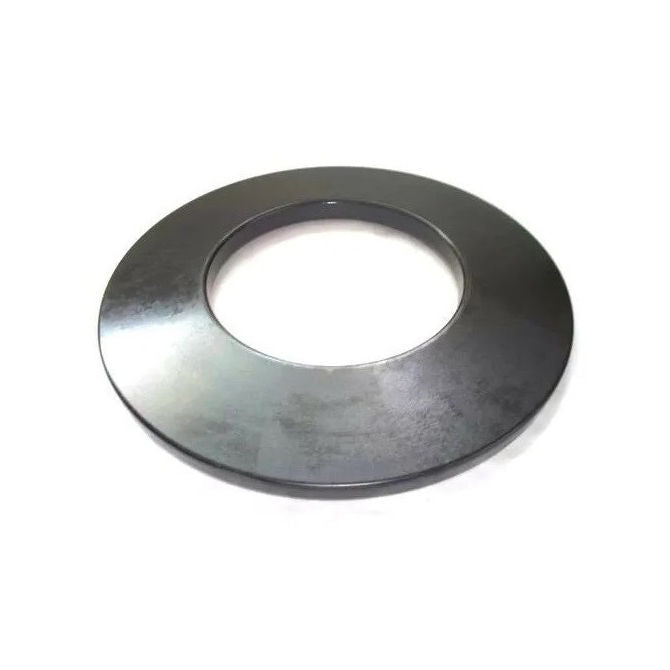

Disc Spring Washers - 150x70x8 mm Standard - Carbon Steel Washer

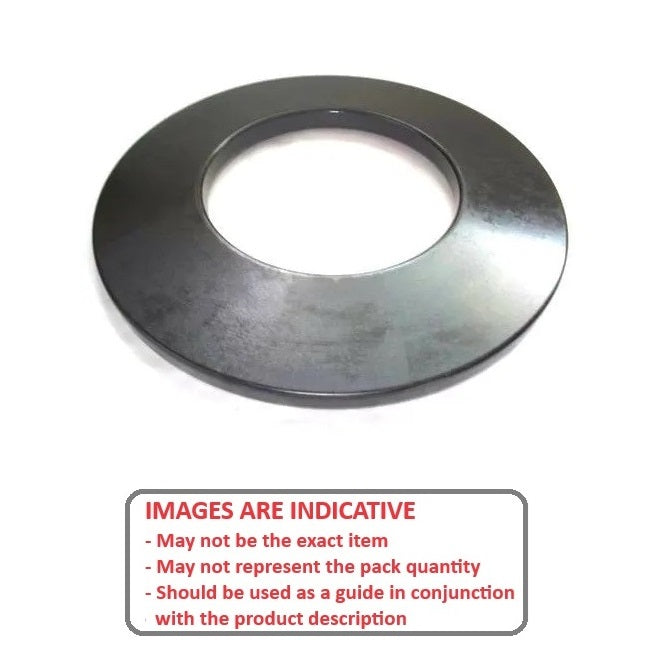

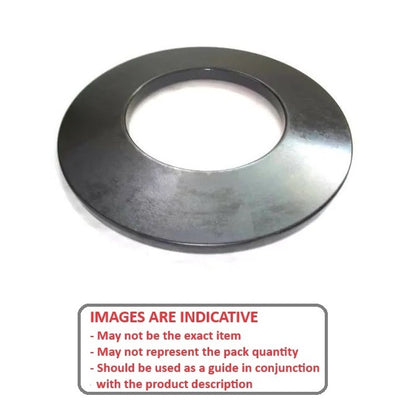

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Disc Spring Washers - 150x70x8 mm - Carbon Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Disc Spring Washers PDF
Screws
Price:
$117.23 AUD
$140.67 AUD $117.23 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder

Order 50 or more
for $105.51 AUD Each
Backorder now! Backorders are expected before Jul 20, 2026

Base Category: Washers - Disc Spring

Top Level Category: Washers - Disc Spring - Standard - Carbon Steel

Product Details

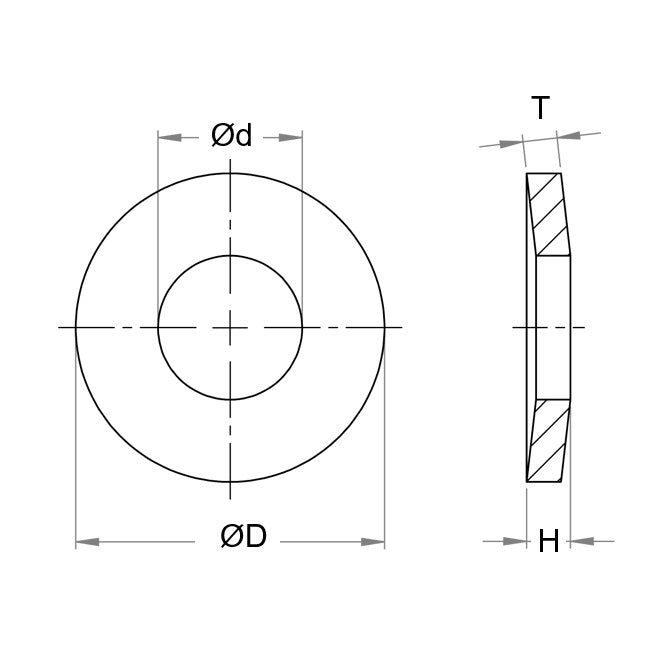

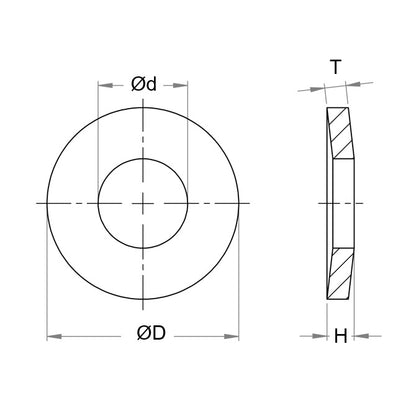

Nominal Outside Diameter (A): 150.00mm
(150.00mm is 5.906 in.)

Carbon Steel
  • Nominal Outside Diameter (A): 150.00mm
    (150.00mm is 5.906 in.)
  • Nominal Inside Diameter (B): 70.00mm
    + 1.00 / - 0.00
    (70.00mm is 2.756 in.)
  • Stock Thickness (C): 8.00mm
    (8.00mm is 0.315 in.)
  • Loaded Height (L1): 9.00mm
  • Load at L1: 8980.0kg
  • Free Height (E): 12.00mm
  • Actual ID (Ref): 71.0mm
  • Inside Height (D): 4.00mm

Brand: MBA
Country of Origin: AU

Product Compliance and Data

Similar to

  • WASCA DS1507180
  • S4408

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
