REF-159-L-CT (Each)
Female Rod Ends - 15.875x82.55 mm - 5/8-18 UNF Left - Steel with PTFE Lined Raceway Rod End
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, WholesaleOrder 50 or more
for $61.97 AUD Each
5/8x3-1/4 inch Rod End - 15.875x82.55 mm - 5/8-18 UNF Left Female Rod Ends - Steel with PTFE Lined Raceway - Sold per Each:
Base Category: Rod Ends - Female
Top Level Category: Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit

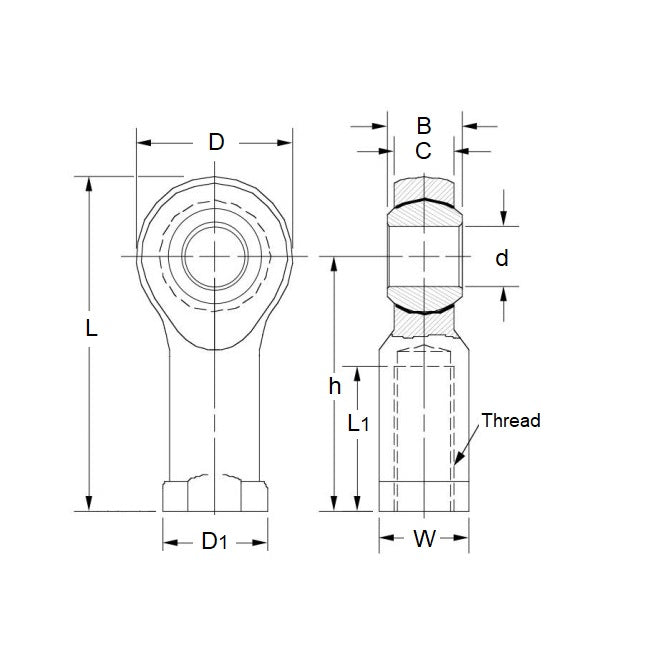

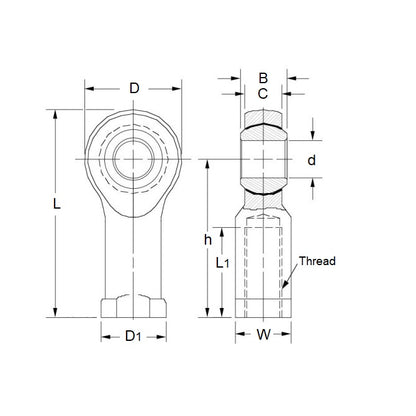

Product Details
Eye Size (d1): 15.875mm(15.875mm is 0.625 in.)
Steel with PTFE Lined Raceway
- Eye Size (d1): 15.875mm
(15.875mm is 0.625 in.)
- Overall Length (L): 82.55mm
(82.55mm is 3.25 in.)
- Thread Size: 5/8-18 UNF Left
- Thread Length (l2): 38.10mm
- Head Width (W): 14.27mm
- Eye Width (W1): 19.05mm
- Head Diameter (D): 38.10mm
- Centre Height (l1): 63.50mm
- Body Width/Flange Width(W2/D3): 22.23 / 25.40mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 2458K37-LEFT
- KWK TFB10L
- 2458K37LEFT
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
REF159LCT, REF159
