Collection: Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit

Rod Ends -> Female -> Steel -> Plain -> PTFE Lined -> Tight Fit

There are 20 products in the sub-categories of Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit. Scroll down or follow the link to Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit in the products table to see all these items combined into a handy table with filters.

Category Details

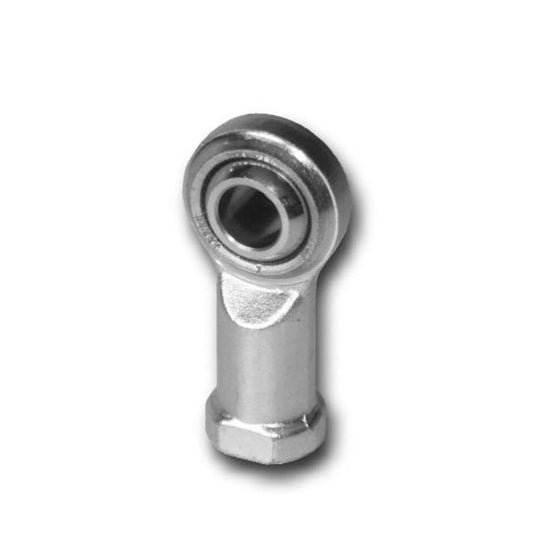

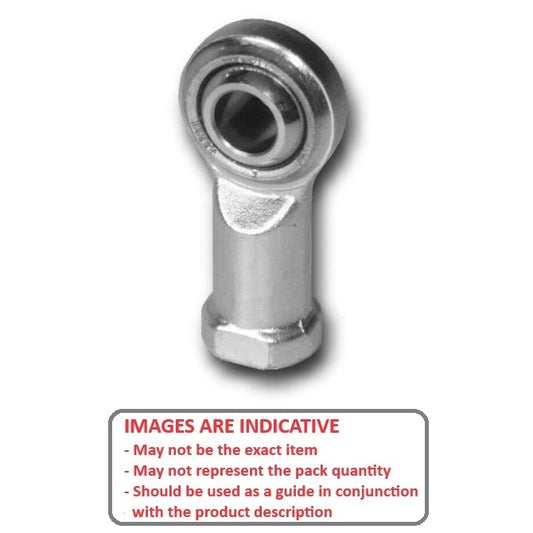

A selection of Tight Fit PTFE Lined Plain Steel Female Rod Ends. Imperial and Metric. Tight fit (Minimal ball clearance) / Carbon Steel. Also known as Heim Joints

An expanded range may be available on special order. Please enquire.
Dimensions not shown are available on request.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Rod Ends - Female - Steel - Plain - PTFE Lined - Tight Fit category on the Small Parts & Bearings online store.

Eye Size (d1)	Overall Length (L)	Thread Size	Thread Length (l2)	Head Width (W)	Eye Width (W1)
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 34.93 mm (Equiv. 1.375 in.)	Thread Size 10-32 UNF Left	Thread Length (l2) 14.27 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 15.88 mm Centre Height (l1): 26.97 mm Body Width/Flange Width(W2/D3): 7.92 / 10.31 mm
Part Number: REF-048-L-CT Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1)	Overall Length (L)	Thread Size	Thread Length (l2)	Indicative Image
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 34.93 mm (Equiv. 1.375 in.)	Thread Size 10-32 UNF Left	Thread Length (l2) 14.27 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter (D): 15.88 mm Centre Height (l1): 26.97 mm Body Width/Flange Width(W2/D3): 7.92 / 10.31 mm
Part Number: REF-048-L-CT Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-048-L-CT --- Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End REF-048-L-CT --- Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $39.05 AUD Regular price Sale price $39.05 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 34.93 mm (Equiv. 1.375 in.)	Thread Size 10-32 UNF Right	Thread Length (l2) 14.27 mm	Head Width (W) 6.35 mm	Eye Width (W1) 7.92 mm
Material: Steel PTFE Lined Head Diameter (D): 15.88 mm Centre Height (l1): 26.97 mm Body Width/Flange Width(W2/D3): 7.92 / 10.31 mm
Part Number: REF-048-R-CT Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 4.826 mm (Equiv. 0.19 in.)	Overall Length (L) 34.93 mm (Equiv. 1.375 in.)	Thread Size 10-32 UNF Right	Thread Length (l2) 14.27 mm
Material: Steel PTFE Lined Head Width (W): 6.35 mm Eye Width (W1): 7.92 mm Head Diameter (D): 15.88 mm Centre Height (l1): 26.97 mm Body Width/Flange Width(W2/D3): 7.92 / 10.31 mm
Part Number: REF-048-R-CT Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-048-R-CT --- Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Sale REF-048-R-CT --- Female Rod Ends - 4.826x34.93 mm - 10-32 UNF Right - Steel PTFE Lined Rod End Regular price $28.68 AUD Regular price ~~$34.42 AUD~~ Sale price $28.68 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 35.00 mm (Equiv. 1.378 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 14.00 mm	Head Width (W) 7.00 mm	Eye Width (W1) 8.00 mm
Material: Steel PTFE Lined Head Diameter (D): 16.00 mm Centre Height (l1): 27.00 mm Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-CT Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5 mm (Equiv. 0.197 in.)	Overall Length (L) 35.00 mm (Equiv. 1.378 in.)	Thread Size M5x0.8 Right	Thread Length (l2) 14.00 mm
Material: Steel PTFE Lined Head Width (W): 7.00 mm Eye Width (W1): 8.00 mm Head Diameter (D): 16.00 mm Centre Height (l1): 27.00 mm Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-R-CT Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-050-R-CT --- Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End REF-050-R-CT --- Female Rod Ends - 5x35 mm - M5x0.8 Right - Steel PTFE Lined Rod End Regular price $5.50 AUD Regular price Sale price $5.50 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 5.000 mm (Equiv. 0.197 in.)	Overall Length (L) 35.00 mm (Equiv. 1.378 in.)	Thread Size M5x0.8 Left	Thread Length (l2) 14.00 mm	Head Width (W) 7.00 mm	Eye Width (W1) 8.00 mm
Head Diameter (D): 16.00 mm Centre Height (l1): 27.00 mm Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-L-CT Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 5.000 mm (Equiv. 0.197 in.)	Overall Length (L) 35.00 mm (Equiv. 1.378 in.)	Thread Size M5x0.8 Left	Thread Length (l2) 14.00 mm
Head Width (W): 7.00 mm Eye Width (W1): 8.00 mm Head Diameter (D): 16.00 mm Centre Height (l1): 27.00 mm Body Width/Flange Width(W2/D3): 9.00 / 12.00 mm
Part Number: REF-050-L-CT Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-050-L-CT --- Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Sale REF-050-L-CT --- Female Rod Ends - 5x35 mm - M5x0.8 Left Steel Regular price $8.68 AUD Regular price ~~$10.42 AUD~~ Sale price $8.68 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 39.00 mm (Equiv. 1.535 in.)	Thread Size M6x1 Right	Thread Length (l2) 14.00 mm	Head Width (W) 7.00 mm	Eye Width (W1) 9.00 mm
Material: Steel PTFE Lined Head Diameter (D): 18.00 mm Centre Height (l1): 30.00 mm Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-CT-B (10 Pcs) Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 29, 2025 Regular price $206.59 AUD Regular price Sale price $206.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6 mm (Equiv. 0.236 in.)	Overall Length (L) 39.00 mm (Equiv. 1.535 in.)	Thread Size M6x1 Right	Thread Length (l2) 14.00 mm
Material: Steel PTFE Lined Head Width (W): 7.00 mm Eye Width (W1): 9.00 mm Head Diameter (D): 18.00 mm Centre Height (l1): 30.00 mm Body Width/Flange Width(W2/D3): 11.00 / 13.00 mm
Part Number: REF-060-R-CT-B (10 Pcs) Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Mon, Sep 29, 2025 Regular price $206.59 AUD Regular price Sale price $206.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
REF-060-R-CT-B (10 Pcs) --- Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End REF-060-R-CT-B (10 Pcs) --- Female Rod Ends - 6x39 mm - M6x1 Right - Steel PTFE Lined Rod End Regular price $206.59 AUD Regular price Sale price $206.59 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)		Thread Size 1/4-28 UNF Right	Thread Length (l2) 17.45 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel with PTFE lined Raceway Head Diameter (D): 19.05 mm Centre Height (l1): 33.33 mm Body Width/Flange Width(W2/D3): 9.53 / 11.91 mm
Part Number: REF-064-R-CT-B Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)		Thread Size 1/4-28 UNF Right	Thread Length (l2) 17.45 mm
Material: Steel with PTFE lined Raceway Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter (D): 19.05 mm Centre Height (l1): 33.33 mm Body Width/Flange Width(W2/D3): 9.53 / 11.91 mm
Part Number: REF-064-R-CT-B Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-064-R-CT-B --- Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Sale REF-064-R-CT-B --- Female Rod Ends - 6.35 - mm - 1/4-28 UNF Right - Steel with PTFE lined Raceway Rod End Regular price $29.23 AUD Regular price ~~$35.07 AUD~~ Sale price $29.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Left	Thread Length (l2) 19.05 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 19.05 mm Centre Height (l1): 33.32 mm Body Width/Flange Width(W2/D3): 9.53 / 11.89 mm
Part Number: REF-064-L-CT Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Left	Thread Length (l2) 19.05 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter (D): 19.05 mm Centre Height (l1): 33.32 mm Body Width/Flange Width(W2/D3): 9.53 / 11.89 mm
Part Number: REF-064-L-CT Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-064-L-CT --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-064-L-CT --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Right	Thread Length (l2) 19.05 mm	Head Width (W) 7.14 mm	Eye Width (W1) 9.53 mm
Material: Steel PTFE Lined Head Diameter (D): 19.05 mm Centre Height (l1): 33.32 mm Body Width/Flange Width(W2/D3): 9.53 / 11.89 mm
Part Number: REF-064-R-CT-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 6.35 mm (Equiv. 0.25 in.)	Overall Length (L) 42.85 mm (Equiv. 1.687 in.)	Thread Size 1/4-28 UNF Right	Thread Length (l2) 19.05 mm
Material: Steel PTFE Lined Head Width (W): 7.14 mm Eye Width (W1): 9.53 mm Head Diameter (D): 19.05 mm Centre Height (l1): 33.32 mm Body Width/Flange Width(W2/D3): 9.53 / 11.89 mm
Part Number: REF-064-R-CT-A Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-064-R-CT-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Sale REF-064-R-CT-A --- Female Rod Ends - 6.35x42.85 mm - 1/4-28 UNF Right - Steel PTFE Lined Rod End Regular price $28.23 AUD Regular price ~~$33.87 AUD~~ Sale price $28.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)		Thread Size 5/16-24 UNF Right	Thread Length (l2) 17.45 mm	Head Width (W) 8.73 mm	Eye Width (W1) 11.11 mm
Material: Steel with PTFE lined Raceway Head Diameter (D): 22.23 mm Centre Height (l1): 34.93 mm Body Width/Flange Width(W2/D3): 11.11 / 12.70 mm
Part Number: REF-079-R-CT-A Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)		Thread Size 5/16-24 UNF Right	Thread Length (l2) 17.45 mm
Material: Steel with PTFE lined Raceway Head Width (W): 8.73 mm Eye Width (W1): 11.11 mm Head Diameter (D): 22.23 mm Centre Height (l1): 34.93 mm Body Width/Flange Width(W2/D3): 11.11 / 12.70 mm
Part Number: REF-079-R-CT-A Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-079-R-CT-A --- Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway Rod End Sale REF-079-R-CT-A --- Female Rod Ends - 7.938 - mm - 5/16-24 UNF Right - Steel with PTFE lined Raceway Rod End Regular price $28.59 AUD Regular price ~~$34.31 AUD~~ Sale price $28.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.02 mm (Equiv. 1.812 in.)	Thread Size 5/16-24 UNF Left	Thread Length (l2) 19.05 mm	Head Width (W) 8.74 mm	Eye Width (W1) 11.10 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 22.23 mm Centre Height (l1): 34.93 mm Body Width/Flange Width(W2/D3): 11.10 / 12.70 mm
Part Number: REF-079-L-CT Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $29.59 AUD Regular price ~~$35.51 AUD~~ Sale price $29.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 7.938 mm (Equiv. 0.313 in.)	Overall Length (L) 46.02 mm (Equiv. 1.812 in.)	Thread Size 5/16-24 UNF Left	Thread Length (l2) 19.05 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 8.74 mm Eye Width (W1): 11.10 mm Head Diameter (D): 22.23 mm Centre Height (l1): 34.93 mm Body Width/Flange Width(W2/D3): 11.10 / 12.70 mm
Part Number: REF-079-L-CT Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $29.59 AUD Regular price ~~$35.51 AUD~~ Sale price $29.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-079-L-CT --- Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-079-L-CT --- Female Rod Ends - 7.938x46.02 mm - 5/16-24 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $29.59 AUD Regular price ~~$35.51 AUD~~ Sale price $29.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Left	Thread Length (l2) 23.80 mm	Head Width (W) 10.31 mm	Eye Width (W1) 12.70 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 25.40 mm Centre Height (l1): 41.28 mm Body Width/Flange Width(W2/D3): 14.27 / 17.45 mm
Part Number: REF-095-L-CT Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 9.525 mm (Equiv. 0.375 in.)	Overall Length (L) 53.98 mm (Equiv. 2.125 in.)	Thread Size 3/8-24 UNF Left	Thread Length (l2) 23.80 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 10.31 mm Eye Width (W1): 12.70 mm Head Diameter (D): 25.40 mm Centre Height (l1): 41.28 mm Body Width/Flange Width(W2/D3): 14.27 / 17.45 mm
Part Number: REF-095-L-CT Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-095-L-CT --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-095-L-CT --- Female Rod Ends - 9.525x53.98 mm - 3/8-24 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $31.23 AUD Regular price ~~$37.47 AUD~~ Sale price $31.23 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 60.33 mm (Equiv. 2.375 in.)	Thread Size 7/16-20 UNF Left	Thread Length (l2) 26.97 mm	Head Width (W) 11.10 mm	Eye Width (W1) 14.27 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 28.58 mm Centre Height (l1): 46.02 mm Body Width/Flange Width(W2/D3): 15.88 / 19.05 mm
Part Number: REF-111-L-CT Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 60.33 mm (Equiv. 2.375 in.)	Thread Size 7/16-20 UNF Left	Thread Length (l2) 26.97 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 11.10 mm Eye Width (W1): 14.27 mm Head Diameter (D): 28.58 mm Centre Height (l1): 46.02 mm Body Width/Flange Width(W2/D3): 15.88 / 19.05 mm
Part Number: REF-111-L-CT Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-111-L-CT --- Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-111-L-CT --- Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 60.33 mm (Equiv. 2.375 in.)	Thread Size 7/16-20 UNF Right	Thread Length (l2) 26.97 mm	Head Width (W) 11.10 mm	Eye Width (W1) 14.27 mm
Material: Steel PTFE Lined Head Diameter (D): 28.58 mm Centre Height (l1): 46.02 mm Body Width/Flange Width(W2/D3): 15.88 / 19.05 mm
Part Number: REF-111-R-CT Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 11.113 mm (Equiv. 0.438 in.)	Overall Length (L) 60.33 mm (Equiv. 2.375 in.)	Thread Size 7/16-20 UNF Right	Thread Length (l2) 26.97 mm
Material: Steel PTFE Lined Head Width (W): 11.10 mm Eye Width (W1): 14.27 mm Head Diameter (D): 28.58 mm Centre Height (l1): 46.02 mm Body Width/Flange Width(W2/D3): 15.88 / 19.05 mm
Part Number: REF-111-R-CT Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-111-R-CT --- Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Right - Steel PTFE Lined Rod End Sale REF-111-R-CT --- Female Rod Ends - 11.113x60.33 mm - 7/16-20 UNF Right - Steel PTFE Lined Rod End Regular price $40.14 AUD Regular price ~~$48.16 AUD~~ Sale price $40.14 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 12.7 mm (Equiv. 0.5 in.)	Overall Length (L) 70.64 mm (Equiv. 2.781 in.)	Thread Size 1/2-20 UNF Left	Thread Length (l2) 30.15 mm	Head Width (W) 12.70 mm	Eye Width (W1) 15.88 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 33.32 mm Centre Height (l1): 53.98 mm Body Width/Flange Width(W2/D3): 19.05 / 22.23 mm
Part Number: REF-127-L-CT Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $56.86 AUD Regular price ~~$68.24 AUD~~ Sale price $56.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 12.7 mm (Equiv. 0.5 in.)	Overall Length (L) 70.64 mm (Equiv. 2.781 in.)	Thread Size 1/2-20 UNF Left	Thread Length (l2) 30.15 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 12.70 mm Eye Width (W1): 15.88 mm Head Diameter (D): 33.32 mm Centre Height (l1): 53.98 mm Body Width/Flange Width(W2/D3): 19.05 / 22.23 mm
Part Number: REF-127-L-CT Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $56.86 AUD Regular price ~~$68.24 AUD~~ Sale price $56.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-127-L-CT --- Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-127-L-CT --- Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $56.86 AUD Regular price ~~$68.24 AUD~~ Sale price $56.86 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 12.7 mm (Equiv. 0.5 in.)	Overall Length (L) 70.64 mm (Equiv. 2.781 in.)	Thread Size 1/2-20 UNF Right	Thread Length (l2) 30.15 mm	Head Width (W) 12.70 mm	Eye Width (W1) 15.88 mm
Material: Steel with PTFE lined Raceway Head Diameter (D): 33.32 mm Centre Height (l1): 53.98 mm Body Width/Flange Width(W2/D3): 19.05 / 22.23 mm
Part Number: REF-127-R-CT (50 Pcs) Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4,654.05 AUD Regular price Sale price $4,654.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Eye Size (d1) 12.7 mm (Equiv. 0.5 in.)	Overall Length (L) 70.64 mm (Equiv. 2.781 in.)	Thread Size 1/2-20 UNF Right	Thread Length (l2) 30.15 mm
Material: Steel with PTFE lined Raceway Head Width (W): 12.70 mm Eye Width (W1): 15.88 mm Head Diameter (D): 33.32 mm Centre Height (l1): 53.98 mm Body Width/Flange Width(W2/D3): 19.05 / 22.23 mm
Part Number: REF-127-R-CT (50 Pcs) Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Right - Steel with PTFE lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Thu, Sep 18, 2025 Regular price $4,654.05 AUD Regular price Sale price $4,654.05 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
REF-127-R-CT (50 Pcs) --- Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Right - Steel with PTFE lined Raceway Rod End REF-127-R-CT (50 Pcs) --- Female Rod Ends - 12.7x70.64 mm - 1/2-20 UNF Right - Steel with PTFE lined Raceway Rod End Regular price $4,654.05 AUD Regular price Sale price $4,654.05 AUD Unit price per Out of stock! Backorder Now
Eye Size (d1) 14.000 mm (Equiv. 0.551 in.)	Overall Length (L) 74.00 mm (Equiv. 2.913 in.)	Thread Size M14x2 Left	Thread Length (l2) 27.00 mm	Head Width (W) 14.00 mm	Eye Width (W1) 19.00 mm
Head Diameter (D): 34.00 mm Centre Height (l1): 57.00 mm Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-L-CT Female Rod Ends - 14x74 mm - M14x2 Left Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 14.000 mm (Equiv. 0.551 in.)	Overall Length (L) 74.00 mm (Equiv. 2.913 in.)	Thread Size M14x2 Left	Thread Length (l2) 27.00 mm
Head Width (W): 14.00 mm Eye Width (W1): 19.00 mm Head Diameter (D): 34.00 mm Centre Height (l1): 57.00 mm Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-L-CT Female Rod Ends - 14x74 mm - M14x2 Left Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-140-L-CT --- Female Rod Ends - 14x74 mm - M14x2 Left Steel Sale REF-140-L-CT --- Female Rod Ends - 14x74 mm - M14x2 Left Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 14.000 mm (Equiv. 0.551 in.)	Overall Length (L) 74.00 mm (Equiv. 2.913 in.)	Thread Size M14x2 Right	Thread Length (l2) 27.00 mm	Head Width (W) 14.00 mm	Eye Width (W1) 19.00 mm
Head Diameter (D): 34.00 mm Centre Height (l1): 57.00 mm Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-R-CT Female Rod Ends - 14x74 mm - M14x2 Right Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 14.000 mm (Equiv. 0.551 in.)	Overall Length (L) 74.00 mm (Equiv. 2.913 in.)	Thread Size M14x2 Right	Thread Length (l2) 27.00 mm
Head Width (W): 14.00 mm Eye Width (W1): 19.00 mm Head Diameter (D): 34.00 mm Centre Height (l1): 57.00 mm Body Width/Flange Width(W2/D3): 22.00 / 25.00 mm
Part Number: REF-140-R-CT Female Rod Ends - 14x74 mm - M14x2 Right Steel Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-140-R-CT --- Female Rod Ends - 14x74 mm - M14x2 Right Steel Sale REF-140-R-CT --- Female Rod Ends - 14x74 mm - M14x2 Right Steel Regular price $15.59 AUD Regular price ~~$18.71 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 15.875 mm (Equiv. 0.625 in.)	Overall Length (L) 82.55 mm (Equiv. 3.25 in.)	Thread Size 5/8-18 UNF Left	Thread Length (l2) 38.10 mm	Head Width (W) 14.27 mm	Eye Width (W1) 19.05 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 38.10 mm Centre Height (l1): 63.50 mm Body Width/Flange Width(W2/D3): 22.23 / 25.40 mm
Part Number: REF-159-L-CT Female Rod Ends - 15.875x82.55 mm - 5/8-18 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $80.32 AUD Regular price ~~$96.38 AUD~~ Sale price $80.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 15.875 mm (Equiv. 0.625 in.)	Overall Length (L) 82.55 mm (Equiv. 3.25 in.)	Thread Size 5/8-18 UNF Left	Thread Length (l2) 38.10 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 14.27 mm Eye Width (W1): 19.05 mm Head Diameter (D): 38.10 mm Centre Height (l1): 63.50 mm Body Width/Flange Width(W2/D3): 22.23 / 25.40 mm
Part Number: REF-159-L-CT Female Rod Ends - 15.875x82.55 mm - 5/8-18 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $80.32 AUD Regular price ~~$96.38 AUD~~ Sale price $80.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-159-L-CT --- Female Rod Ends - 15.875x82.55 mm - 5/8-18 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-159-L-CT --- Female Rod Ends - 15.875x82.55 mm - 5/8-18 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $80.32 AUD Regular price ~~$96.38 AUD~~ Sale price $80.32 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 19.05 mm (Equiv. 0.75 in.)	Overall Length (L) 95.25 mm (Equiv. 3.75 in.)	Thread Size 3/4-16 UNF Left	Thread Length (l2) 44.45 mm	Head Width (W) 17.45 mm	Eye Width (W1) 22.23 mm
Material: Steel with PTFE Lined Raceway Head Diameter (D): 44.45 mm Centre Height (l1): 73.03 mm Body Width/Flange Width(W2/D3): 25.40 / 28.58 mm
Part Number: REF-191-L-CT Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 19.05 mm (Equiv. 0.75 in.)	Overall Length (L) 95.25 mm (Equiv. 3.75 in.)	Thread Size 3/4-16 UNF Left	Thread Length (l2) 44.45 mm
Material: Steel with PTFE Lined Raceway Head Width (W): 17.45 mm Eye Width (W1): 22.23 mm Head Diameter (D): 44.45 mm Centre Height (l1): 73.03 mm Body Width/Flange Width(W2/D3): 25.40 / 28.58 mm
Part Number: REF-191-L-CT Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Left - Steel with PTFE Lined Raceway Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-191-L-CT --- Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Left - Steel with PTFE Lined Raceway Rod End Sale REF-191-L-CT --- Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Left - Steel with PTFE Lined Raceway Rod End Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Out of stock! Backorder Now Sale
Eye Size (d1) 19.05 mm (Equiv. 0.75 in.)	Overall Length (L) 95.25 mm (Equiv. 3.75 in.)	Thread Size 3/4-16 UNF Right	Thread Length (l2) 44.45 mm	Head Width (W) 17.45 mm	Eye Width (W1) 22.23 mm
Material: Steel PTFE Lined Head Diameter (D): 44.45 mm Centre Height (l1): 73.03 mm Body Width/Flange Width(W2/D3): 25.40 / 28.58 mm
Part Number: REF-191-R-CT Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Eye Size (d1) 19.05 mm (Equiv. 0.75 in.)	Overall Length (L) 95.25 mm (Equiv. 3.75 in.)	Thread Size 3/4-16 UNF Right	Thread Length (l2) 44.45 mm
Material: Steel PTFE Lined Head Width (W): 17.45 mm Eye Width (W1): 22.23 mm Head Diameter (D): 44.45 mm Centre Height (l1): 73.03 mm Body Width/Flange Width(W2/D3): 25.40 / 28.58 mm
Part Number: REF-191-R-CT Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Right - Steel PTFE Lined Rod End Out of Stock \| Backorder Now \| Orders can be expected around Sat, Oct 04, 2025 Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
REF-191-R-CT --- Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Right - Steel PTFE Lined Rod End Sale REF-191-R-CT --- Female Rod Ends - 19.05x95.25 mm - 3/4-16 UNF Right - Steel PTFE Lined Rod End Regular price $102.05 AUD Regular price ~~$122.45 AUD~~ Sale price $102.05 AUD Unit price per Out of stock! Backorder Now Sale
