SFWR1-4B-ZZS-MC3

Name: 1038626 | SFWR1-4B-ZZS-MC3 --- Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing
Brand: MBA
SKU: SFWR14BZZSMC3
Price: 36.23 AUD
Availability: BackOrder

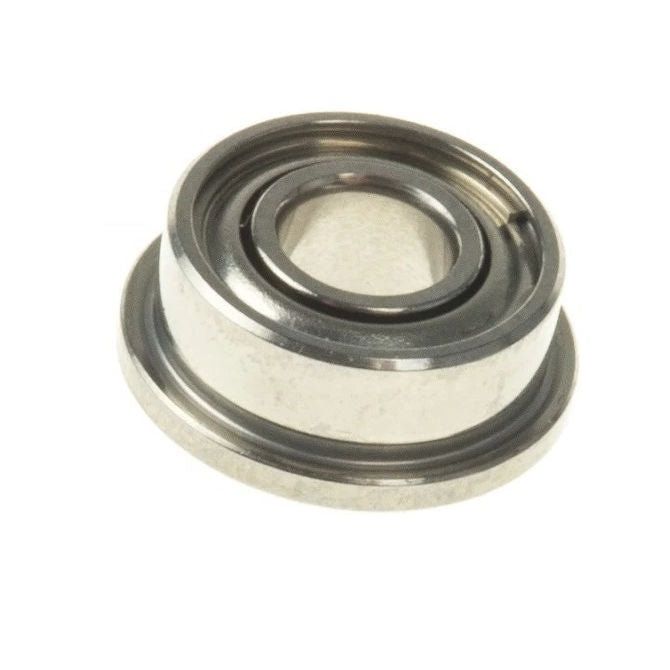

Single Row Ball Bearings - 1.984x6.35x3.571 mm / 4.366 mm Flanged - Stainless Steel AISI 440C Bearing

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale

Category: Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

Price:

$36.23 AUD

~~$74.51 AUD~~ $36.23 AUD

Each

Excludes GST and overseas Taxes & Duties

Backorder
Order 50 or more for $32.61 AUD

Product Details

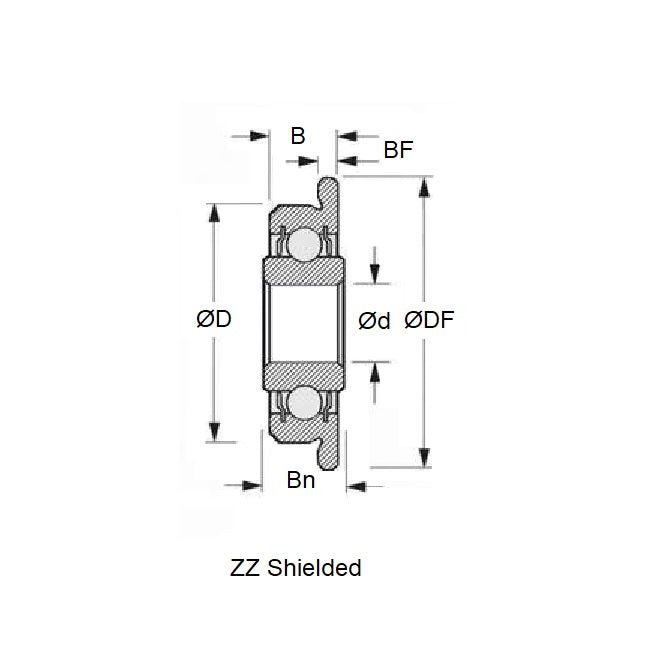

ID (d): 1.984mm
_{+ 0.000 / - 0.0075}
_{(1.984mm is 0.078 in.)}

Stainless Steel AISI 440C

ID (d): 1.984mm
_{+ 0.000 / - 0.0075}
_{(1.984mm is 0.078 in.)}
OD (D): 6.350mm
_{+ 0.000 / - 0.0075}
_{(6.350mm is 0.25 in.)}
Width (B): 3.571mm
_{+ 0.000 / - 0.125}
_{(3.571mm is 0.141 in.)}
Inner Ring Width (Bn): 4.366mm
Flange Diameter (DF): 7.518mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 1
Closure Type: ZZS
Bearing Type: Radial Flanged with Extended Inner

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

ALTPART
57155K326
Stainless Alternative FWR14BZZSMC3
Stainless Alternative FWR1-4B-ZZS-MC3
MPB S4FCHHE
GRW SFE5-64-2Z
ISO SFRW14ZZ
ISO SFRW1-4-ZZ
Shielded SFWR1 / 4
MPB SS4FCHHE
GRW SSFE5-64-2Z
NHBB SSFR1-4PPEE
ISO SSFRW14ZZ
ISO SSFRW1-4-ZZ
Shielded SSFWR1 / 4
ADR WFLX5-64-ZZ
SFWR1-4B-ZZSMC3
SFWR14BZZSMC3
SFE5642Z
WFLX564ZZ
SSFWR14BZZSMC3
SSFWR1-4B-ZZSMC3
SSFE5642Z
SSFR14PPEE
SSR1F-4-ZZEE
SS-R1F-4-ZZEE
SSR1F4ZZEE
DDR1F4ZZEE
DDR1F-4-ZZEE
DD-R1F-4-ZZEE
FWR1-4BBASIC

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
