| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

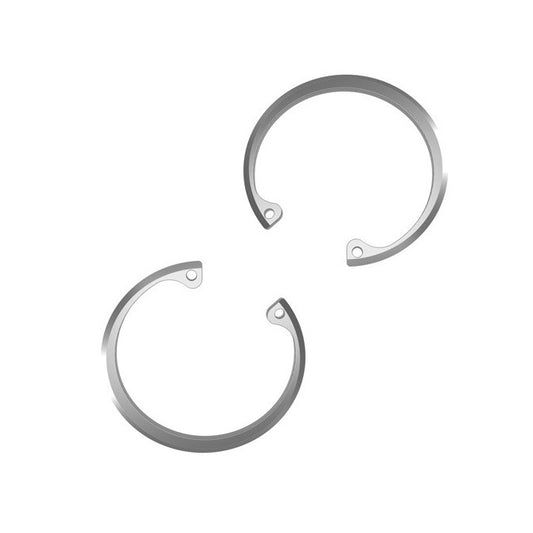

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 853 |
||||||
|
Part Number: CCI-10160-C
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |

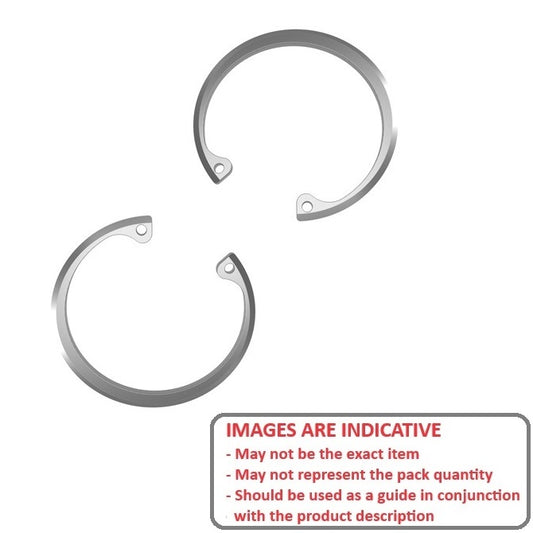

Indicative Image |
||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 853 |
||||||
|
Part Number: CCI-10160-C
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
107.70
mm +/- 0.076 (Equiv. 4.24 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm |
Groove Width (W)
3.05
mm |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 63 |
||||||
|
Part Number: CCI-10160-C-V
Internal Retaining Rings - 101.6x2.77x107.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
107.70
mm +/- 0.076 (Equiv. 4.24 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 63 |
||||||
|
Part Number: CCI-10160-C-V
Internal Retaining Rings - 101.6x2.77x107.7 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$22.14 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
107.19
mm (Equiv. 4.22 in.) |
Approx. Loose Circlip OD (Dr)
107.90
mm + 0.76 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 95.2 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 3395 |
||||||
|
Part Number: RRT-400 (42 Pcs)
Internal Retaining Rings - 101.6x2.82x107.19 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.50 AUD
Regular price
Unit price
per
42 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
107.19
mm (Equiv. 4.22 in.) |
Approx. Loose Circlip OD (Dr)
107.90
mm + 0.76 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 95.2 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings Additional stock available from USA subject to Prior Sale = 3395 |
||||||
|
Part Number: RRT-400 (42 Pcs)
Internal Retaining Rings - 101.6x2.82x107.19 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.50 AUD
Regular price
Unit price
per
42 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
102.00
mm (Equiv. 4.016 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (Equiv. 4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 98.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1020-LS
Internal Retaining Rings - 102x2.5x104.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
102.00
mm (Equiv. 4.016 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
104.3
mm + 0.22 / - 0.00 (Equiv. 4.106 in.) |
Approx. Loose Circlip OD (Dr)
105.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 98.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1020-LS
Internal Retaining Rings - 102x2.5x104.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
102.00
mm (Equiv. 4.016 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip OD (Dr)
108.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 82.00 mm
Clearance in Groove (C1): 87.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 518 |
||||||
|
Part Number: CCI-10200-C (2 Pcs)
Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.14 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
102.00
mm (Equiv. 4.016 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
106.00
mm + 0.00 / - 0.10 (Equiv. 4.173 in.) |
Approx. Loose Circlip OD (Dr)
108.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.00 mm
Clearance in Groove (C1): 87.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 518 |
||||||
|
Part Number: CCI-10200-C (2 Pcs)
Internal Retaining Rings - 102x4x106 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$15.14 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
103.00
mm (Equiv. 4.055 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (Equiv. 4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 99.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1030-LS
Internal Retaining Rings - 103x2.5x105.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
103.00
mm (Equiv. 4.055 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
105.3
mm + 0.22 / - 0.00 (Equiv. 4.146 in.) |
Approx. Loose Circlip OD (Dr)
106.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 99.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1030-LS
Internal Retaining Rings - 103x2.5x105.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
103.00
mm (Equiv. 4.055 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.00 / - 0.10 (Equiv. 4.252 in.) |
Approx. Loose Circlip OD (Dr)
110.76
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Clearance in Bore (C): 83.00 mm
Clearance in Groove (C1): 88.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10300-C
Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
103.00
mm (Equiv. 4.055 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
108.00
mm + 0.00 / - 0.10 (Equiv. 4.252 in.) |
Approx. Loose Circlip OD (Dr)
110.76
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 83.00 mm
Clearance in Groove (C1): 88.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10300-C
Internal Retaining Rings - 103x4x108 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 99.82 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1048-LS-N
Internal Retaining Rings - 104.78x2.77x110.87 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm +/- 0.15 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
112.52
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 99.82 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1048-LS-N
Internal Retaining Rings - 104.78x2.77x110.87 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
112.60
mm +/- 0.08 (Equiv. 4.433 in.) |
Approx. Loose Circlip OD (Dr)
114.12
mm + 3.30 / - 0.00 |
Groove Width (W)
2.26
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-10478-C (10 Pcs)
Internal Retaining Rings - 104.78x2.69x112.6 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 12, 2026 Regular price
$123.77 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
112.60
mm +/- 0.08 (Equiv. 4.433 in.) |
Approx. Loose Circlip OD (Dr)
114.12
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.26 mm + 0.05 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-10478-C (10 Pcs)
Internal Retaining Rings - 104.78x2.69x112.6 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Thu, Mar 12, 2026 Regular price
$123.77 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (Equiv. 4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 97.92 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1048-LS-O
Internal Retaining Rings - 104.78x2.77x108.84 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
108.84
mm +/- 0.15 (Equiv. 4.285 in.) |
Approx. Loose Circlip OD (Dr)
110.62
mm + 2.40 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 97.92 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1048-LS-O
Internal Retaining Rings - 104.78x2.77x108.84 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm + 0.00 / - 0.10 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
111.76
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 228 |
||||||
|
Part Number: CCI-10478-C
Internal Retaining Rings - 104.78x2.77x110.87 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$12.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
104.78
mm (Equiv. 4.125 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
110.87
mm + 0.00 / - 0.10 (Equiv. 4.365 in.) |
Approx. Loose Circlip OD (Dr)
111.76
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 228 |
||||||
|
Part Number: CCI-10478-C
Internal Retaining Rings - 104.78x2.77x110.87 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$12.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
108.20
mm + 1.2 / - 0.0 (Equiv. 4.26 in.) |
Approx. Loose Circlip OD (Dr)
109.20
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 102.8 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-1050-RD
Internal Retaining Rings - 105x3.2x108.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
108.20
mm + 1.2 / - 0.0 (Equiv. 4.26 in.) |
Approx. Loose Circlip OD (Dr)
109.20
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 102.8 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-1050-RD
Internal Retaining Rings - 105x3.2x108.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (Equiv. 4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 101.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1050-LS
Internal Retaining Rings - 105x2.5x107.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
107.3
mm + 0.22 / - 0.00 (Equiv. 4.224 in.) |
Approx. Loose Circlip OD (Dr)
108.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 101.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1050-LS
Internal Retaining Rings - 105x2.5x107.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
409.00
mm + 0.00 / - 0.10 (Equiv. 16.102 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 85.00 mm
Clearance in Groove (C1): 90.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 351 |
||||||
|
Part Number: CCI-10500-C
Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip 22 Available Now | Further orders can be expected around Tue, Nov 18, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
409.00
mm + 0.00 / - 0.10 (Equiv. 16.102 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 85.00 mm
Clearance in Groove (C1): 90.00 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 351 |
||||||
|
Part Number: CCI-10500-C
Internal Retaining Rings - 105x4x409 mm Circlips - Carbon Steel Circlip 22 Available Now | Further orders can be expected around Tue, Nov 18, 2025 Regular price
$5.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
5.00
mm + 0.54 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
109.00
mm + 0.00 / - 0.12 (Equiv. 4.291 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
Groove Width (W)
5.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10500H-C
Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
105.00
mm (Equiv. 4.134 in.) |
Clip Thickness (T)
5.00
mm + 0.54 / - 0.00 (Equiv. 0.197 in.) |
Groove Dia. (Dg)
109.00
mm + 0.00 / - 0.12 (Equiv. 4.291 in.) |
Approx. Loose Circlip OD (Dr)
112.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 5.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10500H-C
Internal Retaining Rings - 105x5x109 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
107.00
mm (Equiv. 4.213 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (Equiv. 4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 103.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1070-LS
Internal Retaining Rings - 107x2.5x109.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.00
mm (Equiv. 4.213 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
109.3
mm + 0.22 / - 0.00 (Equiv. 4.303 in.) |
Approx. Loose Circlip OD (Dr)
110.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 103.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1070-LS
Internal Retaining Rings - 107x2.5x109.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
107.00
mm (Equiv. 4.213 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (Equiv. 4.37 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10700-C
Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.00
mm (Equiv. 4.213 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
111.00
mm + 0.00 / - 0.10 (Equiv. 4.37 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10700-C
Internal Retaining Rings - 107x4x111 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
112.01
mm +/- 0.15 (Equiv. 4.41 in.) |
Approx. Loose Circlip OD (Dr)
113.92
mm + 2.40 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 101.22 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS-HO
Internal Retaining Rings - 107.95x2.77x112.01 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
112.01
mm +/- 0.15 (Equiv. 4.41 in.) |
Approx. Loose Circlip OD (Dr)
113.92
mm + 2.40 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 101.22 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS-HO
Internal Retaining Rings - 107.95x2.77x112.01 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (Equiv. 4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
Radial Wall (S) Approx.
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 103 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS-O
Internal Retaining Rings - 107.95x1.58x111.61 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
111.61
mm +/- 0.15 (Equiv. 4.394 in.) |
Approx. Loose Circlip OD (Dr)
112.50
mm + 2.36 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.75 mm +/- 0.13
Groove Width (W): 2.18 mm
Clearance in Groove (C1): 103 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS-O
Internal Retaining Rings - 107.95x1.58x111.61 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
114.05
mm + 0.00 / - 0.10 (Equiv. 4.49 in.) |
Approx. Loose Circlip OD (Dr)
116.08
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 217 |
||||||
|
Part Number: CCI-10795-C
Internal Retaining Rings - 107.95x2.77x114.05 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
114.05
mm + 0.00 / - 0.10 (Equiv. 4.49 in.) |
Approx. Loose Circlip OD (Dr)
116.08
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 217 |
||||||
|
Part Number: CCI-10795-C
Internal Retaining Rings - 107.95x2.77x114.05 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$11.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
115.87
mm +/- 0.08 (Equiv. 4.562 in.) |
Approx. Loose Circlip OD (Dr)
117.50
mm + 3.30 / - 0.00 |
Groove Width (W)
2.26
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-10795-C (25 Pcs)
Internal Retaining Rings - 107.95x2.69x115.87 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$521.59 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
115.87
mm +/- 0.08 (Equiv. 4.562 in.) |
Approx. Loose Circlip OD (Dr)
117.50
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.26 mm + 0.05 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-10795-C (25 Pcs)
Internal Retaining Rings - 107.95x2.69x115.87 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 18, 2026 Regular price
$521.59 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
113.54
mm (Equiv. 4.47 in.) |
Approx. Loose Circlip OD (Dr)
114.64
mm + 0.89 / - 0.00 |
Radial Wall (S) Approx.
7.93
mm +/- 0.16 |
Groove Width (W)
3.12
mm +/- 0.15 |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 98.78 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-425 (20 Pcs)
Internal Retaining Rings - 107.95x2.82x113.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025 Regular price
$1,713.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
107.95
mm (Equiv. 4.25 in.) |
Clip Thickness (T)
2.82
mm +/- 0.08 (Equiv. 0.111 in.) |
Groove Dia. (Dg)
113.54
mm (Equiv. 4.47 in.) |
Approx. Loose Circlip OD (Dr)
114.64
mm + 0.89 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.93 mm +/- 0.16
Groove Width (W): 3.12 mm +/- 0.15
Clearance in Groove (C1): 98.78 mm +/- 0.07
Category: Retaining Rings - Internal - Spiral Rings |
||||||
|
Part Number: RRT-425 (20 Pcs)
Internal Retaining Rings - 107.95x2.82x113.54 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 02, 2025 Regular price
$1,713.95 AUD
Regular price
Unit price
per
20 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
108.00
mm (Equiv. 4.252 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
110.3
mm + 0.22 / - 0.00 (Equiv. 4.343 in.) |
Approx. Loose Circlip OD (Dr)
111.30
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 104.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS
Internal Retaining Rings - 108x2.5x110.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
108.00
mm (Equiv. 4.252 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
110.3
mm + 0.22 / - 0.00 (Equiv. 4.343 in.) |
Approx. Loose Circlip OD (Dr)
111.30
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 104.5 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1080-LS
Internal Retaining Rings - 108x2.5x110.3 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
108.00
mm (Equiv. 4.252 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
112.00
mm + 0.00 / - 0.10 (Equiv. 4.409 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 88.00 mm
Clearance in Groove (C1): 93.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10800-C (25 Pcs)
Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 11, 2026 Regular price
$191.50 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
108.00
mm (Equiv. 4.252 in.) |
Clip Thickness (T)
4.00
mm + 0.54 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
112.00
mm + 0.00 / - 0.10 (Equiv. 4.409 in.) |
Approx. Loose Circlip OD (Dr)
115.00
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 88.00 mm
Clearance in Groove (C1): 93.00 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10800-C (25 Pcs)
Internal Retaining Rings - 108x4x112 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sun, Jan 11, 2026 Regular price
$191.50 AUD
Regular price
Unit price
per
25 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
