| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) Approx. | Groove Width (W) |

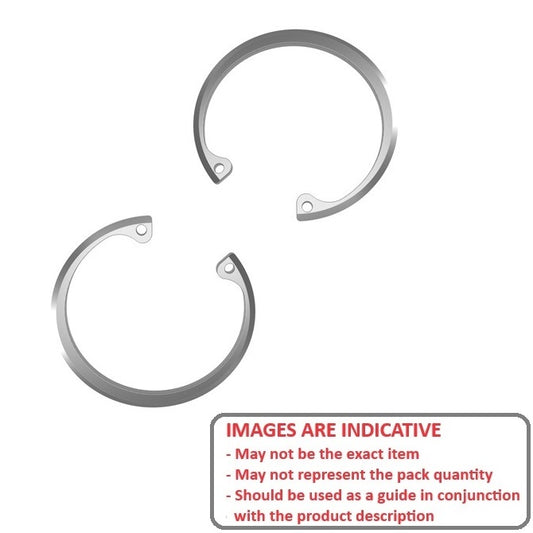

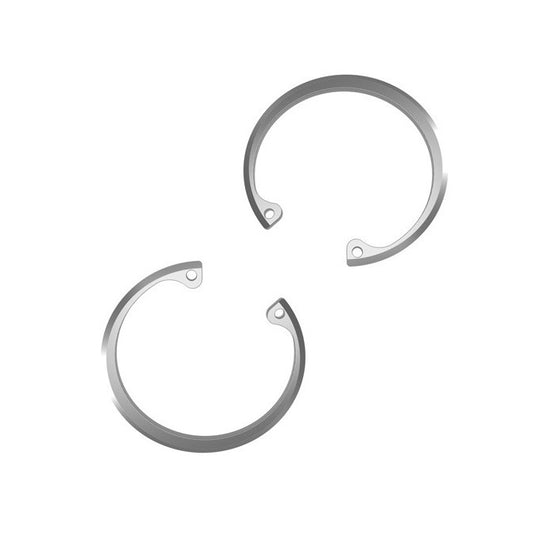

Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (Equiv. 3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 93.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0970-LS
Internal Retaining Rings - 97x2.5x99 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
99.00
mm + 0.22 / - 0.00 (Equiv. 3.898 in.) |
Approx. Loose Circlip OD (Dr)
100.00
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 93.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0970-LS
Internal Retaining Rings - 97x2.5x99 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.00 / - 0.08 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09700-C
Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.00 / - 0.08 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09700-C
Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
100.0
mm + 0.22 / - 0.00 (Equiv. 3.937 in.) |
Approx. Loose Circlip OD (Dr)
101.00
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 94.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0980-LS
Internal Retaining Rings - 98x2.5x100 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
100.0
mm + 0.22 / - 0.00 (Equiv. 3.937 in.) |
Approx. Loose Circlip OD (Dr)
101.00
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 94.2 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0980-LS
Internal Retaining Rings - 98x2.5x100 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025 Regular price
$12.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.00 / - 0.08 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 79.00 mm
Clearance in Groove (C1): 83.50 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09800-S15
Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.00 / - 0.08 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 79.00 mm
Clearance in Groove (C1): 83.50 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09800-S15
Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
105.94
mm +/- 0.08 (Equiv. 4.171 in.) |
Approx. Loose Circlip OD (Dr)
107.34
mm + 3.30 / - 0.00 |
Groove Width (W)
2.26
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-09843-C (10 Pcs)
Internal Retaining Rings - 98.43x2.69x105.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$161.77 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
105.94
mm +/- 0.08 (Equiv. 4.171 in.) |
Approx. Loose Circlip OD (Dr)
107.34
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.26 mm + 0.05 / - 0.00
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CIB-09843-C (10 Pcs)
Internal Retaining Rings - 98.43x2.69x105.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Jan 20, 2026 Regular price
$161.77 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (Equiv. 4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 91.16 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0984-LS-O
Internal Retaining Rings - 98.43x2.77x102.29 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
102.29
mm +/- 0.15 (Equiv. 4.027 in.) |
Approx. Loose Circlip OD (Dr)
103.86
mm + 2.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 91.16 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0984-LS-O
Internal Retaining Rings - 98.43x2.77x102.29 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 93.09 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0984-LS-N
Internal Retaining Rings - 98.43x2.77x104.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm +/- 0.15 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
105.79
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 93.09 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-0984-LS-N
Internal Retaining Rings - 98.43x2.77x104.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm + 0.00 / - 0.08 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 80.52 mm
Clearance in Groove (C1): 86.36 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 567 |
||||||
|
Part Number: CCI-09843-C (2 Pcs)
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm + 0.00 / - 0.08 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 80.52 mm
Clearance in Groove (C1): 86.36 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 567 |
||||||
|
Part Number: CCI-09843-C (2 Pcs)
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$17.86 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm + 0.00 / - 0.08 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 80.52 mm
Clearance in Groove (C1): 86.36 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09843-S15
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 29, 2025 Regular price
$287.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
98.43
mm (Equiv. 3.875 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
104.32
mm + 0.00 / - 0.08 (Equiv. 4.107 in.) |
Approx. Loose Circlip OD (Dr)
108.99
mm + 1.65 / - 1.65 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 80.52 mm
Clearance in Groove (C1): 86.36 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-09843-S15
Internal Retaining Rings - 98.43x2.77x104.32 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 29, 2025 Regular price
$287.05 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
102.0
mm + 0.22 / - 0.00 (Equiv. 4.016 in.) |
Approx. Loose Circlip OD (Dr)
103.00
mm |
Radial Wall (S) Approx.
3.40
mm + 0 / - 0.10 |
Groove Width (W)
2.70
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 96.2 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 2276 |
||||||
|
Part Number: WRI-1000-LS
Internal Retaining Rings - 100x2.5x102 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.50
mm + 0 / - 0.10 (Equiv. 0.098 in.) |
Groove Dia. (Dg)
102.0
mm + 0.22 / - 0.00 (Equiv. 4.016 in.) |
Approx. Loose Circlip OD (Dr)
103.00
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 3.40 mm + 0 / - 0.10
Groove Width (W): 2.70 mm
Clearance in Groove (C1): 96.2 mm
Category: Retaining Rings - Internal - Snap Rings Additional stock available from USA subject to Prior Sale = 2276 |
||||||
|
Part Number: WRI-1000-LS
Internal Retaining Rings - 100x2.5x102 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$4.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.80
mm + 0.00 / - 0.08 (Equiv. 3.89 in.) |
Approx. Loose Circlip OD (Dr)
105.04
mm |
Radial Wall (S) Approx.
8.50
mm |
Groove Width (W)
3.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-100
Internal Retaining Rings - 100x3x98.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.00 / - 0.30 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.80
mm + 0.00 / - 0.08 (Equiv. 3.89 in.) |
Approx. Loose Circlip OD (Dr)
105.04
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 8.50 mm
Groove Width (W): 3.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: DJK-100
Internal Retaining Rings - 100x3x98.8 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.50
mm + 0.00 / - 0.08 (Equiv. 4.075 in.) |
Approx. Loose Circlip OD (Dr)
105.44
mm + 1.30 / - 0.54 |
Radial Wall (S) Approx.
7.1 - 7.4
mm |
Groove Width (W)
3.15
mm |
|
|
Material: Carbon Spring Steel
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10000-C-V
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.50
mm + 0.00 / - 0.08 (Equiv. 4.075 in.) |
Approx. Loose Circlip OD (Dr)
105.44
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 7.1 - 7.4 mm
Groove Width (W): 3.15 mm
Category: Retaining Rings - Internal - Circlips |
||||||
|
Part Number: CCI-10000-C-V
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Spring Steel Circlip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.50
mm + 0.00 / - 0.08 (Equiv. 4.075 in.) |
Approx. Loose Circlip OD (Dr)
105.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 80.60 mm
Clearance in Groove (C1): 85.10 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 374 |
||||||
|
Part Number: CCI-10000-C
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip 286 Available Now | Further orders can be expected around Tue, Nov 18, 2025 Regular price
$3.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
103.50
mm + 0.00 / - 0.08 (Equiv. 4.075 in.) |
Approx. Loose Circlip OD (Dr)
105.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 80.60 mm
Clearance in Groove (C1): 85.10 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 374 |
||||||
|
Part Number: CCI-10000-C
Internal Retaining Rings - 100x3x103.5 mm Circlips - Carbon Steel Circlip 286 Available Now | Further orders can be expected around Tue, Nov 18, 2025 Regular price
$3.50 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
103.20
mm + 1.2 / - 0.0 (Equiv. 4.063 in.) |
Approx. Loose Circlip OD (Dr)
104.20
mm |
Groove Width (W)
3.60
mm |
|
|
|
Material: Carbon Spring Steel
Clearance in Bore (C): 97.8 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-1000-RD
Internal Retaining Rings - 100x3.2x103.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.00
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
3.2
mm B DIN 2076 (Equiv. 0.126 in.) |
Groove Dia. (Dg)
103.20
mm + 1.2 / - 0.0 (Equiv. 4.063 in.) |
Approx. Loose Circlip OD (Dr)
104.20
mm |
|
||
|
Material: Carbon Spring Steel
Groove Width (W): 3.60 mm
Clearance in Bore (C): 97.8 mm
Category: Retaining Rings - Internal - Round Wire |
||||||
|
Part Number: WRI-1000-RD
Internal Retaining Rings - 100x3.2x103.2 mm Round Wire - Carbon Spring Steel Wire Clip Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-10001-CZY
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 340 |
||||||
|
Part Number: CCI-10001-CZY
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
107.59
mm +/- 0.08 (Equiv. 4.236 in.) |
Approx. Loose Circlip OD (Dr)
109.04
mm + 3.30 / - 0.00 |
Groove Width (W)
2.26
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 46 |
||||||
|
Part Number: CIB-10001-C
Internal Retaining Rings - 100.01x2.69x107.59 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$10.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
107.59
mm +/- 0.08 (Equiv. 4.236 in.) |
Approx. Loose Circlip OD (Dr)
109.04
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.26 mm + 0.05 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 46 |
||||||
|
Part Number: CIB-10001-C
Internal Retaining Rings - 100.01x2.69x107.59 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$10.95 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: CCI-10001-S15 (3 Pcs)
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$301.14 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 4 |
||||||
|
Part Number: CCI-10001-S15 (3 Pcs)
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$301.14 AUD
Regular price
Unit price
per
3 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1353 |
||||||
|
Part Number: CCI-10001-C (2 Pcs)
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$16.14 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
100.01
mm (Equiv. 3.937 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm + 0.00 / - 0.10 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
110.69
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.04 mm
Clearance in Groove (C1): 87.88 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 1353 |
||||||
|
Part Number: CCI-10001-C (2 Pcs)
Internal Retaining Rings - 100.01x2.77x106.02 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$16.14 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
100.03
mm (Equiv. 3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (Equiv. 4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 92.86 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1000-LS-O
Internal Retaining Rings - 100.03x2.77x103.99 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.03
mm (Equiv. 3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
103.99
mm +/- 0.15 (Equiv. 4.094 in.) |
Approx. Loose Circlip OD (Dr)
105.56
mm + 2.00 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 92.86 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1000-LS-O
Internal Retaining Rings - 100.03x2.77x103.99 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
100.03
mm (Equiv. 3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 94.84 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1000-LS-N
Internal Retaining Rings - 100.03x2.77x106.02 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
100.03
mm (Equiv. 3.938 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
106.02
mm +/- 0.15 (Equiv. 4.174 in.) |
Approx. Loose Circlip OD (Dr)
107.54
mm + 2.55 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 94.84 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1000-LS-N
Internal Retaining Rings - 100.03x2.77x106.02 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (Equiv. 4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
Radial Wall (S) Approx.
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 96.04 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1016-LS-O
Internal Retaining Rings - 101.6x1.58x104.78 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
1.58
mm +/- 0.06 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
104.78
mm +/- 0.15 (Equiv. 4.125 in.) |
Approx. Loose Circlip OD (Dr)
105.54
mm + 1.98 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 4.75 mm +/- 0.13
Groove Width (W): 1.73 mm
Clearance in Groove (C1): 96.04 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1016-LS-O
Internal Retaining Rings - 101.6x1.58x104.78 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (Equiv. 4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
Radial Wall (S) Approx.
6.35
mm +/- 0.13 |
Groove Width (W)
3.05
mm |
|
|
Material: Carbon Spring Steel
Clearance in Groove (C1): 94.51 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1016-LS-HO
Internal Retaining Rings - 101.6x2.77x105.56 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.77
mm +/- 0.05 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
105.56
mm +/- 0.15 (Equiv. 4.156 in.) |
Approx. Loose Circlip OD (Dr)
107.21
mm + 2.40 / - 0.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 6.35 mm +/- 0.13
Groove Width (W): 3.05 mm
Clearance in Groove (C1): 94.51 mm
Category: Retaining Rings - Internal - Snap Rings |
||||||
|
Part Number: WRI-1016-LS-HO
Internal Retaining Rings - 101.6x2.77x105.56 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028 |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
109.27
mm +/- 0.08 (Equiv. 4.302 in.) |
Approx. Loose Circlip OD (Dr)
110.72
mm + 3.30 / - 0.00 |
Groove Width (W)
2.26
mm + 0.05 / - 0.00 |
|
|
|
Material: Carbon Steel
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 323 |
||||||
|
Part Number: CIB-10160-C
Internal Retaining Rings - 101.6x2.69x109.27 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$13.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.69
mm + 0.15 / - 0.00 (Equiv. 0.106 in.) |
Groove Dia. (Dg)
109.27
mm +/- 0.08 (Equiv. 4.302 in.) |
Approx. Loose Circlip OD (Dr)
110.72
mm + 3.30 / - 0.00 |
|
||
|
Material: Carbon Steel
Groove Width (W): 2.26 mm + 0.05 / - 0.00
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 323 |
||||||
|
Part Number: CIB-10160-C
Internal Retaining Rings - 101.6x2.69x109.27 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$13.77 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 174 |
||||||
|
Part Number: CCI-10160-CZY
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Housing Bore (B)
101.60
mm (Equiv. 4 in.) |
Clip Thickness (T)
2.84
mm +/- 0.152 (Equiv. 0.112 in.) |
Groove Dia. (Dg)
107.54
mm + 0.00 / - 0.10 (Equiv. 4.234 in.) |
Approx. Loose Circlip OD (Dr)
112.37
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 82.30 mm
Clearance in Groove (C1): 88.14 mm
Category: Retaining Rings - Internal - Circlips Additional stock available from USA subject to Prior Sale = 174 |
||||||
|
Part Number: CCI-10160-CZY
Internal Retaining Rings - 101.6x2.84x107.54 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025 Regular price
$18.32 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
