| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) | Radial Wall (S) | Groove Width (W) |
Indicative Image |
|---|---|---|---|---|---|---|
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 69.90 mm
Clearance in Groove (C1): 74.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08800-S15
Internal Retaining Rings - 88x3x91.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Housing Bore (B) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip OD (Dr) |
Indicative Image |
||
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 69.90 mm
Clearance in Groove (C1): 74.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08800-S15
Internal Retaining Rings - 88x3x91.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 69.90 mm
Clearance in Groove (C1): 74.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08800-C (125 Pcs)
Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$429.05 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
Housing Bore (B)
88.00
mm (Equiv. 3.465 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
91.50
mm + 0.00 / - 0.08 (Equiv. 3.602 in.) |
Approx. Loose Circlip OD (Dr)
93.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 69.90 mm
Clearance in Groove (C1): 74.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08800-C (125 Pcs)
Internal Retaining Rings - 88x3x91.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$429.05 AUD
Regular price
Unit price
per
Per 125
|
||||||
|
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm + 0.00 / - 0.08 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08811-C (2 Pcs)
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$14.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm + 0.00 / - 0.08 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08811-C (2 Pcs)
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$14.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm + 0.00 / - 0.08 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08811-S15
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$74.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
88.11
mm (Equiv. 3.469 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
93.35
mm + 0.00 / - 0.08 (Equiv. 3.675 in.) |
Approx. Loose Circlip OD (Dr)
97.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 70.36 mm
Clearance in Groove (C1): 75.18 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 7.85
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08811-S15
Internal Retaining Rings - 88.11x2.77x93.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$74.95 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08890-S15
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$268.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08890-S15
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$268.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08890-C (2 Pcs)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08890-C (2 Pcs)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$13.77 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|

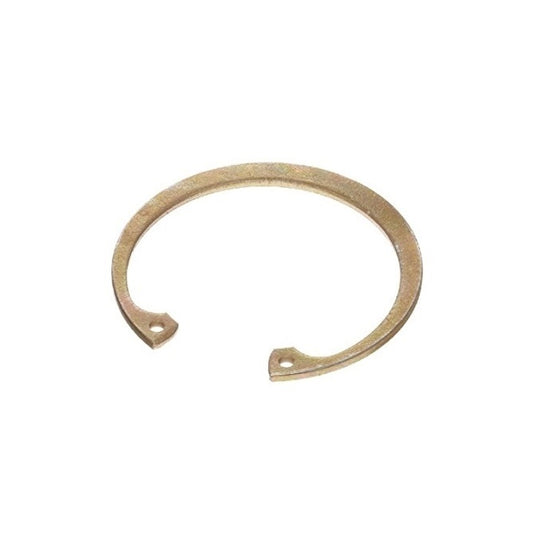

Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated |
||||||
|
Part Number: CCI-08890-CZY (25 Pcs)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$304.86 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
Housing Bore (B)
88.90
mm (Equiv. 3.5 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
94.23
mm + 0.00 / - 0.08 (Equiv. 3.71 in.) |
Approx. Loose Circlip OD (Dr)
98.81
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.12 mm
Clearance in Groove (C1): 73.66 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.00
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated |
||||||
|
Part Number: CCI-08890-CZY (25 Pcs)
Internal Retaining Rings - 88.9x2.77x94.23 mm Circlips - Carbon Steel Zinc Plated Circlip Out of Stock | Backorder Now | Orders can be expected around Sat, Nov 22, 2025 Regular price
$304.86 AUD
Regular price
Unit price
per
Per 25
|
||||||
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm + 0.00 / - 0.08 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08999-C (2 Pcs)
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm + 0.00 / - 0.08 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-08999-C (2 Pcs)
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$12.50 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm + 0.00 / - 0.08 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08999-S15
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$86.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
89.99
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
95.91
mm + 0.00 / - 0.08 (Equiv. 3.776 in.) |
Approx. Loose Circlip OD (Dr)
99.97
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 72.14 mm
Clearance in Groove (C1): 77.98 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.15
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-08999-S15
Internal Retaining Rings - 89.99x2.77x95.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$86.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09000-S15 (250 Pcs)
Internal Retaining Rings - 90x3x93.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$12,038.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09000-S15 (250 Pcs)
Internal Retaining Rings - 90x3x93.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$12,038.68 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel Zinc Plated
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated |
||||||
|
Part Number: CCI-09000-CZ
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Zinc Plated Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel Zinc Plated
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Zinc Plated |
||||||
|
Part Number: CCI-09000-CZ
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Zinc Plated Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09000-C
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip 530 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.08 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 71.90 mm
Clearance in Groove (C1): 76.30 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09000-C
Internal Retaining Rings - 90x3x93.5 mm Circlips - Carbon Steel Circlip 530 Available Now | Further orders can be expected around Mon, Sep 22, 2025 Regular price
$5.50 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
4.00
mm + 0.35 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.10 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09000H-C
Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
90.00
mm (Equiv. 3.543 in.) |
Clip Thickness (T)
4.00
mm + 0.35 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
93.50
mm + 0.00 / - 0.10 (Equiv. 3.681 in.) |
Approx. Loose Circlip OD (Dr)
95.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09000H-C
Internal Retaining Rings - 90x4x93.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.00 / - 0.08 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09200-C (250 Pcs)
Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$1,539.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.00 / - 0.08 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09200-C (250 Pcs)
Internal Retaining Rings - 92x3x95.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$1,539.23 AUD
Regular price
Unit price
per
Per 250
|
||||||
|
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.00 / - 0.08 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09200-S15
Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.00
mm (Equiv. 3.622 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
95.50
mm + 0.00 / - 0.08 (Equiv. 3.76 in.) |
Approx. Loose Circlip OD (Dr)
97.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 73.70 mm
Clearance in Groove (C1): 78.10 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09200-S15
Internal Retaining Rings - 92x3x95.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm + 0.00 / - 0.08 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09208-C (2 Pcs)
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm + 0.00 / - 0.08 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09208-C (2 Pcs)
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$17.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm + 0.00 / - 0.08 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09208-S15
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$277.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
92.08
mm (Equiv. 3.625 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
97.56
mm + 0.00 / - 0.08 (Equiv. 3.841 in.) |
Approx. Loose Circlip OD (Dr)
102.21
mm + 1.40 / - 1.40 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 74.17 mm
Clearance in Groove (C1): 79.50 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.23
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09208-S15
Internal Retaining Rings - 92.08x2.77x97.56 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$277.68 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.08 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 76.50 mm
Clearance in Groove (C1): 80.90 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09500-C (100 Pcs)
Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025 Regular price
$776.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.08 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 76.50 mm
Clearance in Groove (C1): 80.90 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09500-C (100 Pcs)
Internal Retaining Rings - 95x3x98.5 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025 Regular price
$776.68 AUD
Regular price
Unit price
per
Per 100
|
||||||
|
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.08 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 76.50 mm
Clearance in Groove (C1): 80.90 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09500-S15 (50 Pcs)
Internal Retaining Rings - 95x3x98.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025 Regular price
$2,457.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.08 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 76.50 mm
Clearance in Groove (C1): 80.90 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09500-S15 (50 Pcs)
Internal Retaining Rings - 95x3x98.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Tue, Dec 16, 2025 Regular price
$2,457.86 AUD
Regular price
Unit price
per
Per 50
|
||||||
|
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
4.00
mm + 0.35 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.10 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
Groove Width (W)
4.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel Self Finish
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09500H-C
Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.00
mm (Equiv. 3.74 in.) |
Clip Thickness (T)
4.00
mm + 0.35 / - 0.00 (Equiv. 0.157 in.) |
Groove Dia. (Dg)
98.50
mm + 0.00 / - 0.10 (Equiv. 3.878 in.) |
Approx. Loose Circlip OD (Dr)
100.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel Self Finish
Groove Width (W): 4.15 mm + 0.13 / - 0.00
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09500H-C
Internal Retaining Rings - 95x4x98.5 mm Circlips - Carbon Spring Steel Self Finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm + 0.00 / - 0.08 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 77.22 mm
Clearance in Groove (C1): 81.69 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.53
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09525-S15
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$295.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
Housing Bore (B)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm + 0.00 / - 0.08 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 77.22 mm
Clearance in Groove (C1): 81.69 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.53
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09525-S15
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025 Regular price
$295.86 AUD
Regular price
Unit price
per
Each
|
||||||
|
||||||
|
Housing Bore (B)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm + 0.00 / - 0.08 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
Groove Width (W)
3.05
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Steel
Clearance in Bore (C): 77.22 mm
Clearance in Groove (C1): 81.69 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.53
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09525-C (2 Pcs)
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
Housing Bore (B)
95.25
mm (Equiv. 3.75 in.) |
Clip Thickness (T)
2.77
mm +/- 0.152 (Equiv. 0.109 in.) |
Groove Dia. (Dg)
100.94
mm + 0.00 / - 0.08 (Equiv. 3.974 in.) |
Approx. Loose Circlip OD (Dr)
105.59
mm + 1.65 / - 1.65 |
|
||
|
Material: Carbon Steel
Groove Width (W): 3.05 mm + 0.13 / - 0.00
Clearance in Bore (C): 77.22 mm
Clearance in Groove (C1): 81.69 mm
Min. Lug Diameter (h): 3.12 mm
Min. Extension (n): 8.53
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09525-C (2 Pcs)
Internal Retaining Rings - 95.25x2.77x100.94 mm Circlips - Carbon Steel Circlip Out of Stock | Backorder Now | Orders can be expected around Mon, Sep 22, 2025 Regular price
$16.23 AUD
Regular price
Unit price
per
Per 2
|
||||||
|
||||||
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.00 / - 0.08 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Carbon Spring Steel phosphate and oil finish
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09700-C
Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
97.00
mm (Equiv. 3.819 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
100.50
mm + 0.00 / - 0.08 (Equiv. 3.957 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Carbon Spring Steel phosphate and oil finish
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel |
||||||
|
Part Number: CCI-09700-C
Internal Retaining Rings - 97x3x100.5 mm Circlips - Carbon Spring Steel phosphate and oil finish Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.00 / - 0.08 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
Groove Width (W)
3.15
mm + 0.13 / - 0.00 |
|
|
|
Material: Stainless Steel Grade PH15-7 Mo
Clearance in Bore (C): 79.00 mm
Clearance in Groove (C1): 83.50 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09800-S15
Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Housing Bore (B)
98.00
mm (Equiv. 3.858 in.) |
Clip Thickness (T)
3.00
mm + 0.35 / - 0.00 (Equiv. 0.118 in.) |
Groove Dia. (Dg)
101.50
mm + 0.00 / - 0.08 (Equiv. 3.996 in.) |
Approx. Loose Circlip OD (Dr)
103.50
mm + 1.30 / - 0.54 |
|
||
|
Material: Stainless Steel Grade PH15-7 Mo
Groove Width (W): 3.15 mm + 0.13 / - 0.00
Clearance in Bore (C): 79.00 mm
Clearance in Groove (C1): 83.50 mm
Min. Lug Diameter (h): 3.50 mm
Min. Extension (n): 5.30
Category: Retaining Rings - Internal - Circlips - Standard - Stainless Steel |
||||||
|
Part Number: CCI-09800-S15
Internal Retaining Rings - 98x3x101.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
