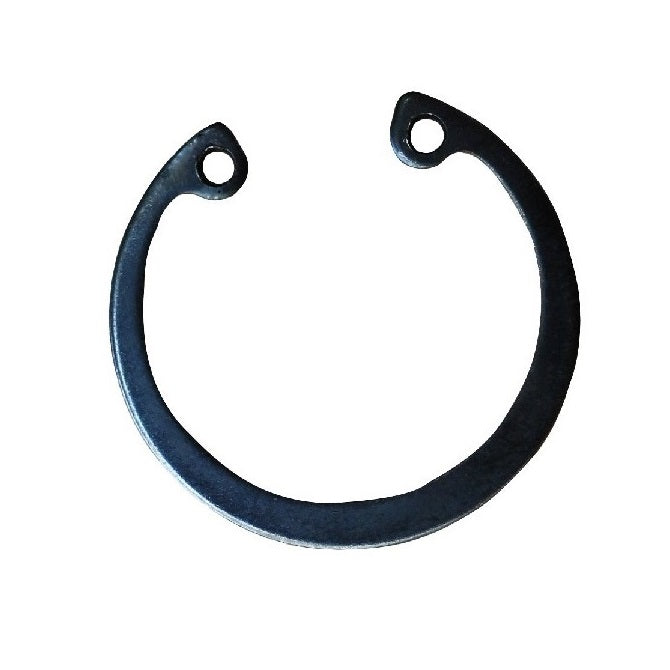

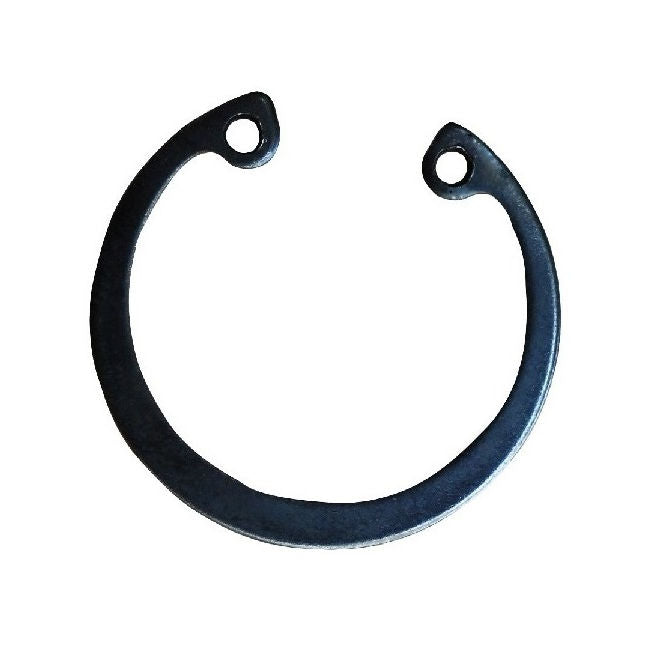

CCI-09200-C (PK-250)

3x3 inch Circlip - 92x3x95.5 mm Internal Retaining Rings - Carbon Steel - Sold per pack of 250:

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Standard - Carbon Steel

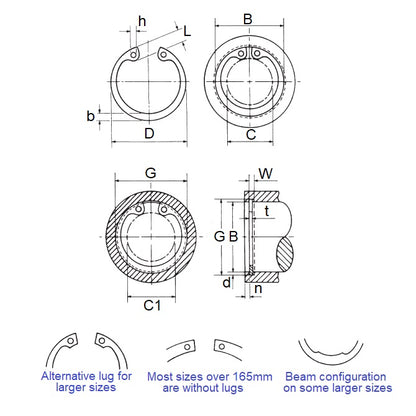

Product Details

• Housing Bore (B): 92.00mm
  _{(92.00mm is 3.622 in.)}

• Clip Thickness (T): 3.00mm
  _{+ 0.00 / - 0.08
  (3.00mm is 0.118 in.)}

• Groove Dia. (Dg): 95.50mm
  _{+ 0.35 / - 0.00
  (95.50mm is 3.76 in.)}

• Approx. Loose Circlip OD (Dr): 97.50mm
  _{+ 1.30 / - 0.54}

• Groove Width (W): 3.15mm
  _{+ 0.13 / - 0.00}

• Clearance in Bore (C): 73.70mm
• Clearance in Groove (C1): 78.10mm
• Min. Lug Diameter (h): 3.50mm
• Min. Extension (n): 5.30
• Standard: DIN472

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Ellison® 472-092
• ALTPART
• 98455A637
• Bossard® BN-822-092
• Waldes® D1300-092
• Huyett® DHO-092
• NoCor® DHO-092
• Rotor Clip® DHO-092
• Seeger® J-092
• Seeger® J92
• Seeger® J92-S
• Seeger® J92X3
• Seeger® NZT.J92
• BN822092
• J092
• J92S
• D1300092
• D13000920
• D1300-0920
• D13000920APP
• DHO092
• D1300-0920APP
• 472092
