Collection: Retaining Rings - External - Spiral Rings

Retaining Rings -> External -> Spiral Rings

There are 172 products in the sub-categories of Retaining Rings - External - Spiral Rings. Scroll down or follow the link to Retaining Rings - External - Spiral Rings in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

External Retaining Rings - 9.525x0.38x8.92 mm - Spring Steel

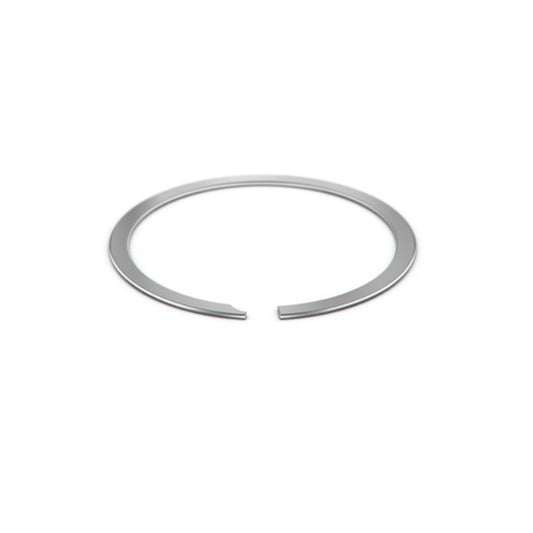

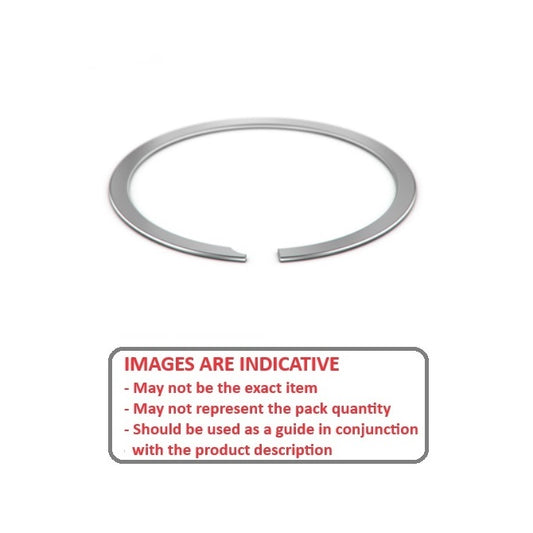

Retaining Rings - External - Spiral Rings - Light Duty

This category includes various types of external retaining rings.An expanded range may...

Retaining Rings - External - Spiral Rings - Light Duty

External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8

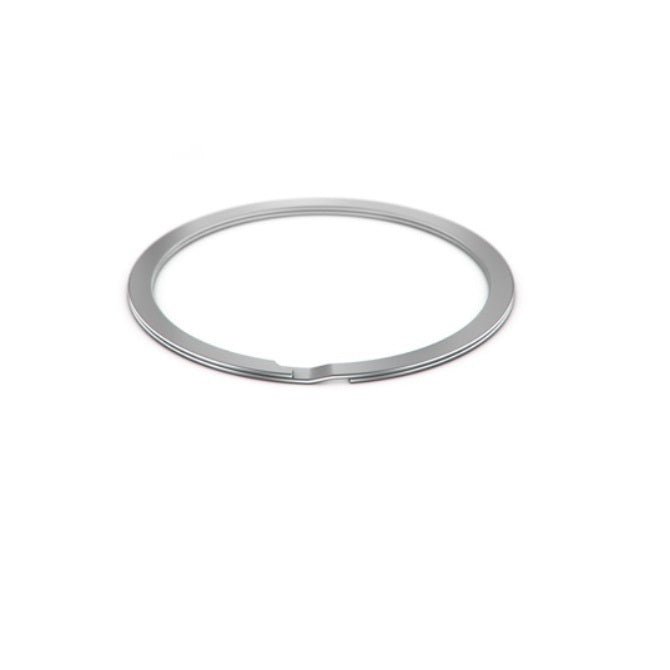

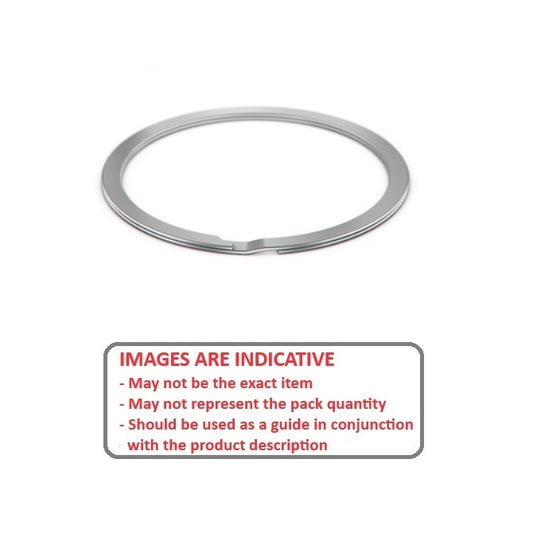

Retaining Rings - External - Spiral Rings - Medium Duty

This category includes various types of external retaining rings.An expanded range may...

Retaining Rings - External - Spiral Rings - Medium Duty

External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8

Retaining Rings - External - Spiral Rings - Medium-Heavy

This category includes various types of external retaining rings.An expanded range may...

Retaining Rings - External - Spiral Rings - Medium-Heavy

External Retaining Rings - 12.7x0.89x12.04 mm - Spring Steel

Retaining Rings - External - Spiral Rings - Medium-Heavy Duty

This category includes various types of external retaining rings.An expanded range may...

Retaining Rings - External - Spiral Rings - Medium-Heavy Duty

External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel

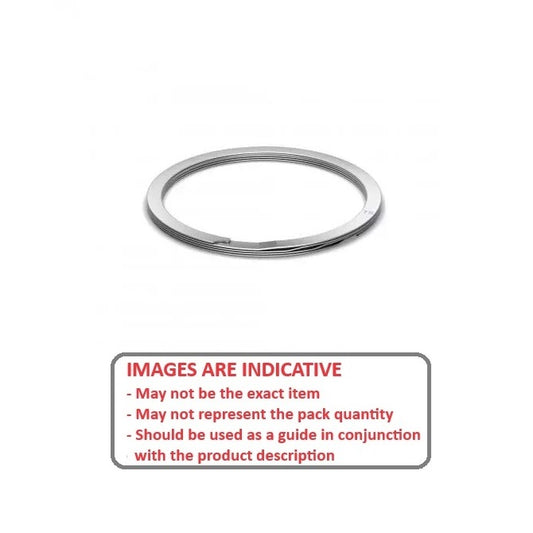

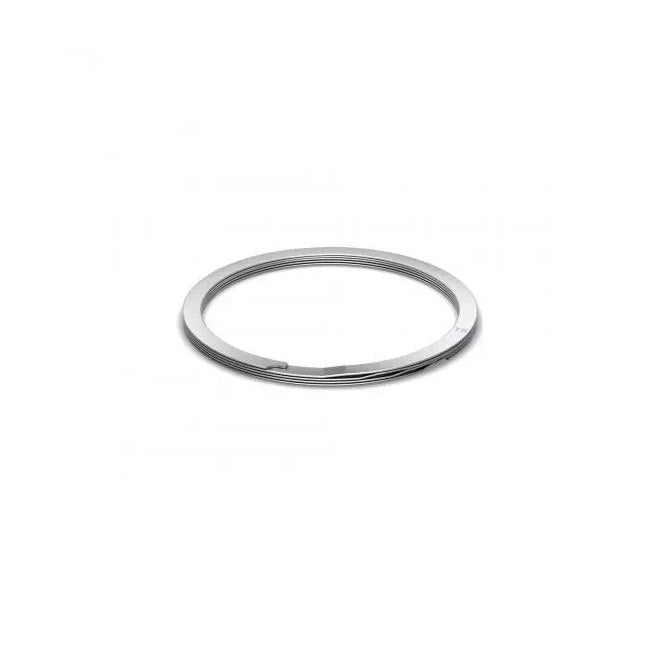

Retaining Rings - External - Spiral Rings - Heavy Duty

This category includes various types of external retaining rings.An expanded range may...

Retaining Rings - External - Spiral Rings - Heavy Duty

Category Details

This category includes various types of external retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spiral Rings and Snap Rings PDF

A more concise listing may be found in the Retaining Rings - External - Spiral Rings category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 9.525 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.05} (Equiv. 0.015 in.)	Groove Dia. (Dg) 8.92 mm (Equiv. 0.351 in.)	Approx. Loose Circlip ID (A) 8.83 mm + 0.00 / - 0.25	Radial Wall (S) min/max 0.635 mm +/- 0.10	Groove Width (W) 0.46 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 10.10 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $53.23 AUD Regular price Sale price $53.23 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 9.525 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.38 mm _{+/- 0.05} (Equiv. 0.015 in.)	Groove Dia. (Dg) 8.92 mm (Equiv. 0.351 in.)	Approx. Loose Circlip ID (A) 8.83 mm + 0.00 / - 0.25
Material: Carbon Spring Steel Radial Wall (S) min/max: 0.635 mm +/- 0.10 Groove Width (W): 0.46 mm +/- 0.05 Approx. Loose Clip OD: 10.10 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-037 (25 Pcs) External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $53.23 AUD Regular price Sale price $53.23 AUD Unit price per Per 25 Quantity Required Backorder: Out of Stock.
US-037 (25 Pcs) --- External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring US-037 (25 Pcs) --- External Retaining Rings - 9.525x0.38x8.92 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $53.23 AUD Regular price Sale price $53.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 6 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 6 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 6 Available Now
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.46 mm _{+/- 0.04} (Equiv. 0.018 in.)	Groove Dia. (Dg) 11.99 mm (Equiv. 0.472 in.)	Approx. Loose Circlip ID (A) 12.07 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.59 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-050-S02 (1356 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2,306.41 AUD Regular price Sale price $2,306.41 AUD Unit price per Per 1356 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.46 mm _{+/- 0.04} (Equiv. 0.018 in.)	Groove Dia. (Dg) 11.99 mm (Equiv. 0.472 in.)	Approx. Loose Circlip ID (A) 12.07 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.59 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- - 0.03 Category: Retaining Rings - External - Spiral Rings - Light Duty
Part Number: US-050-S02 (1356 Pcs) External Retaining Rings - 12.7x0.46x11.99 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Fri, Oct 03, 2025 Regular price $2,306.41 AUD Regular price Sale price $2,306.41 AUD Unit price per Per 1356 Quantity Required Backorder: Out of Stock.
US-050-S02 (1356 Pcs) --- External Retaining Rings - 12.7x0.46x11.99 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring US-050-S02 (1356 Pcs) --- External Retaining Rings - 12.7x0.46x11.99 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $2,306.41 AUD Regular price Sale price $2,306.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050-S02 (8 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 12 units (96 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Per 8 Quantity Required 12 units (96 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050-S02 (8 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 12 units (96 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per Per 8 Quantity Required 12 units (96 pcs) Available Now. Backorder if more than 12.
RS-050-S02 (8 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RS-050-S02 (8 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $10.68 AUD Regular price ~~$12.82 AUD~~ Sale price $10.68 AUD Unit price per 12 Available Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5 Quantity Required 24 units (120 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-050 (5 Pcs) External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per Per 5 Quantity Required 24 units (120 pcs) Available Now. Backorder if more than 24.
RS-050 (5 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-050 (5 Pcs) --- External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $10.68 AUD Regular price Sale price $10.68 AUD Unit price per 24 Available Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (48 pcs) Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (48 pcs) Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 24 Available Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-050 (50 Pcs) External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $63.95 AUD Regular price ~~$76.75 AUD~~ Sale price $63.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 12.04 mm (Equiv. 0.474 in.)	Approx. Loose Circlip ID (A) 11.94 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.22 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-050 (50 Pcs) External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $63.95 AUD Regular price ~~$76.75 AUD~~ Sale price $63.95 AUD Unit price per Per 50 Quantity Required Backorder: Out of Stock.
RST-050 (50 Pcs) --- External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RST-050 (50 Pcs) --- External Retaining Rings - 12.7x0.89x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $63.95 AUD Regular price ~~$76.75 AUD~~ Sale price $63.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 13.49 mm (Equiv. 0.531 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.83 mm (Equiv. 0.505 in.)	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.96 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Per 19 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 13.49 mm (Equiv. 0.531 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 12.83 mm (Equiv. 0.505 in.)	Approx. Loose Circlip ID (A) 12.68 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.05 Approx. Loose Clip OD: 14.96 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-053 (19 Pcs) External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Per 19 Quantity Required Backorder: Out of Stock.
RS-053 (19 Pcs) --- External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RS-053 (19 Pcs) --- External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $13.14 AUD Regular price ~~$15.76 AUD~~ Sale price $13.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.59 mm (Equiv. 0.535 in.)	Approx. Loose Circlip ID (A) 13.41 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 15.69 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-056 (100 Pcs) External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.41 AUD Regular price ~~$10.09 AUD~~ Sale price $8.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.59 mm (Equiv. 0.535 in.)	Approx. Loose Circlip ID (A) 13.41 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 15.69 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-056 (100 Pcs) External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.41 AUD Regular price ~~$10.09 AUD~~ Sale price $8.41 AUD Unit price per Per 100 Quantity Required Backorder: Out of Stock.
RST-056 (100 Pcs) --- External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RST-056 (100 Pcs) --- External Retaining Rings - 14.27x0.89x13.59 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.41 AUD Regular price ~~$10.09 AUD~~ Sale price $8.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring 40 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring 40 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 40 Available Now
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm (Equiv. 0.594 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.06
Material: Carbon Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring 90 units (180 pcs) Available Now \| Further orders can be expected around Fri, Oct 03, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 2 Quantity Required 90 units (180 pcs) Available Now. Backorder if more than 90.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm (Equiv. 0.594 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062 (2 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring 90 units (180 pcs) Available Now \| Further orders can be expected around Fri, Oct 03, 2025 Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per Per 2 Quantity Required 90 units (180 pcs) Available Now. Backorder if more than 90.
RS-062 (2 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-062 (2 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.77 AUD Regular price Sale price $9.77 AUD Unit price per 90 Available Now
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm (Equiv. 0.594 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.06
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062-S02 (5 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 19 units (95 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 15.10 mm (Equiv. 0.594 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.06 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-062-S02 (5 Pcs) External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 19 units (95 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 Quantity Required 19 units (95 pcs) Available Now. Backorder if more than 19.
RS-062-S02 (5 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RS-062-S02 (5 Pcs) --- External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per 19 Available Now
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring 25 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 25 Available Now. Backorder if more than 25.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring 25 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 25 Available Now. Backorder if more than 25.
RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm (Equiv. 0.596 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-062 (5 Pcs) External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 15.14 mm (Equiv. 0.596 in.)	Approx. Loose Circlip ID (A) 14.93 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.73 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium-Heavy Duty
Part Number: RST-062 (5 Pcs) External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RST-062 (5 Pcs) --- External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring RST-062 (5 Pcs) --- External Retaining Rings - 15.88x0.89x15.14 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $22.23 AUD Regular price Sale price $22.23 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.27 mm (Equiv. 0.68 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.67 mm (Equiv. 0.656 in.)	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 0.80 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 19.03 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.27 mm (Equiv. 0.68 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 16.67 mm (Equiv. 0.656 in.)	Approx. Loose Circlip ID (A) 16.23 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 0.80 mm +/- 0.07 Approx. Loose Clip OD: 19.03 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-068 (5 Pcs) External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RS-068 (5 Pcs) --- External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-068 (5 Pcs) --- External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $34.41 AUD Regular price Sale price $34.41 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Heavy Duty
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm (Equiv. 0.719 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 0.95 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 0.79 mm _{+/- 0.05} (Equiv. 0.031 in.)	Groove Dia. (Dg) 18.27 mm (Equiv. 0.719 in.)	Approx. Loose Circlip ID (A) 17.91 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 0.95 mm +/- 0.07 Approx. Loose Clip OD: 21.21 +/- 0.04 Category: Retaining Rings - External - Spiral Rings - Medium Duty
Part Number: RS-075 (10 Pcs) External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
RS-075 (10 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring RS-075 (10 Pcs) --- External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.05 AUD Regular price Sale price $8.05 AUD Unit price per 43 Available Now

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
