Collection: Retaining Rings - External - Spiral Rings - Medium Duty
Retaining Rings -> External -> Spiral Rings -> Medium DutyThere are 63 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium Duty. Scroll down or follow the link to Retaining Rings - External - Spiral Rings - Medium Duty in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel
A selection of Carbon Steel Medium Duty Spiral Rings External Retaining Rings....
Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel
A selection of Stainless Steel Medium Duty Spiral Rings External Retaining Rings....
Category Details
This category includes various types of external retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium Duty category on the Small Parts & Bearings online store.
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

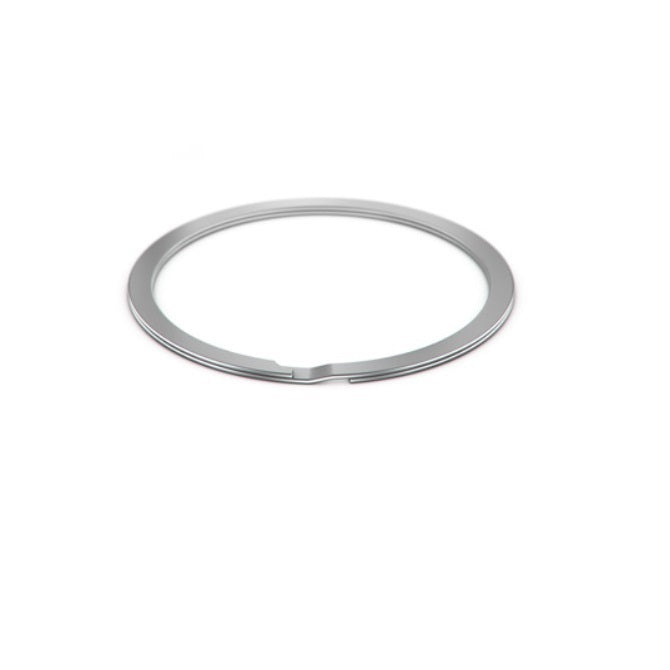

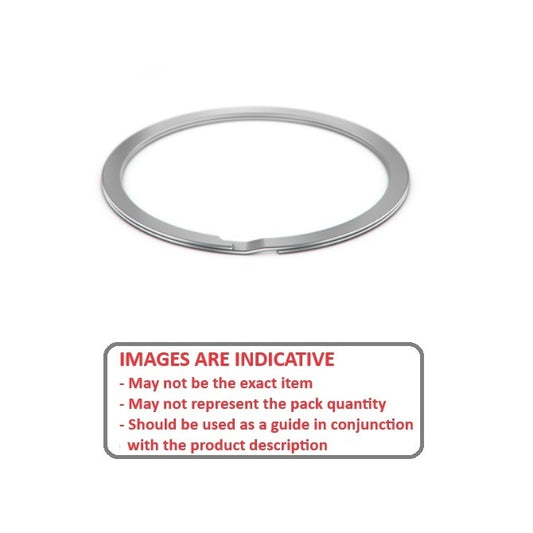

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 14.22 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 7420 |
||||||
|
Part Number: RS-050-S02 (8 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 12 units (96 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Shaft Diameter (Ds) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.22 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 7420 |
||||||
|
Part Number: RS-050-S02 (8 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 12 units (96 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$10.05 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.22 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-050 (5 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
12.70
mm (Equiv. 0.5 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.04
mm (Equiv. 0.474 in.) |
Approx. Loose Circlip ID (A)
11.94
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.22 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-050 (5 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$10.59 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
13.49
mm (Equiv. 0.531 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.83
mm (Equiv. 0.505 in.) |
Approx. Loose Circlip ID (A)
12.68
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.14
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.05 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 14.96 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 22474 |
||||||
|
Part Number: RS-053 (19 Pcs)
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$13.14 AUD
Regular price
Unit price
per
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
13.49
mm (Equiv. 0.531 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
12.83
mm (Equiv. 0.505 in.) |
Approx. Loose Circlip ID (A)
12.68
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.14 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.05
Approx. Loose Clip OD: 14.96 +/- 0.04
Groove Depth (d): 0.33
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 22474 |
||||||
|
Part Number: RS-053 (19 Pcs)
External Retaining Rings - 13.49x0.64x12.83 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$13.14 AUD
Regular price
Unit price
per
19 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.06 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 17.73 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 4501 |
||||||
|
Part Number: RS-062-S02 (5 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 19 units (95 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.06
Approx. Loose Clip OD: 17.73 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 4501 |
||||||
|
Part Number: RS-062-S02 (5 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 19 units (95 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$20.95 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.06 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 17.73 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RS-062 (2 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring 90 units (180 pcs) Available Now | Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$6.00 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
15.88
mm (Equiv. 0.625 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
15.10
mm (Equiv. 0.594 in.) |
Approx. Loose Circlip ID (A)
14.93
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.06
Approx. Loose Clip OD: 17.73 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Deleted Item. Available while stocks last. |
||||||
|
Part Number: RS-062 (2 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Carbon Spring Steel Spiral Ring 90 units (180 pcs) Available Now | Item Discontinued - Up to 90 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price
$6.00 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
17.27
mm (Equiv. 0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.67
mm (Equiv. 0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.40
mm +/- 0.10 |
Groove Width (W)
0.80
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 19.03 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: RS-068 (5 Pcs)
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$34.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
17.27
mm (Equiv. 0.68 in.) |
Clip Thickness (T)
0.64
mm +/- 0.06 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
16.67
mm (Equiv. 0.656 in.) |
Approx. Loose Circlip ID (A)
16.23
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.40 mm +/- 0.10
Groove Width (W): 0.80 mm +/- 0.07
Approx. Loose Clip OD: 19.03 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 125 |
||||||
|
Part Number: RS-068 (5 Pcs)
External Retaining Rings - 17.27x0.64x16.67 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$34.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 21.21 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 5770 |
||||||
|
Part Number: RS-075-S02 (5 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 99 units (495 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$1.32 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 21.21 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 5770 |
||||||
|
Part Number: RS-075-S02 (5 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 99 units (495 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$1.32 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 21.21 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 13888 |
||||||
|
Part Number: RS-075 (10 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 units (430 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
19.05
mm (Equiv. 0.75 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
18.27
mm (Equiv. 0.719 in.) |
Approx. Loose Circlip ID (A)
17.91
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 21.21 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 13888 |
||||||
|
Part Number: RS-075 (10 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 units (430 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$7.59 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.84
mm (Equiv. 0.781 in.) |
Approx. Loose Circlip ID (A)
19.40
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 22.7 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-081 (5 Pcs)
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
20.64
mm (Equiv. 0.813 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
19.84
mm (Equiv. 0.781 in.) |
Approx. Loose Circlip ID (A)
19.40
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 22.7 +/- 0.04
Groove Depth (d): 0.41
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel |
||||||
|
Part Number: RS-081 (5 Pcs)
External Retaining Rings - 20.64x0.79x19.84 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$28.14 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
21.29
mm (Equiv. 0.838 in.) |
Approx. Loose Circlip ID (A)
20.90
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 24.2 +/- 0.04
Groove Depth (d): 0.48
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 75 |
||||||
|
Part Number: RS-087 (100 Pcs)
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 08, 2025 Regular price
$423.68 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
22.23
mm (Equiv. 0.875 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
21.29
mm (Equiv. 0.838 in.) |
Approx. Loose Circlip ID (A)
20.90
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 24.2 +/- 0.04
Groove Depth (d): 0.48
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 75 |
||||||
|
Part Number: RS-087 (100 Pcs)
External Retaining Rings - 22.23x0.79x21.29 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Dec 08, 2025 Regular price
$423.68 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
23.01
mm (Equiv. 0.906 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
22.08
mm (Equiv. 0.869 in.) |
Approx. Loose Circlip ID (A)
21.63
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.65
mm +/- 0.10 |
Groove Width (W)
0.95
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 24.93 +/- 0.04
Groove Depth (d): 0.48
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: RS-090 (7 Pcs)
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
23.01
mm (Equiv. 0.906 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
22.08
mm (Equiv. 0.869 in.) |
Approx. Loose Circlip ID (A)
21.63
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.65 mm +/- 0.10
Groove Width (W): 0.95 mm +/- 0.07
Approx. Loose Clip OD: 24.93 +/- 0.04
Groove Depth (d): 0.48
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 590 |
||||||
|
Part Number: RS-090 (7 Pcs)
External Retaining Rings - 23.01x0.79x22.08 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$10.41 AUD
Regular price
Unit price
per
7 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
24.31
mm (Equiv. 0.957 in.) |
Approx. Loose Circlip ID (A)
23.88
mm + 0.00 / - 0.33 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.07 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 27.7 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 16242 |
||||||
|
Part Number: RS-100 (50 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$124.77 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
25.40
mm (Equiv. 1 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
24.31
mm (Equiv. 0.957 in.) |
Approx. Loose Circlip ID (A)
23.88
mm + 0.00 / - 0.33 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.07
Approx. Loose Clip OD: 27.7 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 16242 |
||||||
|
Part Number: RS-100 (50 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$124.77 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
26.97
mm (Equiv. 1.062 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
25.91
mm (Equiv. 1.02 in.) |
Approx. Loose Circlip ID (A)
25.35
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 29.17 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1329 |
||||||
|
Part Number: RS-106 (5 Pcs)
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring 92 units (460 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$2.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
26.97
mm (Equiv. 1.062 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
25.91
mm (Equiv. 1.02 in.) |
Approx. Loose Circlip ID (A)
25.35
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.10
Approx. Loose Clip OD: 29.17 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1329 |
||||||
|
Part Number: RS-106 (5 Pcs)
External Retaining Rings - 26.97x0.94x25.91 mm Spiral Rings - Carbon Spring Steel Spiral Ring 92 units (460 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$2.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.51
mm (Equiv. 1.083 in.) |
Approx. Loose Circlip ID (A)
26.87
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 30.69 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 7972 |
||||||
|
Part Number: RS-112 (5 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$14.05 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.51
mm (Equiv. 1.083 in.) |
Approx. Loose Circlip ID (A)
26.87
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.10
Approx. Loose Clip OD: 30.69 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 7972 |
||||||
|
Part Number: RS-112 (5 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$14.05 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.51
mm (Equiv. 1.083 in.) |
Approx. Loose Circlip ID (A)
26.87
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.10 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 30.69 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 8900 |
||||||
|
Part Number: RS-112-S02 (8 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
28.58
mm (Equiv. 1.125 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
27.51
mm (Equiv. 1.083 in.) |
Approx. Loose Circlip ID (A)
26.87
mm + 0.00 / - 0.38 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.10
Approx. Loose Clip OD: 30.69 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 8900 |
||||||
|
Part Number: RS-112-S02 (8 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$10.68 AUD
Regular price
Unit price
per
8 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
29.36
mm (Equiv. 1.156 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
28.30
mm (Equiv. 1.114 in.) |
Approx. Loose Circlip ID (A)
27.60
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
1.91
mm +/- 0.11 |
Groove Width (W)
1.11
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 31.42 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4303 |
||||||
|
Part Number: RS-115 (100 Pcs)
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
29.36
mm (Equiv. 1.156 in.) |
Clip Thickness (T)
0.94
mm +/- 0.05 (Equiv. 0.037 in.) |
Groove Dia. (Dg)
28.30
mm (Equiv. 1.114 in.) |
Approx. Loose Circlip ID (A)
27.60
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.91 mm +/- 0.11
Groove Width (W): 1.11 mm +/- 0.10
Approx. Loose Clip OD: 31.42 +/- 0.03
Groove Depth (d): 0.53
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 4303 |
||||||
|
Part Number: RS-115 (100 Pcs)
External Retaining Rings - 29.36x0.94x28.3 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$13.86 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
30.53
mm (Equiv. 1.202 in.) |
Approx. Loose Circlip ID (A)
29.85
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 34.17 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 11522 |
||||||
|
Part Number: RS-125 (5 Pcs)
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring 56 units (280 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
30.53
mm (Equiv. 1.202 in.) |
Approx. Loose Circlip ID (A)
29.85
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.10
Approx. Loose Clip OD: 34.17 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 11522 |
||||||
|
Part Number: RS-125 (5 Pcs)
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Carbon Spring Steel Spiral Ring 56 units (280 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.41 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
30.53
mm (Equiv. 1.202 in.) |
Approx. Loose Circlip ID (A)
29.85
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.16
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.10 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 34.17 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 748 |
||||||
|
Part Number: RS-125-S02
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 20 Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
31.75
mm (Equiv. 1.25 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
30.53
mm (Equiv. 1.202 in.) |
Approx. Loose Circlip ID (A)
29.85
mm + 0.00 / - 0.38 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.16 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.10
Approx. Loose Clip OD: 34.17 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 748 |
||||||
|
Part Number: RS-125-S02
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring 20 Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$4.68 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
33.32
mm (Equiv. 1.312 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
32.11
mm (Equiv. 1.264 in.) |
Approx. Loose Circlip ID (A)
31.32
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.41
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.11 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 36.14 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1797 |
||||||
|
Part Number: RS-131 (34 Pcs)
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
34 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
33.32
mm (Equiv. 1.312 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
32.11
mm (Equiv. 1.264 in.) |
Approx. Loose Circlip ID (A)
31.32
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.41 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.11
Approx. Loose Clip OD: 36.14 +/- 0.05
Groove Depth (d): 0.61
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1797 |
||||||
|
Part Number: RS-131 (34 Pcs)
External Retaining Rings - 33.32x1.09x32.11 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$8.41 AUD
Regular price
Unit price
per
34 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
33.61
mm (Equiv. 1.323 in.) |
Approx. Loose Circlip ID (A)
32.83
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.41
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.11 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 37.65 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6722 |
||||||
|
Part Number: RS-137
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring 10 Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
34.93
mm (Equiv. 1.375 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
33.61
mm (Equiv. 1.323 in.) |
Approx. Loose Circlip ID (A)
32.83
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.41 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.11
Approx. Loose Clip OD: 37.65 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 6722 |
||||||
|
Part Number: RS-137
External Retaining Rings - 34.93x1.09x33.61 mm Spiral Rings - Carbon Spring Steel Spiral Ring 10 Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.59 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
36.50
mm (Equiv. 1.437 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
35.18
mm (Equiv. 1.385 in.) |
Approx. Loose Circlip ID (A)
34.31
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.41
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 39.13 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1774 |
||||||
|
Part Number: RS-143 (5 Pcs)
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$8.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
36.50
mm (Equiv. 1.437 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
35.18
mm (Equiv. 1.385 in.) |
Approx. Loose Circlip ID (A)
34.31
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.41 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.10
Approx. Loose Clip OD: 39.13 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 1774 |
||||||
|
Part Number: RS-143 (5 Pcs)
External Retaining Rings - 36.5x1.09x35.18 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$8.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
36.78
mm (Equiv. 1.448 in.) |
Approx. Loose Circlip ID (A)
35.81
mm + 0.00 / - 0.38 |
Radial Wall (S) Approx.
2.41
mm +/- 0.10 |
Groove Width (W)
1.27
mm +/- 0.10 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 40.63 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 8949 |
||||||
|
Part Number: RS-150 (5 Pcs)
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
38.10
mm (Equiv. 1.5 in.) |
Clip Thickness (T)
1.09
mm +/- 0.05 (Equiv. 0.043 in.) |
Groove Dia. (Dg)
36.78
mm (Equiv. 1.448 in.) |
Approx. Loose Circlip ID (A)
35.81
mm + 0.00 / - 0.38 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.41 mm +/- 0.10
Groove Width (W): 1.27 mm +/- 0.10
Approx. Loose Clip OD: 40.63 +/- 0.05
Groove Depth (d): 0.66
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 8949 |
||||||
|
Part Number: RS-150 (5 Pcs)
External Retaining Rings - 38.1x1.09x36.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (120 pcs) Available Now | Further orders can be expected around Fri, Nov 14, 2025 Regular price
$6.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
39.78
mm (Equiv. 1.566 in.) |
Approx. Loose Circlip ID (A)
38.80
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
2.74
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.13 |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 44.28 +/- 0.05
Groove Depth (d): 0.76
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 16924 |
||||||
|
Part Number: RS-162
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$6.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
39.78
mm (Equiv. 1.566 in.) |
Approx. Loose Circlip ID (A)
38.80
mm + 0.00 / - 0.51 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 2.74 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.13
Approx. Loose Clip OD: 44.28 +/- 0.05
Groove Depth (d): 0.76
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel Additional stock available from USA subject to Prior Sale = 16924 |
||||||
|
Part Number: RS-162
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$6.86 AUD
Regular price
Unit price
per
Each
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft Diameter (Ds)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
39.78
mm (Equiv. 1.566 in.) |
Approx. Loose Circlip ID (A)
38.80
mm + 0.00 / - 0.51 |
Radial Wall (S) Approx.
2.74
mm +/- 0.10 |
Groove Width (W)
1.47
mm +/- 0.13 |
|
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Approx. Loose Clip OD: 44.28 +/- 0.05
Groove Depth (d): 0.76
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 587 |
||||||
|
Part Number: RS-162-S02 (2 Pcs)
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft Diameter (Ds)
41.28
mm (Equiv. 1.625 in.) |
Clip Thickness (T)
1.25
mm +/- 0.08 (Equiv. 0.049 in.) |
Groove Dia. (Dg)
39.78
mm (Equiv. 1.566 in.) |
Approx. Loose Circlip ID (A)
38.80
mm + 0.00 / - 0.51 |
|
||
|
Material: Stainless Steel 302/304 (Similar to A2, 18-8)
Radial Wall (S) Approx.: 2.74 mm +/- 0.10
Groove Width (W): 1.47 mm +/- 0.13
Approx. Loose Clip OD: 44.28 +/- 0.05
Groove Depth (d): 0.76
Category: Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel Additional stock available from USA subject to Prior Sale = 587 |
||||||
|
Part Number: RS-162-S02 (2 Pcs)
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock | Backorder Now | Orders can be expected around Fri, Nov 14, 2025 Regular price
$11.23 AUD
Regular price
Unit price
per
2 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
