Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel

Retaining Rings -> External -> Spiral Rings -> Medium Duty -> Stainless Steel

There are 13 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel. Browse the Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel products table.

Category Details

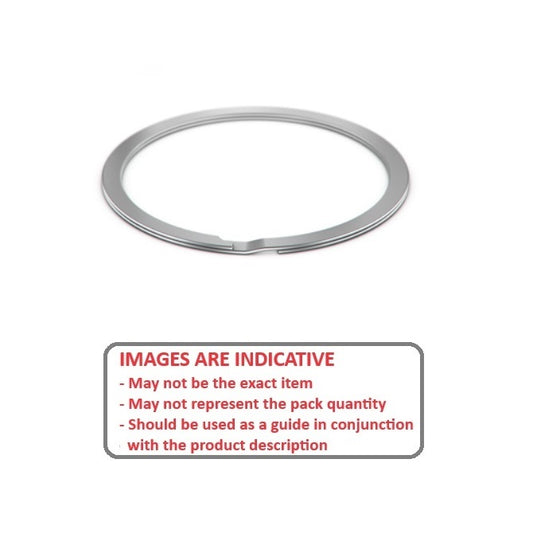

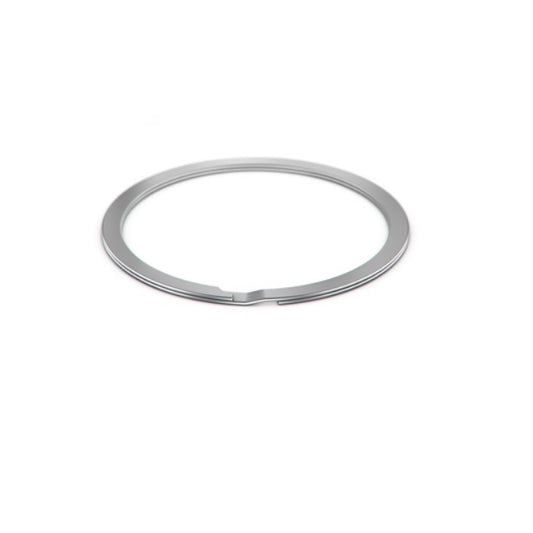

A selection of Stainless Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Stainless Steel.

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium Duty - Stainless Steel category on the Small Parts & Bearings online store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.14
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.05
External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Part Number: RS-050-S02 (8 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$10.68 AUD
$12.82 AUD $10.68 AUD
Per 8
Quantity Required

12 units (96 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
12.70
mm

(Equiv. 0.5 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
12.04
mm

(Equiv. 0.474 in.)
Approx. Loose Circlip ID (A)
11.94
mm
+ 0.00 / - 0.33
External Retaining Rings - 12.7x0.64x12.04 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.14 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.05   Approx. Loose Clip OD: 14.22 +/- 0.04   Groove Depth (d): 0.33
Part Number: RS-050-S02 (8 Pcs)
External Retaining Rings - 12.7x0.64x12.04 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
12 units (96 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$10.68 AUD
$12.82 AUD $10.68 AUD
Per 8
Quantity Required

12 units (96 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.40
mm
+/- 0.10
Groove Width (W)
0.80
mm
+/- 0.06
External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-062-S02 (5 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$22.23 AUD
$22.23 AUD
Per 5
Quantity Required

19 units (95 pcs) Available Now. Backorder if more than 19.
Shaft Diameter (Ds)
15.88
mm

(Equiv. 0.625 in.)
Clip Thickness (T)
0.64
mm
+/- 0.06
(Equiv. 0.025 in.)
Groove Dia. (Dg)
15.10
mm

(Equiv. 0.594 in.)
Approx. Loose Circlip ID (A)
14.93
mm
+ 0.00 / - 0.33
External Retaining Rings - 15.88x0.64x15.1 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.40 mm +/- 0.10    Groove Width (W): 0.80 mm +/- 0.06   Approx. Loose Clip OD: 17.73 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-062-S02 (5 Pcs)
External Retaining Rings - 15.88x0.64x15.1 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
19 units (95 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$22.23 AUD
$22.23 AUD
Per 5
Quantity Required

19 units (95 pcs) Available Now. Backorder if more than 19.
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.65
mm
+/- 0.10
Groove Width (W)
0.95
mm
+/- 0.07
External Retaining Rings - 19.05x0.79x18.27 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-075-S02 (5 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
99 units (495 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$1.32 AUD
$1.32 AUD
Per 5
Quantity Required

99 units (495 pcs) Available Now. Backorder if more than 99.
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
0.79
mm
+/- 0.05
(Equiv. 0.031 in.)
Groove Dia. (Dg)
18.27
mm

(Equiv. 0.719 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
External Retaining Rings - 19.05x0.79x18.27 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.65 mm +/- 0.10    Groove Width (W): 0.95 mm +/- 0.07   Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.41
Part Number: RS-075-S02 (5 Pcs)
External Retaining Rings - 19.05x0.79x18.27 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
99 units (495 pcs) Available Now | Further orders can be expected around Sun, Sep 21, 2025
$1.32 AUD
$1.32 AUD
Per 5
Quantity Required

99 units (495 pcs) Available Now. Backorder if more than 99.
Shaft Diameter (Ds)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
23.88
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.07
External Retaining Rings - 25.4x0.94x24.31 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 27.7 +/- 0.03   Groove Depth (d): 0.53
Part Number: RS-100-S02 (500 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$2,304.32 AUD
$2,304.32 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
23.88
mm
+ 0.00 / - 0.33
External Retaining Rings - 25.4x0.94x24.31 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.07   Approx. Loose Clip OD: 27.7 +/- 0.03   Groove Depth (d): 0.53
Part Number: RS-100-S02 (500 Pcs)
External Retaining Rings - 25.4x0.94x24.31 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Fri, Oct 03, 2025
$2,304.32 AUD
$2,304.32 AUD
Per 500
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
Radial Wall (S) min/max
1.91
mm
+/- 0.11
Groove Width (W)
1.11
mm
+/- 0.10
External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Part Number: RS-112-S02 (8 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$10.68 AUD
$12.82 AUD $10.68 AUD
Per 8
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
0.94
mm
+/- 0.05
(Equiv. 0.037 in.)
Groove Dia. (Dg)
27.51
mm

(Equiv. 1.083 in.)
Approx. Loose Circlip ID (A)
26.87
mm
+ 0.00 / - 0.38
External Retaining Rings - 28.58x0.94x27.51 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.91 mm +/- 0.11    Groove Width (W): 1.11 mm +/- 0.10   Approx. Loose Clip OD: 30.69 +/- 0.03   Groove Depth (d): 0.53
Part Number: RS-112-S02 (8 Pcs)
External Retaining Rings - 28.58x0.94x27.51 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$10.68 AUD
$12.82 AUD $10.68 AUD
Per 8
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
Radial Wall (S) min/max
2.16
mm
+/- 0.10
Groove Width (W)
1.27
mm
+/- 0.10
External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Part Number: RS-125-S02
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
20 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$4.95 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.09
mm
+/- 0.05
(Equiv. 0.043 in.)
Groove Dia. (Dg)
30.53
mm

(Equiv. 1.202 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
External Retaining Rings - 31.75x1.09x30.53 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 2.16 mm +/- 0.10    Groove Width (W): 1.27 mm +/- 0.10   Approx. Loose Clip OD: 34.17 +/- 0.05   Groove Depth (d): 0.61
Part Number: RS-125-S02
External Retaining Rings - 31.75x1.09x30.53 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
20 Available Now | Further orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$4.95 AUD
Each
Quantity Required

20 Available Now. Backorder if more than 20.
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
Radial Wall (S) min/max
2.74
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-162-S02 (2 Pcs)
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$11.23 AUD
$13.47 AUD $11.23 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
41.28
mm

(Equiv. 1.625 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
39.78
mm

(Equiv. 1.566 in.)
Approx. Loose Circlip ID (A)
38.80
mm
+ 0.00 / - 0.51
External Retaining Rings - 41.28x1.25x39.78 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 2.74 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 44.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-162-S02 (2 Pcs)
External Retaining Rings - 41.28x1.25x39.78 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$11.23 AUD
$13.47 AUD $11.23 AUD
Per 2
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
Radial Wall (S) min/max
3.00
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.13
External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (8 Pcs)
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$8.68 AUD
$10.42 AUD $8.68 AUD
Per 8
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
42.85
mm

(Equiv. 1.687 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
41.35
mm

(Equiv. 1.628 in.)
Approx. Loose Circlip ID (A)
40.28
mm
+ 0.00 / - 0.51
External Retaining Rings - 42.85x1.25x41.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 3.00 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.13   Approx. Loose Clip OD: 46.28 +/- 0.05   Groove Depth (d): 0.76
Part Number: RS-168-S02 (8 Pcs)
External Retaining Rings - 42.85x1.25x41.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$8.68 AUD
$10.42 AUD $8.68 AUD
Per 8
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
Radial Wall (S) min/max
3.25
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.41 AUD
$8.89 AUD $7.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
52.37
mm

(Equiv. 2.062 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
50.60
mm

(Equiv. 1.992 in.)
Approx. Loose Circlip ID (A)
49.23
mm
+ 0.00 / - 0.51
External Retaining Rings - 52.37x1.25x50.6 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 3.25 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 55.73 +/- 0.05   Groove Depth (d): 0.89
Part Number: RS-206-S02
External Retaining Rings - 52.37x1.25x50.6 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$7.41 AUD
$8.89 AUD $7.41 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
67.57
mm

(Equiv. 2.66 in.)
Approx. Loose Circlip ID (A)
65.66
mm
+ 0.00 / - 0.76
Radial Wall (S) min/max
4.01
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.16
External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 73.68 +/- 0.05   Groove Depth (d): 1.14
Part Number: RS-275-S02
External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$21.23 AUD
$25.47 AUD $21.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
69.85
mm

(Equiv. 2.75 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
67.57
mm

(Equiv. 2.66 in.)
Approx. Loose Circlip ID (A)
65.66
mm
+ 0.00 / - 0.76
External Retaining Rings - 69.85x1.25x67.57 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 4.01 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.16   Approx. Loose Clip OD: 73.68 +/- 0.05   Groove Depth (d): 1.14
Part Number: RS-275-S02
External Retaining Rings - 69.85x1.25x67.57 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$21.23 AUD
$25.47 AUD $21.23 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
70.64
mm

(Equiv. 2.781 in.)
Approx. Loose Circlip ID (A)
68.65
mm
+ 0.00 / - 0.76
Radial Wall (S) min/max
4.27
mm
+/- 0.13
Groove Width (W)
1.47
mm
+/- 0.15
External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 77.19 +/- 0.05   Groove Depth (d): 1.19
Part Number: RS-287-S02
External Retaining Rings - 73.03x1.25x70.64 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

16 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
73.03
mm

(Equiv. 2.875 in.)
Clip Thickness (T)
1.25
mm
+/- 0.08
(Equiv. 0.049 in.)
Groove Dia. (Dg)
70.64
mm

(Equiv. 2.781 in.)
Approx. Loose Circlip ID (A)
68.65
mm
+ 0.00 / - 0.76
External Retaining Rings - 73.03x1.25x70.64 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 4.27 mm +/- 0.13    Groove Width (W): 1.47 mm +/- 0.15   Approx. Loose Clip OD: 77.19 +/- 0.05   Groove Depth (d): 1.19
Part Number: RS-287-S02
External Retaining Rings - 73.03x1.25x70.64 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
16 Available Now | Item Discontinued - Up to 16 may be ordered online. No backorders. Please contact us if you need a larger quantity
$8.00 AUD
$15.20 AUD $8.00 AUD
Each
Quantity Required

16 Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
73.76
mm

(Equiv. 2.904 in.)
Approx. Loose Circlip ID (A)
71.63
mm
+ 0.00 / - 0.76
Radial Wall (S) min/max
4.27
mm
+/- 0.13
Groove Width (W)
1.79
mm
+/- 0.15
External Retaining Rings - 76.2x1.55x73.76 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 80.17 +/- 0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (100 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
76.20
mm

(Equiv. 3 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
73.76
mm

(Equiv. 2.904 in.)
Approx. Loose Circlip ID (A)
71.63
mm
+ 0.00 / - 0.76
External Retaining Rings - 76.2x1.55x73.76 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 4.27 mm +/- 0.13    Groove Width (W): 1.79 mm +/- 0.15   Approx. Loose Clip OD: 80.17 +/- 0.06   Groove Depth (d): 1.22
Part Number: RS-300-S02 (100 Pcs)
External Retaining Rings - 76.2x1.55x73.76 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$10.32 AUD
$12.38 AUD $10.32 AUD
Per 100
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
80.95
mm

(Equiv. 3.187 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
78.46
mm

(Equiv. 3.089 in.)
Approx. Loose Circlip ID (A)
76.09
mm
+ 0.00 / - 0.76
Radial Wall (S) min/max
4.52
mm
+/- 0.13
Groove Width (W)
1.79
mm
+/- 0.15
External Retaining Rings - 80.95x1.55x78.46 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 85.13 +/- 0.06   Groove Depth (d): 1.24
Part Number: RS-318-S02
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$16.68 AUD
$20.02 AUD $16.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
80.95
mm

(Equiv. 3.187 in.)
Clip Thickness (T)
1.55
mm
+/- 0.08
(Equiv. 0.061 in.)
Groove Dia. (Dg)
78.46
mm

(Equiv. 3.089 in.)
Approx. Loose Circlip ID (A)
76.09
mm
+ 0.00 / - 0.76
External Retaining Rings - 80.95x1.55x78.46 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 4.52 mm +/- 0.13    Groove Width (W): 1.79 mm +/- 0.15   Approx. Loose Clip OD: 85.13 +/- 0.06   Groove Depth (d): 1.24
Part Number: RS-318-S02
External Retaining Rings - 80.95x1.55x78.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$16.68 AUD
$20.02 AUD $16.68 AUD
Each
Quantity Required

Backorder: Out of Stock.
