Retaining Rings - External - Spiral Rings - Medium-Heavy

Retaining Rings -> External -> Spiral Rings -> Medium-Heavy

There are 2 products in the sub-categories of Retaining Rings - External - Spiral Rings - Medium-Heavy. Browse the Retaining Rings - External - Spiral Rings - Medium-Heavy products table. To narrow down the selection, please choose a sub-category from the links below.

Category Details

This category includes various types of external retaining rings.
  • An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:


A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Medium-Heavy category on the Small Parts & Bearings online store.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) min/max Groove Width (W) Indicative
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
18.16
mm

(Equiv. 0.715 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
Radial Wall (S) min/max
1.65
mm
+/- 0.10
Groove Width (W)
1.21
mm
+/- 0.08

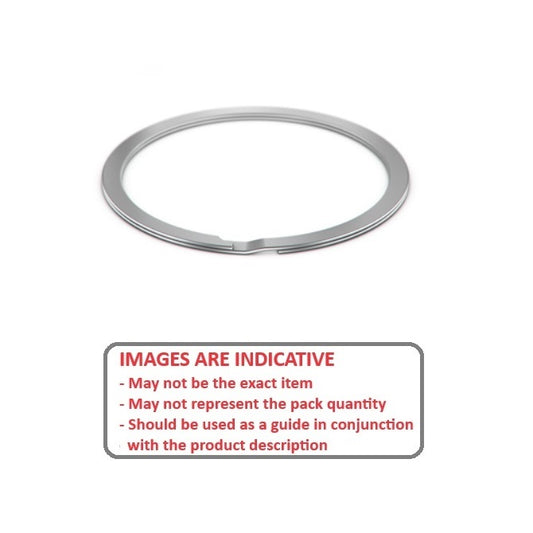

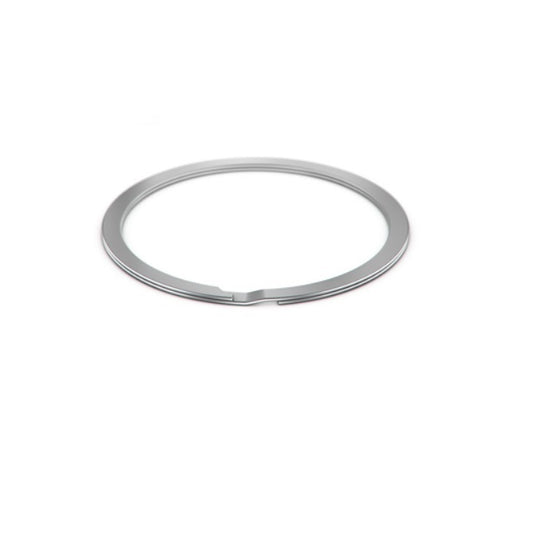

External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.46
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RST-075-S02 (25 Pcs)
External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$149.14 AUD
$149.14 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft Diameter (Ds)
19.05
mm

(Equiv. 0.75 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
18.16
mm

(Equiv. 0.715 in.)
Approx. Loose Circlip ID (A)
17.91
mm
+ 0.00 / - 0.33
External Retaining Rings - 19.05x1.07x18.16 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 1.65 mm +/- 0.10    Groove Width (W): 1.21 mm +/- 0.08   Approx. Loose Clip OD: 21.21 +/- 0.04   Groove Depth (d): 0.46
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RST-075-S02 (25 Pcs)
External Retaining Rings - 19.05x1.07x18.16 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$149.14 AUD
$149.14 AUD
Per 25
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.35
mm

(Equiv. 1.195 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
Radial Wall (S) min/max
2.36
mm
+/- 0.10
Groove Width (W)
1.47
mm
+/- 0.10
External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Approx. Loose Clip OD: 34.57 +/- 0.05   Groove Depth (d): 0.71
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RST-125-S02
External Retaining Rings - 31.75x1.27x30.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$5.95 AUD $4.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
Shaft Diameter (Ds)
31.75
mm

(Equiv. 1.25 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
30.35
mm

(Equiv. 1.195 in.)
Approx. Loose Circlip ID (A)
29.85
mm
+ 0.00 / - 0.38
External Retaining Rings - 31.75x1.27x30.35 mm - Stainless Steel 302/304 Similar to A2, 18-8
Material: Stainless Steel 302/304 (Similar to A2, 18-8)    Radial Wall (S) min/max: 2.36 mm +/- 0.10    Groove Width (W): 1.47 mm +/- 0.10   Approx. Loose Clip OD: 34.57 +/- 0.05   Groove Depth (d): 0.71
Category: Retaining Rings - External - Spiral Rings - Medium-Heavy - Stainless Steel
Part Number: RST-125-S02
External Retaining Rings - 31.75x1.27x30.35 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring
Out of Stock | Backorder Now | Orders can be expected around Sun, Sep 21, 2025
$4.95 AUD
$5.95 AUD $4.95 AUD
Each
Quantity Required

Backorder: Out of Stock.
