Collection: Retaining Rings - External - Spiral Rings - Heavy Duty

Retaining Rings -> External -> Spiral Rings -> Heavy Duty

There are 84 products in the sub-categories of Retaining Rings - External - Spiral Rings - Heavy Duty. Scroll down or follow the link to Retaining Rings - External - Spiral Rings - Heavy Duty in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.

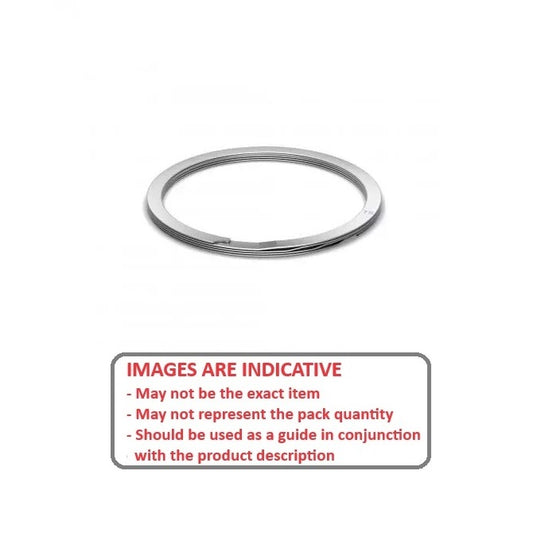

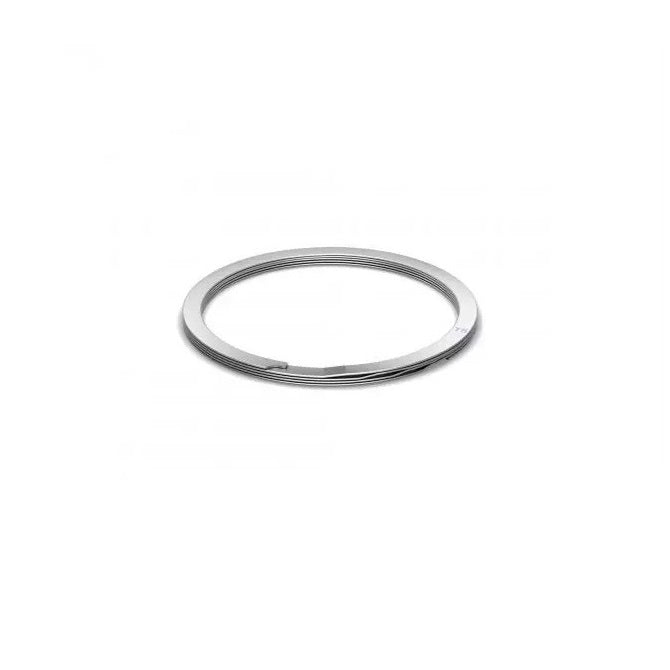

External Retaining Rings - 11.91x0.64x11.25 mm - Spring Steel

Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

A selection of Carbon Steel Heavy Duty Spiral Rings External Retaining Rings....

Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel

External Retaining Rings - 11.91x0.64x11.25 mm - Stainless Steel 302/304 Similar to A2, 18-8

Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel

A selection of Stainless Steel Heavy Duty Spiral Rings External Retaining Rings....

Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel

Category Details

This category includes various types of external retaining rings.

An expanded range may be available on special order. Please enquire.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

Spiral Rings and Snap Rings PDF

A more concise listing may be found in the Retaining Rings - External - Spiral Rings - Heavy Duty category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 6 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-046 External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring 6 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per Each Quantity Required 6 Available Now. Backorder if more than 6.
RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-046 --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $6.32 AUD Regular price Sale price $6.32 AUD Unit price per 6 Available Now
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.14 mm +/- 0.10	Groove Width (W) 0.78 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.06} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 11.08 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.14 mm +/- 0.10 Groove Width (W): 0.78 mm +/- 0.05 Approx. Loose Clip OD: 13.36 +/- 0.04 Groove Depth (d): 0.33 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-046-S02 (10 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-046-S02 (10 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $61.59 AUD Regular price ~~$73.91 AUD~~ Sale price $61.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-050-S02 External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-050-S02 --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.14 AUD Regular price ~~$7.36 AUD~~ Sale price $6.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (48 pcs) Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.81 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 14.35 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-050 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 24 units (48 pcs) Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 2 Quantity Required 24 units (48 pcs) Available Now. Backorder if more than 24.
RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-050 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 24 Available Now
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-056-S02 External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-056-S02 --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.23 AUD Regular price ~~$7.47 AUD~~ Sale price $6.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.05
Material: Carbon Spring Steel Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 14.27 mm (Equiv. 0.562 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 13.46 mm (Equiv. 0.53 in.)	Approx. Loose Circlip ID (A) 13.27 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.05 Approx. Loose Clip OD: 15.81 +/- 0.04 Groove Depth (d): 0.41 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-056 (10 Pcs) External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Per 10 Quantity Required Backorder: Out of Stock.
RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-056 (10 Pcs) --- External Retaining Rings - 14.27x0.89x13.46 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $37.14 AUD Regular price Sale price $37.14 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring 40 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-059 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring 40 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per Each Quantity Required 40 Available Now. Backorder if more than 40.
RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-059 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $6.05 AUD Regular price Sale price $6.05 AUD Unit price per 40 Available Now
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.27 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.09 mm (Equiv. 0.594 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.20 mm (Equiv. 0.559 in.)	Approx. Loose Circlip ID (A) 14.03 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.27 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 16.57 +/- 0.04 Groove Depth (d): 0.46 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-059-S02 External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-059-S02 --- External Retaining Rings - 15.09x0.89x14.2 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $6.95 AUD Regular price ~~$8.35 AUD~~ Sale price $6.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring 25 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 25 Available Now. Backorder if more than 25.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-062 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring 25 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per Each Quantity Required 25 Available Now. Backorder if more than 25.
RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring RSN-062 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $4.41 AUD Regular price Sale price $4.41 AUD Unit price per 25 Available Now
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.40 mm +/- 0.10	Groove Width (W) 1.03 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 15.88 mm (Equiv. 0.625 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.05} (Equiv. 0.035 in.)	Groove Dia. (Dg) 14.94 mm (Equiv. 0.588 in.)	Approx. Loose Circlip ID (A) 14.77 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.40 mm +/- 0.10 Groove Width (W): 1.03 mm +/- 0.08 Approx. Loose Clip OD: 17.57 +/- 0.04 Groove Depth (d): 0.48 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-062-S02 External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-062-S02 --- External Retaining Rings - 15.88x0.89x14.94 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $5.95 AUD Regular price ~~$7.15 AUD~~ Sale price $5.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-068-S02 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-068-S02 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.95 AUD Regular price ~~$9.55 AUD~~ Sale price $7.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 17.48 mm (Equiv. 0.688 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 16.41 mm (Equiv. 0.646 in.)	Approx. Loose Circlip ID (A) 16.26 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 19.56 +/- 0.04 Groove Depth (d): 0.53 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-068 External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-068 --- External Retaining Rings - 17.48x1.07x16.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $7.41 AUD Regular price ~~$8.89 AUD~~ Sale price $7.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-075 (2 Pcs) External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-075 (2 Pcs) External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring 4 units (8 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per Per 2 Quantity Required 4 units (8 pcs) Available Now. Backorder if more than 4.
RSN-075 (2 Pcs) --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-075 (2 Pcs) --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $4.32 AUD Regular price ~~$7.60 AUD~~ Sale price $4.32 AUD Unit price per 4 Available Now Sale
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.05 mm (Equiv. 0.75 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 17.89 mm (Equiv. 0.704 in.)	Approx. Loose Circlip ID (A) 17.72 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.02 +/- 0.04 Groove Depth (d): 0.58 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-075-S02 External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-075-S02 --- External Retaining Rings - 19.05x1.07x17.89 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $7.23 AUD Regular price ~~$8.67 AUD~~ Sale price $7.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-078 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring 30 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-078 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring 30 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
RSN-078 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-078 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $5.50 AUD Regular price ~~$9.75 AUD~~ Sale price $5.50 AUD Unit price per 30 Available Now Sale
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 19.84 mm (Equiv. 0.781 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 18.62 mm (Equiv. 0.733 in.)	Approx. Loose Circlip ID (A) 18.45 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 21.75 +/- 0.04 Groove Depth (d): 0.61 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-078-S02 External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-078-S02 --- External Retaining Rings - 19.84x1.07x18.62 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.59 AUD Regular price ~~$10.31 AUD~~ Sale price $8.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.65 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 20.62 mm (Equiv. 0.812 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 19.36 mm (Equiv. 0.762 in.)	Approx. Loose Circlip ID (A) 19.18 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.65 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 22.48 +/- 0.04 Groove Depth (d): 0.64 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-081-S02 External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-081-S02 --- External Retaining Rings - 20.62x1.07x19.36 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.77 AUD Regular price ~~$10.53 AUD~~ Sale price $8.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-087 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per Each Quantity Required 43 Available Now. Backorder if more than 43.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-087 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring 43 Available Now \| Further orders can be expected around Thu, Oct 02, 2025 Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per Each Quantity Required 43 Available Now. Backorder if more than 43.
RSN-087 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-087 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $5.14 AUD Regular price ~~$9.17 AUD~~ Sale price $5.14 AUD Unit price per 43 Available Now Sale
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 22.23 mm (Equiv. 0.875 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 20.86 mm (Equiv. 0.821 in.)	Approx. Loose Circlip ID (A) 20.67 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 24.49 +/- 0.04 Groove Depth (d): 0.69 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-087-S02 External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-087-S02 --- External Retaining Rings - 22.23x1.07x20.86 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $8.32 AUD Regular price ~~$9.98 AUD~~ Sale price $8.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-093-S02 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Thu, Oct 02, 2025 Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Sale RSN-093-S02 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $9.77 AUD Regular price ~~$11.73 AUD~~ Sale price $9.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33	Radial Wall (S) min/max 1.91 mm +/- 0.11	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-093 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 23.83 mm (Equiv. 0.938 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 22.41 mm (Equiv. 0.882 in.)	Approx. Loose Circlip ID (A) 22.16 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 1.91 mm +/- 0.11 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 25.98 +/- 0.04 Groove Depth (d): 0.71 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-093 External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Tue, Oct 28, 2025 Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
RSN-093 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-093 --- External Retaining Rings - 23.83x1.07x22.41 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $9.50 AUD Regular price ~~$11.40 AUD~~ Sale price $9.50 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 24.99 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.08
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.56 +/- 0.04 Groove Depth (d): 0.74 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-098 (10 Pcs) External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
Shaft Diameter (Ds) 24.99 mm (Equiv. 0.984 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.52 mm (Equiv. 0.926 in.)	Approx. Loose Circlip ID (A) 23.24 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.08 Approx. Loose Clip OD: 27.56 +/- 0.04 Groove Depth (d): 0.74 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-098 (10 Pcs) External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring 2 units (20 pcs) Available Now \| Item Discontinued - Up to 2 may be ordered online. No backorders. Please contact us if you need a larger quantity Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per Per 10 Quantity Required 2 units (20 pcs) Available Now. These are priced to quit. Please contact us for a quote if you require more.
RSN-098 (10 Pcs) --- External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-098 (10 Pcs) --- External Retaining Rings - 24.99x1.07x23.52 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $8.00 AUD Regular price ~~$15.20 AUD~~ Sale price $8.00 AUD Unit price per 2 Available Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Carbon Spring Steel Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-100 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Carbon Spring Steel Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Carbon Steel
Part Number: RSN-100 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RSN-100 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Sale RSN-100 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Carbon Spring Steel Spiral Ring Regular price $11.77 AUD Regular price ~~$14.13 AUD~~ Sale price $11.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33	Radial Wall (S) min/max 2.16 mm +/- 0.10	Groove Width (W) 1.21 mm +/- 0.07
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 25.40 mm (Equiv. 1 in.)	Clip Thickness (T) 1.07 mm _{+/- 0.05} (Equiv. 0.042 in.)	Groove Dia. (Dg) 23.88 mm (Equiv. 0.94 in.)	Approx. Loose Circlip ID (A) 23.62 mm + 0.00 / - 0.33
Material: Stainless Steel 302/304 (Similar to A2, 18-8) Radial Wall (S) min/max: 2.16 mm +/- 0.10 Groove Width (W): 1.21 mm +/- 0.07 Approx. Loose Clip OD: 27.94 +/- 0.04 Groove Depth (d): 0.76 Category: Retaining Rings - External - Spiral Rings - Heavy Duty - Stainless Steel
Part Number: RSN-100-S02 (5 Pcs) External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring RSN-100-S02 (5 Pcs) --- External Retaining Rings - 25.4x1.07x23.88 mm Spiral Rings - Stainless Steel 302/304 Similar to A2, 18-8 Spiral Ring Regular price $14.23 AUD Regular price Sale price $14.23 AUD Unit price per Out of stock! Backorder Now
