Retaining Rings - External - Snap Rings

Retaining Rings -> External -> Snap Rings
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Radial Wall (S) Approx. Groove Width (W) Indicative
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
22.76
mm
+/- 0.08
(Equiv. 0.896 in.)
Approx. Loose Circlip ID (A)
22.38
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
1.98
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 23.83x1.07x22.76 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26.34
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-LS
External Retaining Rings - 23.83x1.07x22.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1) Clip Thickness (T) Groove Dia. (Dg) Approx. Loose Circlip ID (A) Indicative
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
22.76
mm
+/- 0.08
(Equiv. 0.896 in.)
Approx. Loose Circlip ID (A)
22.38
mm
+ 0.00 / - 0.79
External Retaining Rings - 23.83x1.07x22.76 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 26.34
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-LS
External Retaining Rings - 23.83x1.07x22.76 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
22.81
mm

(Equiv. 0.898 in.)
Approx. Loose Circlip ID (A)
22.76
mm
+ 0.00 / - 1.14
Radial Wall (S) Approx.
2.06
mm
Groove Width (W)
1.17
mm
External Retaining Rings - 23.83x1.07x22.81 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-LS-L
External Retaining Rings - 23.83x1.07x22.81 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
22.81
mm

(Equiv. 0.898 in.)
Approx. Loose Circlip ID (A)
22.76
mm
+ 0.00 / - 1.14
External Retaining Rings - 23.83x1.07x22.81 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.06 mm    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 26.88
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-LS-L
External Retaining Rings - 23.83x1.07x22.81 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.89
mm
+ 0.08 / - 0.00
(Equiv. 0.901 in.)
Approx. Loose Circlip ID (A)
22.68
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.80
mm
+/- 0.05
Groove Width (W)
1.98
mm
External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-C
External Retaining Rings - 23.83x1.8x22.89 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.89
mm
+ 0.08 / - 0.00
(Equiv. 0.901 in.)
Approx. Loose Circlip ID (A)
22.68
mm
+ 0.00 / - 0.90
External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.80 mm +/- 0.05    Groove Width (W): 1.98 mm    Approx. Loose Clip OD: 26.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-C
External Retaining Rings - 23.83x1.8x22.89 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.89
mm
+ 0.08 / - 0.00
(Equiv. 0.901 in.)
Approx. Loose Circlip ID (A)
22.68
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.80
mm
+/- 0.05
Groove Width (W)
1.98
mm

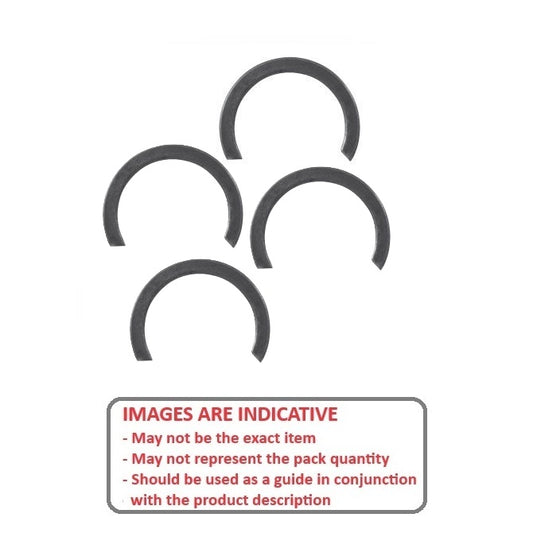

External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-O
External Retaining Rings - 23.83x1.8x22.89 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
1.80
mm
+/- 0.05
(Equiv. 0.071 in.)
Groove Dia. (Dg)
22.89
mm
+ 0.08 / - 0.00
(Equiv. 0.901 in.)
Approx. Loose Circlip ID (A)
22.68
mm
+ 0.00 / - 0.90
External Retaining Rings - 23.83x1.8x22.89 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.80 mm +/- 0.05    Groove Width (W): 1.98 mm    Approx. Loose Clip OD: 26.28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-O
External Retaining Rings - 23.83x1.8x22.89 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
22.43
mm
+ 0.08 / - 0.00
(Equiv. 0.883 in.)
Approx. Loose Circlip ID (A)
22.23
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
2.77
mm
+/- 0.05
Groove Width (W)
2.97
mm
External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-HO
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
22.43
mm
+ 0.08 / - 0.00
(Equiv. 0.883 in.)
Approx. Loose Circlip ID (A)
22.23
mm
+ 0.00 / - 0.90
External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.77 mm +/- 0.05    Groove Width (W): 2.97 mm    Approx. Loose Clip OD: 27.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-HO
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
22.43
mm
+ 0.08 / - 0.00
(Equiv. 0.883 in.)
Approx. Loose Circlip ID (A)
22.23
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
2.77
mm
+/- 0.05
Groove Width (W)
2.97
mm
External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-HC
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
23.83
mm

(Equiv. 0.938 in.)
Clip Thickness (T)
2.77
mm
+/- 0.05
(Equiv. 0.109 in.)
Groove Dia. (Dg)
22.43
mm
+ 0.08 / - 0.00
(Equiv. 0.883 in.)
Approx. Loose Circlip ID (A)
22.23
mm
+ 0.00 / - 0.90
External Retaining Rings - 23.83x2.77x22.43 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.77 mm +/- 0.05    Groove Width (W): 2.97 mm    Approx. Loose Clip OD: 27.77
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0238-SQ-HC
External Retaining Rings - 23.83x2.77x22.43 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.00
mm
+ 0 / - 0.13
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.50
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 26
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0240-LS (10 Pcs)
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
17 units (170 pcs) Available Now | Further orders can be expected around Thu, Nov 27, 2025
$26.59 AUD
$48.87 AUD $26.59 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

17 units (170 pcs) Available Now. Backorder if more than 17.
Shaft or Bearing OD (d1)
24.00
mm

(Equiv. 0.945 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
23.00
mm
+ 0 / - 0.13
(Equiv. 0.906 in.)
Approx. Loose Circlip ID (A)
22.50
mm
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 26
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0240-LS (10 Pcs)
External Retaining Rings - 24x1.2x23 mm Snap Rings - Carbon Spring Steel Snap Ring
17 units (170 pcs) Available Now | Further orders can be expected around Thu, Nov 27, 2025
$26.59 AUD
$48.87 AUD $26.59 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

17 units (170 pcs) Available Now. Backorder if more than 17.
Shaft or Bearing OD (d1)
24.99
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.88
mm
+/- 0.08
(Equiv. 0.94 in.)
Approx. Loose Circlip ID (A)
23.50
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
1.98
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 24.99x1.07x23.88 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27.46
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0250-LS-L
External Retaining Rings - 24.99x1.07x23.88 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
24.99
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
23.88
mm
+/- 0.08
(Equiv. 0.94 in.)
Approx. Loose Circlip ID (A)
23.50
mm
+ 0.00 / - 0.79
External Retaining Rings - 24.99x1.07x23.88 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 27.46
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0250-LS-L
External Retaining Rings - 24.99x1.07x23.88 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.00
mm
+ 0 / - 0.13
(Equiv. 0.945 in.)
Approx. Loose Circlip ID (A)
23.50
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Approx. Loose Clip OD: 27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Additional stock available from USA subject to Prior Sale = 520
Part Number: WRE-0250-LS
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
280 Available Now | Further orders can be expected around Thu, Nov 27, 2025
$6.50 AUD
$6.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

280 Available Now. Backorder if more than 280.
Shaft or Bearing OD (d1)
25.00
mm

(Equiv. 0.984 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
24.00
mm
+ 0 / - 0.13
(Equiv. 0.945 in.)
Approx. Loose Circlip ID (A)
23.50
mm
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 27
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Additional stock available from USA subject to Prior Sale = 520
Part Number: WRE-0250-LS
External Retaining Rings - 25x1.2x24 mm Snap Rings - Carbon Spring Steel Snap Ring
280 Available Now | Further orders can be expected around Thu, Nov 27, 2025
$6.50 AUD
$6.50 AUD
Each
Excludes GST and overseas Taxes & Duties
Quantity Required

280 Available Now. Backorder if more than 280.
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.23
mm
+/- 0.08
(Equiv. 0.954 in.)
Approx. Loose Circlip ID (A)
23.98
mm
- 0.00 / + 0.80
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254A-SR-L
External Retaining Rings - 25.4x1.07x24.23 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.23
mm
+/- 0.08
(Equiv. 0.954 in.)
Approx. Loose Circlip ID (A)
23.98
mm
- 0.00 / + 0.80
External Retaining Rings - 25.4x1.07x24.23 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 28.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254A-SR-L
External Retaining Rings - 25.4x1.07x24.23 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
24.26
mm
+ 0.00 / - 1.21
Radial Wall (S) Approx.
2.06
mm
Groove Width (W)
1.17
mm
External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-LS-L
External Retaining Rings - 25.4x1.07x24.31 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.07
mm
+/- 0.04
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.31
mm

(Equiv. 0.957 in.)
Approx. Loose Circlip ID (A)
24.26
mm
+ 0.00 / - 1.21
External Retaining Rings - 25.4x1.07x24.31 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.06 mm    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 28.38
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-LS-L
External Retaining Rings - 25.4x1.07x24.31 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-O
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-O
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-C
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
24.38
mm
+ 0.08 / - 0.00
(Equiv. 0.96 in.)
Approx. Loose Circlip ID (A)
24.13
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x1.98x24.38 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 28.09
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-C
External Retaining Rings - 25.4x1.98x24.38 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-HC
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0254-SQ-HC
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Additional stock available from USA subject to Prior Sale = 1445
Part Number: WRE-0254-SQ-HO (50 Pcs)
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025
$54.86 AUD
$65.84 AUD $54.86 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
25.40
mm

(Equiv. 1 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
23.83
mm
+ 0.08 / - 0.00
(Equiv. 0.938 in.)
Approx. Loose Circlip ID (A)
23.60
mm
+ 0.00 / - 0.90
External Retaining Rings - 25.4x3.18x23.83 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 29.96
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Additional stock available from USA subject to Prior Sale = 1445
Part Number: WRE-0254-SQ-HO (50 Pcs)
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 18, 2025
$54.86 AUD
$65.84 AUD $54.86 AUD
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.82
mm
+/- 0.08
(Equiv. 0.977 in.)
Approx. Loose Circlip ID (A)
24.44
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.17
mm
External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS-L
External Retaining Rings - 25.98x1.07x24.82 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
25.98
mm

(Equiv. 1.023 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
24.82
mm
+/- 0.08
(Equiv. 0.977 in.)
Approx. Loose Circlip ID (A)
24.44
mm
+ 0.00 / - 0.79
External Retaining Rings - 25.98x1.07x24.82 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 29.16
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS-L
External Retaining Rings - 25.98x1.07x24.82 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.00
mm
+ 0 / - 0.13
(Equiv. 0.984 in.)
Approx. Loose Circlip ID (A)
24.50
mm
Radial Wall (S) Approx.
1.75
mm
+ 0 / - 0.10
Groove Width (W)
1.30
mm
External Retaining Rings - 26x1.2x25 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS (10 Pcs)
External Retaining Rings - 26x1.2x25 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$32.68 AUD
$32.68 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
26.00
mm

(Equiv. 1.024 in.)
Clip Thickness (T)
1.20
mm
+ 0 / - 0.10
(Equiv. 0.047 in.)
Groove Dia. (Dg)
25.00
mm
+ 0 / - 0.13
(Equiv. 0.984 in.)
Approx. Loose Circlip ID (A)
24.50
mm
External Retaining Rings - 26x1.2x25 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.75 mm + 0 / - 0.10    Groove Width (W): 1.30 mm    Approx. Loose Clip OD: 28
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0260-LS (10 Pcs)
External Retaining Rings - 26x1.2x25 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$32.68 AUD
$32.68 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
26.98
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
25.81
mm
+/- 0.08
(Equiv. 1.016 in.)
Approx. Loose Circlip ID (A)
25.40
mm
+ 0.00 / - 0.79
Radial Wall (S) Approx.
2.36
mm
+/- 0.08
Groove Width (W)
1.42
mm
External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 30.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-LS-L
External Retaining Rings - 26.98x1.27x25.81 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
26.98
mm

(Equiv. 1.062 in.)
Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.)
Groove Dia. (Dg)
25.81
mm
+/- 0.08
(Equiv. 1.016 in.)
Approx. Loose Circlip ID (A)
25.40
mm
+ 0.00 / - 0.79
External Retaining Rings - 26.98x1.27x25.81 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.36 mm +/- 0.08    Groove Width (W): 1.42 mm    Approx. Loose Clip OD: 30.12
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-LS-L
External Retaining Rings - 26.98x1.27x25.81 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-O
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-O
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
1.98
mm
+/- 0.05
Groove Width (W)
2.16
mm
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-C
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.)
Groove Dia. (Dg)
25.96
mm
+ 0.08 / - 0.00
(Equiv. 1.022 in.)
Approx. Loose Circlip ID (A)
25.71
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x1.98x25.96 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 1.98 mm +/- 0.05    Groove Width (W): 2.16 mm    Approx. Loose Clip OD: 29.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-C
External Retaining Rings - 27x1.98x25.96 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HC
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HC
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
Radial Wall (S) Approx.
3.18
mm
+/- 0.05
Groove Width (W)
3.38
mm
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HO
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
27.00
mm

(Equiv. 1.063 in.)
Clip Thickness (T)
3.18
mm
+/- 0.05
(Equiv. 0.125 in.)
Groove Dia. (Dg)
25.40
mm
+ 0.08 / - 0.00
(Equiv. 1 in.)
Approx. Loose Circlip ID (A)
25.15
mm
+ 0.00 / - 0.90
External Retaining Rings - 27x3.18x25.4 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.05    Groove Width (W): 3.38 mm    Approx. Loose Clip OD: 31.51
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0270-SQ-HO
External Retaining Rings - 27x3.18x25.4 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
Shaft or Bearing OD (d1)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
27.00
mm
+ 0 / - 0.13
(Equiv. 1.063 in.)
Approx. Loose Circlip ID (A)
26.50
mm
Radial Wall (S) Approx.
2.30
mm
+ 0 / - 0.10
Groove Width (W)
1.60
mm
External Retaining Rings - 28x1.5x27 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 31.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0280-LS (10 Pcs)
External Retaining Rings - 28x1.5x27 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$101.14 AUD
$101.14 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
28.00
mm

(Equiv. 1.102 in.)
Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.)
Groove Dia. (Dg)
27.00
mm
+ 0 / - 0.13
(Equiv. 1.063 in.)
Approx. Loose Circlip ID (A)
26.50
mm
External Retaining Rings - 28x1.5x27 mm Snap Rings - Carbon Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 2.30 mm + 0 / - 0.10    Groove Width (W): 1.60 mm    Approx. Loose Clip OD: 31.1
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0280-LS (10 Pcs)
External Retaining Rings - 28x1.5x27 mm Snap Rings - Carbon Spring Steel
Out of Stock | Backorder Now | Orders can be expected around Thu, Nov 27, 2025
$101.14 AUD
$101.14 AUD
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties
Quantity Required

Backorder: Out of Stock.
Shaft or Bearing OD (d1)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.36
mm
+/- 0.08
(Equiv. 1.077 in.)
Approx. Loose Circlip ID (A)
40.77
mm
- 0.00 / + 0.80
Radial Wall (S) Approx.
3.18
mm
+/- 0.13
Groove Width (W)
1.17
mm
External Retaining Rings - 28.58x1.07x27.36 mm - Spring Steel
Material: Carbon Spring Steel    Approx. Loose Clip OD: 47.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS-L
External Retaining Rings - 28.58x1.07x27.36 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity
Shaft or Bearing OD (d1)
28.58
mm

(Equiv. 1.125 in.)
Clip Thickness (T)
1.07
mm
+/- 0.05
(Equiv. 0.042 in.)
Groove Dia. (Dg)
27.36
mm
+/- 0.08
(Equiv. 1.077 in.)
Approx. Loose Circlip ID (A)
40.77
mm
- 0.00 / + 0.80
External Retaining Rings - 28.58x1.07x27.36 mm - Spring Steel
Material: Carbon Spring Steel    Radial Wall (S) Approx.: 3.18 mm +/- 0.13    Groove Width (W): 1.17 mm    Approx. Loose Clip OD: 47.13
Category: Retaining Rings - External - Snap Rings - Carbon Steel
Part Number: WRE-0286-LS-L
External Retaining Rings - 28.58x1.07x27.36 mm Snap Rings - Carbon Spring Steel
Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Sun, Jul 16, 2028
