WRE-0254-SQ-HO (PK-50)
External Retaining Rings - 25.4x3.18x23.83 mm Snap Rings - Carbon Spring Steel
MBA
Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:Snap Rings and Spiral Rings PDF
Order 50 or more packs of 50 (2500 pcs)
for $49.37 AUD per 50 pack

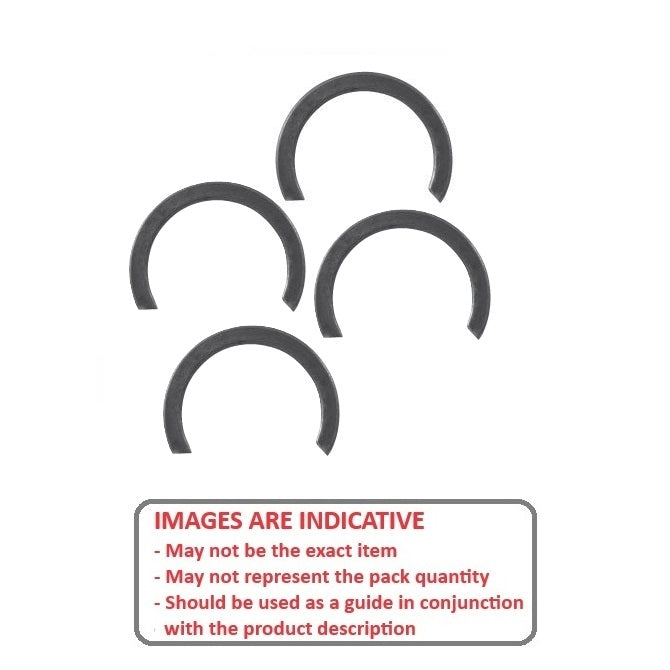

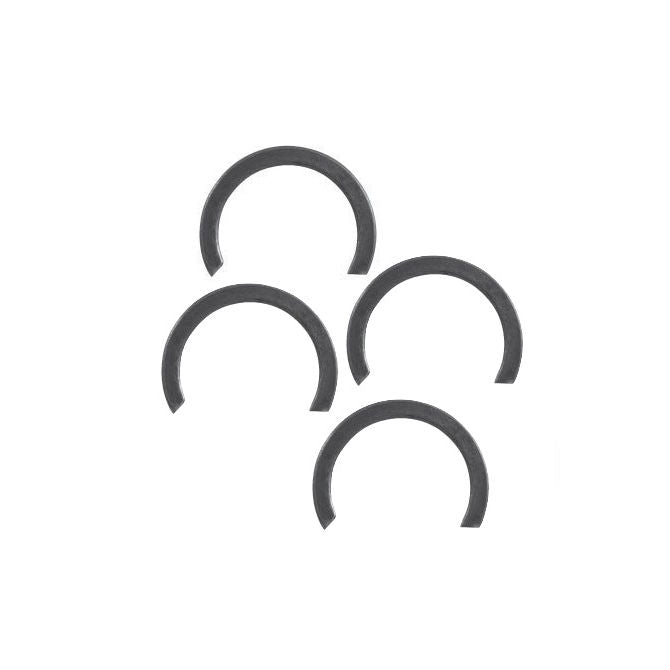

1x1/8x15/16 inch Ring - 25.4x3.18x23.83 mm External Retaining Rings - Carbon Spring Steel - Sold per pack of 50:
Base Category: Retaining Rings - External
Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 4520

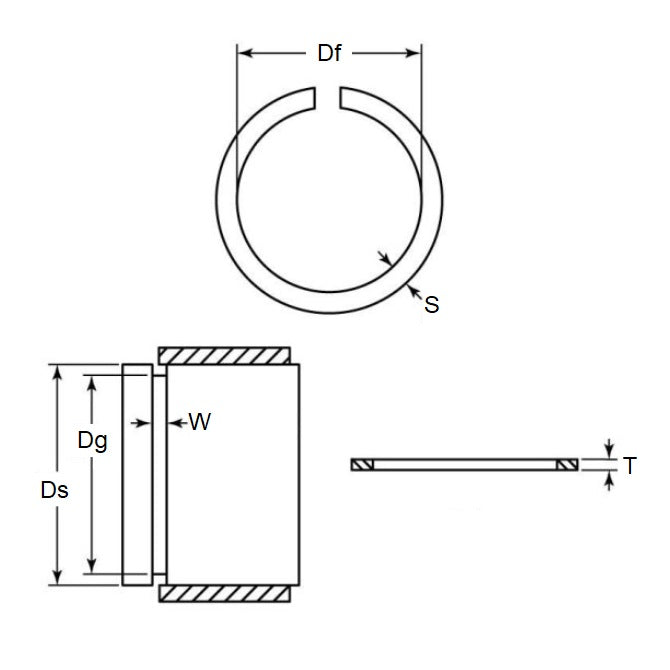

Shaft or Bearing OD (d1): 25.40mm
(25.40mm is 1 in.)
Carbon Spring Steel
- Shaft or Bearing OD (d1): 25.40mm
(25.40mm is 1 in.)
- Clip Thickness (T): 3.18mm
+/- 0.05
(3.18mm is 0.125 in.)
- Groove Dia. (Dg): 23.83mm
+ 0.08 / - 0.00
(23.83mm is 0.938 in.)
- Approx. Loose Circlip ID (A): 23.60mm
+ 0.00 / - 0.90
- Radial Wall (S) Approx.: 3.18mm
+/- 0.05
- Groove Width (W): 3.38mm
- Approx. Loose Clip OD: 29.96
- Info: Radial Assembly - Open Gap
- Section Profile: Square Section
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Eaton 400-239
- Arcon® CSO-239
- Huyett® XSO-239
- NoCor® XSO-239
- XSO239
- A0600239
- A0600-239
- CSO239
- 400239
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
WRE0254SQHO, WRE0254
