Collection: Retaining Rings - External - Snap Rings
Retaining Rings -> External -> Snap RingsThere are 380 products in the sub-categories of Retaining Rings - External - Snap Rings. Scroll down or follow the link to Retaining Rings - External - Snap Rings in the products table to see all these items combined into a handy table with filters. To narrow down the selection, please choose a sub-category from the links below.
Retaining Rings - External - Snap Rings - Carbon Steel
A selection of Carbon Steel Snap Rings External Retaining Rings. Includes series...
Retaining Rings - External - Snap Rings - Stainless Steel
A selection of Stainless Steel Snap Rings External Retaining Rings. Includes series...
Category Details
This category includes various types of external retaining rings.
- An expanded range may be available on special order. Please enquire.
Miniature Bearings Australia - MBA Minibearings
Additional resources:
A more concise listing may be found in the Retaining Rings - External - Snap Rings category on the Small Parts & Bearings online store.
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) Approx. | Groove Width (W) |

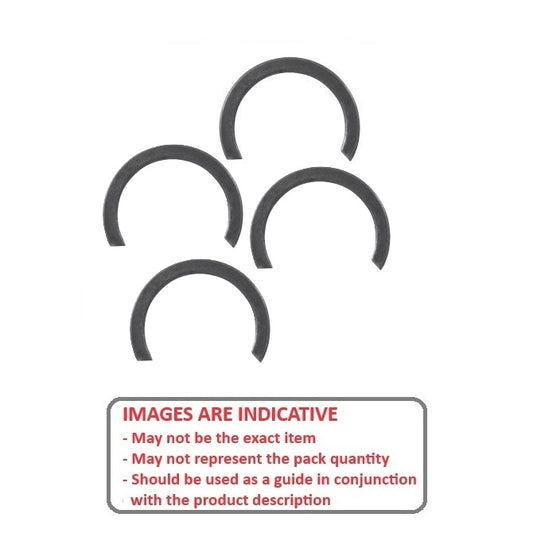

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (Equiv. 0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
Radial Wall (S) Approx.
0.50
mm + 0 / - 0.10 |
Groove Width (W)
0.33
mm |
|
|
Material: Stainless Steel 301 S11/S22
Approx. Loose Clip OD: 3.6
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0030-LS-S1 (1000 Pcs)
External Retaining Rings - 3x0.3x2.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
3.00
mm (Equiv. 0.118 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
2.70
mm + 0 / - 0.05 (Equiv. 0.106 in.) |
Approx. Loose Circlip ID (A)
2.60
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.50 mm + 0 / - 0.10
Groove Width (W): 0.33 mm
Approx. Loose Clip OD: 3.6
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0030-LS-S1 (1000 Pcs)
External Retaining Rings - 3x0.3x2.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 3.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0032-SQ-C
External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 3.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0032-SQ-C
External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 3.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0032-SQ-O
External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
3.18
mm (Equiv. 0.125 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
2.92
mm + 0.08 / - 0.00 (Equiv. 0.115 in.) |
Approx. Loose Circlip ID (A)
2.90
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 3.92
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0032-SQ-O
External Retaining Rings - 3.18x0.51x2.92 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 4.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0039-SQ-O
External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 4.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0039-SQ-O
External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.51
mm +/- 0.08 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 4.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0039-SQ-C
External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
3.96
mm (Equiv. 0.156 in.) |
Clip Thickness (T)
0.51
mm +/- 0.08 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
3.71
mm + 0.10 / - 0.00 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.68
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.08
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 4.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0039-SQ-C
External Retaining Rings - 3.96x0.51x3.71 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
4.00
mm (Equiv. 0.157 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
3.70
mm + 0 / - 0.05 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.60
mm |
Radial Wall (S) Approx.
0.30
mm + 0 / - 0.10 |
Groove Width (W)
0.33
mm |
|
|
Material: Stainless Steel 301 S11/S22
Approx. Loose Clip OD: 4.2
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0040-SQ-S1 (1000 Pcs)
External Retaining Rings - 4x0.3x3.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
4.00
mm (Equiv. 0.157 in.) |
Clip Thickness (T)
0.30
mm +/- 0.02 (Equiv. 0.012 in.) |
Groove Dia. (Dg)
3.70
mm + 0 / - 0.05 (Equiv. 0.146 in.) |
Approx. Loose Circlip ID (A)
3.60
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.30 mm + 0 / - 0.10
Groove Width (W): 0.33 mm
Approx. Loose Clip OD: 4.2
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0040-SQ-S1 (1000 Pcs)
External Retaining Rings - 4x0.3x3.7 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
4.32
mm (Equiv. 0.17 in.) |
Approx. Loose Circlip ID (A)
4.47
mm + 0.00 / - 0.27 |
Radial Wall (S) Approx.
0.64
mm |
Groove Width (W)
0.43
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 5.75
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-LS
External Retaining Rings - 4.78x0.38x4.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
4.32
mm (Equiv. 0.17 in.) |
Approx. Loose Circlip ID (A)
4.47
mm + 0.00 / - 0.27 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm
Groove Width (W): 0.43 mm
Approx. Loose Clip OD: 5.75
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-LS
External Retaining Rings - 4.78x0.38x4.32 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.52
mm + 0.08 / - 0.00 (Equiv. 0.178 in.) |
Approx. Loose Circlip ID (A)
4.45
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 5.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-C
External Retaining Rings - 4.78x0.51x4.52 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.52
mm + 0.08 / - 0.00 (Equiv. 0.178 in.) |
Approx. Loose Circlip ID (A)
4.45
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 5.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-C
External Retaining Rings - 4.78x0.51x4.52 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.52
mm + 0.08 / - 0.00 (Equiv. 0.178 in.) |
Approx. Loose Circlip ID (A)
4.45
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.51
mm +/- 0.05 |
Groove Width (W)
0.61
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 5.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-O
External Retaining Rings - 4.78x0.51x4.52 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.51
mm +/- 0.05 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.52
mm + 0.08 / - 0.00 (Equiv. 0.178 in.) |
Approx. Loose Circlip ID (A)
4.45
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.51 mm +/- 0.05
Groove Width (W): 0.61 mm
Approx. Loose Clip OD: 5.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-O
External Retaining Rings - 4.78x0.51x4.52 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
4.47
mm + 0.08 / - 0.00 (Equiv. 0.176 in.) |
Approx. Loose Circlip ID (A)
4.39
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.64
mm +/- 0.05 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 5.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-HC
External Retaining Rings - 4.78x0.64x4.47 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
4.47
mm + 0.08 / - 0.00 (Equiv. 0.176 in.) |
Approx. Loose Circlip ID (A)
4.39
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.05
Groove Width (W): 0.74 mm
Approx. Loose Clip OD: 5.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-HC
External Retaining Rings - 4.78x0.64x4.47 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
4.47
mm + 0.08 / - 0.00 (Equiv. 0.176 in.) |
Approx. Loose Circlip ID (A)
4.39
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.64
mm +/- 0.05 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 5.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-HO
External Retaining Rings - 4.78x0.64x4.47 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
4.78
mm (Equiv. 0.188 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
4.47
mm + 0.08 / - 0.00 (Equiv. 0.176 in.) |
Approx. Loose Circlip ID (A)
4.39
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.05
Groove Width (W): 0.74 mm
Approx. Loose Clip OD: 5.67
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0048-SQ-HO
External Retaining Rings - 4.78x0.64x4.47 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.60
mm + 0 / - 0.05 (Equiv. 0.181 in.) |
Approx. Loose Circlip ID (A)
4.50
mm |
Radial Wall (S) Approx.
0.70
mm + 0 / - 0.10 |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel 301 S11/S22
Approx. Loose Clip OD: 5.9
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0050-LS-S1 (5 Pcs)
External Retaining Rings - 5x0.4x4.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring 95 units (475 pcs) Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
4.60
mm + 0 / - 0.05 (Equiv. 0.181 in.) |
Approx. Loose Circlip ID (A)
4.50
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.70 mm + 0 / - 0.10
Groove Width (W): 0.44 mm
Approx. Loose Clip OD: 5.9
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0050-LS-S1 (5 Pcs)
External Retaining Rings - 5x0.4x4.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring 95 units (475 pcs) Available Now | Further orders can be expected around Mon, Nov 24, 2025 Regular price
$7.23 AUD
Regular price
Unit price
per
5 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.50
mm + 0 / - 0.10 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.80
mm + 0 / - 0.09 (Equiv. 0.189 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
Radial Wall (S) Approx.
1.00
mm + 0 / - 0.10 |
Groove Width (W)
0.60
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 6.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0050-LS (10 Pcs)
External Retaining Rings - 5x0.5x4.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, May 23, 2026 Regular price
$13.59 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
5.00
mm (Equiv. 0.197 in.) |
Clip Thickness (T)
0.50
mm + 0 / - 0.10 (Equiv. 0.02 in.) |
Groove Dia. (Dg)
4.80
mm + 0 / - 0.09 (Equiv. 0.189 in.) |
Approx. Loose Circlip ID (A)
4.70
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.00 mm + 0 / - 0.10
Groove Width (W): 0.60 mm
Approx. Loose Clip OD: 6.7
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0050-LS (10 Pcs)
External Retaining Rings - 5x0.5x4.8 mm Snap Rings - Carbon Spring Steel Snap Ring Out of Stock | Backorder Now | Orders can be expected around Sat, May 23, 2026 Regular price
$13.59 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.11
mm (Equiv. 0.201 in.) |
Approx. Loose Circlip ID (A)
5.21
mm + 0.00 / - 0.31 |
Radial Wall (S) Approx.
0.64
mm |
Groove Width (W)
0.43
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 6.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-LS
External Retaining Rings - 5.56x0.38x5.11 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.38
mm +/- 0.02 (Equiv. 0.015 in.) |
Groove Dia. (Dg)
5.11
mm (Equiv. 0.201 in.) |
Approx. Loose Circlip ID (A)
5.21
mm + 0.00 / - 0.31 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm
Groove Width (W): 0.43 mm
Approx. Loose Clip OD: 6.49
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-LS
External Retaining Rings - 5.56x0.38x5.11 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.64
mm +/- 0.08 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 6.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-SQ-O
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.08
Groove Width (W): 0.74 mm
Approx. Loose Clip OD: 6.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-SQ-O
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
Radial Wall (S) Approx.
0.64
mm +/- 0.08 |
Groove Width (W)
0.74
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 6.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-SQ-C
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
5.56
mm (Equiv. 0.219 in.) |
Clip Thickness (T)
0.64
mm +/- 0.08 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.26
mm + 0.10 / - 0.00 (Equiv. 0.207 in.) |
Approx. Loose Circlip ID (A)
5.16
mm + 0.00 / - 2.00 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.08
Groove Width (W): 0.74 mm
Approx. Loose Clip OD: 6.44
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0056-SQ-C
External Retaining Rings - 5.56x0.64x5.26 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm + 0 / - 0.05 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.45
mm |
Radial Wall (S) Approx.
0.70
mm + 0 / - 0.10 |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel 301 S11/S22
Approx. Loose Clip OD: 6.85
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0060-LS-S1 (1000 Pcs)
External Retaining Rings - 6x0.4x5.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
5.60
mm + 0 / - 0.05 (Equiv. 0.22 in.) |
Approx. Loose Circlip ID (A)
5.45
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.70 mm + 0 / - 0.10
Groove Width (W): 0.44 mm
Approx. Loose Clip OD: 6.85
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0060-LS-S1 (1000 Pcs)
External Retaining Rings - 6x0.4x5.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,205.77 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.70
mm + 0 / - 0.10 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
5.70
mm + 0 / - 0.09 (Equiv. 0.224 in.) |
Approx. Loose Circlip ID (A)
5.60
mm |
Radial Wall (S) Approx.
1.10
mm + 0 / - 0.10 |
Groove Width (W)
0.80
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 7.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0060-LS (10 Pcs)
External Retaining Rings - 6x0.7x5.7 mm Snap Rings - Carbon Spring Steel Snap Ring 14 units (140 pcs) Available Now | Further orders can be expected around Tue, Nov 04, 2025 Regular price
$16.95 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
6.00
mm (Equiv. 0.236 in.) |
Clip Thickness (T)
0.70
mm + 0 / - 0.10 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
5.70
mm + 0 / - 0.09 (Equiv. 0.224 in.) |
Approx. Loose Circlip ID (A)
5.60
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.10 mm + 0 / - 0.10
Groove Width (W): 0.80 mm
Approx. Loose Clip OD: 7.8
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0060-LS (10 Pcs)
External Retaining Rings - 6x0.7x5.7 mm Snap Rings - Carbon Spring Steel Snap Ring 14 units (140 pcs) Available Now | Further orders can be expected around Tue, Nov 04, 2025 Regular price
$16.95 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.89
mm (Equiv. 0.232 in.) |
Approx. Loose Circlip ID (A)
5.84
mm + 0.00 / - 0.35 |
Radial Wall (S) Approx.
0.89
mm |
Groove Width (W)
0.71
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 7.62
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-LS (800 Pcs)
External Retaining Rings - 6.35x0.64x5.89 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.03 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
5.89
mm (Equiv. 0.232 in.) |
Approx. Loose Circlip ID (A)
5.84
mm + 0.00 / - 0.35 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.89 mm
Groove Width (W): 0.71 mm
Approx. Loose Clip OD: 7.62
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-LS (800 Pcs)
External Retaining Rings - 6.35x0.64x5.89 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
6.05
mm + 0.08 / - 0.00 (Equiv. 0.238 in.) |
Approx. Loose Circlip ID (A)
5.99
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.64
mm +/- 0.05 |
Groove Width (W)
0.76
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 7.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-O (50 Pcs)
External Retaining Rings - 6.35x0.64x6.05 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$24.77 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
6.05
mm + 0.08 / - 0.00 (Equiv. 0.238 in.) |
Approx. Loose Circlip ID (A)
5.99
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.05
Groove Width (W): 0.76 mm
Approx. Loose Clip OD: 7.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-O (50 Pcs)
External Retaining Rings - 6.35x0.64x6.05 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$24.77 AUD
Regular price
Unit price
per
50 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
6.05
mm + 0.08 / - 0.00 (Equiv. 0.238 in.) |
Approx. Loose Circlip ID (A)
5.99
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.64
mm +/- 0.05 |
Groove Width (W)
0.76
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 7.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-C (100 Pcs)
External Retaining Rings - 6.35x0.64x6.05 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.64
mm +/- 0.05 (Equiv. 0.025 in.) |
Groove Dia. (Dg)
6.05
mm + 0.08 / - 0.00 (Equiv. 0.238 in.) |
Approx. Loose Circlip ID (A)
5.99
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.64 mm +/- 0.05
Groove Width (W): 0.76 mm
Approx. Loose Clip OD: 7.27
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-C (100 Pcs)
External Retaining Rings - 6.35x0.64x6.05 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Sun, Oct 26, 2025 Regular price
$8.59 AUD
Regular price
Unit price
per
100 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
5.94
mm + 0.08 / - 0.00 (Equiv. 0.234 in.) |
Approx. Loose Circlip ID (A)
5.89
mm + 0.00 / - 0.50 |
Radial Wall (S) Approx.
0.79
mm +/- 0.05 |
Groove Width (W)
0.91
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 7.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-HO
External Retaining Rings - 6.35x0.79x5.94 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
6.35
mm (Equiv. 0.25 in.) |
Clip Thickness (T)
0.79
mm +/- 0.05 (Equiv. 0.031 in.) |
Groove Dia. (Dg)
5.94
mm + 0.08 / - 0.00 (Equiv. 0.234 in.) |
Approx. Loose Circlip ID (A)
5.89
mm + 0.00 / - 0.50 |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 0.79 mm +/- 0.05
Groove Width (W): 0.91 mm
Approx. Loose Clip OD: 7.47
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0064-SQ-HO
External Retaining Rings - 6.35x0.79x5.94 mm Snap Rings - Carbon Spring Steel Contact Us | Special Order Only - Please contact us if you need a large quantity | Orders can be expected around Fri, Jun 23, 2028 |
||||||
|
Shaft or Bearing OD (d1)
7.00
mm (Equiv. 0.276 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
6.60
mm + 0 / - 0.05 (Equiv. 0.26 in.) |
Approx. Loose Circlip ID (A)
6.45
mm |
Radial Wall (S) Approx.
0.70
mm + 0 / - 0.10 |
Groove Width (W)
0.44
mm |
|
|
Material: Stainless Steel 301 S11/S22
Approx. Loose Clip OD: 7.85
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0070-LS-S1 (1000 Pcs)
External Retaining Rings - 7x0.4x6.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,527.59 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
7.00
mm (Equiv. 0.276 in.) |
Clip Thickness (T)
0.40
mm +/- 0.02 (Equiv. 0.016 in.) |
Groove Dia. (Dg)
6.60
mm + 0 / - 0.05 (Equiv. 0.26 in.) |
Approx. Loose Circlip ID (A)
6.45
mm |
|
||
|
Material: Stainless Steel 301 S11/S22
Radial Wall (S) Approx.: 0.70 mm + 0 / - 0.10
Groove Width (W): 0.44 mm
Approx. Loose Clip OD: 7.85
Category: Retaining Rings - External - Snap Rings - Stainless Steel |
||||||
|
Part Number: WRE-0070-LS-S1 (1000 Pcs)
External Retaining Rings - 7x0.4x6.6 mm Snap Rings - Stainless Steel 301 S11/S22 Snap Ring Out of Stock | Backorder Now | Orders can be expected around Mon, Nov 24, 2025 Regular price
$1,527.59 AUD
Regular price
Unit price
per
1000 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
|
Shaft or Bearing OD (d1)
7.00
mm (Equiv. 0.276 in.) |
Clip Thickness (T)
0.70
mm + 0 / - 0.10 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
6.70
mm + 0 / - 0.09 (Equiv. 0.264 in.) |
Approx. Loose Circlip ID (A)
6.50
mm |
Radial Wall (S) Approx.
1.20
mm + 0 / - 0.10 |
Groove Width (W)
0.80
mm |
|
|
Material: Carbon Spring Steel
Approx. Loose Clip OD: 8.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0070-LS (10 Pcs)
External Retaining Rings - 7x0.7x6.7 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 04, 2025 Regular price
$82.32 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
Shaft or Bearing OD (d1)
7.00
mm (Equiv. 0.276 in.) |
Clip Thickness (T)
0.70
mm + 0 / - 0.10 (Equiv. 0.028 in.) |
Groove Dia. (Dg)
6.70
mm + 0 / - 0.09 (Equiv. 0.264 in.) |
Approx. Loose Circlip ID (A)
6.50
mm |
|
||
|
Material: Carbon Spring Steel
Radial Wall (S) Approx.: 1.20 mm + 0 / - 0.10
Groove Width (W): 0.80 mm
Approx. Loose Clip OD: 8.9
Category: Retaining Rings - External - Snap Rings - Carbon Steel |
||||||
|
Part Number: WRE-0070-LS (10 Pcs)
External Retaining Rings - 7x0.7x6.7 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Tue, Nov 04, 2025 Regular price
$82.32 AUD
Regular price
Unit price
per
10 Per Sell Unit
Excludes GST and overseas Taxes & Duties |
||||||
|
||||||
