| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) | Radial Wall (S) min/max | Groove Width (W) |

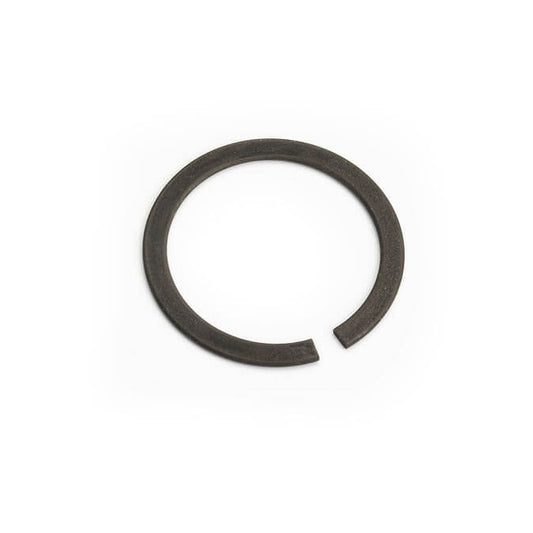

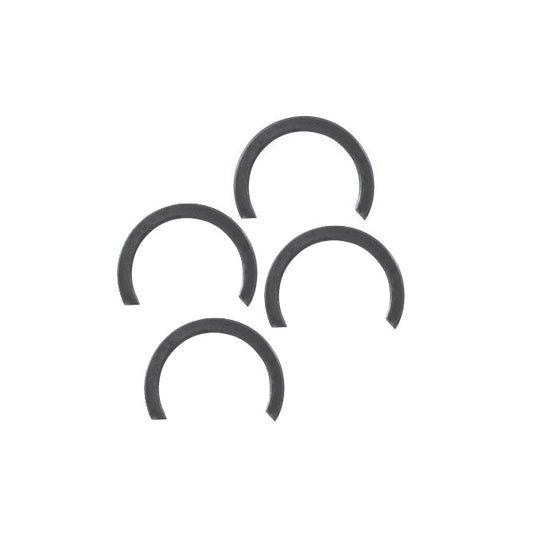

Indicative Image |
|---|---|---|---|---|---|---|
|
Shaft or Bearing OD (d1)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
1.70
mm + 0 / - 0.10 (Equiv. 0.067 in.) |
Groove Dia. (Dg)
64.82
mm + 0 / - 0.50 (Equiv. 2.552 in.) |
Approx. Loose Circlip ID (A)
64.20
mm |
Radial Wall (S) min/max
4.85
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 73.9 Info: Radiused Edge Section Profile: Rectangular with Radiused Edge | ||||||
|
Part Number: WRE-0680-LR
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
| Shaft or Bearing OD (d1) | Clip Thickness (T) | Groove Dia. (Dg) | Approx. Loose Circlip ID (A) |
Indicative Image |
||
|
Shaft or Bearing OD (d1)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
1.70
mm + 0 / - 0.10 (Equiv. 0.067 in.) |
Groove Dia. (Dg)
64.82
mm + 0 / - 0.50 (Equiv. 2.552 in.) |
Approx. Loose Circlip ID (A)
64.20
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.85 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip OD: 73.9 Info: Radiused Edge Section Profile: Rectangular with Radiused Edge | ||||||
|
Part Number: WRE-0680-LR
External Retaining Rings - 68x1.7x64.82 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
66.20
mm + 0 / - 0.19 (Equiv. 2.606 in.) |
Approx. Loose Circlip ID (A)
65.40
mm |
Radial Wall (S) min/max
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 71 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0680-LS
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.00
mm (Equiv. 2.677 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
66.20
mm + 0 / - 0.19 (Equiv. 2.606 in.) |
Approx. Loose Circlip ID (A)
65.40
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip OD: 71 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0680-LS
External Retaining Rings - 68x2x66.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.25
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.15
mm +/- 0.15 (Equiv. 2.565 in.) |
Approx. Loose Circlip ID (A)
64.39
mm + 0.00 / - 1.17 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 73.89 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0683-LS
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.25
mm (Equiv. 2.687 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
65.15
mm +/- 0.15 (Equiv. 2.565 in.) |
Approx. Loose Circlip ID (A)
64.39
mm + 0.00 / - 1.17 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 2.18 mm Approx. Loose Clip OD: 73.89 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0683-LS
External Retaining Rings - 68.25x1.98x65.15 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.28
mm (Equiv. 2.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
64.54
mm +/- 0.15 (Equiv. 2.541 in.) |
Approx. Loose Circlip ID (A)
64.03
mm + 0.00 / - 1.50 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.18
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 75.11 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0683-LS-N
External Retaining Rings - 68.28x1.98x64.54 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
68.28
mm (Equiv. 2.688 in.) |
Clip Thickness (T)
1.98
mm +/- 0.05 (Equiv. 0.078 in.) |
Groove Dia. (Dg)
64.54
mm +/- 0.15 (Equiv. 2.541 in.) |
Approx. Loose Circlip ID (A)
64.03
mm + 0.00 / - 1.50 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.18 mm Approx. Loose Clip OD: 75.11 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0683-LS-N
External Retaining Rings - 68.28x1.98x64.54 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
66.70
mm +/- 0.15 (Equiv. 2.626 in.) |
Approx. Loose Circlip ID (A)
65.94
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 75.44 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS-L
External Retaining Rings - 69.85x1.58x66.7 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
66.70
mm +/- 0.15 (Equiv. 2.626 in.) |
Approx. Loose Circlip ID (A)
65.94
mm - 0.00 / + 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 75.44 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS-L
External Retaining Rings - 69.85x1.58x66.7 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.15 (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
65.46
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 76.54 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS-N
External Retaining Rings - 69.85x2.36x66.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.09
mm +/- 0.15 (Equiv. 2.602 in.) |
Approx. Loose Circlip ID (A)
65.46
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 76.54 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS-N
External Retaining Rings - 69.85x2.36x66.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.65
mm +/- 0.15 (Equiv. 2.624 in.) |
Approx. Loose Circlip ID (A)
65.89
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 75.39 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
69.85
mm (Equiv. 2.75 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
66.65
mm +/- 0.15 (Equiv. 2.624 in.) |
Approx. Loose Circlip ID (A)
65.89
mm + 0.00 / - 1.58 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 75.39 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0699-LS
External Retaining Rings - 69.85x2.36x66.65 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
68.20
mm + 0 / - 0.19 (Equiv. 2.685 in.) |
Approx. Loose Circlip ID (A)
67.40
mm |
Radial Wall (S) min/max
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 73 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0700-LS (10 Pcs)
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 06, 2025 Regular price
$99.95 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
Shaft or Bearing OD (d1)
70.00
mm (Equiv. 2.756 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
68.20
mm + 0 / - 0.19 (Equiv. 2.685 in.) |
Approx. Loose Circlip ID (A)
67.40
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip OD: 73 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0700-LS (10 Pcs)
External Retaining Rings - 70x2x68.2 mm Snap Rings - Carbon Spring Steel Out of Stock | Backorder Now | Orders can be expected around Mon, Oct 06, 2025 Regular price
$99.95 AUD
Regular price
Unit price
per
Per 10
|
||||||
|
||||||
|
Shaft or Bearing OD (d1)
73.00
mm (Equiv. 2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
71.20
mm + 0 / - 0.19 (Equiv. 2.803 in.) |
Approx. Loose Circlip ID (A)
70.40
mm |
Radial Wall (S) min/max
2.80
mm + 0 / - 0.10 |
Groove Width (W)
2.20
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 76 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.00
mm (Equiv. 2.874 in.) |
Clip Thickness (T)
2.00
mm + 0 / - 0.10 (Equiv. 0.079 in.) |
Groove Dia. (Dg)
71.20
mm + 0 / - 0.19 (Equiv. 2.803 in.) |
Approx. Loose Circlip ID (A)
70.40
mm |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 2.80 mm + 0 / - 0.10 Groove Width (W): 2.20 mm Approx. Loose Clip OD: 76 Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS
External Retaining Rings - 73x2x71.2 mm Snap Rings - Carbon Spring Steel Snap Ring Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.15 (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
68.48
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 79.56 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS-N
External Retaining Rings - 73.03x2.36x69.11 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.11
mm +/- 0.15 (Equiv. 2.721 in.) |
Approx. Loose Circlip ID (A)
68.48
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 79.56 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS-N
External Retaining Rings - 73.03x2.36x69.11 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.67
mm +/- 0.15 (Equiv. 2.743 in.) |
Approx. Loose Circlip ID (A)
68.91
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 78.41 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS-L
External Retaining Rings - 73.03x2.36x69.67 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
73.03
mm (Equiv. 2.875 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
69.67
mm +/- 0.15 (Equiv. 2.743 in.) |
Approx. Loose Circlip ID (A)
68.91
mm + 0.00 / - 1.58 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 78.41 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0730-LS-L
External Retaining Rings - 73.03x2.36x69.67 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
71.45
mm +/- 0.15 (Equiv. 2.813 in.) |
Approx. Loose Circlip ID (A)
70.69
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 80.19 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS-L
External Retaining Rings - 74.6x1.58x71.45 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
71.45
mm +/- 0.15 (Equiv. 2.813 in.) |
Approx. Loose Circlip ID (A)
70.69
mm - 0.00 / + 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 80.19 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS-L
External Retaining Rings - 74.6x1.58x71.45 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.15
mm +/- 0.15 (Equiv. 2.801 in.) |
Approx. Loose Circlip ID (A)
70.38
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 79.88 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.60
mm (Equiv. 2.937 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.15
mm +/- 0.15 (Equiv. 2.801 in.) |
Approx. Loose Circlip ID (A)
70.38
mm + 0.00 / - 1.58 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 79.88 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS
External Retaining Rings - 74.6x2.36x71.15 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.63
mm (Equiv. 2.938 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.10
mm +/- 0.15 (Equiv. 2.799 in.) |
Approx. Loose Circlip ID (A)
69.95
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 81.03 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS-N
External Retaining Rings - 74.63x2.36x71.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
74.63
mm (Equiv. 2.938 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
71.10
mm +/- 0.15 (Equiv. 2.799 in.) |
Approx. Loose Circlip ID (A)
69.95
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 81.03 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0746-LS-N
External Retaining Rings - 74.63x2.36x71.1 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (Equiv. 2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 81.79 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-L
External Retaining Rings - 76.2x1.58x73.05 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
73.05
mm +/- 0.15 (Equiv. 2.876 in.) |
Approx. Loose Circlip ID (A)
72.29
mm - 0.00 / + 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 81.79 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-L
External Retaining Rings - 76.2x1.58x73.05 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 82.53 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-N
External Retaining Rings - 76.2x2.36x72.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.09
mm +/- 0.15 (Equiv. 2.838 in.) |
Approx. Loose Circlip ID (A)
71.45
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 82.53 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS-N
External Retaining Rings - 76.2x2.36x72.09 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (Equiv. 2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 82.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
72.64
mm +/- 0.15 (Equiv. 2.86 in.) |
Approx. Loose Circlip ID (A)
71.88
mm + 0.00 / - 1.58 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 82.96 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0762-LS
External Retaining Rings - 76.2x2.36x72.64 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (Equiv. 2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 84.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-O
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (Equiv. 2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.08 Groove Width (W): 6.73 mm Approx. Loose Clip OD: 84.96 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-O
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (Equiv. 2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
6.35
mm +/- 0.08 |
Groove Width (W)
6.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 84.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-C
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
6.35
mm +/- 0.08 (Equiv. 0.25 in.) |
Groove Dia. (Dg)
73.03
mm + 0.10 / - 0.00 (Equiv. 2.875 in.) |
Approx. Loose Circlip ID (A)
72.26
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 6.35 mm +/- 0.08 Groove Width (W): 6.73 mm Approx. Loose Clip OD: 84.96 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-C
External Retaining Rings - 76.2x6.35x73.03 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (Equiv. 0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 87.39 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HC
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (Equiv. 0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 7.93 mm +/- 0.08 Groove Width (W): 8.31 mm Approx. Loose Clip OD: 87.39 Info: Axial Assembly - Closed Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HC
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (Equiv. 0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
7.93
mm +/- 0.08 |
Groove Width (W)
8.31
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 87.39 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HO
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
76.20
mm (Equiv. 3 in.) |
Clip Thickness (T)
7.93
mm +/- 0.08 (Equiv. 0.312 in.) |
Groove Dia. (Dg)
72.24
mm + 0.10 / - 0.00 (Equiv. 2.844 in.) |
Approx. Loose Circlip ID (A)
71.53
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 7.93 mm +/- 0.08 Groove Width (W): 8.31 mm Approx. Loose Clip OD: 87.39 Info: Radial Assembly - Open Gap Section Profile: Square Section | ||||||
|
Part Number: WRE-0762-SQ-HO
External Retaining Rings - 76.2x7.93x72.24 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (Equiv. 2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 84.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS-N
External Retaining Rings - 77.78x2.36x73.61 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
73.61
mm +/- 0.15 (Equiv. 2.898 in.) |
Approx. Loose Circlip ID (A)
72.97
mm + 0.00 / - 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 84.05 Info: Notched Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS-N
External Retaining Rings - 77.78x2.36x73.61 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (Equiv. 2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
Radial Wall (S) min/max
5.54
mm +/- 0.13 |
Groove Width (W)
2.62
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 84.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
77.78
mm (Equiv. 3.062 in.) |
Clip Thickness (T)
2.36
mm +/- 0.05 (Equiv. 0.093 in.) |
Groove Dia. (Dg)
74.17
mm +/- 0.15 (Equiv. 2.92 in.) |
Approx. Loose Circlip ID (A)
73.41
mm + 0.00 / - 1.58 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 5.54 mm +/- 0.13 Groove Width (W): 2.62 mm Approx. Loose Clip OD: 84.49 Info: Basic Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0778-LS
External Retaining Rings - 77.78x2.36x74.17 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (Equiv. 3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
Radial Wall (S) min/max
4.75
mm +/- 0.13 |
Groove Width (W)
1.73
mm |
|
| Material: Carbon Spring Steel Approx. Loose Clip OD: 84.81 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-L
External Retaining Rings - 79.38x1.58x76.2 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
|
Shaft or Bearing OD (d1)
79.38
mm (Equiv. 3.125 in.) |
Clip Thickness (T)
1.58
mm +/- 0.05 (Equiv. 0.062 in.) |
Groove Dia. (Dg)
76.20
mm +/- 0.15 (Equiv. 3 in.) |
Approx. Loose Circlip ID (A)
75.31
mm - 0.00 / + 2.00 |
|
||
| Material: Carbon Spring Steel Radial Wall (S) min/max: 4.75 mm +/- 0.13 Groove Width (W): 1.73 mm Approx. Loose Clip OD: 84.81 Info: Light Duty Section Profile: Rectangular with Square Edge | ||||||
|
Part Number: WRE-0794-LS-L
External Retaining Rings - 79.38x1.58x76.2 mm Snap Rings - Carbon Spring Steel Contact Us | Item Discontinued - Please contact us if you need a large quantity |
||||||
