WRE-0746-LS-N

External Retaining Rings - 74.63x2.36x71.1 mm Snap Rings - Carbon Spring Steel

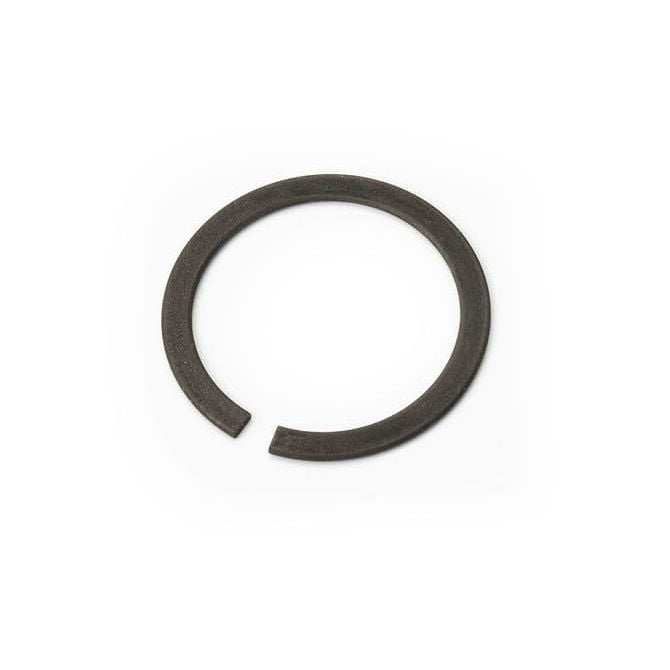

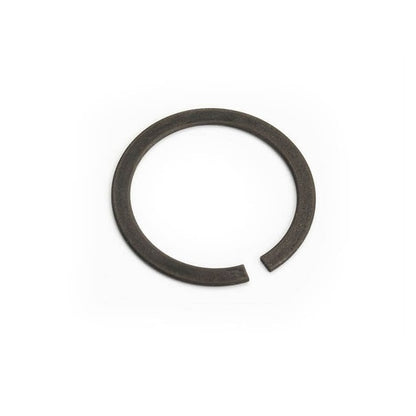

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • External Retaining Rings - 74.63x2.36x71.1 mm - Spring Steel
1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Online, Pick-Up, Retail, Distributors, Wholesale Additional resources:
Snap Rings and Spiral Rings PDF
Discontinued
This item is discontinued. Please contact us for a special quote if you require a large quantity.

Base Category: Retaining Rings - External

Top Level Category: Retaining Rings - External - Snap Rings - Carbon Steel

Product Details

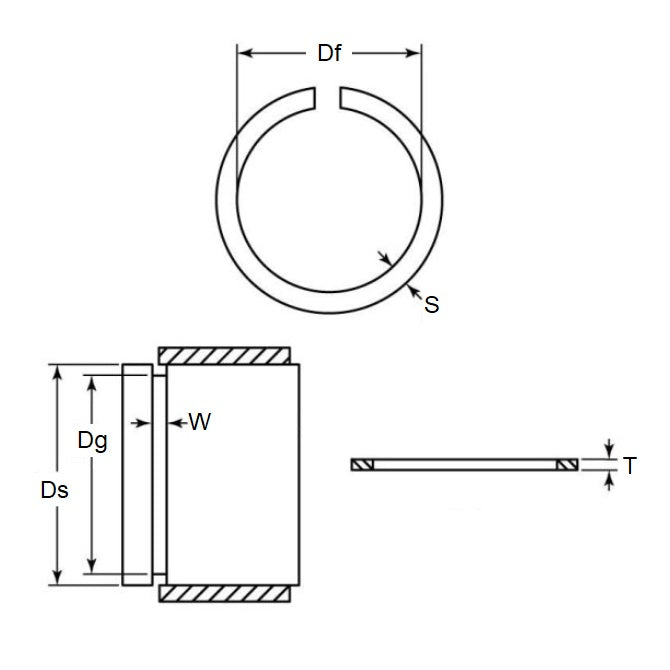

Shaft or Bearing OD (d1): 74.63mm
(74.63mm is 2.938 in.)

Carbon Spring Steel
  • Clip Thickness (T): 2.36mm
    +/- 0.05
    (2.36mm is 0.093 in.)
  • Groove Dia. (Dg): 71.10mm
    +/- 0.15
    (71.10mm is 2.799 in.)
  • Approx. Loose Circlip ID (A): 69.95mm
    + 0.00 / - 2.00
  • Radial Wall (S) min/max: 5.54mm
    +/- 0.13
  • Groove Width (W): 2.62mm
  • Approx. Loose Clip OD: 81.03
  • Info: Notched
  • Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Eaton EN-293
  • NoCor USH-293
  • Rotorclip USH-293
  • USH293
  • WRE0746SRN
  • EN293

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
