Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

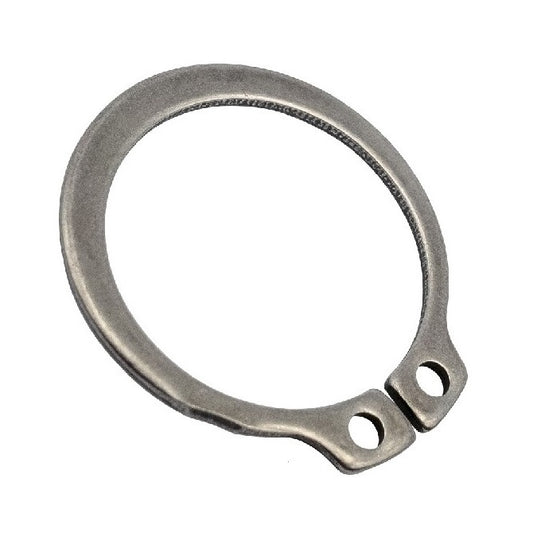

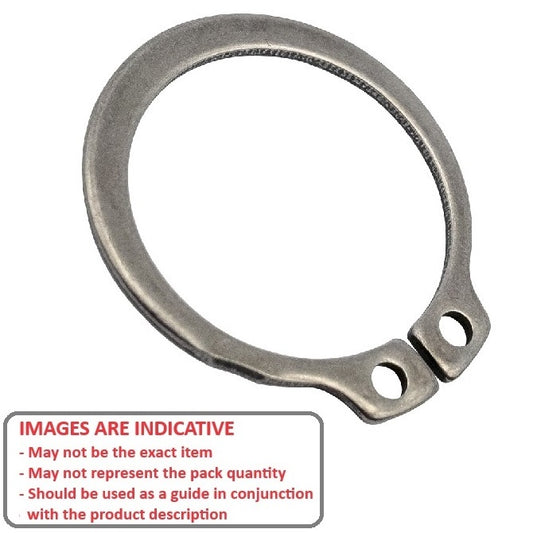

Retaining Rings -> External -> Circlips -> Standard -> Stainless Steel

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)	Indicative Image
Shaft Diameter (Ds) 35.00 mm (Equiv. 1.378 in.)	Clip Thickness (T) 1.50 mm _{+ 0.00 / - 0.25} (Equiv. 0.059 in.)	Groove Dia. (Dg) 32.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.289 in.)	Approx. Loose Circlip ID (A) 32.20 mm		Groove Width (W) 1.60 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 44.20 mm Clearance in Groove (C1): 46.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03500-S15 (2 Pcs) External Retaining Rings - 35x1.5x32.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $15.59 AUD Regular price ~~$34.56 AUD~~ Sale price $15.59 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 35.00 mm (Equiv. 1.378 in.)	Clip Thickness (T) 1.50 mm _{+ 0.00 / - 0.25} (Equiv. 0.059 in.)	Groove Dia. (Dg) 32.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.289 in.)	Approx. Loose Circlip ID (A) 32.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.60 mm Clearance on Shaft (C1): 44.20 mm Clearance in Groove (C1): 46.80 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03500-S15 (2 Pcs) External Retaining Rings - 35x1.5x32.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $15.59 AUD Regular price ~~$34.56 AUD~~ Sale price $15.59 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
CCE-03500-S15 (2 Pcs) --- External Retaining Rings - 35x1.5x32.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03500-S15 (2 Pcs) --- External Retaining Rings - 35x1.5x32.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $15.59 AUD Regular price ~~$34.56 AUD~~ Sale price $15.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 36.00 mm (Equiv. 1.417 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 34.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.339 in.)	Approx. Loose Circlip ID (A) 33.20 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 47.80 mm Clearance in Groove (C1): 45.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03600-S15 External Retaining Rings - 36x1.75x34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.77 AUD Regular price ~~$22.86 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 36.00 mm (Equiv. 1.417 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 34.00 mm _{+ 0.00 / - 0.06} (Equiv. 1.339 in.)	Approx. Loose Circlip ID (A) 33.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 47.80 mm Clearance in Groove (C1): 45.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03600-S15 External Retaining Rings - 36x1.75x34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.77 AUD Regular price ~~$22.86 AUD~~ Sale price $10.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-03600-S15 --- External Retaining Rings - 36x1.75x34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03600-S15 --- External Retaining Rings - 36x1.75x34 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.77 AUD Regular price ~~$22.86 AUD~~ Sale price $10.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.29 mm _{+/- 0.051} (Equiv. 1.35 in.)	Approx. Loose Circlip ID (A) 33.86 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 47.50 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-03653-S15 (2 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price ~~$25.03 AUD~~ Sale price $11.32 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 36.53 mm (Equiv. 1.438 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 34.29 mm _{+/- 0.051} (Equiv. 1.35 in.)	Approx. Loose Circlip ID (A) 33.86 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 47.50 mm Min. Lug Diameter (h): 1.93 mm Standard: MIL-16624
Part Number: CCE-03653-S15 (2 Pcs) External Retaining Rings - 36.53x1.27x34.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.32 AUD Regular price ~~$25.03 AUD~~ Sale price $11.32 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
CCE-03653-S15 (2 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03653-S15 (2 Pcs) --- External Retaining Rings - 36.53x1.27x34.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.32 AUD Regular price ~~$25.03 AUD~~ Sale price $11.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 38.00 mm (Equiv. 1.496 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 35.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.407 in.)	Approx. Loose Circlip ID (A) 34.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 47.60 mm Clearance in Groove (C1): 50.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03800-S15 External Retaining Rings - 38x1.75x35.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.86 AUD Regular price ~~$23.16 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 38.00 mm (Equiv. 1.496 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 35.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.407 in.)	Approx. Loose Circlip ID (A) 34.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 47.60 mm Clearance in Groove (C1): 50.20 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.00 Standard: DIN471
Part Number: CCE-03800-S15 External Retaining Rings - 38x1.75x35.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.86 AUD Regular price ~~$23.16 AUD~~ Sale price $10.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-03800-S15 --- External Retaining Rings - 38x1.75x35.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03800-S15 --- External Retaining Rings - 38x1.75x35.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.86 AUD Regular price ~~$23.16 AUD~~ Sale price $10.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.051} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.23 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$15.10 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 1.27 mm _{+/- 0.102} (Equiv. 0.05 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.051} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.23 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance in Groove (C1): 50.55 mm Min. Lug Diameter (h): 2.72 mm Standard: MIL-16624
Part Number: CCE-03810-S15 External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.50 AUD Regular price ~~$15.10 AUD~~ Sale price $5.50 AUD Unit price per Each Quantity Required 30 Available Now. Backorder if more than 30.
CCE-03810-S15 --- External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03810-S15 --- External Retaining Rings - 38.1x1.27x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.50 AUD Regular price ~~$15.10 AUD~~ Sale price $5.50 AUD Unit price per 30 Available Now Sale
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 2.77 mm _{+ 0.051 / - 0.102} (Equiv. 0.109 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.076} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.05 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-03810H-S15 External Retaining Rings - 38.1x2.77x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.14 AUD Regular price ~~$89.58 AUD~~ Sale price $39.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 38.10 mm (Equiv. 1.5 in.)	Clip Thickness (T) 2.77 mm _{+ 0.051 / - 0.102} (Equiv. 0.109 in.)	Groove Dia. (Dg) 35.71 mm _{+/- 0.076} (Equiv. 1.406 in.)	Approx. Loose Circlip ID (A) 35.05 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-03810H-S15 External Retaining Rings - 38.1x2.77x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $39.14 AUD Regular price ~~$89.58 AUD~~ Sale price $39.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-03810H-S15 --- External Retaining Rings - 38.1x2.77x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03810H-S15 --- External Retaining Rings - 38.1x2.77x35.71 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $39.14 AUD Regular price ~~$89.58 AUD~~ Sale price $39.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.29 mm _{+/- 0.076} (Equiv. 1.468 in.)	Approx. Loose Circlip ID (A) 36.73 mm		Groove Width (W) 1.73 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 53.34 mm Min. Lug Diameter (h): 2.49 mm Standard: MIL-16624
Part Number: CCE-03967-S15 External Retaining Rings - 39.67x1.58x37.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.95 AUD Regular price ~~$18.84 AUD~~ Sale price $8.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 39.67 mm (Equiv. 1.562 in.)	Clip Thickness (T) 1.58 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 37.29 mm _{+/- 0.076} (Equiv. 1.468 in.)	Approx. Loose Circlip ID (A) 36.73 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm Clearance in Groove (C1): 53.34 mm Min. Lug Diameter (h): 2.49 mm Standard: MIL-16624
Part Number: CCE-03967-S15 External Retaining Rings - 39.67x1.58x37.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.95 AUD Regular price ~~$18.84 AUD~~ Sale price $8.95 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-03967-S15 --- External Retaining Rings - 39.67x1.58x37.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-03967-S15 --- External Retaining Rings - 39.67x1.58x37.29 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.95 AUD Regular price ~~$18.84 AUD~~ Sale price $8.95 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 40.00 mm (Equiv. 1.575 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 37.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.476 in.)	Approx. Loose Circlip ID (A) 36.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 46 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.22 AUD~~ Sale price $3.14 AUD Unit price per Each Quantity Required 46 Available Now. Backorder if more than 46.
Shaft Diameter (Ds) 40.00 mm (Equiv. 1.575 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 37.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.476 in.)	Approx. Loose Circlip ID (A) 36.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 49.50 mm Clearance in Groove (C1): 52.60 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04000-S15 External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 46 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.14 AUD Regular price ~~$8.22 AUD~~ Sale price $3.14 AUD Unit price per Each Quantity Required 46 Available Now. Backorder if more than 46.
CCE-04000-S15 --- External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04000-S15 --- External Retaining Rings - 40x1.75x37.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.14 AUD Regular price ~~$8.22 AUD~~ Sale price $3.14 AUD Unit price per 46 Available Now Sale
Shaft Diameter (Ds) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 38.84 mm _{+/- 0.076} (Equiv. 1.529 in.)	Approx. Loose Circlip ID (A) 38.18 mm		Groove Width (W) 1.73 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.54 mm Standard: MIL-16624
Part Number: CCE-04128-S15 External Retaining Rings - 41.28x1.57x38.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$24.11 AUD~~ Sale price $11.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 41.28 mm (Equiv. 1.625 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 38.84 mm _{+/- 0.076} (Equiv. 1.529 in.)	Approx. Loose Circlip ID (A) 38.18 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.73 mm Clearance in Groove (C1): 55.12 mm Min. Lug Diameter (h): 2.54 mm Standard: MIL-16624
Part Number: CCE-04128-S15 External Retaining Rings - 41.28x1.57x38.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.23 AUD Regular price ~~$24.11 AUD~~ Sale price $11.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04128-S15 --- External Retaining Rings - 41.28x1.57x38.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04128-S15 --- External Retaining Rings - 41.28x1.57x38.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.23 AUD Regular price ~~$24.11 AUD~~ Sale price $11.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 42.00 mm (Equiv. 1.654 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 39.25 mm _{+ 0.00 / - 0.06} (Equiv. 1.545 in.)	Approx. Loose Circlip ID (A) 38.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 52.50 mm Clearance in Groove (C1): 55.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04200-S15 (2 Pcs) External Retaining Rings - 42x1.75x39.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.32 AUD Regular price ~~$50.14 AUD~~ Sale price $22.32 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 42.00 mm (Equiv. 1.654 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 39.25 mm _{+ 0.00 / - 0.06} (Equiv. 1.545 in.)	Approx. Loose Circlip ID (A) 38.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 52.50 mm Clearance in Groove (C1): 55.70 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04200-S15 (2 Pcs) External Retaining Rings - 42x1.75x39.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $22.32 AUD Regular price ~~$50.14 AUD~~ Sale price $22.32 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
CCE-04200-S15 (2 Pcs) --- External Retaining Rings - 42x1.75x39.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04200-S15 (2 Pcs) --- External Retaining Rings - 42x1.75x39.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $22.32 AUD Regular price ~~$50.14 AUD~~ Sale price $22.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 42.86 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 40.36 mm _{+/- 0.076} (Equiv. 1.589 in.)	Approx. Loose Circlip ID (A) 39.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04286-S15 External Retaining Rings - 42.86x1.57x40.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$20.80 AUD~~ Sale price $9.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 42.86 mm (Equiv. 1.687 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 40.36 mm _{+/- 0.076} (Equiv. 1.589 in.)	Approx. Loose Circlip ID (A) 39.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04286-S15 External Retaining Rings - 42.86x1.57x40.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $9.86 AUD Regular price ~~$20.80 AUD~~ Sale price $9.86 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04286-S15 --- External Retaining Rings - 42.86x1.57x40.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04286-S15 --- External Retaining Rings - 42.86x1.57x40.36 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.86 AUD Regular price ~~$20.80 AUD~~ Sale price $9.86 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.90 mm _{+/- 0.076} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.10 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04445-S15 External Retaining Rings - 44.45x1.57x41.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.05 AUD Regular price ~~$25.92 AUD~~ Sale price $12.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 41.90 mm _{+/- 0.076} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 41.10 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04445-S15 External Retaining Rings - 44.45x1.57x41.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.05 AUD Regular price ~~$25.92 AUD~~ Sale price $12.05 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04445-S15 --- External Retaining Rings - 44.45x1.57x41.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04445-S15 --- External Retaining Rings - 44.45x1.57x41.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $12.05 AUD Regular price ~~$25.92 AUD~~ Sale price $12.05 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 2.77 mm _{+ 0.076 / - 0.102} (Equiv. 0.109 in.)	Groove Dia. (Dg) 41.91 mm _{+/- 0.076} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 40.84 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-04445H-S15 (5 Pcs) External Retaining Rings - 44.45x2.77x41.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $254.77 AUD Regular price ~~$597.08 AUD~~ Sale price $254.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 44.45 mm (Equiv. 1.75 in.)	Clip Thickness (T) 2.77 mm _{+ 0.076 / - 0.102} (Equiv. 0.109 in.)	Groove Dia. (Dg) 41.91 mm _{+/- 0.076} (Equiv. 1.65 in.)	Approx. Loose Circlip ID (A) 40.84 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-04445H-S15 (5 Pcs) External Retaining Rings - 44.45x2.77x41.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Fri, Nov 21, 2025 Regular price $254.77 AUD Regular price ~~$597.08 AUD~~ Sale price $254.77 AUD Unit price per Per 5 Quantity Required Backorder: Out of Stock.
CCE-04445H-S15 (5 Pcs) --- External Retaining Rings - 44.45x2.77x41.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04445H-S15 (5 Pcs) --- External Retaining Rings - 44.45x2.77x41.91 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $254.77 AUD Regular price ~~$597.08 AUD~~ Sale price $254.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 55.90 mm Clearance in Groove (C1): 59.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-S15 External Retaining Rings - 45x1.75x42.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 45.00 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 42.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.673 in.)	Approx. Loose Circlip ID (A) 41.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 55.90 mm Clearance in Groove (C1): 59.10 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04500-S15 External Retaining Rings - 45x1.75x42.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04500-S15 --- External Retaining Rings - 45x1.75x42.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-04500-S15 --- External Retaining Rings - 45x1.75x42.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $30.59 AUD Regular price Sale price $30.59 AUD Unit price per Out of stock! Backorder Now
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.40 mm _{+/- 0.076} (Equiv. 1.669 in.)	Approx. Loose Circlip ID (A) 41.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04501-S15 External Retaining Rings - 45.01x1.57x42.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$26.44 AUD~~ Sale price $12.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 45.01 mm (Equiv. 1.772 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 42.40 mm _{+/- 0.076} (Equiv. 1.669 in.)	Approx. Loose Circlip ID (A) 41.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04501-S15 External Retaining Rings - 45.01x1.57x42.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $12.23 AUD Regular price ~~$26.44 AUD~~ Sale price $12.23 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04501-S15 --- External Retaining Rings - 45.01x1.57x42.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04501-S15 --- External Retaining Rings - 45.01x1.57x42.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $12.23 AUD Regular price ~~$26.44 AUD~~ Sale price $12.23 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.40 mm _{+/- 0.076} (Equiv. 1.709 in.)	Approx. Loose Circlip ID (A) 42.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04604-S15 External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.59 AUD Regular price ~~$36.63 AUD~~ Sale price $16.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 46.04 mm (Equiv. 1.813 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 43.40 mm _{+/- 0.076} (Equiv. 1.709 in.)	Approx. Loose Circlip ID (A) 42.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04604-S15 External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.59 AUD Regular price ~~$36.63 AUD~~ Sale price $16.59 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04604-S15 --- External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04604-S15 --- External Retaining Rings - 46.04x1.57x43.4 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $16.59 AUD Regular price ~~$36.63 AUD~~ Sale price $16.59 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.90 mm _{+/- 0.076} (Equiv. 1.768 in.)	Approx. Loose Circlip ID (A) 44.10 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-04763-S15 External Retaining Rings - 47.63x1.57x44.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$25.30 AUD~~ Sale price $11.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 47.63 mm (Equiv. 1.875 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 44.90 mm _{+/- 0.076} (Equiv. 1.768 in.)	Approx. Loose Circlip ID (A) 44.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-04763-S15 External Retaining Rings - 47.63x1.57x44.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $11.77 AUD Regular price ~~$25.30 AUD~~ Sale price $11.77 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-04763-S15 --- External Retaining Rings - 47.63x1.57x44.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04763-S15 --- External Retaining Rings - 47.63x1.57x44.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.77 AUD Regular price ~~$25.30 AUD~~ Sale price $11.77 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 48.00 mm (Equiv. 1.89 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 45.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.791 in.)	Approx. Loose Circlip ID (A) 44.50 mm		Groove Width (W) 1.85 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-S15 (2 Pcs) External Retaining Rings - 48x1.75x45.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.41 AUD Regular price ~~$23.17 AUD~~ Sale price $10.41 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 48.00 mm (Equiv. 1.89 in.)	Clip Thickness (T) 1.75 mm _{+ 0.00 / - 0.25} (Equiv. 0.069 in.)	Groove Dia. (Dg) 45.50 mm _{+ 0.00 / - 0.06} (Equiv. 1.791 in.)	Approx. Loose Circlip ID (A) 44.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.85 mm Clearance on Shaft (C1): 62.50 mm Clearance in Groove (C1): 59.30 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 3.80 Standard: DIN471
Part Number: CCE-04800-S15 (2 Pcs) External Retaining Rings - 48x1.75x45.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $10.41 AUD Regular price ~~$23.17 AUD~~ Sale price $10.41 AUD Unit price per Per 2 Quantity Required Backorder: Out of Stock.
CCE-04800-S15 (2 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-04800-S15 (2 Pcs) --- External Retaining Rings - 48x1.75x45.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.41 AUD Regular price ~~$23.17 AUD~~ Sale price $10.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 46.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.841 in.)	Approx. Loose Circlip ID (A) 45.80 mm		Groove Width (W) 2.15 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 60.80 mm Clearance in Groove (C1): 64.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-S15 External Retaining Rings - 50x2x46.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.32 AUD Regular price ~~$17.46 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 2.00 mm _{+ 0.00 / - 0.25} (Equiv. 0.079 in.)	Groove Dia. (Dg) 46.75 mm _{+ 0.00 / - 0.06} (Equiv. 1.841 in.)	Approx. Loose Circlip ID (A) 45.80 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 2.15 mm Clearance on Shaft (C1): 60.80 mm Clearance in Groove (C1): 64.50 mm Min. Lug Diameter (h): 2.50 mm Min. Extension (n): 4.50 Standard: DIN471
Part Number: CCE-05000-S15 External Retaining Rings - 50x2x46.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $8.32 AUD Regular price ~~$17.46 AUD~~ Sale price $8.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05000-S15 --- External Retaining Rings - 50x2x46.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05000-S15 --- External Retaining Rings - 50x2x46.75 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $8.32 AUD Regular price ~~$17.46 AUD~~ Sale price $8.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.20 mm _{+/- 0.076} (Equiv. 1.858 in.)	Approx. Loose Circlip ID (A) 46.20 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05001-S15 External Retaining Rings - 50x1.57x47.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $46.32 AUD Regular price ~~$106.48 AUD~~ Sale price $46.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.00 mm (Equiv. 1.969 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.127} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.20 mm _{+/- 0.076} (Equiv. 1.858 in.)	Approx. Loose Circlip ID (A) 46.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-05001-S15 External Retaining Rings - 50x1.57x47.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $46.32 AUD Regular price ~~$106.48 AUD~~ Sale price $46.32 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05001-S15 --- External Retaining Rings - 50x1.57x47.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05001-S15 --- External Retaining Rings - 50x1.57x47.2 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $46.32 AUD Regular price ~~$106.48 AUD~~ Sale price $46.32 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.152} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.90 mm _{+/- 0.076} (Equiv. 1.886 in.)	Approx. Loose Circlip ID (A) 47.00 mm		Groove Width (W) 1.70 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05080-S15 External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.14 AUD Regular price ~~$35.51 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 50.80 mm (Equiv. 2 in.)	Clip Thickness (T) 1.57 mm _{+/- 0.152} (Equiv. 0.062 in.)	Groove Dia. (Dg) 47.90 mm _{+/- 0.076} (Equiv. 1.886 in.)	Approx. Loose Circlip ID (A) 47.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.70 mm Standard: MIL-16624
Part Number: CCE-05080-S15 External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $16.14 AUD Regular price ~~$35.51 AUD~~ Sale price $16.14 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05080-S15 --- External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05080-S15 --- External Retaining Rings - 50.8x1.57x47.9 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $16.14 AUD Regular price ~~$35.51 AUD~~ Sale price $16.14 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 49.43 mm _{+/- 0.076} (Equiv. 1.946 in.)	Approx. Loose Circlip ID (A) 48.40 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05239-S15 External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.41 AUD Regular price ~~$78.63 AUD~~ Sale price $34.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 52.39 mm (Equiv. 2.063 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 49.43 mm _{+/- 0.076} (Equiv. 1.946 in.)	Approx. Loose Circlip ID (A) 48.40 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05239-S15 External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $34.41 AUD Regular price ~~$78.63 AUD~~ Sale price $34.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05239-S15 --- External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05239-S15 --- External Retaining Rings - 52.39x1.98x49.43 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $34.41 AUD Regular price ~~$78.63 AUD~~ Sale price $34.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.89 mm _{+/- 0.076} (Equiv. 2.004 in.)	Approx. Loose Circlip ID (A) 49.90 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.20 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05398-S15 External Retaining Rings - 53.98x1.98x50.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $26.41 AUD Regular price ~~$59.70 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 53.98 mm (Equiv. 2.125 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 50.89 mm _{+/- 0.076} (Equiv. 2.004 in.)	Approx. Loose Circlip ID (A) 49.90 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.20 mm Standard: MIL-16624
Part Number: CCE-05398-S15 External Retaining Rings - 53.98x1.98x50.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $26.41 AUD Regular price ~~$59.70 AUD~~ Sale price $26.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05398-S15 --- External Retaining Rings - 53.98x1.98x50.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05398-S15 --- External Retaining Rings - 53.98x1.98x50.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $26.41 AUD Regular price ~~$59.70 AUD~~ Sale price $26.41 AUD Unit price per Out of stock! Backorder Now Sale
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.61 mm _{+/- 0.076} (Equiv. 2.032 in.)	Approx. Loose Circlip ID (A) 50.60 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 2.18 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-16624
Part Number: CCE-05477-S15 External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $57.41 AUD Regular price ~~$132.72 AUD~~ Sale price $57.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 54.77 mm (Equiv. 2.156 in.)	Clip Thickness (T) 1.98 mm _{+/- 0.152} (Equiv. 0.078 in.)	Groove Dia. (Dg) 51.61 mm _{+/- 0.076} (Equiv. 2.032 in.)	Approx. Loose Circlip ID (A) 50.60 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 2.18 mm Standard: MIL-16624
Part Number: CCE-05477-S15 External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $57.41 AUD Regular price ~~$132.72 AUD~~ Sale price $57.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-05477-S15 --- External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-05477-S15 --- External Retaining Rings - 54.77x1.98x51.61 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $57.41 AUD Regular price ~~$132.72 AUD~~ Sale price $57.41 AUD Unit price per Out of stock! Backorder Now Sale

Miniature Bearings Australia Pty Ltd
3/8 Boyland Avenue
Coopers Plains, Queensland, Australia.
(ABN: 94 069 113 800)
