Collection: Retaining Rings - External - Circlips - Standard - Stainless Steel

Retaining Rings -> External -> Circlips -> Standard -> Stainless Steel

There are 147 products in the sub-categories of Retaining Rings - External - Circlips - Standard - Stainless Steel. Scroll down or follow the link to Retaining Rings - External - Circlips - Standard - Stainless Steel in the products table to see all these items combined into a handy table with filters.

Category Details

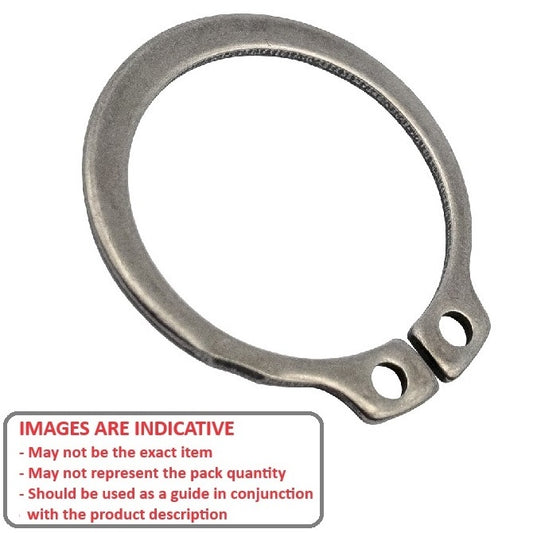

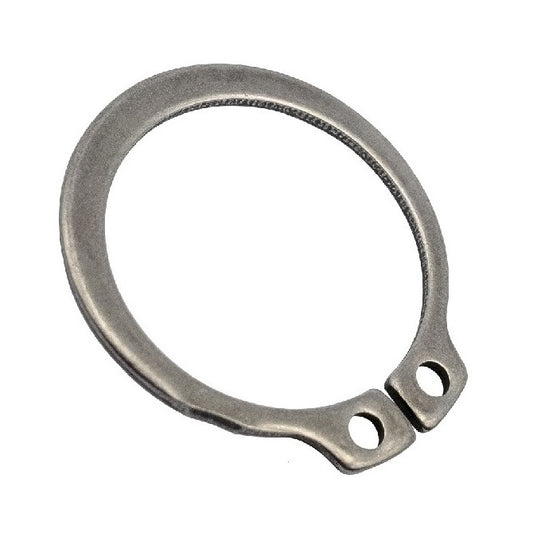

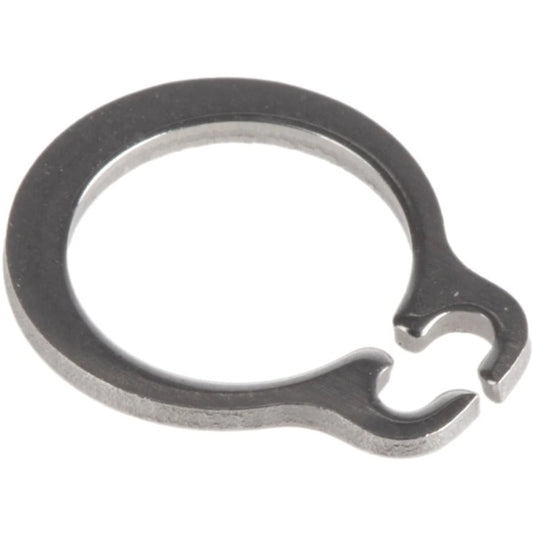

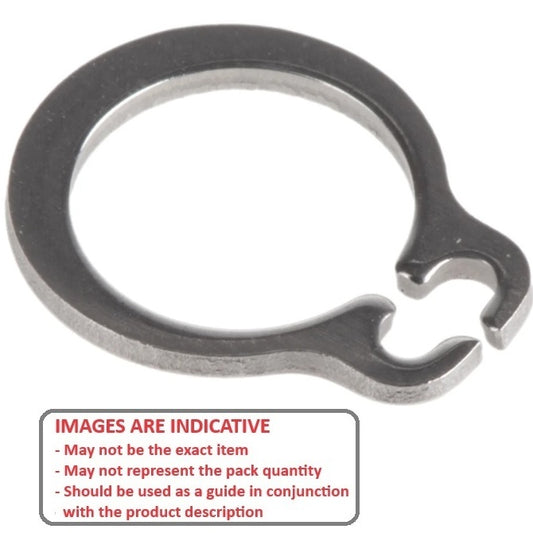

A selection of Stainless Steel Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. PH15-7 Mo Stainless Steel. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
PH15-7 Mo Stainless Steel.

Miniature Bearings Australia - MBA Minibearings

Additional resources:

A more concise listing may be found in the Retaining Rings - External - Circlips - Standard - Stainless Steel category on the Small Parts & Bearings online store.

Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Radial Wall (S) min/max	Groove Width (W)
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm		Groove Width (W) 0.50 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 Quantity Required 30 units (150 pcs) Available Now. Backorder if more than 30.
Shaft Diameter (Ds)	Clip Thickness (T)	Groove Dia. (Dg)	Approx. Loose Circlip ID (A)	Indicative Image
Shaft Diameter (Ds) 4.00 mm (Equiv. 0.157 in.)	Clip Thickness (T) 0.40 mm _{+ 0.00 / - 0.04} (Equiv. 0.016 in.)	Groove Dia. (Dg) 3.80 mm _{+ 0.00 / - 0.05} (Equiv. 0.15 in.)	Approx. Loose Circlip ID (A) 3.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.50 mm Clearance on Shaft (C1): 8.60 mm Clearance in Groove (C1): 8.20 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00400-S15 (5 Pcs) External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 30 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per Per 5 Quantity Required 30 units (150 pcs) Available Now. Backorder if more than 30.
CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00400-S15 (5 Pcs) --- External Retaining Rings - 4x0.4x3.8 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $7.32 AUD Regular price Sale price $7.32 AUD Unit price per 30 Available Now
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm		Groove Width (W) 0.70 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
Shaft Diameter (Ds) 5.00 mm (Equiv. 0.197 in.)	Clip Thickness (T) 0.60 mm _{+ 0.00 / - 0.04} (Equiv. 0.024 in.)	Groove Dia. (Dg) 4.78 mm _{+ 0.00 / - 0.05} (Equiv. 0.188 in.)	Approx. Loose Circlip ID (A) 4.70 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.70 mm Clearance on Shaft (C1): 10.30 mm Clearance in Groove (C1): 9.80 mm Min. Lug Diameter (h): 1.00 mm Min. Extension (n): 0.30 Standard: DIN471
Part Number: CCE-00500-S15 (10 Pcs) External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 43 units (430 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per Per 10 Quantity Required 43 units (430 pcs) Available Now. Backorder if more than 43.
CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00500-S15 (10 Pcs) --- External Retaining Rings - 5x0.6x4.78 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.05 AUD Regular price ~~$8.48 AUD~~ Sale price $3.05 AUD Unit price per 43 Available Now Sale
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm		Groove Width (W) 0.80 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
Shaft Diameter (Ds) 6.00 mm (Equiv. 0.236 in.)	Clip Thickness (T) 0.70 mm _{+ 0.00 / - 0.04} (Equiv. 0.028 in.)	Groove Dia. (Dg) 5.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.224 in.)	Approx. Loose Circlip ID (A) 5.60 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.80 mm Clearance on Shaft (C1): 11.70 mm Clearance in Groove (C1): 11.10 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00600-S15 (10 Pcs) External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 39 units (390 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per Per 10 Quantity Required 39 units (390 pcs) Available Now. Backorder if more than 39.
CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00600-S15 (10 Pcs) --- External Retaining Rings - 6x0.7x5.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $9.23 AUD Regular price Sale price $9.23 AUD Unit price per 39 Available Now
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 31 units (155 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5 Quantity Required 31 units (155 pcs) Available Now. Backorder if more than 31.
Shaft Diameter (Ds) 6.35 mm (Equiv. 0.25 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.038} (Equiv. 0.025 in.)	Groove Dia. (Dg) 5.84 mm _{+/- 0.051} (Equiv. 0.23 in.)	Approx. Loose Circlip ID (A) 5.72 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 11.43 mm Clearance in Groove (C1): 11.43 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.81 Standard: MIL-16624
Part Number: CCE-00635-S15 (5 Pcs) External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 31 units (155 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per Per 5 Quantity Required 31 units (155 pcs) Available Now. Backorder if more than 31.
CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00635-S15 (5 Pcs) --- External Retaining Rings - 6.35x0.64x5.84 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $10.77 AUD Regular price Sale price $10.77 AUD Unit price per 31 Available Now
Shaft Diameter (Ds) 7.00 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-S15 (2 Pcs) External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 55 units (110 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price ~~$5.81 AUD~~ Sale price $2.14 AUD Unit price per Per 2 Quantity Required 55 units (110 pcs) Available Now. Backorder if more than 55.
Shaft Diameter (Ds) 7.00 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 6.70 mm _{+ 0.00 / - 0.05} (Equiv. 0.264 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 13.50 mm Clearance in Groove (C1): 12.90 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.50 Standard: DIN471
Part Number: CCE-00700-S15 (2 Pcs) External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 55 units (110 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $2.14 AUD Regular price ~~$5.81 AUD~~ Sale price $2.14 AUD Unit price per Per 2 Quantity Required 55 units (110 pcs) Available Now. Backorder if more than 55.
CCE-00700-S15 (2 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00700-S15 (2 Pcs) --- External Retaining Rings - 7x0.8x6.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $2.14 AUD Regular price ~~$5.81 AUD~~ Sale price $2.14 AUD Unit price per 55 Available Now Sale
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-S15 (2 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 units (30 pcs) Available Now \| Further orders can be expected around Mon, Dec 15, 2025 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 15 units (30 pcs) Available Now. Backorder if more than 15.
Shaft Diameter (Ds) 7.01 mm (Equiv. 0.276 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.48 mm _{+/- 0.051} (Equiv. 0.255 in.)	Approx. Loose Circlip ID (A) 6.35 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.19 mm Clearance in Groove (C1): 11.68 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.89 Standard: MIL-16624
Part Number: CCE-00701-S15 (2 Pcs) External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 units (30 pcs) Available Now \| Further orders can be expected around Mon, Dec 15, 2025 Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 15 units (30 pcs) Available Now. Backorder if more than 15.
CCE-00701-S15 (2 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00701-S15 (2 Pcs) --- External Retaining Rings - 7.01x0.64x6.48 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.58 AUD~~ Sale price $1.68 AUD Unit price per 15 Available Now Sale
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-S15 (5 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 units (75 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.59 AUD Regular price ~~$10.04 AUD~~ Sale price $3.59 AUD Unit price per Per 5 Quantity Required 15 units (75 pcs) Available Now. Backorder if more than 15.
Shaft Diameter (Ds) 7.14 mm (Equiv. 0.281 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 6.63 mm _{+/- 0.051} (Equiv. 0.261 in.)	Approx. Loose Circlip ID (A) 6.50 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 12.45 mm Clearance in Groove (C1): 12.45 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.84 Standard: MIL-16624
Part Number: CCE-00714-S15 (5 Pcs) External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 units (75 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.59 AUD Regular price ~~$10.04 AUD~~ Sale price $3.59 AUD Unit price per Per 5 Quantity Required 15 units (75 pcs) Available Now. Backorder if more than 15.
CCE-00714-S15 (5 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00714-S15 (5 Pcs) --- External Retaining Rings - 7.14x0.64x6.63 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.59 AUD Regular price ~~$10.04 AUD~~ Sale price $3.59 AUD Unit price per 15 Available Now Sale
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-S15 (5 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 48 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 5 Quantity Required 48 units (240 pcs) Available Now. Backorder if more than 48.
Shaft Diameter (Ds) 7.94 mm (Equiv. 0.313 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 7.37 mm _{+/- 0.051} (Equiv. 0.29 in.)	Approx. Loose Circlip ID (A) 7.14 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 13.72 mm Clearance in Groove (C1): 13.21 mm Min. Extension (n): 0.91 Standard: MIL-16624
Part Number: CCE-00794-S15 (5 Pcs) External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 48 units (240 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per Per 5 Quantity Required 48 units (240 pcs) Available Now. Backorder if more than 48.
CCE-00794-S15 (5 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00794-S15 (5 Pcs) --- External Retaining Rings - 7.94x0.64x7.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $11.05 AUD Regular price Sale price $11.05 AUD Unit price per 48 Available Now
Shaft Diameter (Ds) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm		Groove Width (W) 0.90 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-S15 (5 Pcs) External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 33 units (165 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 5 Quantity Required 33 units (165 pcs) Available Now. Backorder if more than 33.
Shaft Diameter (Ds) 8.00 mm (Equiv. 0.315 in.)	Clip Thickness (T) 0.80 mm _{+ 0.00 / - 0.06} (Equiv. 0.031 in.)	Groove Dia. (Dg) 7.60 mm _{+ 0.00 / - 0.05} (Equiv. 0.299 in.)	Approx. Loose Circlip ID (A) 7.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.90 mm Clearance on Shaft (C1): 14.70 mm Clearance in Groove (C1): 14.00 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00800-S15 (5 Pcs) External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 33 units (165 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per Per 5 Quantity Required 33 units (165 pcs) Available Now. Backorder if more than 33.
CCE-00800-S15 (5 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00800-S15 (5 Pcs) --- External Retaining Rings - 8x0.8x7.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $15.14 AUD Regular price Sale price $15.14 AUD Unit price per 33 Available Now
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-S15 (5 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.95 AUD Regular price ~~$11.12 AUD~~ Sale price $3.95 AUD Unit price per Per 5 Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
Shaft Diameter (Ds) 8.74 mm (Equiv. 0.344 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.15 mm _{+/- 0.051} (Equiv. 0.321 in.)	Approx. Loose Circlip ID (A) 7.85 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.48 mm Clearance in Groove (C1): 13.97 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00874-S15 (5 Pcs) External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 13 units (65 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $3.95 AUD Regular price ~~$11.12 AUD~~ Sale price $3.95 AUD Unit price per Per 5 Quantity Required 13 units (65 pcs) Available Now. Backorder if more than 13.
CCE-00874-S15 (5 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00874-S15 (5 Pcs) --- External Retaining Rings - 8.74x0.64x8.15 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $3.95 AUD Regular price ~~$11.12 AUD~~ Sale price $3.95 AUD Unit price per 13 Available Now Sale
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-S15 (2 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.68 AUD Regular price ~~$4.64 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
Shaft Diameter (Ds) 8.99 mm (Equiv. 0.354 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.38 mm _{+/- 0.051} (Equiv. 0.33 in.)	Approx. Loose Circlip ID (A) 8.13 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 14.99 mm Clearance in Groove (C1): 14.73 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00899-S15 (2 Pcs) External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 12 units (24 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.68 AUD Regular price ~~$4.64 AUD~~ Sale price $1.68 AUD Unit price per Per 2 Quantity Required 12 units (24 pcs) Available Now. Backorder if more than 12.
CCE-00899-S15 (2 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00899-S15 (2 Pcs) --- External Retaining Rings - 8.99x0.64x8.38 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.68 AUD Regular price ~~$4.64 AUD~~ Sale price $1.68 AUD Unit price per 12 Available Now Sale
Shaft Diameter (Ds) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
Shaft Diameter (Ds) 9.00 mm (Equiv. 0.354 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.06} (Equiv. 0.039 in.)	Groove Dia. (Dg) 8.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.339 in.)	Approx. Loose Circlip ID (A) 8.40 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 16.00 mm Clearance in Groove (C1): 15.20 mm Min. Lug Diameter (h): 1.20 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-00900-S15 (5 Pcs) External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 10 units (50 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per Per 5 Quantity Required 10 units (50 pcs) Available Now. Backorder if more than 10.
CCE-00900-S15 (5 Pcs) --- External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-00900-S15 (5 Pcs) --- External Retaining Rings - 9x1x8.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $15.41 AUD Regular price Sale price $15.41 AUD Unit price per 10 Available Now
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.77 AUD Regular price ~~$4.73 AUD~~ Sale price $1.77 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
Shaft Diameter (Ds) 9.53 mm (Equiv. 0.375 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 8.94 mm _{+/- 0.051} (Equiv. 0.352 in.)	Approx. Loose Circlip ID (A) 8.59 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.49 mm Clearance in Groove (C1): 14.99 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 0.97 Standard: MIL-16624
Part Number: CCE-00953-S15 (2 Pcs) External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 18 units (36 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.77 AUD Regular price ~~$4.73 AUD~~ Sale price $1.77 AUD Unit price per Per 2 Quantity Required 18 units (36 pcs) Available Now. Backorder if more than 18.
CCE-00953-S15 (2 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-00953-S15 (2 Pcs) --- External Retaining Rings - 9.53x0.64x8.94 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.77 AUD Regular price ~~$4.73 AUD~~ Sale price $1.77 AUD Unit price per 18 Available Now Sale
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 92 units (460 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 5 Quantity Required 92 units (460 pcs) Available Now. Backorder if more than 92.
Shaft Diameter (Ds) 10.00 mm (Equiv. 0.394 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 9.60 mm _{+ 0.00 / - 0.06} (Equiv. 0.378 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.00 mm Clearance in Groove (C1): 16.20 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.60 Standard: DIN471
Part Number: CCE-01000-S15 (5 Pcs) External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 92 units (460 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per Per 5 Quantity Required 92 units (460 pcs) Available Now. Backorder if more than 92.
CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01000-S15 (5 Pcs) --- External Retaining Rings - 10x1x9.6 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $16.05 AUD Regular price Sale price $16.05 AUD Unit price per 92 Available Now
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 48 units (96 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.06 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 48 units (96 pcs) Available Now. Backorder if more than 48.
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.37 mm _{+/- 0.051} (Equiv. 0.369 in.)	Approx. Loose Circlip ID (A) 8.99 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 15.75 mm Clearance in Groove (C1): 15.24 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.04 Standard: MIL-16624
Part Number: CCE-01001-S15 (2 Pcs) External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 48 units (96 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.06 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 48 units (96 pcs) Available Now. Backorder if more than 48.
CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01001-S15 (2 Pcs) --- External Retaining Rings - 10.01x0.64x9.37 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.86 AUD Regular price ~~$5.06 AUD~~ Sale price $1.86 AUD Unit price per 48 Available Now Sale
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+/- 0.051} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$13.07 AUD~~ Sale price $4.77 AUD Unit price per Each Quantity Required 15 Available Now. Backorder if more than 15.
Shaft Diameter (Ds) 10.01 mm (Equiv. 0.394 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 9.35 mm _{+/- 0.051} (Equiv. 0.368 in.)	Approx. Loose Circlip ID (A) 9.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Standard: MIL-3217
Part Number: CCE-01001H-S15 External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 15 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $4.77 AUD Regular price ~~$13.07 AUD~~ Sale price $4.77 AUD Unit price per Each Quantity Required 15 Available Now. Backorder if more than 15.
CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01001H-S15 --- External Retaining Rings - 10.01x0.89x9.35 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.77 AUD Regular price ~~$13.07 AUD~~ Sale price $4.77 AUD Unit price per 15 Available Now Sale
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm	Radial Wall (S) min/max B (Square Ends) mm	Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 75 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.00 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
Shaft Diameter (Ds) 10.32 mm (Equiv. 0.406 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 9.70 mm _{+/- 0.051} (Equiv. 0.382 in.)	Approx. Loose Circlip ID (A) 9.30 mm
Material: Stainless Steel Grade PH15-7 Mo Radial Wall (S) min/max: B (Square Ends) mm Groove Width (W): 0.74 mm Min. Extension (n): 0.99 Standard: MIL-16624
Part Number: CCE-01032-S15 (2 Pcs) External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 75 units (150 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.00 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 75 units (150 pcs) Available Now. Backorder if more than 75.
CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01032-S15 (2 Pcs) --- External Retaining Rings - 10.32x0.64x9.7 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.86 AUD Regular price ~~$5.00 AUD~~ Sale price $1.86 AUD Unit price per 75 Available Now Sale
Shaft Diameter (Ds) 10.87 mm (Equiv. 0.428 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 10.21 mm _{+/- 0.051} (Equiv. 0.402 in.)	Approx. Loose Circlip ID (A) 10.10 mm		Groove Width (W) 1.00 mm
Material: Stainless Steel Grade PH15-7 Mo Standard: MIL-3217
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.05 AUD Regular price ~~$13.82 AUD~~ Sale price $5.05 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
Shaft Diameter (Ds) 10.87 mm (Equiv. 0.428 in.)	Clip Thickness (T) 0.89 mm _{+ 0.025 / - 0.052} (Equiv. 0.035 in.)	Groove Dia. (Dg) 10.21 mm _{+/- 0.051} (Equiv. 0.402 in.)	Approx. Loose Circlip ID (A) 10.10 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.00 mm Standard: MIL-3217
Part Number: CCE-01087H-S15 External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 5 Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.05 AUD Regular price ~~$13.82 AUD~~ Sale price $5.05 AUD Unit price per Each Quantity Required 5 Available Now. Backorder if more than 5.
CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01087H-S15 --- External Retaining Rings - 10.87x0.89x10.21 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.05 AUD Regular price ~~$13.82 AUD~~ Sale price $5.05 AUD Unit price per 5 Available Now Sale
Shaft Diameter (Ds) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.39 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip ID (A) 10.20 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 66 units (330 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 Quantity Required 66 units (330 pcs) Available Now. Backorder if more than 66.
Shaft Diameter (Ds) 11.00 mm (Equiv. 0.433 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 10.39 mm _{+ 0.00 / - 0.06} (Equiv. 0.409 in.)	Approx. Loose Circlip ID (A) 10.20 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 17.10 mm Clearance in Groove (C1): 18.00 mm Min. Lug Diameter (h): 1.50 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01100-S15 (5 Pcs) External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 66 units (330 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 Quantity Required 66 units (330 pcs) Available Now. Backorder if more than 66.
CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01100-S15 (5 Pcs) --- External Retaining Rings - 11x1x10.39 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 66 Available Now
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01111-S15 (2 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 87 units (174 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.07 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 87 units (174 pcs) Available Now. Backorder if more than 87.
Shaft Diameter (Ds) 11.11 mm (Equiv. 0.437 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 10.46 mm _{+/- 0.051} (Equiv. 0.412 in.)	Approx. Loose Circlip ID (A) 10.03 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 16.76 mm Clearance in Groove (C1): 16.26 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01111-S15 (2 Pcs) External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 87 units (174 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $1.86 AUD Regular price ~~$5.07 AUD~~ Sale price $1.86 AUD Unit price per Per 2 Quantity Required 87 units (174 pcs) Available Now. Backorder if more than 87.
CCE-01111-S15 (2 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01111-S15 (2 Pcs) --- External Retaining Rings - 11.11x0.64x10.46 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $1.86 AUD Regular price ~~$5.07 AUD~~ Sale price $1.86 AUD Unit price per 87 Available Now Sale
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm _{+/- 0.051} (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 10.87 mm		Groove Width (W) 0.74 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01191-S15 (2 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 26 units (52 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2 Quantity Required 26 units (52 pcs) Available Now. Backorder if more than 26.
Shaft Diameter (Ds) 11.91 mm (Equiv. 0.469 in.)	Clip Thickness (T) 0.64 mm _{+/- 0.051} (Equiv. 0.025 in.)	Groove Dia. (Dg) 11.25 mm _{+/- 0.051} (Equiv. 0.443 in.)	Approx. Loose Circlip ID (A) 10.87 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.74 mm Clearance on Shaft (C1): 17.27 mm Clearance in Groove (C1): 16.76 mm Min. Lug Diameter (h): 0.99 mm Min. Extension (n): 1.07 Standard: MIL-16624
Part Number: CCE-01191-S15 (2 Pcs) External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 26 units (52 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per Per 2 Quantity Required 26 units (52 pcs) Available Now. Backorder if more than 26.
CCE-01191-S15 (2 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01191-S15 (2 Pcs) --- External Retaining Rings - 11.91x0.64x11.25 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $6.23 AUD Regular price Sale price $6.23 AUD Unit price per 26 Available Now
Shaft Diameter (Ds) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.453 in.)	Approx. Loose Circlip ID (A) 11.00 mm		Groove Width (W) 1.10 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 19.00 mm Clearance in Groove (C1): 18.10 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01200-S15 (5 Pcs) External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 units (40 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 Quantity Required 8 units (40 pcs) Available Now. Backorder if more than 8.
Shaft Diameter (Ds) 12.00 mm (Equiv. 0.472 in.)	Clip Thickness (T) 1.00 mm _{+ 0.00 / - 0.11} (Equiv. 0.039 in.)	Groove Dia. (Dg) 11.50 mm _{+ 0.00 / - 0.06} (Equiv. 0.453 in.)	Approx. Loose Circlip ID (A) 11.00 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.10 mm Clearance on Shaft (C1): 19.00 mm Clearance in Groove (C1): 18.10 mm Min. Lug Diameter (h): 1.70 mm Min. Extension (n): 0.80 Standard: DIN471
Part Number: CCE-01200-S15 (5 Pcs) External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 8 units (40 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per Per 5 Quantity Required 8 units (40 pcs) Available Now. Backorder if more than 8.
CCE-01200-S15 (5 Pcs) --- External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01200-S15 (5 Pcs) --- External Retaining Rings - 12x1x11.5 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.23 AUD Regular price Sale price $5.23 AUD Unit price per 8 Available Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm		Groove Width (W) 0.99 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624
Part Number: CCE-01270-S15 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 units (14 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 2 Quantity Required 7 units (14 pcs) Available Now. Backorder if more than 7.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 0.89 mm _{+/- 0.051} (Equiv. 0.035 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.71 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 0.99 mm Clearance on Shaft (C1): 19.56 mm Clearance in Groove (C1): 18.80 mm Min. Lug Diameter (h): 1.14 mm Min. Extension (n): 1.30 Standard: MIL-16624
Part Number: CCE-01270-S15 (2 Pcs) External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip 7 units (14 pcs) Available Now \| Further orders can be expected around Sun, Sep 21, 2025 Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per Per 2 Quantity Required 7 units (14 pcs) Available Now. Backorder if more than 7.
CCE-01270-S15 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip CCE-01270-S15 (2 Pcs) --- External Retaining Rings - 12.7x0.89x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $5.86 AUD Regular price Sale price $5.86 AUD Unit price per 7 Available Now
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 1.27 mm _{+ 0.025 / - 0.052} (Equiv. 0.05 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.68 mm		Groove Width (W) 1.42 mm
Material: Stainless Steel Grade PH15-7 Mo Clearance on Shaft (C1): 19.05 mm Min. Extension (n): 1.22 Standard: MIL-3217
Part Number: CCE-01270H-S15 External Retaining Rings - 12.7x1.27x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price ~~$9.16 AUD~~ Sale price $4.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
Shaft Diameter (Ds) 12.70 mm (Equiv. 0.5 in.)	Clip Thickness (T) 1.27 mm _{+ 0.025 / - 0.052} (Equiv. 0.05 in.)	Groove Dia. (Dg) 11.89 mm _{+/- 0.051} (Equiv. 0.468 in.)	Approx. Loose Circlip ID (A) 11.68 mm
Material: Stainless Steel Grade PH15-7 Mo Groove Width (W): 1.42 mm Clearance on Shaft (C1): 19.05 mm Min. Extension (n): 1.22 Standard: MIL-3217
Part Number: CCE-01270H-S15 External Retaining Rings - 12.7x1.27x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Out of Stock \| Backorder Now \| Orders can be expected around Sun, Sep 21, 2025 Regular price $4.41 AUD Regular price ~~$9.16 AUD~~ Sale price $4.41 AUD Unit price per Each Quantity Required Backorder: Out of Stock.
CCE-01270H-S15 --- External Retaining Rings - 12.7x1.27x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Sale CCE-01270H-S15 --- External Retaining Rings - 12.7x1.27x11.89 mm Circlips - Stainless Steel Grade PH15-7 Mo Circlip Regular price $4.41 AUD Regular price ~~$9.16 AUD~~ Sale price $4.41 AUD Unit price per Out of stock! Backorder Now Sale
